Overview

What is TensorFlow Lite Micro
  • TensorFlow: Deep learning framework
    • ~400MB in size on average
    • ~1-2G in random memory
  • TensorFlow Lite (TensorFlow Mobile)
    • ~1MB in size (binary)
    • still not enough
  • TensorFlow Lite Micro (TFL Micro)
    • extreme compression of TF Lite
    • Core runtime size is ~16KB

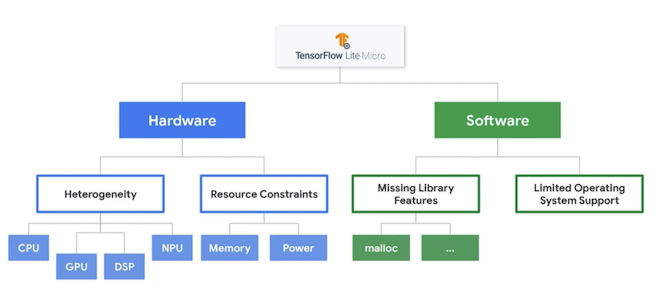

Constraints of TF Lite Micro
Hardware
  • Tought requirements (power, cost, form factor, performance) for embedded systems result in diverse sets of hardware products with different tradeoffs.
    • Therefore, the framework has to be radically portable, able to compile and run with no errors across a wide range of computer architectures.
    • There has to be an easy way to optimizing code for each type of platform.
  • Tough requirements also result in small amount of memory and low clock rates.
Software
  • The constraints of embedded requirements also extend to the system software that’s available.
    • Lack of heap and dynamic memory allocation on embedded systems
    • Memory allocation has to be explicit and carefully done.
  • Lack of operating system/OS support.
  • Result:
    • TFL Micro can run across a wide variety of different boards with very little memory and no operating system facilities.
    • TFL Micro focuses on memory size optimization, avoiding dynamic memory allocation, using a very minimal set of standard library functions, and keeping its code as portable as possible.

How to use TFL Micro

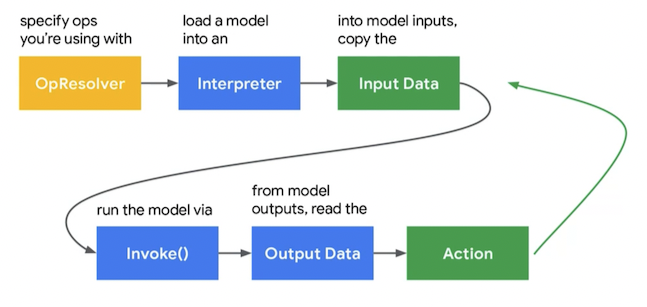

Overview
Example: hello, world
  • File/Examples/Harvard_TinyMLx/hello_world
    • hello_world.ino
    • arduino_constants.cpp
    • arduino_main.cpp
    • arduino_output_handler.cpp
    • constants.h
    • main_functions.h
    • model.cpp
    • model.h
    • output_handler.h
  • hello_world.ino
    • General idea: takes an input value and calculates an estimate of the sine function on that value.
      • Emulating: input, interpreter, output
      • Physical output (LED) depends on outpt.
  • Main operation happens in loop

Key structures of TFL Micro

Interpreter

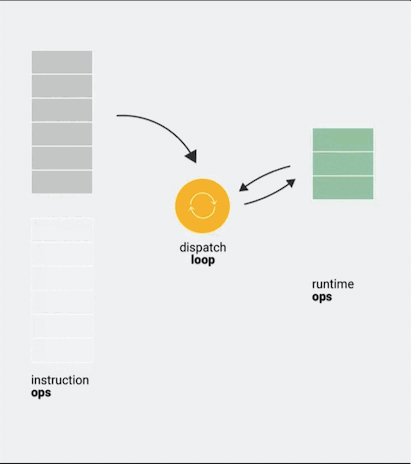

  • TFL Micro uses an interpreter design
    • Store the model as data and loop through its ops at runtime

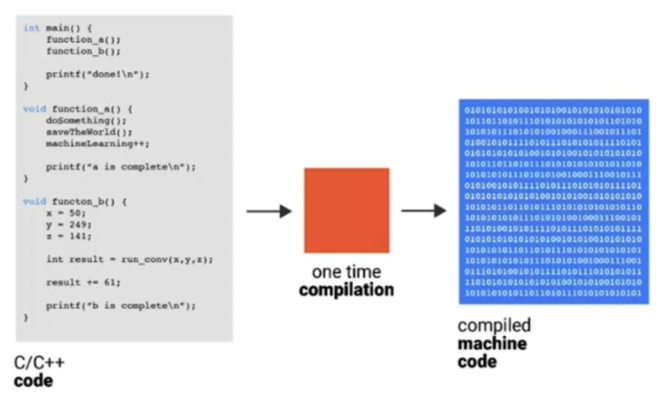

  • On Desktop, compiler is generally faster than interpreted code (see Python vs. C/C++)
  • However, for Machine Learning task, it is different.
    • Each layer like Conv or Softwmax can take tens of thousands or even millions of cycles to complete execution.
  • How to implement an interpreted model
    • The model itself contains a list of operators and arguments
    • The interpreter looks through this list of runtime and calls the appropriate operator implementations or kernels.


    1
2
3
4
5


      if (op_type == CONV2D) {
      Convolution2d(conv_size, input, output, weights);
  } else if (op_type == FULLY_CONNECTED) {
      FullyConnected(input, output, weights);
  }
Model Format and FlatBuffer
  • Interpreters needs operators, weights, etc to run a model
  • How is this information stored?


1
2
3
4
5
6
7
8


model = tflite::GetModel(g_model);
if (model->version() != TFLITE_SCHEMA_VERSION) {
    TF_LITE_REPORT_ERROR(error_reporter,
                        "Model provided is schema version %d not equal "
                        "to supported version %d.",
                        model->version(), TFLITE_SCHEMA_VERSION);
    return;
}
  • In hello_world: g_model is declared in model.cpp
    • Is an array of bytes, and act as the equivalent of a file on disk (but is actually stored in memory)
    • Holds all of the information about the model: its operators, their connections, and the trained weights.
  • From Python, g_model is originally a data structure.
    • Serialization turns a data structure into a form that can be stored as an array of bytes, and then understood by many other languages.

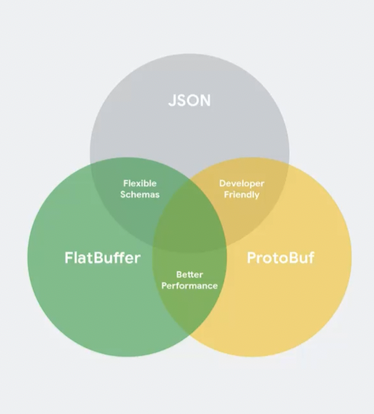

    • Other ways of serializing data,
      • JSON
      • ProtoBuf
      • FlatBuffer
  • TFL Micro uses FlatBuffers due to:
    • Memory efficiency
    • Does not require copies to be made before using the data inside the model
    • Works without requiring any unpacking
    • The format is formally specified as a schema file, which then can be used to automatically generate code to access the information in the model byte array.
Hands-on: FlatBuffers
Memory allocation: Tensor Arena
  • Easy to hit memory limits on embedded systems: need control over memory usage.
  • Embedded devices are expected to run over months or years
    • Challenges for memory allocations
    • Needs guarantee on having no fragmentation due to contiguous memory allocation over time:
      • No dynamic memory allocation at all!
  • No OS support: no malloc and new.
  • Solution:
    • A predefined contiguous area of memory is given to the interpreter, and no other memory allocation is requested in the future.
    • Framework guarantees that this area is reserved and not allocated from (prevent fragmentation).
    • No dependency on malloc or new.

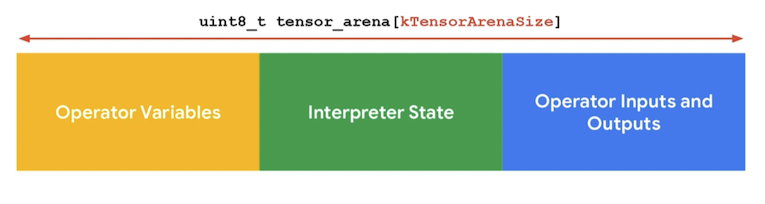

  • hello_world: global namespace declaration


1
2


constexpr int kTensorArenaSize = 2000;
uint8_t tensor_arena[kTensorArenaSize];
  • How to determine area size?
    • It depends!
    • Depends on what ops are in model, their sizes, and the sizes of the operator inputs and outputs platform.
  • Solution:
    • Create as large an arena as possible,
    • Use arena_used_bytes() to get the actual size used.
    • Resize/rebuild/retest.
OpResolver

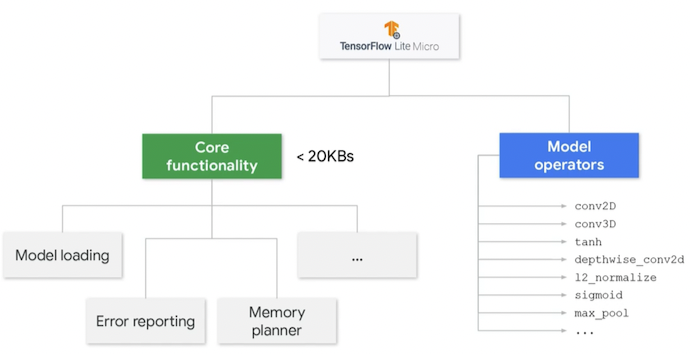

  • TF library:
    • ~1400 and growing number of operators in TF
    • Not all are used or even needed for inference
  • Help reduce the amount of space that library code takes up:
    • Not all operators are used or
    • Only load operations that are absolutely necessary.
  • Allow developers to specify which ops they want to be included in the library

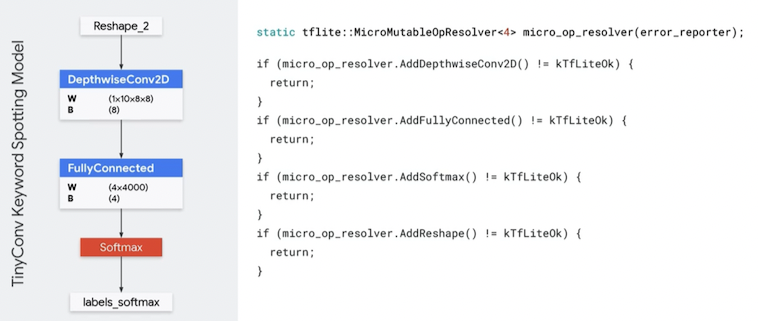

1


static tflite::AllOpsResolver resolver;
