Full Cycle

In this lecture, we revisit a full cycle of tinyML deployment. For the sake of simplicity, let’s envision that this cycle is motivated by a need for sensors to detect swerving movement of drivers (sudden side-to-side).

Stage 1: Data Generation

We start by developing a firmware sketch for the Nano33BLE device that can detect side-to-side movement. Before we can detect something, we must be able to observe it. Let’s start with observing the Nano33BLE’s IMU sensors.

• We will utilize Serial connection to observe the collected data via pio device monitor.
• Since we are observing side-to-side only, for the sake of simplicity, we can
  • Ignore gyroscope and magnetometer components of IMU
  • For accelerometer, we can
    • assume side to side movement is on the short side of the board (x), and
    • ignore the z-axis and focus only on x and y axes.

Initial firmware sketch for data collection

• Setup a project called Swerve_data_collect inside firmware directory with the following file contents:

• platformio.ini:

1
2
3
4
5
6
7

[env:nano33ble]
platform = nordicnrf52
board = nano33ble
framework = arduino
lib_deps =
    arduino-libraries/Arduino_BMI270_BMM150
monitor_speed = 9600


• main.cpp:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

#include <Arduino.h>
#include <Arduino_BMI270_BMM150.h>

void setup() {
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial monitor
  }

  if (!IMU.begin()) {
    Serial.println("Failed to initialize IMU!");
    while (1) {
      delay(1000);
    }
  }

  Serial.println("Serial ready. Initializing IMU...");
  Serial.println("IMU ready.");
  Serial.println("Ax");
}

void loop() {
  float ax, ay, az;

  if (IMU.accelerationAvailable()) {
    IMU.readAcceleration(ax, ay, az);
  }

  char line[10];
  snprintf(line,sizeof(line),"%.3f", ax);
  Serial.println(line);
  delay(100);
}


• Compile and upload.

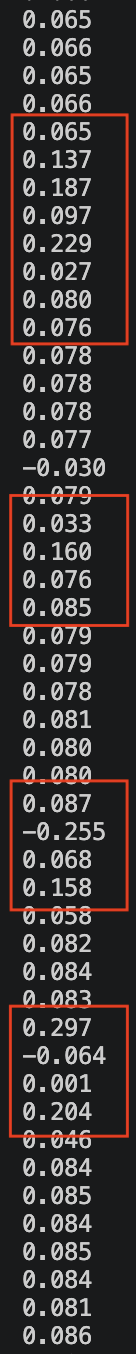

• Data collected from an initial run of the above sketch are shown in the following Figure

• The red rectangles indicate the moments when the chip was moved suddenly side-to-side.
• Problem: individual data points do not seem to follow a monotonically increasing and decreasing, but there are dips within the side-to-side range. This means that the timing delay (delay(100)) for individual data points is not that great.
• Reducing delay using the current code will cause more data to be emitted.
  • Perhaps we need to report averaged time?

Firmware sketch for windowed data collection

• Update main.cpp with the following:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

#include <Arduino.h>
#include <Arduino_BMI270_BMM150.h>

#define WINDOW_SIZE 8
#define BUFFER_MASK (WINDOW_SIZE - 1)

float buffer[WINDOW_SIZE];
int head = 0;
float running_sum = 0.0;
float average = 0.0;

void setup() {
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial monitor
  }

  if (!IMU.begin()) {
    Serial.println("Failed to initialize IMU!");
    while (1) {
      delay(1000);
    }
  }

  Serial.println("Serial ready. Initializing IMU...");
  Serial.println("IMU ready.");
  Serial.println("Ax");
}

void loop() {
  float ax, ay, az;

  if (IMU.accelerationAvailable()) {
    IMU.readAcceleration(ax, ay, az);
  }

  running_sum -= buffer[head];
  buffer[head] = ax * ax;
  running_sum += buffer[head];
  head = (head + 1) & BUFFER_MASK;
  average = running_sum / WINDOW_SIZE;

  char line[10];
  snprintf(line,sizeof(line),"%.3f", average);
  Serial.println(line);
  delay(10);
}


• Compile and upload.
• In the updated source code, the following changes are made:
  • We implement a circular buffer using a fixed size array (float buffer[WINDOW_SIZE]) of size WINDOW_SIZE.
    • Once the buffer is full, the data will be wrapped around in a circular fashion.
  • WINDOW_SIZE should be a power of 2 to help quickly calculate wrap-around using bitwise operation (head = (head + 1) & BUFFER_MASK;).
  • We don’t care about whether it is negative or positive, but we want to magnify the effect: running_sum += ax * ax;
• Data points appear in a less fluctuating fashion, but it is still challenging to identify data segments that match up with the side-to-side movement.

Stage 2: Data Engineering

The board is generating data now, and it looks reasonable via the serial monitor. However, for data engineering purpose, we need to have a better way of observing data. The next step is therefore to move data over to a PC via USB serial for visual and analytical purpose.

• We will actually report both individual data points and the moving averages.
• We will collect 1000 data points. With a 10ms per point, we will need to move the board side to side several times within a 10s window.

Firmware sketch for data transfer to PC

• Update main.cpp with the following:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

#include <Arduino.h>
#include <Arduino_BMI270_BMM150.h>

#define WINDOW_SIZE 8
#define BUFFER_MASK (WINDOW_SIZE - 1)

float buffer[WINDOW_SIZE];
int head = 0;
float running_sum = 0.0;
float average = 0.0;

void setup() {
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial monitor
  }

  if (!IMU.begin()) {
    Serial.println("Failed to initialize IMU!");
    while (1) {
      delay(1000);
    }
  }

  Serial.println("Serial ready. Initializing IMU...");
  Serial.println("IMU ready.");
  Serial.println("Ax");
}

void loop() {
  float ax, ay, az;

  if (IMU.accelerationAvailable()) {
    IMU.readAcceleration(ax, ay, az);
  }

  running_sum -= buffer[head];
  buffer[head] = ax * ax;
  running_sum += buffer[head];
  head = (head + 1) & BUFFER_MASK;
  average = running_sum / WINDOW_SIZE;

  char line[10];
  snprintf(line,sizeof(line),"%.3f|%.3f", ax, average);  Serial.println(line);
  delay(10);
}


Python Notebook

• Create a new notebook called data_engineering.ipynb with the tinyml kernel.
• This notebook is similar to the serial_plot.ipynb notebook, but we only implement the cells that we need.
• Serial port selection is further automated as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

from serial.tools import list_ports
ports = list(list_ports.comports())

if not ports:
    print("No serial ports found. Check the USB cable, board connection, and drivers.")
else:
    for p in ports:
        print(f"{p.device:20s} | {p.description} | {p.hwid}")

PORT = [p for p in ports if p.description == "Nano 33 BLE"][0].device
BAUD_RATE = 9600
READ_TIMEOUT_SECONDS = 1

print(f"Using port: {PORT}")


• The next cell helps us setup a function to parse the serial data that was sent via the format specified in main.cpp.
  • A small test is added at the end of this cell.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

import time
from datetime import datetime

SENSOR_DATA = ["accel_x", "avg_accel_x"]
def parse_sensor_line(line: str):
    line = line.strip()
    numbers = [float(x) for x in line.split("|")]

    data_point = {
        "timestamp": datetime.now().isoformat(timespec="milliseconds"),
        "raw": line,
        "accel_x": 0.0,
        "avg_accel_x": 0.0,
    }

    if len(numbers) >= 2:
        for name, value in zip(SENSOR_DATA, numbers[:2]):
            data_point[name] = value
    return data_point

# Quick parser test
test_line = "0.045|0.001"
parse_sensor_line(test_line)


• With the function, we can now collect data from the board for 10 seconds.
  • Attempt to shake the board side to side suddenly several times during this period.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

import pandas as pd
import serial

def collect_sensor_data(port: str=PORT, baud_rate: int=BAUD_RATE, seconds: int=10):
    points = []
    print(f"Opening {port} at {baud_rate} baud...")

    with serial.Serial(port, baud_rate, timeout=READ_TIMEOUT_SECONDS) as ser:
        time.sleep(2)
        ser.reset_input_buffer()

        print("Collecting data. Press the stop button in Jupyter to interrupt.")
        start = time.time()
        while time.time() - start < seconds:
            raw = ser.readline()
            if not raw:
                continue

            line = raw.decode("utf-8", errors="replace").strip()
            if not line:
                continue

            data_point = parse_sensor_line(line)
            data_point["elapsed_seconds"] = time.time() - start
            points.append(data_point)

    df = pd.DataFrame(points)
    print(f"Collected {len(df)} data points.")
    return df

df = collect_sensor_data(seconds=10)
df.head()


• We can visualize the collected data (in Pandas DataFrame format) as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13

import matplotlib.pyplot as plt
from IPython.display import clear_output, display

columns=("accel_x", "avg_accel_x")
plt.figure(figsize=(10, 5))
for col in columns:
    plt.plot(df["elapsed_seconds"], df[col], label=col)
plt.xlabel("Elapsed time (seconds)")
plt.ylabel("Sensor value")
plt.title("Live Nano 33 BLE Sensor Stream")
plt.legend(loc="upper right")
plt.grid(True)
plt.show()

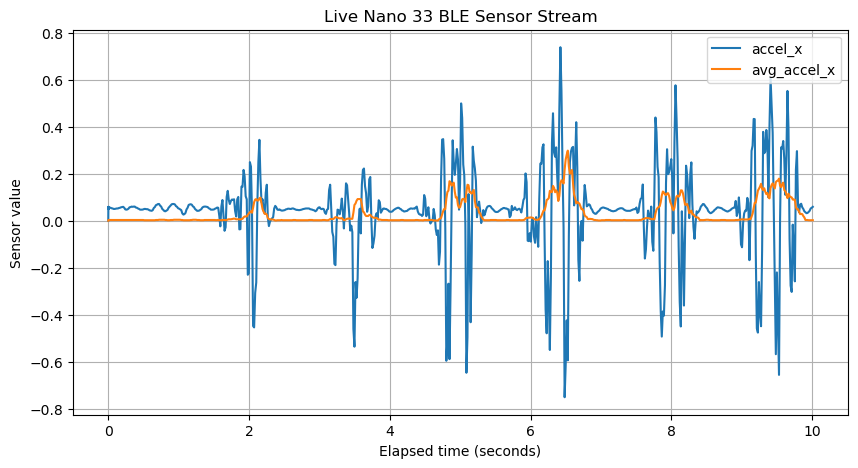

• The outcome of this cell provide a much clearer visual of the detected movement.

• From the above graph, our data labeling strategy is as follows:
  • The label represents the occurence of significant side-to-side sudden movement and has two possible values:
    • Y: There is side-to-side sudden movement.
    • N: There is no side-to-side sudden movement.
  • If the moving average sensor value is higher than 0.1, we will label the data point Y.
  • Otherwise, we will label the data point N.

1
2
3
4
5
6
7
8
9
10
11

import numpy as np

# 1. Define the list of conditional checks
conditions = [df["avg_accel_x"] >= 0.1, df["avg_accel_x"] < 0.1]

# 2. Define the corresponding labels for those conditions
labels = ["Y", "N"]

# 3. Apply numpy select
df["Label"] = np.select(conditions, labels, default="Unknown")
df.head(50)


• We drop the first 10 and the last 10 entries of the dataframe to account for possible initial connection discrepancies, then save the data.

1
2
3
4
5
6
7
8
9
10

from pathlib import Path

DATA_DIR = Path("data")
DATA_DIR.mkdir(parents=True, exist_ok=True)
output_file = DATA_DIR / "nano33ble_sensor_capture.csv"

df_cleaned = df.iloc[10:-10]
df_cleaned.to_csv(output_file, index=False)

print(f"Saved {len(df_cleaned)} rows to {output_file}")


Stage 3: Model Development

• With the data from Stage 2, we will now build a model to predict the side-to-side movement based on the moving average.
• This model is fairly simple, given our feature and label.
• Create a notebook called model_development.ipynb.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

import pandas as pd
from sklearn.model_selection import train_test_split
from pathlib import Path

DATA_DIR = Path("data")
input_file = DATA_DIR / "nano33ble_sensor_capture.csv"

FEATURE_COL = "avg_accel_x"
LABEL_COL = "Label"

df = pd.read_csv(input_file)
df[FEATURE_COL] = pd.to_numeric(df[FEATURE_COL], errors="coerce")

X_data = df[[FEATURE_COL]].to_numpy()  # Shaped as (N, 1) for the network
y_data = df[LABEL_COL].map({"Y": 1, "N": 0}).to_numpy() # Shape (N,) for binary classification and ensure it's numeric

X_train, X_test, y_train, y_test = train_test_split(X_data, y_data, test_size=0.20, random_state=42)

# Calculate normalization constants from training data
X_mean = X_train.mean()
X_std = X_train.std()

# Manually scale the training and testing sets
X_train_scaled = (X_train - X_mean) / X_std
X_test_scaled = (X_test - X_mean) / X_std

print(f"Scaling Parameters: Mean: {X_mean}, Std: {X_std}")
print(f"Training samples: {len(X_train)} | Testing samples: {len(X_test)}")


• In this first cell, we load the data from the previous stage and extract the feature column (avg_accel_x) and the label column (Label).
• These Pandas columns are turned into single dimension Numpy array object via the .to_numpy() calls.
• Training and testing sets are created with train_test_split.
• We scale the values of training and testing Xs to between 0 and 1, since the accelerometer can be up to between -4 and 4.
  • These values are printed out to be used later.
• Next, we build and train a model

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

import tensorflow as tf

model = tf.keras.Sequential([
        tf.keras.layers.Input(shape=(1,)),  # Explicitly declare input shape for TFLite
        tf.keras.layers.Dense(8, activation="relu"),
        tf.keras.layers.Dense(1, activation="sigmoid"),  # Sigmoid activation since this is a binary classification problem
    ]
)

model.compile(
    optimizer="adam", loss="binary_crossentropy", metrics=["accuracy"]
)

model.fit(X_train_scaled, y_train,
    epochs=20, batch_size=16,
    validation_data=(X_test_scaled, y_test)
)



• After playing around a bit with batch_size and number of neurons in the hidden layer, this is the best result that I have so far:

• Next, we export the trained model to file.

1
2
3
4
5
6
7
8
9
10
11
12

import pathlib

model_dir = pathlib.Path("./models")
model_dir.mkdir(parents=True, exist_ok=True)

converter = tf.lite.TFLiteConverter.from_keras_model(model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]

tflite_model = converter.convert()

tflite_model_file = model_dir/'model.tflite'
tflite_model_file.write_bytes(tflite_model)


Stage 4: Live Validation

• A major part of a full TinyML deployment workflow is the validation of the model on real time data before actual deployment.
• Create a notebook called model_validation.ipynb.
• First, we load the saved model

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

import tensorflow as tf
import numpy as np
import matplotlib.pylab as plt
from ai_edge_litert.interpreter import Interpreter
from pathlib import Path


model_dir = Path("./models")
tflite_model_file = model_dir/'model.tflite'

interpreter = Interpreter(model_path=str(tflite_model_file))
interpreter.allocate_tensors()

input_details = interpreter.get_input_details()
output_details = interpreter.get_output_details()

input_index = input_details[0]["index"]
output_index = output_details[0]["index"]

input_shape = input_details[0]["shape"]
input_dtype = input_details[0]["dtype"]

print("Input shape expected by TFLite:", input_shape)
print("Input dtype expected by TFLite:", input_dtype)
print("Output shape:", output_details[0]["shape"])


• This cell let you know what input/output dimension you need to setup when receiving data from the board.
• Next, we open a Serial connection and attempt to generate a prediction based on the collected data

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

import serial
from serial.tools import list_ports
import time
from datetime import datetime
import pandas as pd

ports = list(list_ports.comports())

if not ports:
    print("No serial ports found. Check the USB cable, board connection, and drivers.")
else:
    for p in ports:
        print(f"{p.device:20s} | {p.description} | {p.hwid}")

PORT = [p for p in ports if p.description == "Nano 33 BLE"][0].device
BAUD_RATE = 9600
READ_TIME = 10
READ_TIMEOUT_SECONDS = 1

print(f"Using port: {PORT}")

points = []
print(f"Opening {PORT} at {BAUD_RATE} baud for {READ_TIME} seconds...")

with serial.Serial(PORT, BAUD_RATE, timeout=READ_TIMEOUT_SECONDS) as ser:
    time.sleep(2)
    ser.reset_input_buffer()

    print("Collecting data. Press the stop button in Jupyter to interrupt.")
    start = time.time()

    while time.time() - start < READ_TIME:
        raw = ser.readline()
        if not raw:
            continue

        line = raw.decode("utf-8", errors="replace").strip()
        if not line:
            continue
        numbers = [float(x) for x in line.split("|")]
        if len(numbers) < 2:
            print(f"Unexpected data format: '{line}'")
            continue
        input_np = np.array(numbers[1], dtype=input_dtype).reshape(input_shape)
        interpreter.set_tensor(input_index, input_np)
        interpreter.invoke()
        pred = 1 if interpreter.get_tensor(output_index)[0][0] > 0.5 else 0

        data_point = {"timestamp": datetime.now().isoformat(timespec="milliseconds"),
                      "raw": line,
                      "accel_x": numbers[0],
                      "avg_accel_x": numbers[1],
                      "elapsed_seconds": time.time() - start,
                      "prediction": pred
        }
        points.append(data_point)
    df = pd.DataFrame(points)
    print(f"Collected {len(df)} data points.")

df.head(100)


• Most of this code is similar to that of the data engineering notebook, with the functions broken down and integrated into the cell for ease of reading.
• More importantly is the four statements after line has been split into a list of numbers.
  • We setup the input dimension, which is just the second element in numbers (the first element is the raw x sensor value).
  • We setup the tensor for the interpret.
  • We run the inference.
  • We interprets the results using a 0.5 threshold.

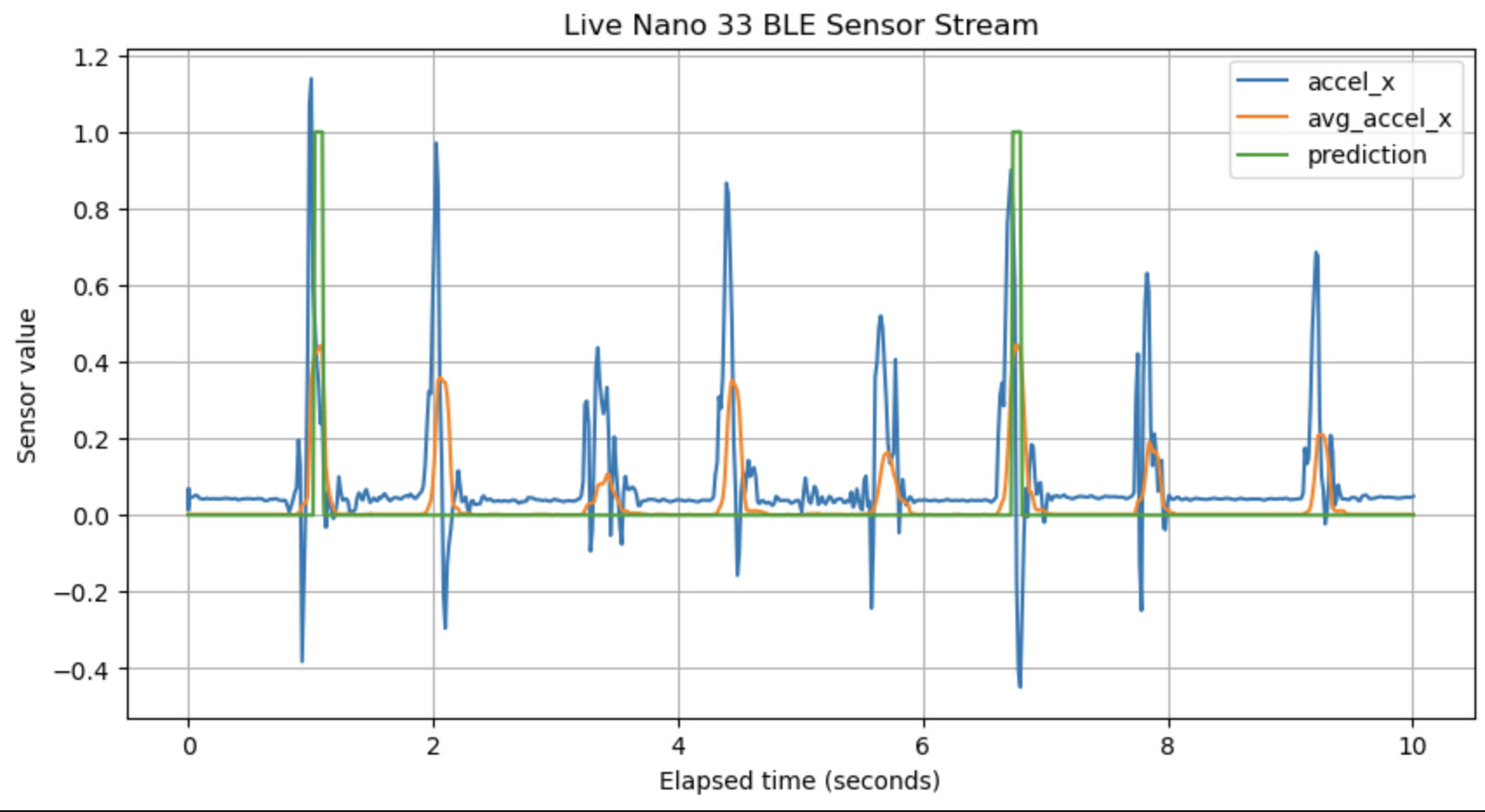

• We graph the prediction along with the avg_accel_x and accel_x values

1
2
3
4
5
6
7
8
9
10
11
12
13

import matplotlib.pyplot as plt
from IPython.display import clear_output, display

columns=("accel_x", "avg_accel_x", "prediction")
plt.figure(figsize=(10, 5))
for col in columns:
    plt.plot(df["elapsed_seconds"], df[col], label=col)
plt.xlabel("Elapsed time (seconds)")
plt.ylabel("Sensor value")
plt.title("Live Nano 33 BLE Sensor Stream")
plt.legend(loc="upper right")
plt.grid(True)
plt.show()


• The results are not exciting yet, we are only able to predict two out of five possible side-to-side events, but it is a start!
• At this point, you can go back and continue refining your model for a better real world validation.

Stage 5: Deployment

• Deploying the model onto the board requires two steps:
  • First, we are to convert the tflite model into tflite micro format as a byte array.
  • Second, we are to setup the sketch so that it can use this byte array to perform on-board inference.
• Create a notebook called model_conversion.ipynb

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

from pathlib import Path

model_dir = Path("./models")
tflite_path = model_dir/'model.tflite'
cc_path = model_dir/'model.cc'

data = pathlib.Path(tflite_path).read_bytes()

lines = []

for i in range(0, len(data), 12):
    chunk = data[i:i + 12]
    hex_values = ", ".join(f"0x{byte:02x}" for byte in chunk)
    lines.append(f"  {hex_values},\n")

pathlib.Path(cc_path).write_text("".join(lines), encoding="utf-8")
print(f"Wrote C array to {cc_path} with {len(data)} bytes of data.")

print("Wrote:", tflite_path, "to", cc_path)
print("C array size:", pathlib.Path(cc_path).stat().st_size, "bytes")


• We load and convert the TFLite model created in the previous notebooks.
  • Pay attention to the C array size.
• Print out the byte array to use in the firmware sketch later.

1
2
3

# Print the end of the generated C source file.
lines = Path(cc_path).read_text(encoding="utf-8").splitlines()
print("\n".join(lines))


• Create a new Arduino project called Swerve with the following platform.ini file

1
2
3
4
5
6
7
8
9
10

[env:nano33ble]
platform = nordicnrf52
board = nano33ble
framework = arduino
monitor_speed = 9600

lib_deps =
    arduino-libraries/ArduinoBLE
    arduino-libraries/Arduino_BMI270_BMM150
    tinymlx/Harvard_TinyMLx


• Create a file called model.cpp inside src
  • Copy the byte array above into the model_data[]
  • Update model_data_len with the C array size above

1
2
3
4

unsigned char model_data[] = {
  BYTE ARRAY GOES HERE
};
unsigned int model_data_len = 11422;


• Create a file called main.cpp inside src
  • This file has codes from main.cpp inside Swerve_data_collect, as we will continue collecting the side-to-side IMU sensor value.
  • Some values inside main.cpp such as the traning_mean and training_std came from the Jupyter notebooks developed earlier.
  • We only have two op_resolver for our model, since the model use just a Dense layer (FullyConnected) and a Dense layer with sigmoid activation (Logistic).

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139

#include <Arduino.h>
#include <Arduino_BMI270_BMM150.h>

#include <TensorFlowLite.h>

#include "tensorflow/lite/micro/micro_error_reporter.h"
#include "tensorflow/lite/micro/micro_interpreter.h"
#include "tensorflow/lite/micro/micro_mutable_op_resolver.h"
#include "tensorflow/lite/schema/schema_generated.h"
#include "tensorflow/lite/version.h"

#define WINDOW_SIZE 8
#define BUFFER_MASK (WINDOW_SIZE - 1)

float buffer[WINDOW_SIZE];
int head = 0;
float running_sum = 0.0;
float average = 0.0;
float scaled_average = 0.0;

/* From model_development.ipynb
  Scaling Parameters: Mean: 0.0636779359430605, Std: 0.126740584005968
*/

#define training_mean 0.0636779359430605
#define training_std 0.126740584005968

constexpr int kTensorArenaSize = 30 * 1024;
uint8_t tensor_arena[kTensorArenaSize];

tflite::ErrorReporter* error_reporter = nullptr;
const tflite::Model* model = nullptr;
tflite::MicroInterpreter* interpreter = nullptr;

constexpr int label_count = 2;
const char* labels[label_count] = {"Y", "N"};

extern const unsigned char model_data[];
extern const int model_data_len;

void setup() {
  // Start serial
  Serial.begin(9600);
  while (!Serial);

  Serial.println("Started");

  // Start IMU
  if (!IMU.begin()) {
    Serial.println("Failed to initialized IMU!");
    while (1);
  }

  static tflite::MicroErrorReporter micro_error_reporter;
  error_reporter = &micro_error_reporter;

  // Map the model into a usable data structure. This doesn't involve any
  // copying or parsing, it's a very lightweight operation.
  model = tflite::GetModel(model_data);
  if (model->version() != TFLITE_SCHEMA_VERSION) {
    TF_LITE_REPORT_ERROR(error_reporter,
                         "Model provided is schema version %d not equal "
                         "to supported version %d.",
                         model->version(), TFLITE_SCHEMA_VERSION);
    return;
  }

  static tflite::MicroMutableOpResolver<2> micro_op_resolver;  // NOLINT
  micro_op_resolver.AddFullyConnected(); // Dense Layer
  micro_op_resolver.AddLogistic(); // Sigmoid is considered a logistic function

  // Build an interpreter to run the model with.
  static tflite::MicroInterpreter static_interpreter(
      model, micro_op_resolver, tensor_arena, kTensorArenaSize, error_reporter);
  interpreter = &static_interpreter;

  // Allocate memory from the tensor_arena for the model's tensors.
  interpreter->AllocateTensors();

  // Get model input tensor
  TfLiteTensor* model_input = interpreter->input(0);

  /* From model_validation.ipynb:
    Input shape expected by TFLite: [1 1]
    Input dtype expected by TFLite: <class 'numpy.float32'>
    Output shape: [1 1]
  */
  if ((model_input->dims->size != 2) ||
      (model_input->dims->data[0] != 1) ||
      (model_input->dims->data[1] != 1) ||
      (model_input->type != kTfLiteFloat32)) {
    TF_LITE_REPORT_ERROR(error_reporter,"Bad input tensor parameters in model");
    return;
  }
  TfLiteTensor* model_output = interpreter->output(0);
  if ((model_output->dims->size != 2) ||
      (model_output->dims->data[0] != 1) ||
      (model_output->dims->data[1] != 1) ||
      (model_output->type != kTfLiteFloat32)) {
    TF_LITE_REPORT_ERROR(error_reporter, "Bad output tensor parameters in model");
    return;
  }
}

void loop() {
  float ax, ay, az;

  if (IMU.accelerationAvailable()) {
    IMU.readAcceleration(ax, ay, az);
  }

  running_sum -= buffer[head];
  buffer[head] = ax * ax;
  running_sum += buffer[head];
  head = (head + 1) & BUFFER_MASK;
  average = running_sum / WINDOW_SIZE;
  scaled_average = (average - training_mean) / training_std;

  // Pass to the model and run the interpreter
  TfLiteTensor* model_input = interpreter->input(0);
  model_input->data.f[0] = scaled_average;

  TfLiteStatus invoke_status = interpreter->Invoke();
  if (invoke_status != kTfLiteOk) {
    TF_LITE_REPORT_ERROR(error_reporter, "Invoke failed");
    return;
  }
  TfLiteTensor* output = interpreter->output(0);

  // Parse and interpret the model output

  float probability = output->data.f[0];
  const int predicted_class = (probability >= 0.5f) ? 1 : 0;

  char line[30];
  snprintf(line,sizeof(line),"%.3f|%.3f|%s", ax, average, predicted_class == 1 ? "Y" : "N");
  Serial.println(line);
  delay(10);
}


• After compile and upload the sketch, you can observe the prediction via pio device monitor.

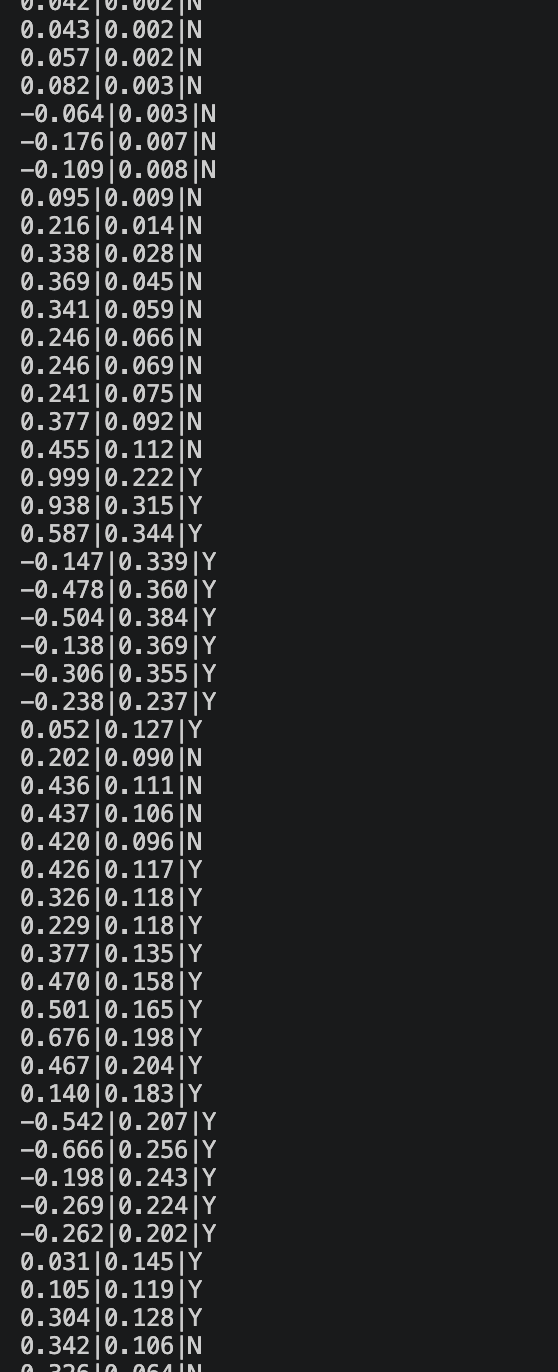

• The screenshot below show the prediction (Y or N) as the moving average is calculated.
