Working with Image Data

Overview

In the previous lecture, we used convolutional neural networks (CNNs) with small, cleaned, built-in image datasets.
Those datasets are useful because they remove many practical problems:
- The images are already the same size.
- The labels are already encoded as numbers.
- The objects are usually centered.
- The data is already split into training and validation sets.
Real image projects are messier.
In this lecture, we move from built-in image arrays to real image folders.
The main goal is to understand how TensorFlow can read image files from directories, convert them into batches, and feed them into a CNN.

Real Image Data

From cleaned datasets to realistic images

Built-in image datasets are usually loaded directly as NumPy arrays.
Realistic image datasets are often stored as image files on disk.
Real image data may include:
- Larger images
- Color images with three channels: red, green, and blue
- Different object poses
- Background objects
- Lighting differences
- Images where the subject is not centered
These differences matter because the model does not see a horse, a person, a leaf, or a disease. It sees arrays of pixel values.
A CNN can learn useful patterns from those arrays, but only if the data is organized and processed consistently.

Directory-based labels

TensorFlow can infer labels from a directory structure. For example, a binary image dataset can be organized like this:

 data/
  horse-or-human/
    horses/
    humans/
  validation-horse-or-human/
    horses/
    humans/


Each subdirectory name becomes a class label.
- Images inside horses/ are labeled as horses.
- Images inside humans/ are labeled as humans.
The same structure is used for both training and validation data.

Horse or Human Classifier

We will use the Horses or Humans dataset. This dataset contains color images of horses and humans in different poses and backgrounds.

Data acquisition

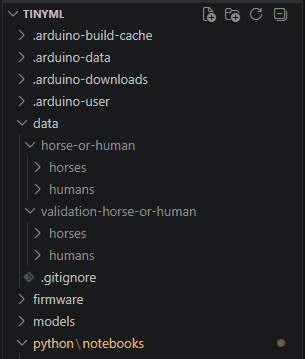

Use the data directory inside the main tinyml directory. The contents in here are gitignored so that it will not accidentally be uploaded if you decide to fork tinyml.
Download the training and validation zip files and unzip them inside these directories.
- Training data
- Validation data

The following code segment in the working-image.ipynb notebook inside python/notebooks/ will automatically extract the data

 import os
import zipfile

data_path = "../../data/"

with zipfile.ZipFile(os.path.join(data_path, "horse-or-human.zip"), "r") as zip_ref:
    zip_ref.extractall(os.path.join(data_path, "horse-or-human"))

with zipfile.ZipFile(os.path.join(data_path, "validation-horse-or-human.zip"), "r") as zip_ref:
    zip_ref.extractall(os.path.join(data_path, "validation-horse-or-human"))


We can confirm the existence of data in the next cell

 train_horse_dir = os.path.join(data_path,"horse-or-human/horses")
train_human_dir = os.path.join(data_path,"horse-or-human/humans")
validation_horse_dir = os.path.join(data_path,"validation-horse-or-human/horses")
validation_human_dir = os.path.join(data_path,"validation-horse-or-human/humans")

train_horse_names = os.listdir(train_horse_dir)
train_human_names = os.listdir(train_human_dir)
validation_horse_names = os.listdir(validation_horse_dir)
validation_human_names = os.listdir(validation_human_dir)

print("Training horse images:", train_horse_names[:10])
print("Training human images:", train_human_names[:10])
print("Validation horse images:", validation_horse_names[:10])
print("Validation human images:", validation_human_names[:10])


Define the CNN model

The model below is a CNN for binary image classification. It accepts 100x100 RGB images.

 import tensorflow as tf

model = tf.keras.models.Sequential([
    # The input shape is 100x100 pixels with 3 color channels.
    tf.keras.Input(shape=(100, 100, 3)),

    # First convolution block
    tf.keras.layers.Conv2D(32, (3, 3), activation="relu"),
    tf.keras.layers.MaxPooling2D(2, 2),

    # Second convolution block
    tf.keras.layers.Conv2D(64, (3, 3), activation="relu"),
    tf.keras.layers.MaxPooling2D(2, 2),

    # Third convolution block
    tf.keras.layers.Conv2D(128, (3, 3), activation="relu"),
    tf.keras.layers.MaxPooling2D(2, 2),

    # Fourth convolution block
    tf.keras.layers.Conv2D(256, (3, 3), activation="relu"),
    tf.keras.layers.MaxPooling2D(2, 2),

    # Flatten the feature maps before using dense layers.
    tf.keras.layers.Flatten(),

    # Dense classification layers
    tf.keras.layers.Dense(512, activation="relu"),
    tf.keras.layers.Dense(256, activation="relu"),

    # One output neuron for binary classification.
    # Values closer to 0 represent one class; values closer to 1 represent the other.
    tf.keras.layers.Dense(1, activation="sigmoid")
])

model.summary()


Conv2D layers learn image features.
MaxPooling2D layers reduce the width and height of the feature maps.
Flatten converts the final feature maps into a vector.
Dense layers use the extracted features to classify the image.
The final sigmoid output is appropriate for binary classification.

Compile the model

 from tensorflow.keras.optimizers import RMSprop

optimizer = RMSprop(learning_rate=0.0001)

model.compile(
    loss="binary_crossentropy",
    optimizer=optimizer,
    metrics=["acc"]
)


binary_crossentropy is used because this is a two-class problem.
RMSprop is one possible optimizer.
The learning rate is set to 0.0001 to make updates smaller and more stable.

Image Data Generators

Why use an image data generator?

An image data generator solves a practical problem: the model needs tensors, but our data is stored as image files in folders.

ImageDataGenerator can:

Read images from directories.
Resize images to a common shape.
Convert images into batches.
Normalize pixel values.
Infer class labels from subdirectory names.
Optionally apply data augmentation.

In this example, each image is resized to 100x100, and pixel values are rescaled from the range 0-255 to the range 0-1.

Build the training and validation generators

 from tensorflow.keras.preprocessing.image import ImageDataGenerator

# All images will be augmented according to whichever lines are uncommented
# below. We can first try without any of the augmentation beyond the rescaling
train_datagen = ImageDataGenerator(
      rescale=1./255,
      #rotation_range=40,
      #width_shift_range=0.2,
      #height_shift_range=0.2,
      #shear_range=0.2,
      #zoom_range=0.2,
      #horizontal_flip=True,
      #fill_mode='nearest'
      )

# Flow training images in batches of 128 using train_datagen generator
train_generator = train_datagen.flow_from_directory(
        os.path.join(data_path, "horse-or-human"),  # This is the source directory for training images
        target_size=(100, 100),  # All images will be resized to 100x100
        batch_size=128,
        # Since we use binary_crossentropy loss, we need binary labels
        class_mode='binary')

validation_datagen = ImageDataGenerator(rescale=1./255)

validation_generator = validation_datagen.flow_from_directory(
        os.path.join(data_path, "validation-horse-or-human"),
        target_size=(100, 100),
        class_mode='binary')


rescale=1.0 / 255 normalizes pixel values.
target_size=(100, 100) resizes every image.
batch_size=128 controls how many images are passed through the model at a time.
class_mode="binary" tells TensorFlow that there are two classes.

Training and Prediction

Train the model

Training this model may take a little while because we are now using a larger CNN and real image files.

 history = model.fit(
    train_generator,
    steps_per_epoch=8,
    epochs=100,
    verbose=1,
    validation_data=validation_generator
)


steps_per_epoch=8 means each epoch uses 8 batches from the generator.
epochs=100 trains for 100 passes through the configured training steps.
The validation generator is used to estimate how well the model performs on data it did not train on.

Plot training history

 import matplotlib.pyplot as plt

plt.plot(history.history["acc"])
plt.plot(history.history["val_acc"])
plt.title("Model Accuracy")
plt.ylabel("Accuracy")
plt.xlabel("Epoch")
plt.legend(["train", "validation"], loc="upper left")
plt.show()


If the training accuracy keeps improving while validation accuracy stalls or drops, that is a warning sign for overfitting.

Run predictions on new images

The following code downloads several images and asks the model to classify them.

 import numpy as np
from io import BytesIO
import urllib.request
from tensorflow.keras import utils
from IPython.display import Image, display

base_url = "https://www.cs.wcupa.edu/LNGO/data/horse-human-confuse/"
file_list = ["a-horse.jpg", "horse-jockey.jpg", "horse-hindleg.jpg", "two-man.jpg"]

for image_name in file_list:
    image_url = base_url + image_name
    print(image_url)

    with urllib.request.urlopen(image_url) as response:
        img = utils.load_img(BytesIO(response.read()), target_size=(100, 100))

    display(Image(url=image_url))

    x = utils.img_to_array(img)
    x = x / 255.0
    x = np.expand_dims(x, axis=0)

    prediction = model.predict(x)
    print("Raw prediction:", prediction)

    if prediction[0] > 0.5:
        print("Prediction: human")
    else:
        print("Prediction: horse")


A prediction close to 0 means the model leans toward one class.
A prediction close to 1 means the model leans toward the other class.
The threshold 0.5 is a simple decision boundary.
Some images may confuse the model. That is useful because failure cases reveal what the model actually learned.

Visualizing Model Layers

Why visualize intermediate layers?

A CNN does not jump directly from pixels to a final class label. Each convolution and pooling layer transforms the image into new feature maps.

Visualizing these feature maps can help us ask:

What features are being emphasized?
Are early layers detecting edges and textures?
Are later layers becoming more abstract?
Why might a confusing image be misclassified?

Visualize feature maps

 import matplotlib.pyplot as plt
import numpy as np
import random
from tensorflow.keras.preprocessing.image import img_to_array, load_img

%matplotlib inline

# Create a model that returns intermediate outputs from the trained model.
successive_outputs = [layer.output for layer in model.layers[1:]]
visualization_model = tf.keras.models.Model(
    inputs=model.inputs,
    outputs=successive_outputs
)

# Prepare a random input image from the training set.
horse_img_files = [os.path.join(train_horse_dir, f) for f in train_horse_names]
human_img_files = [os.path.join(train_human_dir, f) for f in train_human_names]
img_path = random.choice(horse_img_files + human_img_files)

# Uncomment this line to pick the first human image manually.
# img_path = human_img_files[0]

img = load_img(img_path, target_size=(100, 100))
x = img_to_array(img)
x = x.reshape((1,) + x.shape)
x = x / 255.0

successive_feature_maps = visualization_model.predict(x)
layer_names = [layer.name for layer in model.layers]

for layer_name, feature_map in zip(layer_names, successive_feature_maps):
    if len(feature_map.shape) == 4:
        # Only visualize convolution and pooling layers.
        n_features = feature_map.shape[-1]
        n_features = min(n_features, 5)
        size = feature_map.shape[1]

        display_grid = np.zeros((size, size * n_features))

        for i in range(n_features):
            feature = feature_map[0, :, :, i]
            feature -= feature.mean()
            feature /= feature.std() + 1e-8
            feature *= 64
            feature += 128
            feature = np.clip(feature, 0, 255).astype("uint8")
            display_grid[:, i * size : (i + 1) * size] = feature

        scale = 20.0 / n_features
        plt.figure(figsize=(scale * n_features, scale))
        plt.title(layer_name)
        plt.grid(False)
        plt.imshow(display_grid, aspect="auto", cmap="viridis")
        plt.show()


The visualization model reuses the trained layers.
Instead of returning only the final prediction, it returns outputs from intermediate layers.
We limit each layer to five feature maps so the plot remains readable.
The small 1e-8 value avoids division by zero when normalizing a flat feature map.

Exercise: confusing images

Rework the visualization code so that it visualizes the intermediate layers for the confusing images used during prediction.

Questions to answer:

Which images are classified incorrectly?
What visual patterns appear strongly in the early convolution layers?
Do the confusing images contain features from both classes?
Does the model appear to focus on the subject, the background, or both?

Overfitting, Augmentation, and Dropout

Overfitting

Overfitting happens when a model becomes too specialized to the training data.

For image models, this can happen when the training images are too consistent. For example:

If every cat image is upright, the model may associate upright ears with cats.
If every horse image has a similar background, the model may learn the background instead of the horse.
If the subject is always centered, the model may fail when the subject is shifted.

A model can have high training accuracy but poor validation accuracy. That is often a sign that the model is memorizing training patterns rather than learning more general features.

Data augmentation

Data augmentation creates modified versions of training images during training.

Common augmentation options include:

Random rotations
Width and height shifts
Shearing
Zooming
Horizontal flipping
Pixel filling after transformations

 train_datagen = ImageDataGenerator(
    rescale=1.0 / 255,
    rotation_range=40,
    width_shift_range=0.2,
    height_shift_range=0.2,
    shear_range=0.2,
    zoom_range=0.2,
    horizontal_flip=True,
    fill_mode="nearest"
)


Augmentation can help the model generalize.
Augmentation can also slow down training.
More augmentation is not always better. If the transformation creates unrealistic examples, the model may learn noise.

Exercise: augmentation

Uncomment the augmentation settings in the training ImageDataGenerator.

Questions to answer:

Does augmentation improve validation accuracy?
Does augmentation improve predictions on the confusing images?
What do the intermediate feature maps look like after augmentation?
Does the model become more robust, or does training simply become slower?

Dropout regularization

Dropout is another technique for reducing overfitting.

During training, dropout randomly disables a percentage of neuron outputs. This reduces the chance that the model becomes too dependent on a small number of highly specialized neurons.

 tf.keras.layers.Dropout(0.2)


The value 0.2 means that 20% of the outputs from that layer are dropped during training.

Example:

 model = tf.keras.models.Sequential([
    tf.keras.layers.Flatten(input_shape=(28, 28)),
    tf.keras.layers.Dense(256, activation=tf.nn.relu),
    tf.keras.layers.Dropout(0.2),
    tf.keras.layers.Dense(128, activation=tf.nn.relu),
    tf.keras.layers.Dropout(0.2),
    tf.keras.layers.Dense(64, activation=tf.nn.relu),
    tf.keras.layers.Dropout(0.2),
    tf.keras.layers.Dense(10, activation=tf.nn.softmax)
])


Dropout is applied during training.
During prediction, the full network is used.
The dropout value is a hyperparameter that should be tested.
If training accuracy is much higher than validation accuracy, dropout may help.

Reference: Nitish Srivastava et al. Dropout: A Simple Way to Prevent Neural Networks from Overfitting, 2014

Optimizers and loss functions

TensorFlow provides many optimizer and loss function options:

The important habit is to match the final layer, loss function, and label format.

Problem type	Final layer	Common loss	Label format
Binary classification	`Dense(1, activation="sigmoid")`	`binary_crossentropy`	`0` or `1`
Multi-class classification with integer labels	`Dense(num_classes, activation="softmax")`	`sparse_categorical_crossentropy`	`0`, `1`, `2`, …
Multi-class classification with one-hot labels	`Dense(num_classes, activation="softmax")`	`categorical_crossentropy`	`[1,0,0]`, `[0,1,0]`, …

Bean Disease Classifier

In this activity, students adapt the image-classification workflow to a new dataset: bean leaf disease classification.

The dataset contains 224x224 color images of bean plants from Uganda. The goal is to classify leaves into three categories:

Healthy
Bean rust
Angular leaf spot

Data downloads:

Starter code: data generators

Fill in the missing values. The hint from the notebook still applies: we do not want abnormal data, so the first preprocessing step should normalize pixel values.

 from tensorflow.keras.preprocessing.image import ImageDataGenerator

train_datagen = ImageDataGenerator(
    # YOUR CODE HERE
)

validation_datagen = ImageDataGenerator(
    # YOUR CODE HERE
)

TRAIN_DIRECTORY_LOCATION = None  # YOUR CODE HERE
VAL_DIRECTORY_LOCATION = None  # YOUR CODE HERE
TARGET_SIZE = None  # YOUR CODE HERE
CLASS_MODE = None  # YOUR CODE HERE

train_generator = train_datagen.flow_from_directory(
    TRAIN_DIRECTORY_LOCATION,
    target_size=TARGET_SIZE,
    batch_size=128,
    class_mode=CLASS_MODE
)

validation_generator = validation_datagen.flow_from_directory(
    VAL_DIRECTORY_LOCATION,
    target_size=TARGET_SIZE,
    batch_size=128,
    class_mode=CLASS_MODE
)


One reasonable data-generator solution

Because this is a three-class classification problem, use class_mode="categorical" and categorical_crossentropy later.

 from tensorflow.keras.preprocessing.image import ImageDataGenerator

train_datagen = ImageDataGenerator(rescale=1.0 / 255)
validation_datagen = ImageDataGenerator(rescale=1.0 / 255)

TRAIN_DIRECTORY_LOCATION =
VAL_DIRECTORY_LOCATION =
TARGET_SIZE = (224, 224)
CLASS_MODE = "categorical"

train_generator = train_datagen.flow_from_directory(
    TRAIN_DIRECTORY_LOCATION,
    target_size=TARGET_SIZE,
    batch_size=128,
    class_mode=CLASS_MODE
)

validation_generator = validation_datagen.flow_from_directory(
    VAL_DIRECTORY_LOCATION,
    target_size=TARGET_SIZE,
    batch_size=128,
    class_mode=CLASS_MODE
)


Starter code: model

Define a CNN that can learn higher-level image features and then classify the three bean leaf categories.

 import tensorflow as tf

model = tf.keras.models.Sequential([
    # YOUR CODE HERE
])

model.summary()


One reasonable model solution

This is not the only correct answer. It is a reasonable starting point.

 import tensorflow as tf

model = tf.keras.models.Sequential([
    tf.keras.Input(shape=(224, 224, 3)),

    tf.keras.layers.Conv2D(32, (3, 3), activation="relu"),
    tf.keras.layers.MaxPooling2D(2, 2),

    tf.keras.layers.Conv2D(64, (3, 3), activation="relu"),
    tf.keras.layers.MaxPooling2D(2, 2),

    tf.keras.layers.Conv2D(128, (3, 3), activation="relu"),
    tf.keras.layers.MaxPooling2D(2, 2),

    tf.keras.layers.Conv2D(128, (3, 3), activation="relu"),
    tf.keras.layers.MaxPooling2D(2, 2),

    tf.keras.layers.Flatten(),
    tf.keras.layers.Dense(256, activation="relu"),
    tf.keras.layers.Dropout(0.2),
    tf.keras.layers.Dense(3, activation="softmax")
])

model.summary()


The input shape is 224x224x3 because the bean images are color images.
The final layer has three outputs because there are three classes.
The final activation is softmax because this is multi-class classification.

Starter code: compile

 LOSS_FUNCTION = None  # YOUR CODE HERE
OPTIMIZER = None  # YOUR CODE HERE

model.compile(
    loss=LOSS_FUNCTION,
    optimizer=OPTIMIZER,
    metrics=["accuracy"]
)


One reasonable compile solution

 LOSS_FUNCTION = "categorical_crossentropy"
OPTIMIZER = tf.keras.optimizers.Adam(learning_rate=0.0001)

model.compile(
    loss=LOSS_FUNCTION,
    optimizer=OPTIMIZER,
    metrics=["accuracy"]
)


categorical_crossentropy matches one-hot class labels from class_mode="categorical".
Adam is a common optimizer for CNNs.
The learning rate is deliberately modest.

Train the bean classifier

 NUM_EPOCHS = 20

history = model.fit(
    train_generator,
    epochs=NUM_EPOCHS,
    verbose=1,
    validation_data=validation_generator
)


Plot accuracy

 import matplotlib.pyplot as plt

plt.plot(history.history["accuracy"])
plt.plot(history.history["val_accuracy"])
plt.title("Model Accuracy")
plt.ylabel("Accuracy")
plt.xlabel("Epoch")
plt.legend(["train", "validation"], loc="upper left")
plt.xlim([0, NUM_EPOCHS])
plt.ylim([0.4, 1.0])
plt.show()


Questions to answer:

Does training accuracy improve steadily?
Does validation accuracy improve with training accuracy?
Is there evidence of overfitting?
Would augmentation or dropout likely help?

Extension: evaluate with the test set

The original hands-on notebook includes a test data link. A responsible workflow should avoid using the test set while choosing model architecture and hyperparameters. Once the model is selected, use the test set for a final evaluation.

 test_datagen = ImageDataGenerator(rescale=1.0 / 255)

TEST_DIRECTORY_LOCATION =

# For final evaluation, do not shuffle the test set.
test_generator = test_datagen.flow_from_directory(
    TEST_DIRECTORY_LOCATION,
    target_size=(224, 224),
    batch_size=128,
    class_mode="categorical",
    shuffle=False
)

test_loss, test_accuracy = model.evaluate(test_generator)
print("Test loss:", test_loss)
print("Test accuracy:", test_accuracy)


Training set: used to learn model weights.
Validation set: used to tune decisions during development.
Test set: used at the end for a less-biased estimate of final performance.

Reflection questions

What changed when moving from horse-or-human to beans?
Which parts of the code stayed almost the same?
Why did the final layer change from Dense(1, activation="sigmoid") to Dense(3, activation="softmax")?
Why did the loss function change?
What would be different if we wanted to deploy this model to a small embedded device?
