Building Blocks of Deep Learning

Complex neural networks

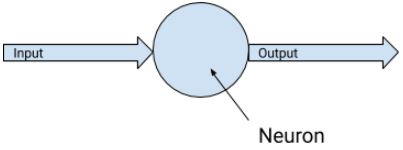

One layer
  • Each neuron: Output = (Weight * Input) + Bias

```python linenums=”1” my_layer = keras.layers.Dense(units=1, input_shape=[1]) model = tf.keras.Sequential([my_layer]) model.compile(optimizer=’sgd’, loss=’mean_squared_error’)

xs = np.array([-1.0, 0.0, 1.0, 2.0, 3.0, 4.0], dtype=float) ys = np.array([-3.0, -1.0, 1.0, 3.0, 5.0, 7.0], dtype=float)

model.fit(xs, ys, epochs=500) ```

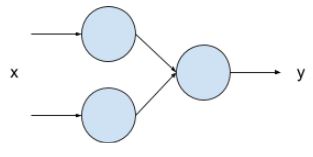

Two layers
  • Two layers
    • First layer with two neurons
    • Second layer with one neurons
Code setup

```python linenums=”1” my_layer_1 = keras.layers.Dense(units=2, input_shape=[1]) my_layer_2 = keras.layers.Dense(units=1)

model = tf.keras.Sequential([my_layer_1, my_layer_2]) model.compile(optimizer=’sgd’, loss=’mean_squared_error’)

xs = np.array([-1.0, 0.0, 1.0, 2.0, 3.0, 4.0], dtype=float) ys = np.array([-3.0, -1.0, 1.0, 3.0, 5.0, 7.0], dtype=float)

model.fit(xs, ys, epochs=500) ```

  • Each neuron in the first layers has its own weight/bias and will general one output.
  • The sole neuron in the second layers will have two inputs, which means it will have two weight and one bias.
Manual output calculation

```python linenums=”1” value_to_predict = 10.0

layer1_w1 = (my_layer_1.get_weights()[0][0][0]) layer1_w2 = (my_layer_1.get_weights()[0][0][1]) layer1_b1 = (my_layer_1.get_weights()[1][0]) layer1_b2 = (my_layer_1.get_weights()[1][1])

neuron1_output = (layer1_w1 * value_to_predict) + layer1_b1 neuron2_output = (layer1_w2 * value_to_predict) + layer1_b2

layer2_w1 = (my_layer_2.get_weights()[0][0]) layer2_w2 = (my_layer_2.get_weights()[0][1]) layer2_b = (my_layer_2.get_weights()[1][0])

neuron3_output = (layer2_w1 * neuron1_output) + (layer2_w2 * neuron2_output) + layer2_b print(neuron3_output) ```

Question: Validating manual output
  • Implement the two-layer code setup and the manual output calculation.
  • Match the manual result with the model.predict call for comparison purposes.
Question: Comparing models
  • Comparing the results of one-layer and two-layer setup.
  • Which one is better?

Introduction to classification

Overview
  • Previously: Regression
    • Fit internal parameters of a function, from X to Y
    • Using neural network to predict a single value from one or more inputs.

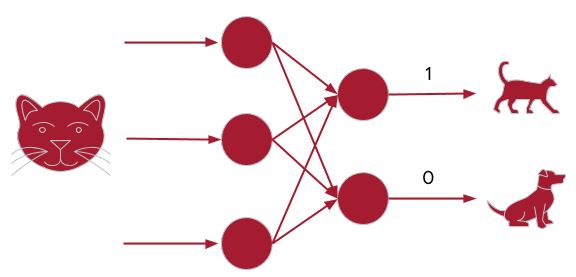

  • Another scenario: Classification
  • Output:
    • Dog: [0,1]
    • Cat: [1,0]
Example: Hand writing recognition
  • Output definitions:
    • [1,0,0,0,0,0,0,0,0,0,0]: represent images similar to number 0
    • [0,1,0,0,0,0,0,0,0,0,0]: represent images similar to number 1
    • [0,0,1,0,0,0,0,0,0,0,0]: represent images similar to number 2
    • [0,0,0,0,1,0,0,0,0,0,0]: represent images similar to number 3
    • [0,0,0,0,0,1,0,0,0,0,0]: represent images similar to number 4
    • [0,0,0,0,0,0,1,0,0,0,0]: represent images similar to number 5
    • [0,0,0,0,0,0,0,1,0,0,0]: represent images similar to number 6
    • [0,0,0,0,0,0,0,0,1,0,0]: represent images similar to number 7
    • [0,0,0,0,0,0,0,0,0,1,0]: represent images similar to number 8
    • [0,0,0,0,0,0,0,0,0,0,1]: represent images similar to number 9
Dataset
  • MNIST dataset, built into Tensorflow
    • Already split into training and validation images and labels
    • 60,000 labelled training examples
    • 10,000 labelled validation examples
  • Each image in MNIST
    • 28 by 28 pixels
    • Each pixel is monochrome, therefore the value is 0 to 255
  • Load data:

```python linenums=”1” import sys import tensorflow as tf

data = tf.keras.datasets.mnist (training_images, training_labels), (val_images, val_labels) = data.load_data()

training_images = training_images / 255.0 val_images = val_images / 255.0 ```

  • Lines 5 and 6: normalize pixel values to between 0 and 1.
Build the model

```python linenums=”1” model = tf.keras.models.Sequential([tf.keras.layers.Flatten(input_shape=(28,28)), tf.keras.layers.Dense(20, activation=tf.nn.relu), tf.keras.layers.Dense(10, activation=tf.nn.softmax)]) model.compile(optimizer=’adam’, loss=’sparse_categorical_crossentropy’, metrics=[‘accuracy’]) model.fit(training_images, training_labels, epochs=20, validation_data=(val_images, val_labels))



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136


- Line 1: Flatten the 28x28 image into something that fit into the the Dense layers





<figure

>
  <picture>
    <!-- Auto scaling with imagemagick -->
    <!--
      See https://www.debugbear.com/blog/responsive-images#w-descriptors-and-the-sizes-attribute and
      https://developer.mozilla.org/en-US/docs/Learn/HTML/Multimedia_and_embedding/Responsive_images for info on defining 'sizes' for responsive images
    -->


        <source
          class="responsive-img-srcset"

            srcset="/assets/img/courses/csc574/03-dl/flatten_01.webp"


            sizes="95vw"

        >


    <img
      src="/assets/img/courses/csc574/03-dl/flatten_01.webp"


        width="50%"


        height="auto"





        data-zoomable


        loading="lazy"

      onerror="this.onerror=null; $('.responsive-img-srcset').remove();"
    >
  </picture>


</figure>


- This is so that each image data can be fed into the next Dense layer (fully connected)





<figure

>
  <picture>
    <!-- Auto scaling with imagemagick -->
    <!--
      See https://www.debugbear.com/blog/responsive-images#w-descriptors-and-the-sizes-attribute and
      https://developer.mozilla.org/en-US/docs/Learn/HTML/Multimedia_and_embedding/Responsive_images for info on defining 'sizes' for responsive images
    -->


        <source
          class="responsive-img-srcset"

            srcset="/assets/img/courses/csc574/03-dl/flatten_02.webp"


            sizes="95vw"

        >


    <img
      src="/assets/img/courses/csc574/03-dl/flatten_02.webp"


        width="50%"


        height="auto"





        data-zoomable


        loading="lazy"

      onerror="this.onerror=null; $('.responsive-img-srcset').remove();"
    >
  </picture>


</figure>


- Line 2: Our first Dense layer which has 20 neurons
    - How to pick optimum number
        - Too few: not enough to learn about the image
        - Too many: over specialize, slow to learn
- Line 3: Our final Dense layer with 10 neurons
    - Expected 10 values for the output list.
- Lines 2 and 3: Activation function
    - Called by each neuron
    - The `ReLU` activation function changes any output that is less than 0 to 0.
        - Commonly used in dense layers,
        - Introduce a non-linear relationship between the layers to help capturing complex relationships
    - The `softmax` activation function helps finding the neuron from amongst the 10 that
    has the highest value.
- Lines 4, 5, 6: Compiling
    - `Adam` optimizer can vary its learning rate to help with faster convergence.
    - The selected loss function measure loss for categorical data.
- Line 7: Training
    - 20 epochs
    - train on `training_images` and `training_labels`
    - `val_images` and `val_labels` are kept for validation

```python linenums="1"
model.evaluate(val_images, val_labels)

classifications = model.predict(val_images)
print(classifications[0])
print(val_labels[0])
