Development Environment

Overview

Disclaimer: In this class, we aim to setup a development environment that is as isolated as possible without being fully containerized. This is possible via a Git repository that supports:

  • a conda environment for Python, Jupyter, plotting, serial tooling, and TensorFlow
  • a downloaded Arduino CLI binary placed in tools/arduino-cli/
  • repo-local Arduino CLI state so package indexes, downloads, caches, and sketchbook files do not spill into each student’s global machine setup

Setup Environment

Clone repository

First, you are to clone the repository.



1
2


git clone https://github.com/ngo-classes/tinyml.git
cd tinyml

The layout of this repository can be presented as follows.



1
2
3
4
5
6
7
8
9
10
11
12
13
14


.
├── .arduino-build-cache/
├── .arduino-data/
├── .arduino-downloads/
├── .arduino-user/
├── arduino-cli.yaml
├── data/
├── environment.yml
├── firmware/
├── models/
├── notebooks/
├── scripts/
└── tools/
    └── arduino-cli/
  • environment.yml: conda environment definition
  • arduino-cli.yaml: Arduino CLI configuration
  • tools/arduino-cli/: where each student places the correct Arduino CLI binary for their OS
  • data/: reserved for datasets; contents ignored by git by default
  • models/: reserved for trained/exported models; contents ignored by git by default
  • .arduino-*: local Arduino CLI package/cache/user state, kept in the repo but ignored by git
Create and activate the conda environment


1
2


conda env create -f environment.yml
conda activate tinyml
Download and save the Arduino CLI binary

You are to download the latest binary release of Arduino CLI and unzip the downloaded files. Next, place one of the following in tools/arduino-cli/ depending on your system:

  • arduino-cli.exe for Windows
  • arduino-cli for macOS or Linux

That directory is intentionally git-ignored so the binary file is not accidentally committed.

Activate the repo-local Arduino CLI configuration

For macOS/Linux/Git Bash, run the followings:



1


source scripts/activate.sh

For Windows PowerShell, run the followings:



1
2


Set-ExecutionPolicy -Scope Process -ExecutionPolicy Bypass
.\scripts\activate.ps1
Verify setup

For macOS/Linux/Git Bash, run the followings:



1
2


chmod u+x scripts/check-setup.sh
scripts/check-setup.sh
Check results of Arduino CLI activation

For Windows PowerShell, run the followings:



1


.\scripts\check-setup.ps1

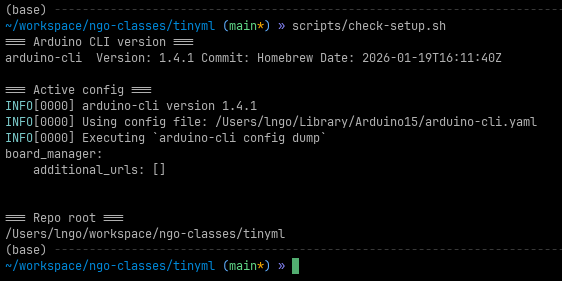

Check results of Arduino CLI activation
Setup core libraries
  • This script installs the Arduino Mbed OS Nano Boards core used by the Nano 33 BLE/BLE Sense, plus the course libraries ArduinoBLE, Arduino_LSM9DS1, and Harvard_TinyMLx.
  • The script also forces Arduino CLI to use repo-local state via ARDUINO_* variables.

For macOS/Linux/Git Bash, run the followings:



1
2


chmod u+x scripts/bootstrap-arduino.sh
scripts/bootstrap-arduino.sh

For Windows PowerShell, run the followings:



1


.\scripts\bootstrap-arduino.ps1

VSCode and PlatformIO

In this set up, we are using PlatformIO from inside VSCode. Therefore, it is important that you do not need to install PlatformIO Core separately for this workflow; PlatformIO Core is bundled with the VS Code extension and is meant to be used through the PlatformIO IDE Terminal.

Install VSCode

Download and install the official Microsoft build of Visual Studio Code. PlatformIO IDE is built on top of VS Code.

Install PlatformIO

Do the followings in VSCode:

  • On the left sidebar, click the Extensions icon.

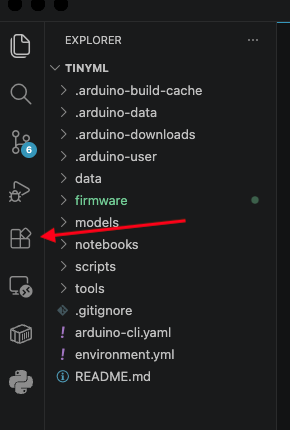

Red arrow pointing to the extension side icon
  • In the search box, type PlatformIO.
    • Look for the official PlatformIO IDE extension.
  • Click Install.

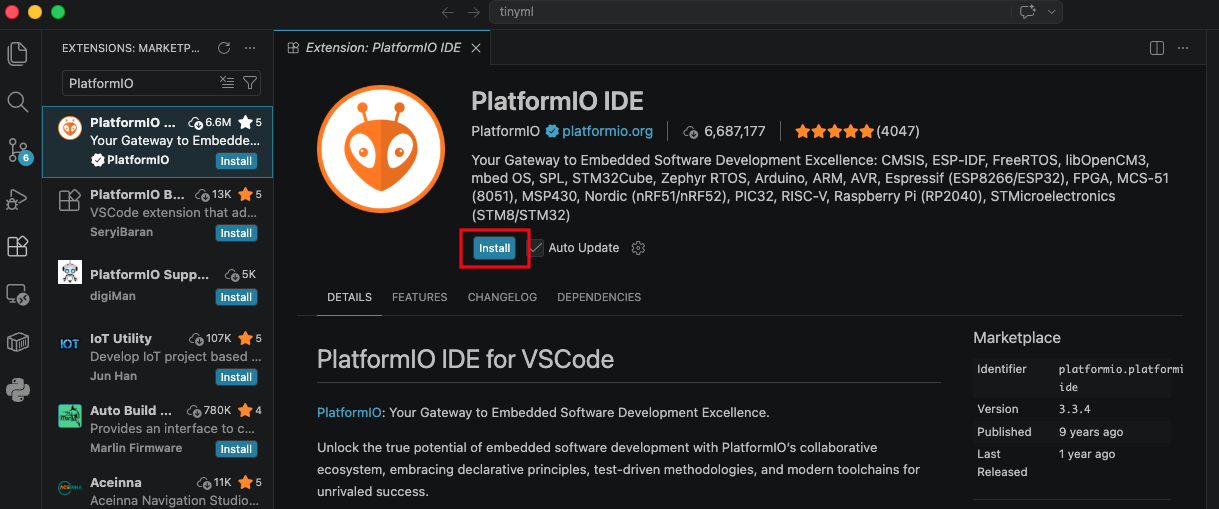

Top result of searching for PlatformIO showing the official extension
  • Completely close and reopen VSCode (it might ask for a restart).
  • After restart, the PlatformIO icon will show up on the left activity bar.
Red arrow pointing to PlatformIO icon on the left side activity bar
Verify PlatformIO is using the built-in core
  • Open Settings in VS Code.
  • Search for: platformio use builtin
  • Make sure the box Use a built-in PlatformIO Core is checked.
Settings for platformio use builtin show two checked boxes for Core and Python
Open the PlatformIO CLI inside VSCode

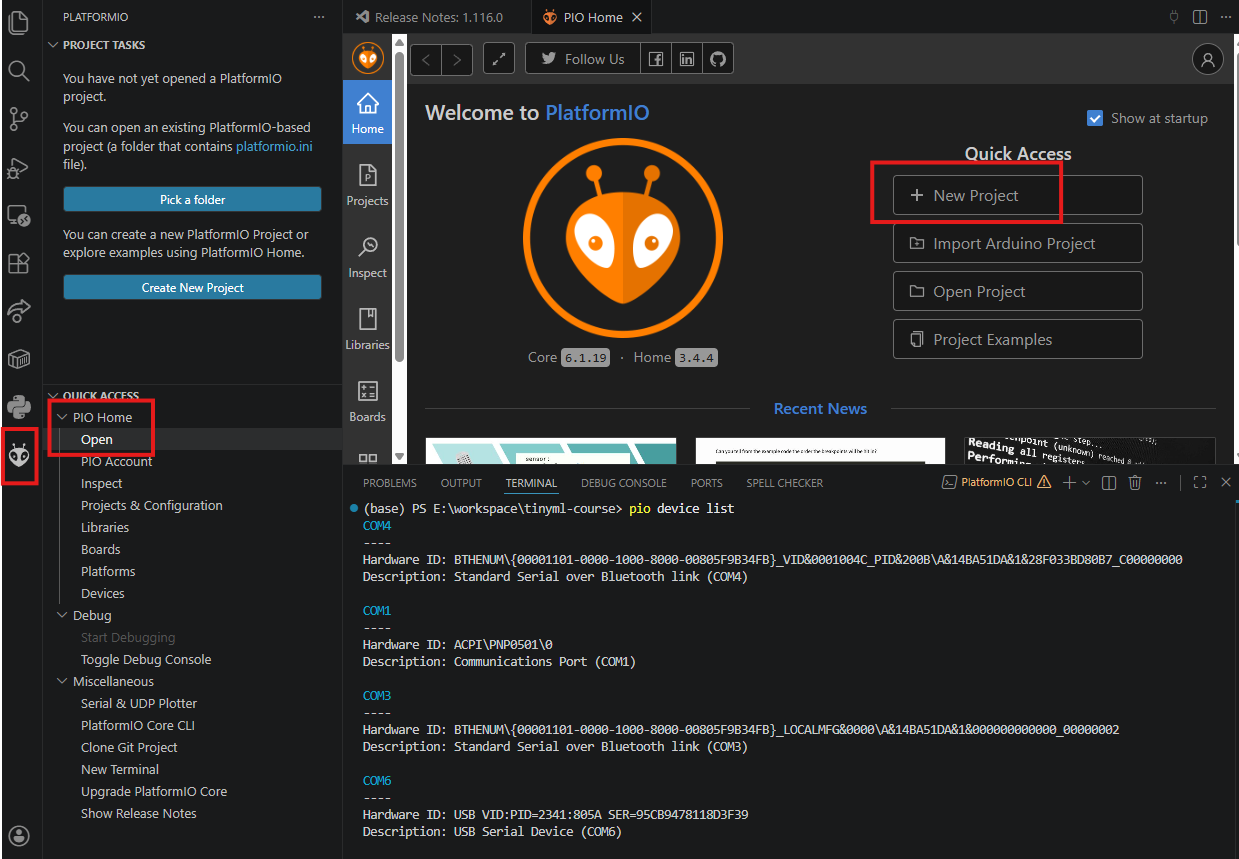

PlatformIO sidebar

  1. Click the PlatformIO ant icon in the left activity bar.
  2. Go to Quick Access.
  3. Open Miscellaneous.

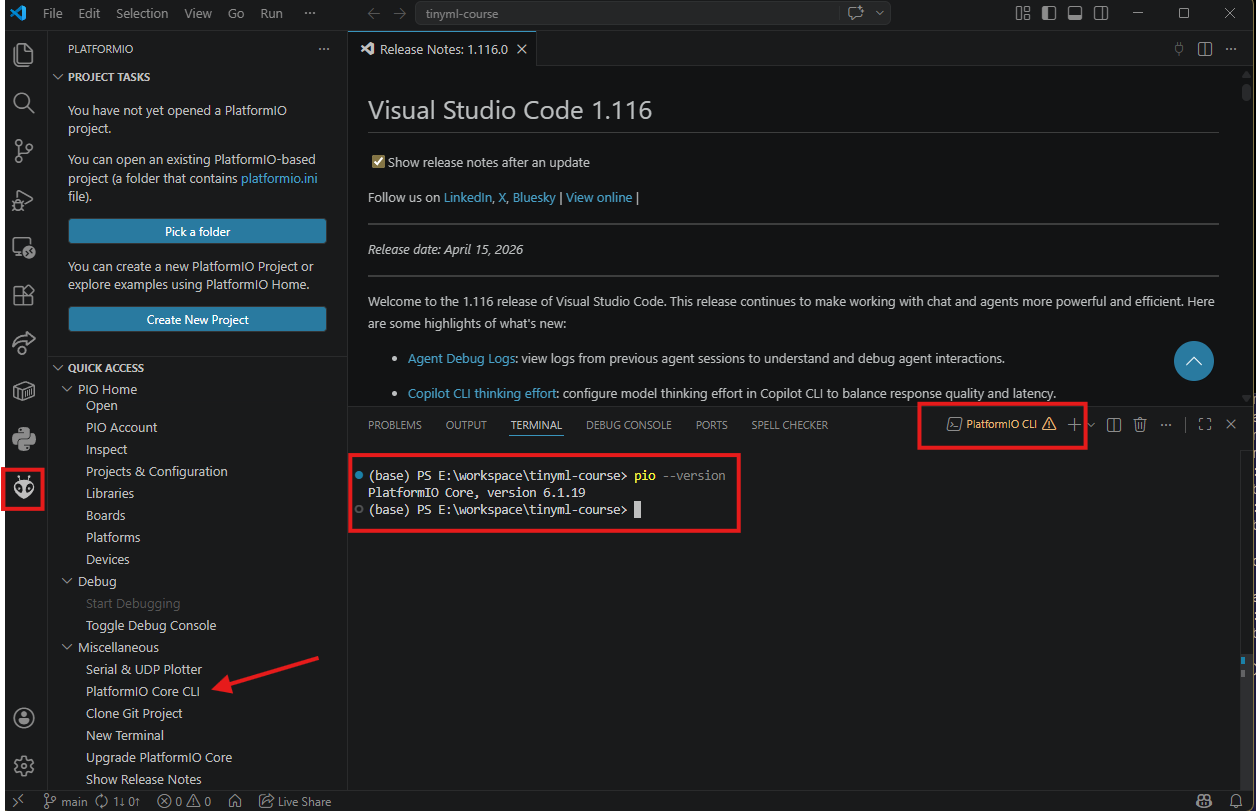

  4. Click PlatformIO Core CLI. ([PlatformIO Documentation][1])

Once that terminal opens, test:



1


pio --version

If it works there, PlatformIO is installed correctly inside VS Code.

First PlatformIO Project

Create your first Arduino project

PlatformIO’s own quick start uses a Blink project to introduce the workflow. ([PlatformIO Documentation][1])

In VS Code:

  1. Click the PlatformIO Home button on the PlatformIO toolbar.

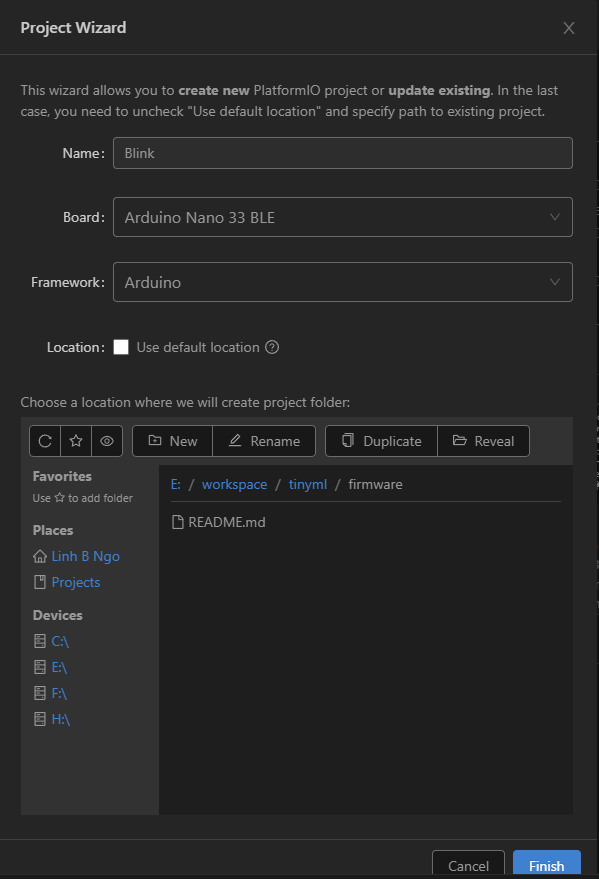

  2. Click New Project.
  3. Enter a project name.
  4. Choose your board.
  5. Choose the framework, if prompted.
  6. Create the project. PlatformIO describes this as the normal new-project flow. ([PlatformIO Documentation][1])

After creation, PlatformIO will generate a standard project structure with:

  • a platformio.ini
  • a src/ folder
  • a default main.cpp inside src/ ([PlatformIO Documentation][1])
Replace main.cpp with Blink

Open src/main.cpp and replace the contents with the Blink example. PlatformIO’s quick start provides the Arduino-based Blink code and notes that it is for Arduino-based boards. ([PlatformIO Documentation][1])

Use:



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17


#include "Arduino.h"

// Set LED_BUILTIN if it is not defined by Arduino framework
// #define LED_BUILTIN 13

void setup()
{
  pinMode(LED_BUILTIN, OUTPUT);
}

void loop()
{
  digitalWrite(LED_BUILTIN, HIGH);
  delay(1000);
  digitalWrite(LED_BUILTIN, LOW);
  delay(1000);
}

This is essentially the same Blink pattern PlatformIO shows in its quick start. ([PlatformIO Documentation][1])

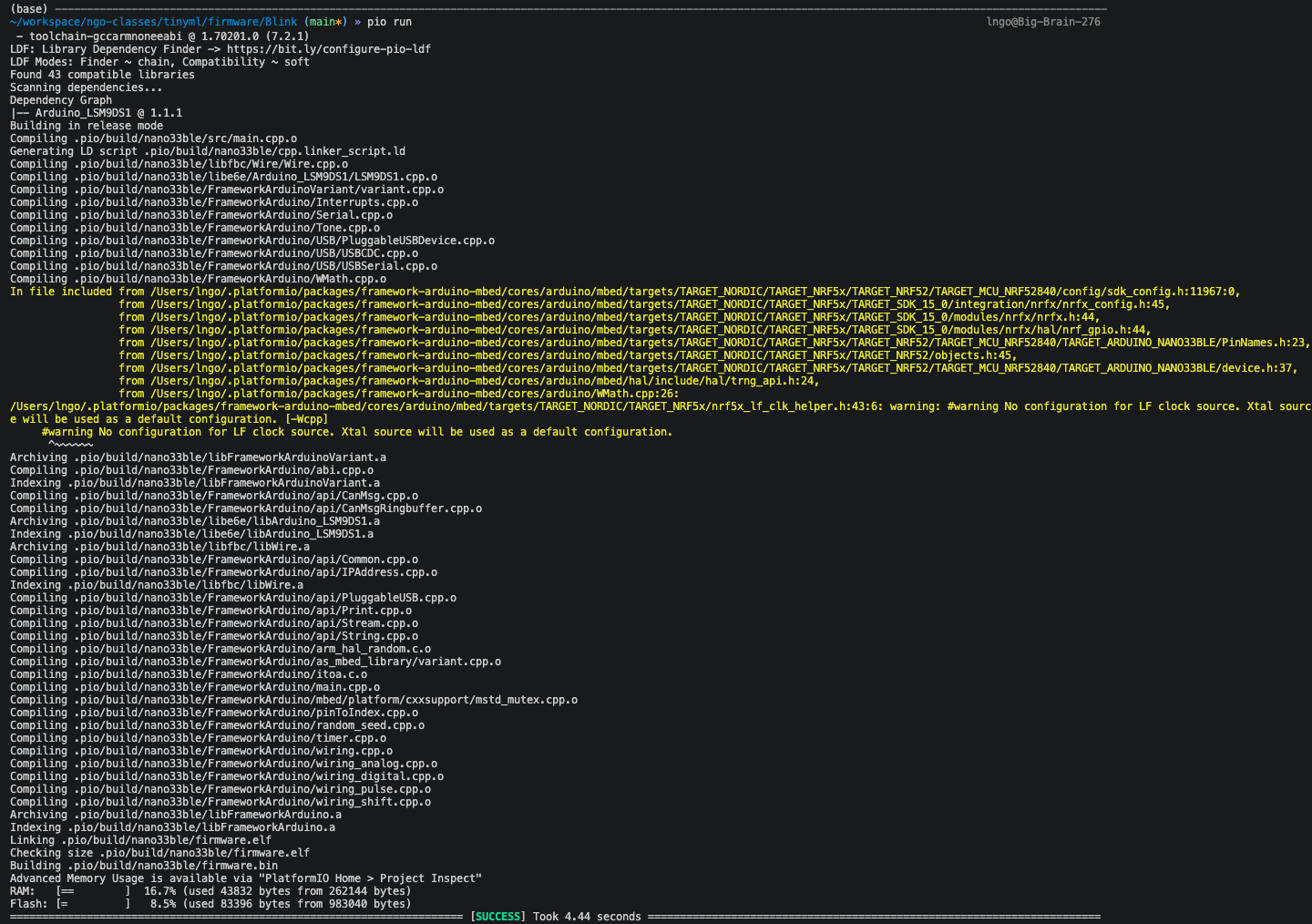

Build the project

PlatformIO documents two easy routes: toolbar or keyboard shortcut. The toolbar is less mysterious for students. ([PlatformIO Documentation][1])

Keyboard shortcut

  • On macOS, PlatformIO lists cmd-shift-b as the build shortcut.
  • Other shortcuts vary by platform, but on Mac that is the one to remember. ([PlatformIO Documentation][1])

You can also use the task menu:

  1. Go to Terminal → Run Task…
  2. Select PlatformIO: Build. PlatformIO documents these built-in tasks as part of the IDE integration. ([PlatformIO Documentation][1])

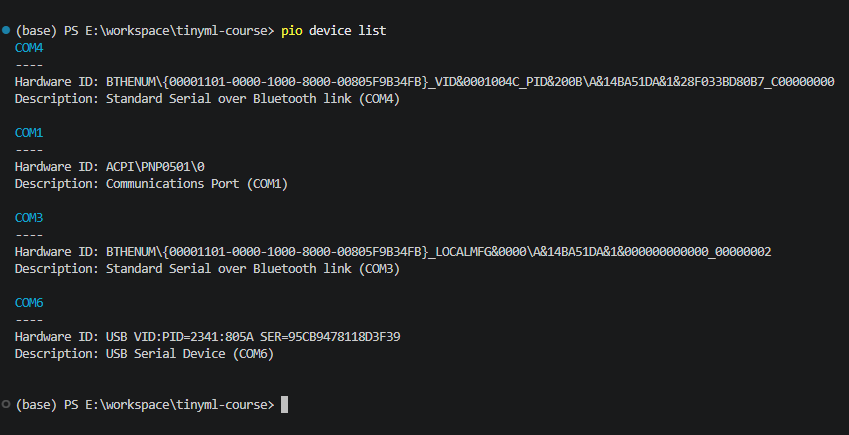

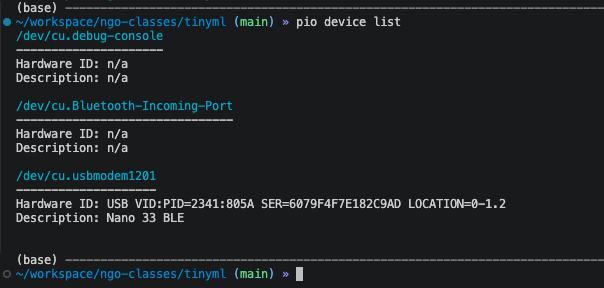

Connect the board and upload firmware

After a successful build:

  1. Plug in the board over USB.
  2. Click the Upload button on the PlatformIO toolbar.

Or:

  1. Go to Terminal → Run Task…
  2. Select PlatformIO: Upload. PlatformIO includes Upload as one of its built-in tasks. ([PlatformIO Documentation][1])

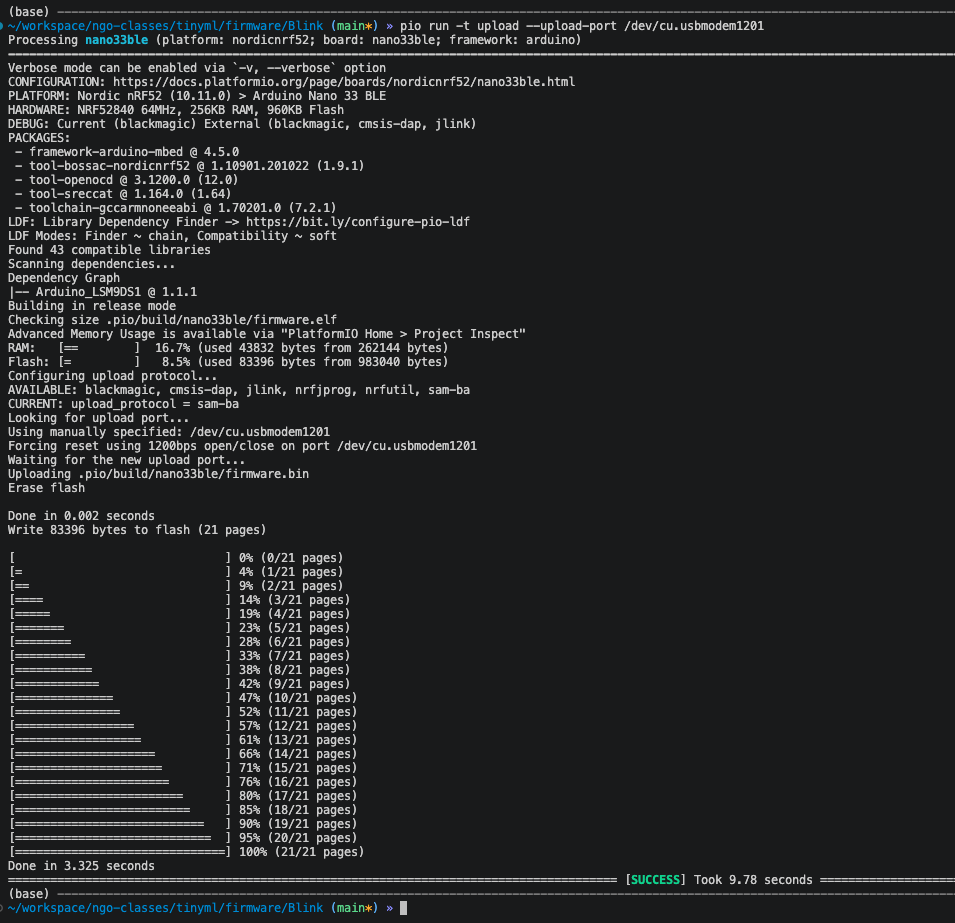

The keyboard shortcut PlatformIO lists for upload is ctrl+alt+u. ([PlatformIO Documentation][1])

Open the Serial Monitor

PlatformIO includes a Serial Port Monitor in the toolbar and in its task system. It also allows customization in platformio.ini through monitor-related options such as monitor_port and monitor_speed. ([PlatformIO Documentation][1])

To open it:

  1. Click the Serial Port Monitor button on the PlatformIO toolbar.

Or:

  1. Go to Terminal → Run Task…
  2. Select PlatformIO: Monitor. ([PlatformIO Documentation][1])

The listed shortcut is ctrl+alt+s. ([PlatformIO Documentation][1])

If you want to define the monitor baud rate in platformio.ini, PlatformIO documents monitor_speed for that purpose. ([PlatformIO Documentation][1])

Example:



1
2


[env:yourboard]
monitor_speed = 115200
Understand the PlatformIO toolbar

PlatformIO documents the status-bar toolbar and its common buttons. This is worth showing students explicitly because it becomes their dashboard. The toolbar includes quick access to:

  • PlatformIO Home
  • Build
  • Upload
  • Clean
  • Serial Port Monitor
  • PlatformIO Core CLI
  • environment switcher if multiple environments exist ([PlatformIO Documentation][1])
Use Project Tasks when you want more visibility

PlatformIO exposes a Project Task Explorer under the PlatformIO activity bar and also integrates tasks into Terminal → Run Task…. That is useful when students need a visible list of actions such as Build, Upload, Clean, and Monitor instead of memorizing icons or shortcuts. ([PlatformIO Documentation][1])

  1. Working with multiple PlatformIO projects

If your repo contains several firmware projects, PlatformIO supports multi-project workspaces through VS Code’s multi-root workspaces. That is the official route when you are working on multiple related firmware folders at once. ([PlatformIO Documentation][1])

“pio command not found”

Usually one of these:

  • you opened a normal terminal, not PlatformIO Core CLI
  • platformio-ide.useBuiltinPIOCore is off
  • your shell PATH was overwritten instead of extended
  • you expected pio to work system-wide without using Install Shell Commands ([PlatformIO Documentation][1])
