Introduction to tinyML

Overview

Course Overview
Embedded Systems
  • Small, or tiny,
  • Low power, extremely low power.
  • Can run for days, weeks, months, sometimes even years on tiny battery (cell).
  • tinyML: Machine learning on embedded systems
Machine Learning
  • is a subfield of artificial intelligence,
  • uses a lot of data infer interesting patterns about new data
tinyML
  • is at the intersection of embedded systems and machine learning
  • is a fast-growing field of machine learning technologies and applications that include algorithms, hardware, and software that are capable of performing on-device sensor data analytics at extremely low power, typically in the order of milliwatts,
  • enables always-on machine learning use cases on battery-powered devices.
Failure: Examples of tinyML applications?
  • Siri, Alexa, Google
  • Still requires wall power/big battery
Example: Examples of tinyML applications
  • Smart drones
    • video surveillance
    • go where humans cannot go
  • Smart sensors on mobile robots
    • healthcare
  • Smart glasses
    • Smart guidance
Course Structure
  • Based on Harvard’s tinyML course
  • Part 1: Machine Learning
  • Part 2: Typical applications of tinyML
  • Part 3: Physical deployment of tinyML

Why tinyML?

Machine Learning

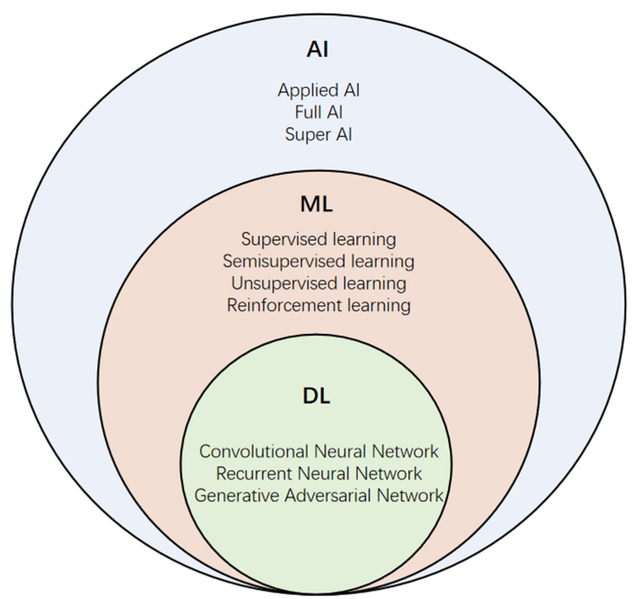

  • ML is a subfield of artificial intelligence that’s focused on developing algorithms that can learn to solve problems by analyzing data for interesting patterns.
  • DL is a type of ML that leverages neural networks and big data.
ML applications
  • ML is embedded in all aspects of (digital) life nowadays.
  • Subfields of ML
    • Image classification: what is it
    • Object detection: where is it
    • Segmentation: where are these different things?
    • Machine translation
  • Most of these applications of traditional ML require massive amount of computational power to train/inference: giant data centers
Is bigger better?
  • Problems!
    • Lacks interactivity.
    • Dependent on additional resources: power, network bandwidth, memory, computation power …
  • Numerous tiny devices instead of single massive center for large devices.
    • Pervasive nowadays
    • On all the time
    • Collect lots of data
    • What if all of them are also smart and can analyze these data in-place?
Exercise
  • What kinds of new TinyML applications do you wish existed today?
  • What existing applications do you think could be improved by TinyML?
  • What applications that others have posted about are you excited about?

Enable tinyML

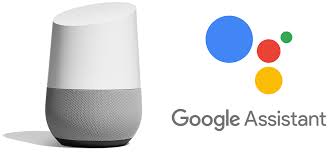

Example: OK, Google
  • Google Assistant: Machine Learning
  • HomiSmart: Physical device
  • User says OK Google and the machine responds with How can I help
Step 1
  • Audio input from user’ spoken voice.
  • Picked up by device
Step 2
  • Audio input is processed
  • Did you say “Ok Google”, “Alex”, “Siri”, or did you simply sneezed?
Step 3
  • Device generates output responses
Step 1: data input
  • Coming from sensors on device
    • Motion sensors,
    • Acoustic sensors,
    • Environmental sensors,
    • Biometric sensors,
    • Image sensors.
    • Force sensors, lots and lots of different kinds of sensors.
Step 2: Data processing
  • Typically require big processors.
  • What about MCU (Micro-controller units) type of processors?

=== “Dimension”



1
2
3


- CPU/GPU: $561\ {mm}^2$
- Mobile (Apple 0778 Apple Watch): $33\ {mm}^2$
- Kinetis KL03: $3.2\ {mm}^2$

=== “Power consumption”



1
2
3


- NVIDIA Tesla K80: 300W
- Apple A12: 3.64W
- Syntiant NDP100: **140 microW** (Always-on deep learning speech/audio recognition)

=== “Demand”

Step 3: Output
  • Physical actuators
  • Digital actuators
Example: Face tracking device

Challenges of tinyML

Embedded Systems: Hardware
  • Fundamental building blocks of computing systems:
    • Compute
    • Memory
    • Storage
  • Differences between processors, micro-processors, and micro-controllers
    • Processors/micro-processors
      • Control other parts of computing devices (desktop/laptop)
      • Storage and memory are different physical components.
    • Micro-controllers
      • Everything is integrated and tightly coupled
      • CPU, read-only memory (ROM), read-write memory, timer, I/O port, serial interface
      • Typically is preset in their functionality
  • Comparison
    • Multiple magnitudes of difference
  • What does it mean to have less compute, memory, storage, and power consumption?
    • understand the task you want to run,
    • understand the requirements,
    • how long is the run time duration?
Embedded Systems: Software
  • What is software
    • High-level application
    • Supporting libraries
    • Operating systems (OSes)
  • General-purpose OSes
    • On desktop/laptop
      • Windows
      • MacOS
      • Linux distros
      • …
    • On smartphones
      • iOS
      • Android
    • Provide supporting libraries to help run a wide variety of applications on desktop/laptop/smartphones
  • OSes on embedded system
    • Specialize to perform one task.
      • FreeRTOS
      • ARM Mbed OS.
    • Very lightweight with minimal libraries
    • Prioritize efficiency at cost of portability
    • Not easily portable
      • To be portable, the OSes have to provide common library support.
ML Algorithms

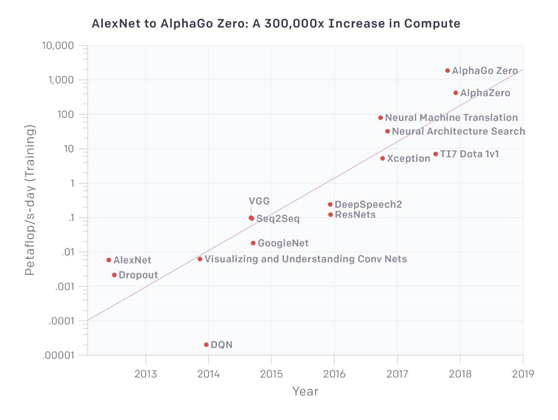

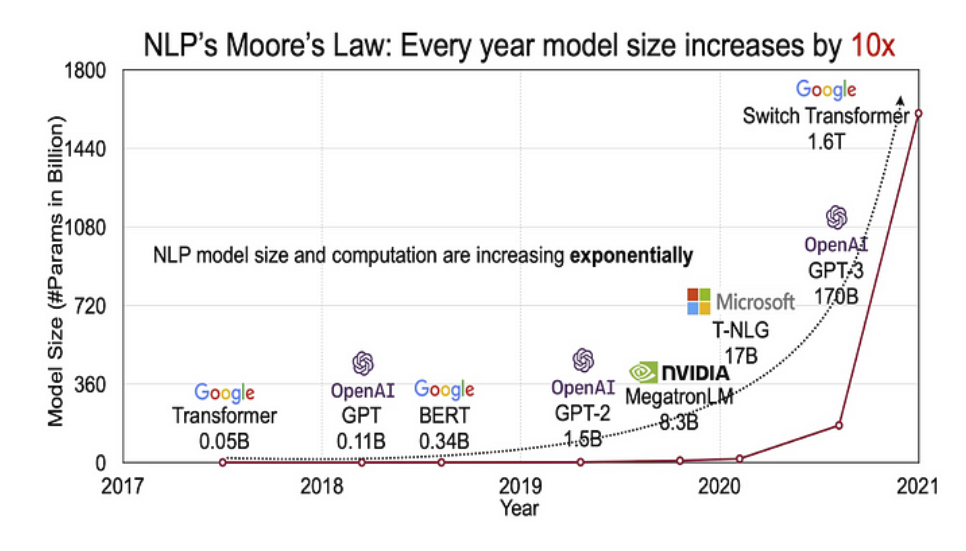

  • Machine learning models are growing fast in complexity.
  • The computing capability that is needed is growing accordingly.
  • What about tinyML
    • How to pack ML into tiny devices with resource constraints

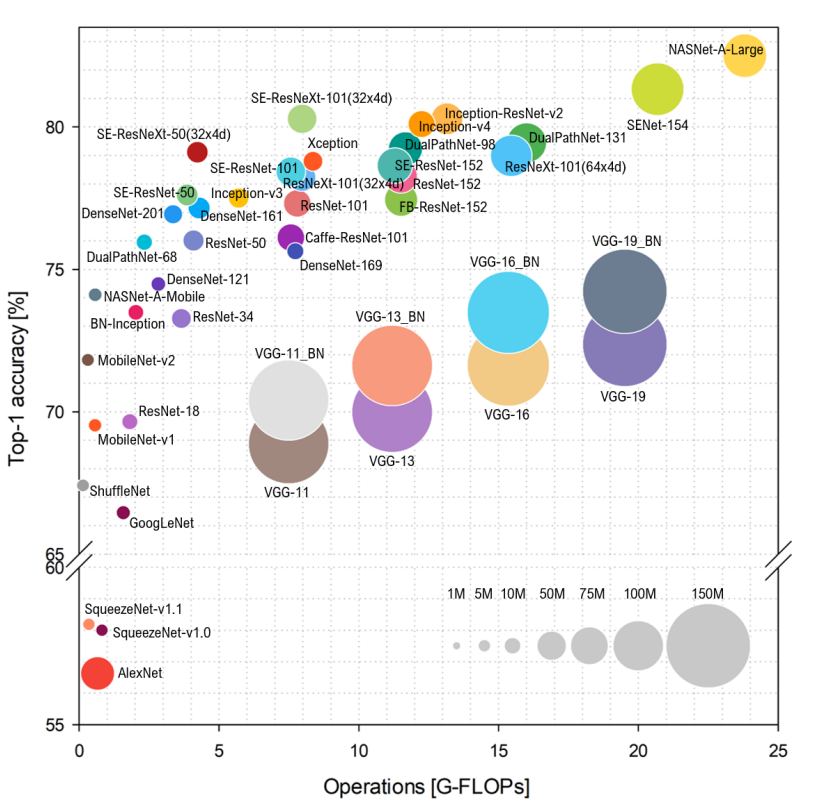

  • Performance trade-off
    • AlexNet (57.1% acc, 61MB)
    • VGGNet (71.5% acc, 528MB)
    • MobileNet (<70% acc, 16.9MB)
  • Bigger is not always better, especially in tinyML world.
  • MobileNet is still not good enough: MCU has a few KB of memory
  • Solutions:
    • Compression through optimization and pruning
