Declarative Configuration Management

Last updated: February 24, 2026

Bridging the Gap

The Pipeline So Far


1
2
3


- **Lecture 12:** We used FABRIC to provision raw, blank hardware on FABRIC.
- **Lecture 14 (Next):** We want to use Docker Swarm to deploy containers.
- **The Missing Link:** The raw FABRIC nodes don't have Docker installed. We need a way to configure them automatically to satisfy our course project requirements.

Configuration Management Theory

Theory: What “Declarative Configuration” Really Means
  • In imperative configuration, we describe a sequence of commands:
    • install this package
    • start this service
    • create this directory
    • copy this file
  • In declarative configuration, we describe the desired final state of the system:
    • Docker is installed
    • the Docker service is enabled and running
    • a configuration file exists with specific contents
    • firewall rules allow required traffic
  • The key idea is that the user specifies the goal state, while the tool determines whether any changes are needed to move the machine from its current state to that goal state.
  • This is why declarative systems are often described as state reconciliation systems.
Theory: Convergence and Drift
  • Declarative configuration management is built around convergence:
    • No matter what state a machine starts in, repeated application of the playbook should drive it toward the same target configuration.
  • This helps manage configuration drift, where machines that were originally identical slowly become different over time because of manual fixes, forgotten updates, or one-off experiments.
  • In other words:
    • Imperative scripts: “Do these steps.”
    • Declarative systems: “Make reality match this description.”
Theory: Why This Matters in Cloud and Distributed Systems
  • In cloud environments, machines are often short-lived, replaced frequently, or provisioned in batches.
  • Manual setup does not scale well because:
    • it is error-prone,
    • it is hard to reproduce,
    • and different nodes can silently diverge.
  • Declarative configuration gives us:
    • reproducibility: we can rebuild environments consistently,
    • auditability: the desired configuration is written down in version-controlled files,
    • maintainability: changes are made by updating code, not by logging into random machines,
    • scalability: the same playbook can configure one node or many nodes.
Theory: Declarative Configuration as Infrastructure Discipline
  • Treat infrastructure as an engineered system rather than a collection of hand-maintained machines.
  • This is especially important in modern environments where:
    • systems are rebuilt often,
    • services are distributed,
    • and reproducibility is critical for both industry and research computing.

Architecture of Ansible

Overall Design
  • Agentless
    • Unlike older tools (Chef/Puppet), Ansible is Agentless. It does not require a daemon running on the target machines.
    • It uses standard SSH, pushing Python modules to the targets, executing them, and tearing them down.
  • Idempotency
    • An Ansible playbook is guaranteed to result in the same system state no matter how many times it is run.
  • Declarative Syntax:
    • Users define what the system state should look like, and Ansible will handle how to achieve it.
  • Extensible
    • Support hundreds of built-in modules and allows for custom modules written in Python
Idempotency


1
2
3
4
5


- Writing a Bash script to install Docker is imperative and fragile. If you run `mkdir` twice, it can generate
an error, which then can cause a crash.
- **Ansible** is based on the mathematical concept of **Idempotency** ($f(f(x)) = f(x)$).
- An operation is idempotent if applying it multiple times has the same effect as applying it once.
- Ansible modules check the current state first; if the software is already installed, it does nothing.
Finite State Automata


1
2
3
4


- Ansible treats your infrastructure as a state machine.
- $S_0$: The blank FABRIC node.
- $Transition$: The Ansible Playbook (declarative code).
- $S_{final}$: The node configured exactly as desired (Docker installed, security policies set).
Components
  • Control Node:
    • Ansible installation
    • Playbook deployment
  • Managed Nodes (Hosts):
    • Computing instances managed by Ansible
    • Management connection is handled by SSH
  • Inventory :
    • A file mapping IP addresses to the managed hosts (e.g., [managers], [workers]), or
    • A script that query cloud providers for list of current running instances
  • Modules:
    • Small programs that Ansible pushes to the managed nodes to perform tasks (e.g., yum, apt, service, …)
    • Core modules are maintained by Ansible
    • Custom modules can be developed by users
  • Playbook:
    • A YAML file describing the desired state.
  • Plugins:
    • Extend Ansible’s core functionality

Hands-on

Baseline Imperative Setup and SSH Tunneling
  • Once the slice (experiment) is setup, the process of uploading the startup file is somewhat similar to CloudLab.
  • We can upload the installation directory, then execute the uploaded scripts:
    • The installation log is ready locally.


1
2


node.upload_directory('scripts','.')
node.execute('bash scripts/web_server.sh',  quiet=True, output_file=f"{node.get_name()}.log")

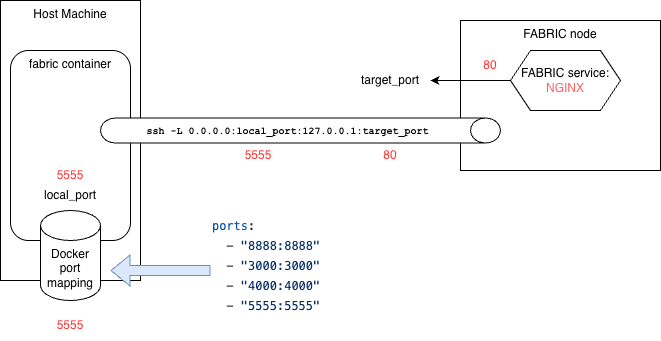

  • For this example, to view the installed Nginx server, we need to setup an SSH tunnel.
Declarative Setup using Ansible
Challenges

Develop an Ansible playbook to setup Docker inside a single-node slice.
