Introduction to FABRIC

Last updated: March 24, 2026

What is FABRIC

Overview
  • FABRIC: FABRIC is Adaptive ProgrammaBle Research Infrastructure for Computer Science and Science Applications.
    • Recursive acronym similar to GNU (“GNU’s Not Unix”)
  • Funded by NSF
  • To enable new paradigms for distributed applications and Internet protocols
    • A nation-wide programmable network with compute and storage at each node: run computationally intensive programs & maintain information in the network.
    • GPUs, FPGAs, and network processors (NICs) inside the network
    • Quality of service (QoS): dedicated optical 100Gb
    • Interconnects national facilities: HPC, cloud & wireless testbeds, commercial clouds, Internet, and edge
    • Design and test applications, protocols and services that run at any node in the network
    • Science cases: IoT sensors, Cybersecurity, AI/ML, SDN/P4, Science apps
Why FABRIC

– Internet is showing its age.

  • Applications designed around discrete points in the solution space
  • Inability to program the core of the network
  • What changed?
    • Cheap compute/storage that can be put directly in the network
    • Multiple established methods of programmability (OpenFlow, P4, eBPF, DPDK, BGP flowspec)
    • Advances in Machine Learning/AI
    • Emergence of 5G, IoT, various flavors of cloud technologies
  • Opportunity for the community to push the boundaries of distributed, stateful,‘everywhere’ programmable infrastructure
    • More control or dataplane state, or some combination? Multiple architectures (co)exist in thisspace.
    • Network as a big-data instrument? Autonomous network control?
    • New protocols and applications that program the network?
    • Security as an integral component

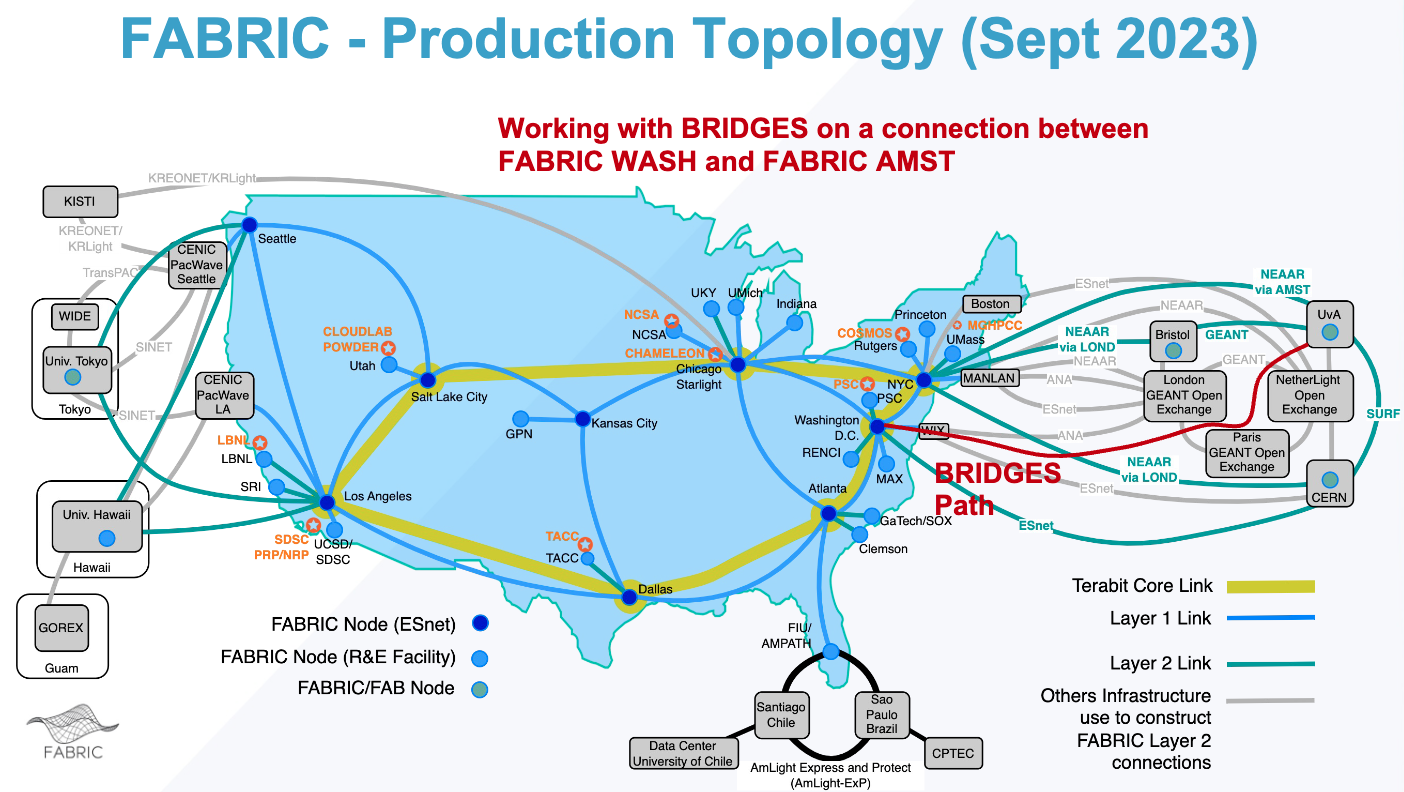

Nationwide Topology and Connected Facilities
  • One of the big conceptual differences from CloudLab is that FABRIC was designed as a distributed national infrastructure, not just as a small set of isolated clusters.
  • Even if we do not build complex cross-site experiments in this course, students should see that the platform was built to span multiple sites and to connect to external facilities.
Key Differences from GENI
  • FABRIC has a programmable core network infrastructure
  • FABRIC provides guaranteed quality of service by utilizing its own dedicated optical 100G infrastructure or relying on dedicated L2 capacity wherever possible to create QoS-guaranteed connections.
  • FABRIC provides access to a variety of programmable PCI devices○ Network cards, GPUs, FPGAs
  • FABRIC interconnects a large number of existing scientific, computational and experimental facilities
  • FABRIC experimenter network topologies can peer with the Internet, R&E Networks for access other facilities and public clouds on-demand
Scope of FABRIC usage in this course
  • The attached overview describes FABRIC as a nation-wide programmable network with compute and storage at each node.
  • The design goal is broader than a local cluster:
    • compute,
    • storage,
    • programmable networking,
    • accelerators such as GPUs and FPGAs,
    • and connectivity to other facilities such as cloud, HPC, wireless, and edge resources.
  • For this course, we are not trying to use all of FABRIC,
    • we are mostly using the approachable part of it,
    • especially the ability to provision resources through slices and work with a modern research testbed.

Slices, Sites, and Resource Thinking

Node Design
  • 33 FABRIC Nodes
    • 9 nodes co-located at ESnet6 (DOE’s Energy Science Network) Points of Presence:
      • Connected via dedicated 100 Gbps DWDM across the ESnet6 open line optical system; some sites to be upgraded to Terabit SuperCore soon
    • 20 other nodes distributed across the R&E community at various regional networks, major CI facilities, and university hosting sites
      • many connected via 100 Gbps Layer 1
    • 4 Nodes deployed at International Locations (CERN, University of Amsterdam, University of Bristol, University of Tokyo)
  • Individual Node Configuration
    • 2x32-core AMD Rome and Milan with 512G RAM
    • GPUs (NVIDIA RTX 6000, T4, A30), FPGA network/compute accelerators
    • Storage - experimenter provisionable 1TB NVMe drives in servers and a pool of ~250TB rotating storage at each site
    • Network ports connect to a 100G+ switch, programmable through control software
    • Tofino-based P4 switches (4 or more sites)
    • Reconfigurable Network Interface Cards
      • FPGAs (U280 XILINX with P4 support)
      • Mellanox ConnectX-5 and ConnectX-6 with hardware off-load
      • Multiple interface speeds (25G, 100G, 200G+(future))
    • Kernel Bypass/Hardware Offload
      • VMs sized to support full-rate DPDK (Data Plane Development Kit) for access to Programmable NICs, FPGA, and GPU resources via PCI pass-through
FABRIC Features
  • Facility Ports: ability to add external facilities to slices using on-demand L2 connections
  • Mirror Ports : ability to mirror traffic from the dataplane switch into slice
  • Support for on-demand public connectivity
    • Slices with L3 IPv4 or IPv6 can connect on-demand with public internet
    • This is in testing
  • L3 VPN service + CloudConnect
  • Persistent storage for slices: get storage allocation at multiple sites for your project
  • In-slice measurement framework - instrumentize your slice to get data about its performance
  • Inter-testbed federation features, more Facility Ports
  • Future
    • Support for P4 Tofino switches in topologies
    • Support for P4 workflows on top of U280 FPGAs (in collaborations withOCT/NorthEastern and ESnet)
FABRIC External Connections
  • FABRIC experiments (slices) can run in an isolated manner within FABRIC Infrastructure, and isolated from external networks.
  • Slices can also utilize FABRIC’s external connections to access a variety of external experimental and production resources.
  • These external connections are organized as follows:
    • Layer 3 IPv4 and IPv6 public connectivity on demand (with policy restrictions)via peering points provided by ESnet and Internet2
    • Layer 2 Services Peering (aka Facility ports)
    • Public Cloud Connections via CloudConnect
Interaction with FABRIC
  • FABRIC has three ways to interact with it:
    • Portal - focus on creating small topologies
    • upyter Hub notebooks via API - don’t just create topologies - run experiments
    • API libraries from your laptop/desktop
  • Recommended Starting Point: Notebook
  • A FABRIC slice is the closest analogue to a CloudLab experiment.
  • In both cases, the experiment is the thing you create, inspect, renew, and delete.
  • The analogy becomes less exact on the definition side:
    • CloudLab profile: reusable platform-level template used to instantiate an experiment.
    • FABRIC notebook / FABlib script: the procedure that creates and configures a slice.
Site, node, and component
  • FABRIC still uses the word node, but students should think a bit more carefully about what that means.
  • A helpful vocabulary set is:
    • site = the institution or hosting location,
    • node = the compute resource instantiated inside a slice,
    • component = attached capability such as GPU, storage, or specialized networking hardware,
    • slice = the overall experiment boundary tying resources together.
  • This is why FABRIC feels different from the older habit of thinking only in terms of “give me a machine.”
  • A better mindset is:
    • compose an experiment from nodes + network services + optional components.

Access Patterns and Simple Provisioning

Access is slightly more complex than CloudLab
  • CloudLab often feels straightforward:
    • instantiate,
    • wait for resources,
    • SSH into the machines.
  • FABRIC is usually a little more ceremonial:
    • create a slice,
    • place nodes,
    • submit the slice,
    • use the expected FABRIC access workflow,
    • and then log into the provisioned resources.
Step 1: Initiate Configuration

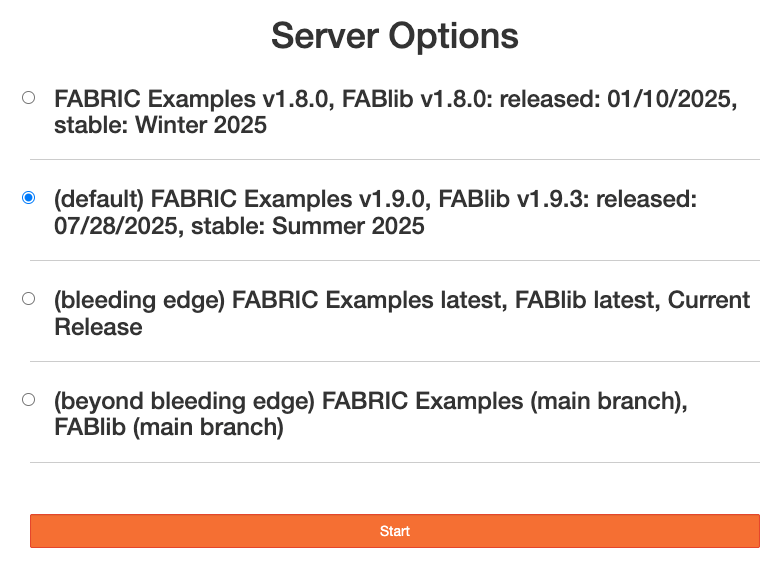

  • Start Jupyter with default option:
  • Run the following on a Terminal inside the Notebook server:


1
2
3


pip show fabrictestbed-extensions
pip install -U fabrictestbed-extensions
pip show fabrictestbed-extensions

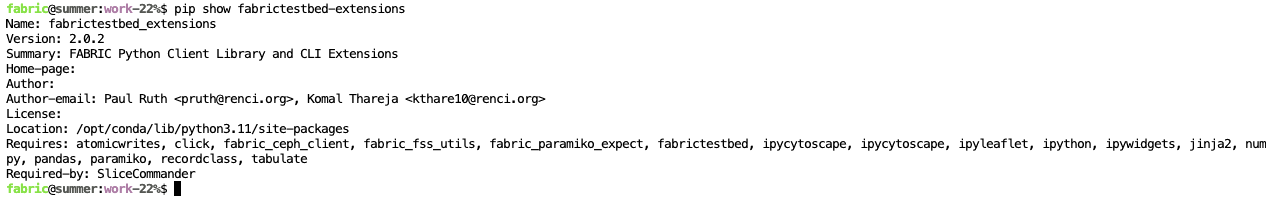

  • We should see a version 2.0.2 for the extension
  • Next, we will generate the configurations


1


fabric-cli configure setup
Step 2: Starting a notebook
  • Go to jupyter-examples-rel1.9.0/
  • Open start_here.ipynb notebook
Bottom Lines
  • CloudLab is easier to start with.
  • FABRIC gives us another way to keep moving when CloudLab is full.
  • Later courses or advanced projects can make deeper use of FABRIC’s networking and distributed features.

Local Deployment

You are to clone the following repository

Preparation

If you have a Windows machine, run the followings:



1
2
3


git config --global core.autocrlf false
git clone https://github.com/CSC468-WCU/fabric-examples.git
cd fabric-examples
Home Preparation
  • A home directory for fabric service account is available inside the fabric-examples directory. Everything inside this directory has been included .gitginore file inside this directory. This is to ensure that all credential information are not accidentally pushed back upstream.
  • You will need to populate this home directory.
  • Create two directories inside this home directory:


1
2
3
4
5


# Make sure that you start out inside fabric-examples.
pwd
cd home/fabric
mkdir .ssh
mkdir .fabric
.fabric
  • Copy the file fabric_env.sh.template inside .docker into the newly created .fabric directory.
    • Change the file name to fabric_rc.
    • Change the value __FABRIC_PROJECT_ID__ with the project id from your Fabric Hub Profile.
    • Change the value __FABRIC_BASTION_USERNAME__ to the Basion ID from your Fabric Hub Profile.

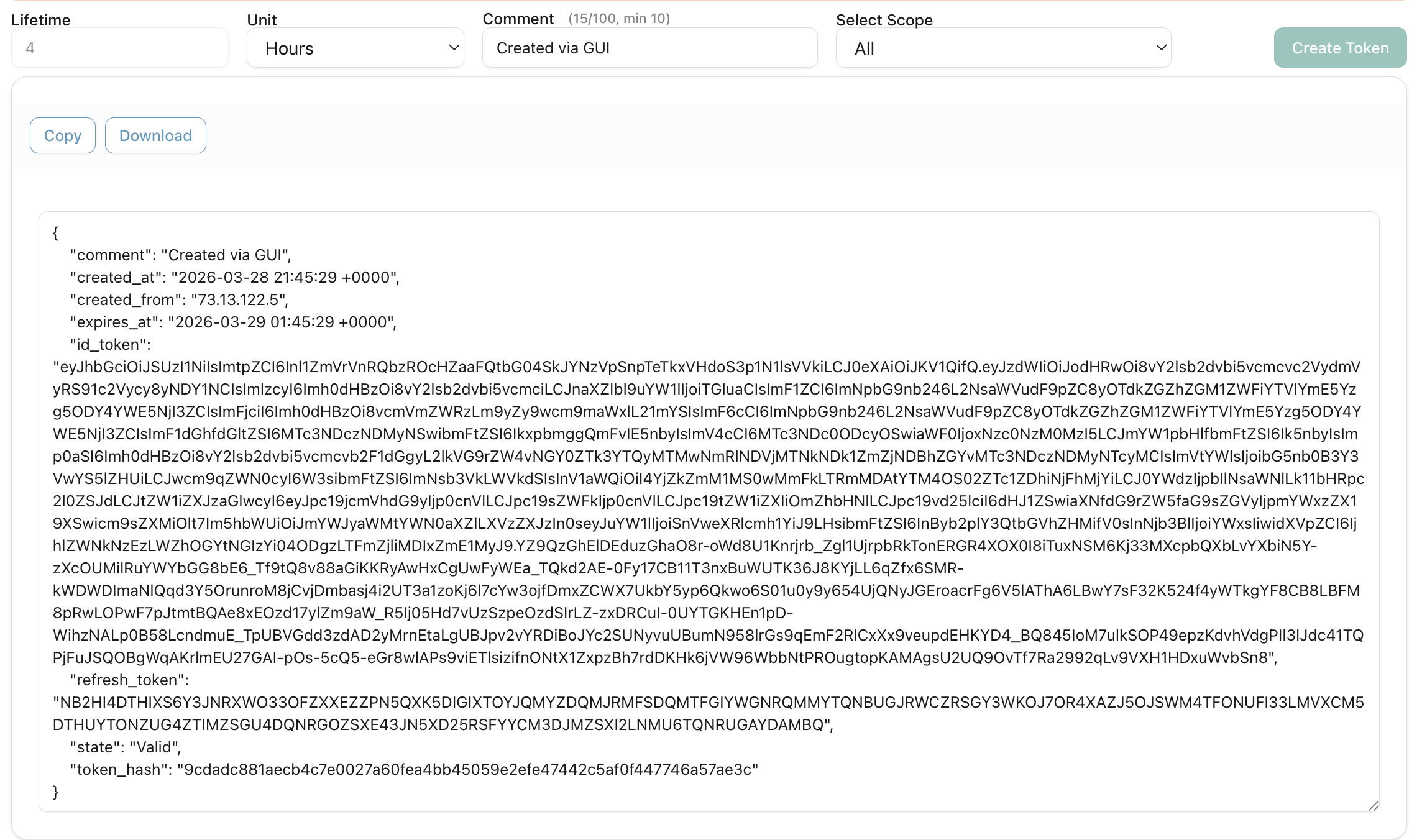

  • Login into https://cm.fabric-testbed.net/ to generate a new token.
    • Download the generated token file id_token.json and save them inside .fabric.
.ssh
  • Go to https://portal.fabric-testbed.net/ and Log in.
  • On the top bar, visit Experiments, then select Manage SSH Keys.

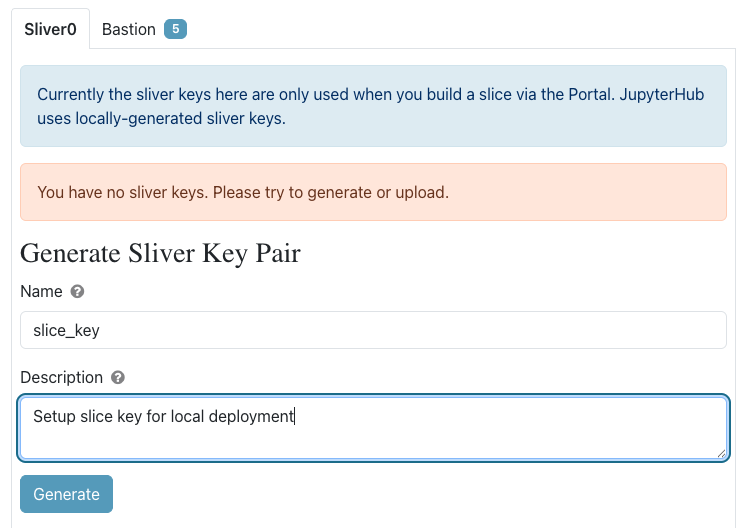

  • On the Sliver0 tab, in the Generate Sliver Key Pair box
    • Enter slice_key as the name
    • Enter a short description, perhaps the date when you generated this key pair or the host computer name.
    • Generate, then download the slice_key and slice_key.pub files into this .ssh directory.
  • Switch to the Bastion tab, and do the same thing.
    • For the name, enter fabric-bastion-key
    • Generate, then download the fabric-bastion-key and fabric-bastion-key.pub files into this .ssh directory.

It is important that you populate both .fabric and .ssh prior to building the image.

Building Image

Build the image, then launch



1
2


docker compose build --no-cache
docker compose up

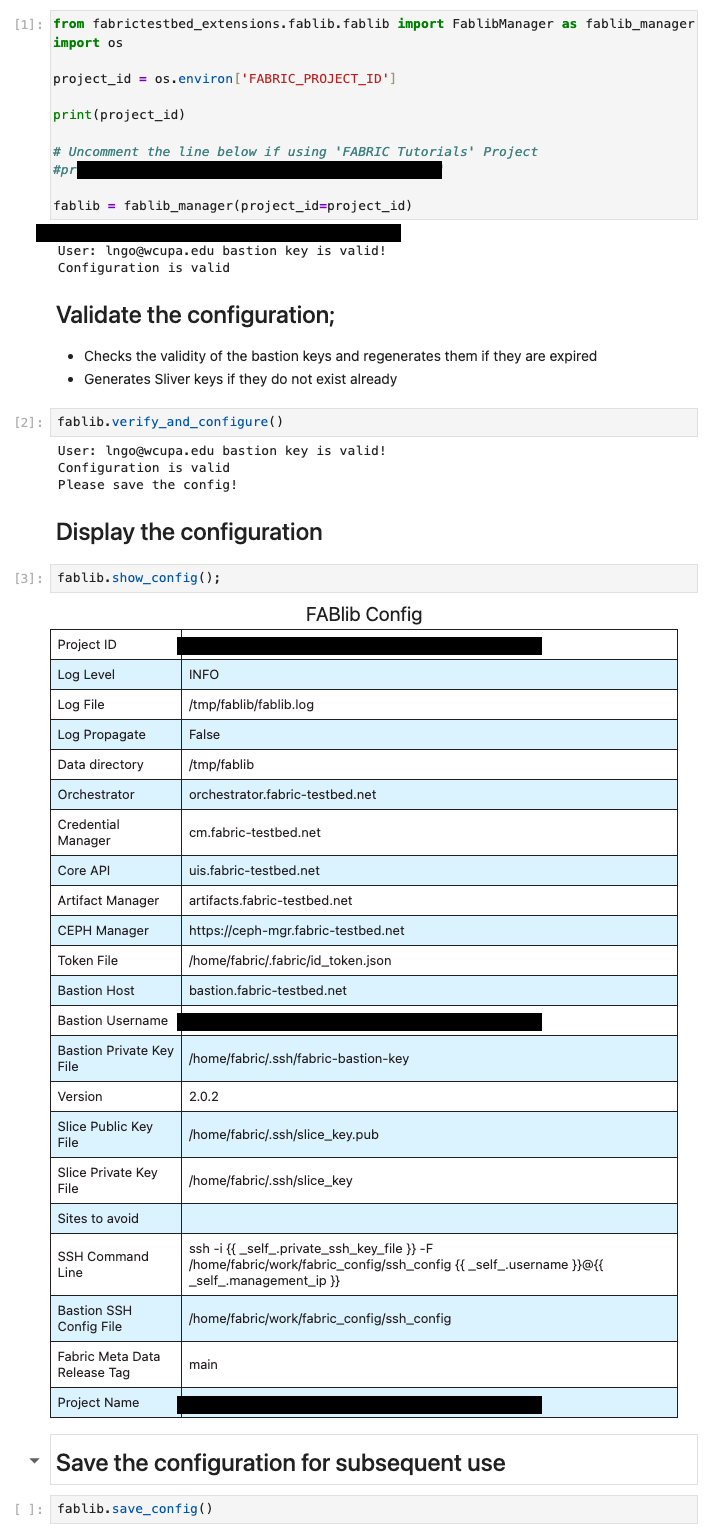

Validation
  • Visit 127.0.0.1:8888/lab
  • Open start_here.ipynb then click on Configure Environment to open configure_and_validate.ipynb.
  • Run the notebook.
