Clustering
Clustering
Overview
General problem statement
- Given a set of data points, with a notion of distance between points, group the points into some number of clusters so that:
- Members of a cluster are close/similar to each other.
- Members of different clusters are dissimilar.
- Usually
- Points are in high-dimensional space (observations have many attributes).
- Similarity is defined using a distance measure: Euclidean, Cosine, Jaccard, edit distance …
Clustering is a hard problem
- Clustering in two dimensions looks easy.
- Clustering small amounts of data looks easy.
- In most cases, looks are not deceiving.
- But:
- Many applications involve not 2, but 10 or 10,000 dimensions.
- High-dimensional spaces look different.
Clustering Sky Objects
- A catalog of 2 billion sky objects represents objects by their radiation in 7 dimensions (frequency bands)
- Problem: cluster into similar objects, e.g., galaxies, stars, quasars, etc.
Clustering music albums
- Music divides into categories, and customer prefer a few categories
- Are categories simply genres?
- Represent an album by a set of customers who bought it
- Similar albums have similar sets of customers, and vice-versa
- Space of all albums:
- Think of a space with one dimension for each customer
- Values in a dimension may be 0 or 1 only
Data representation
- An album is a point in this space $(x_1, x_2, …,x_k)$ where $x_i = 1$
if and only ifthe $i^{th}$ customer bought the CD. - For Amazon, the dimension is tens of millions
- Find clusters of similar CDs
Clustering documents
- Finding topics
- Group together documents on the same topic.
- Documents with similar sets of words maybe about the same topic.
- Dual formulation: a topic is a group of words that co-occur in many documents.
Data representation
- Represent a document by a vector $(x_1, x_2, …,x_k)$ where $x_i = 1$
if and only ifthe $i^{th}$ word (in some order) appears in the document. - Document with similar sets of words may be about the same topic.
Distance Measurements: Cosine, Jaccard, Euclidean
- Different ways of representing documents or music albums lead to different distance measures.
- Document as
set of words- Jaccard distance
- Document as
point in space of words.- $x_i$ = 1 if
iappears in doc. - Euclidean distance
- $x_i$ = 1 if
- Document as
vector in space of words.- Vector from origin to …
- Cosine distance.
- Document as
- Review sequential implementation of these distance via the distance-measurment notebook.
Overview: methods of clustering

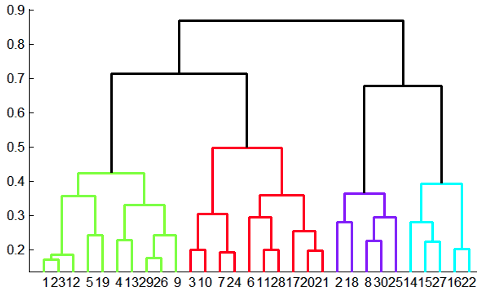

=== “Hierarchical”
1
2
3
4
5
- Agglomerative (bottom up): each point is a cluster,
repeatedly combining two nearest cluster.
- Divisive (top down): start with one cluster and
recursively split it.
- Key operation: repeatedly combine two nearest clusters.
=== “Point assignment”
1
2
- Maintain a set of clusters
- Points belong to `nearest` cluster
-
Three important questions:
- How do you represent a cluster of more than one point?
</ol></summary>
- Key problem: As you merge clusters, how do you represent the “location” of each cluster, to tell which pair of clusters is closest?
- Euclidean case:
- Each cluster has a
centroid= average of its (data)points
- Each cluster has a
- Non-Euclidean case:
- The only “locations” we can talk about are the points themselves i.e., there is no “average” of two points
-
clustroid= (data)point closest to other points- Smallest maximum distance to other points
- Smallest average distance to other points
- Smallest sum of squares of distances to other points
</details> <summary><ol>
</ol></summary>
- Measure cluster distances by distances of
centroids,clustroid - Define Intercluster distance = minimum of the distances between any two points, one from each cluster
- Pick a notion of “cohesion” of clusters, e.g., maximum distance from the clustroid
- Merge clusters whose union is most cohesive
</details> <summary><ol>
</ol></summary>
- Minimal differences between iteration
- Native iteration: $O(N^3)$
- Priority queue: $O(N^2logN)$
</details>
K-means clustering
Overview
- Assumes
Euclideanspace/distance - Pick
k, the number of clusters. - Initialize clsuters by picking on point per cluster.
- Example: Pick one point at random, then k-1 other points, each as far away as possible from the previous points
Populating clusters
- For each point, place it in the cluster whose current centroid it is nearest.
- A cluster centroid has its coordinates calculated as the averages of all its points’ coordinates.
- After all points are assigned, update the locations of centroids of the
kclusters. - Reassign all points to their closest centroid.
- Repeat 1. and 2. until convergence
- Points don’t move between clusters and centroids stabilize, or
- Very few points move, and the movements are back and forth in nature
How to select k?
- Try different
k, looking at the change in the average distance to centroid, askincreases. - Approach 1: sampling
- Cluster a sample of the data using hierarchical clustering, to obtain
kclusters. - Pick a point from each clsuter (e.g. point closest to centroid)
- Sample fits in main memory.
- Cluster a sample of the data using hierarchical clustering, to obtain
- Approach 2: Pick
dispersedset of points- Pick first point at random
- Pick the next point to be the one whose minimum distance from the selected points is as large as possible.
- Repeat until we have
kpoints.
Visual example

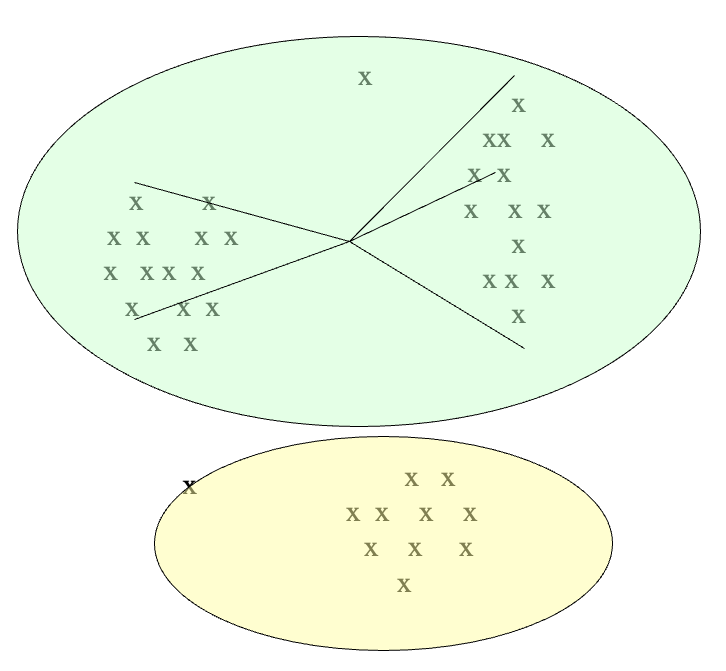

Too few
- Many long distances to centroid

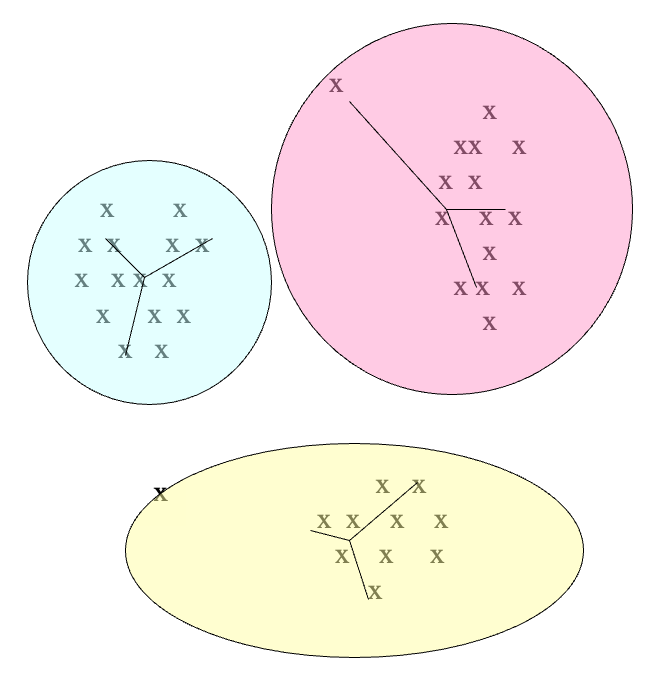

Just right
- Distances are relatively short

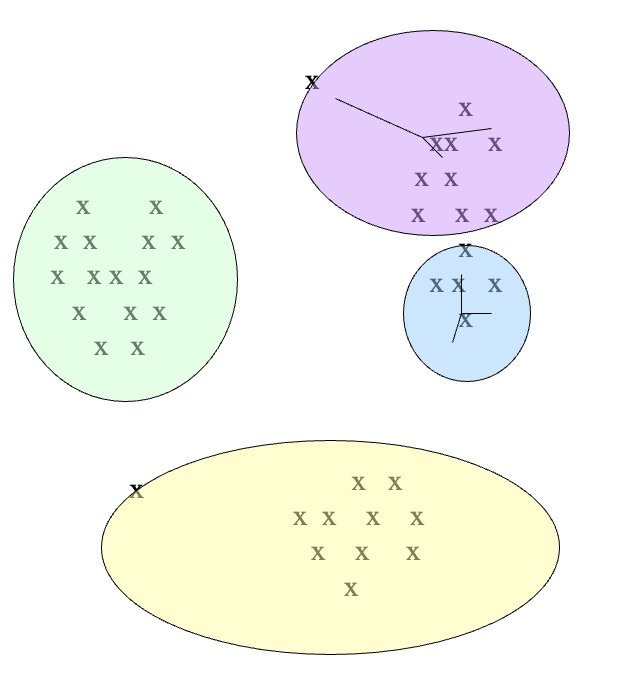

Too many
- Little improvement in avaerage distance
K-means on big data: BFR (Bradley-Fayyad-Reina)
BFR: Bradley-Fayyad-Reina
- Scaling EM (Expectation-Maximization) Clustering to Large Databases
- BFR [Bradley-Fayyad-Reina] is a variant of k-means designed to handle very large (disk-resident) data sets
- Assumes that clusters are normally distributed around a centroid in a Euclidean space
- Standard deviations in different dimensions may vary
- Clusters are axis-aligned ellipses
- Efficient way to summarize clusters (want memory required O(clusters) and not O(data))
BFR
- Points are read from disk one main-memory-full at a time
- Most points from previous memory loads are summarized by simple statistics
- To begin, from the initial load we select the initial k centroids by some sensible approach:
- Take k random points
- Take a small random sample and cluster optimally
- Take a sample; pick a random point, and then k-1 more points, each as far from the previously selected points as possible

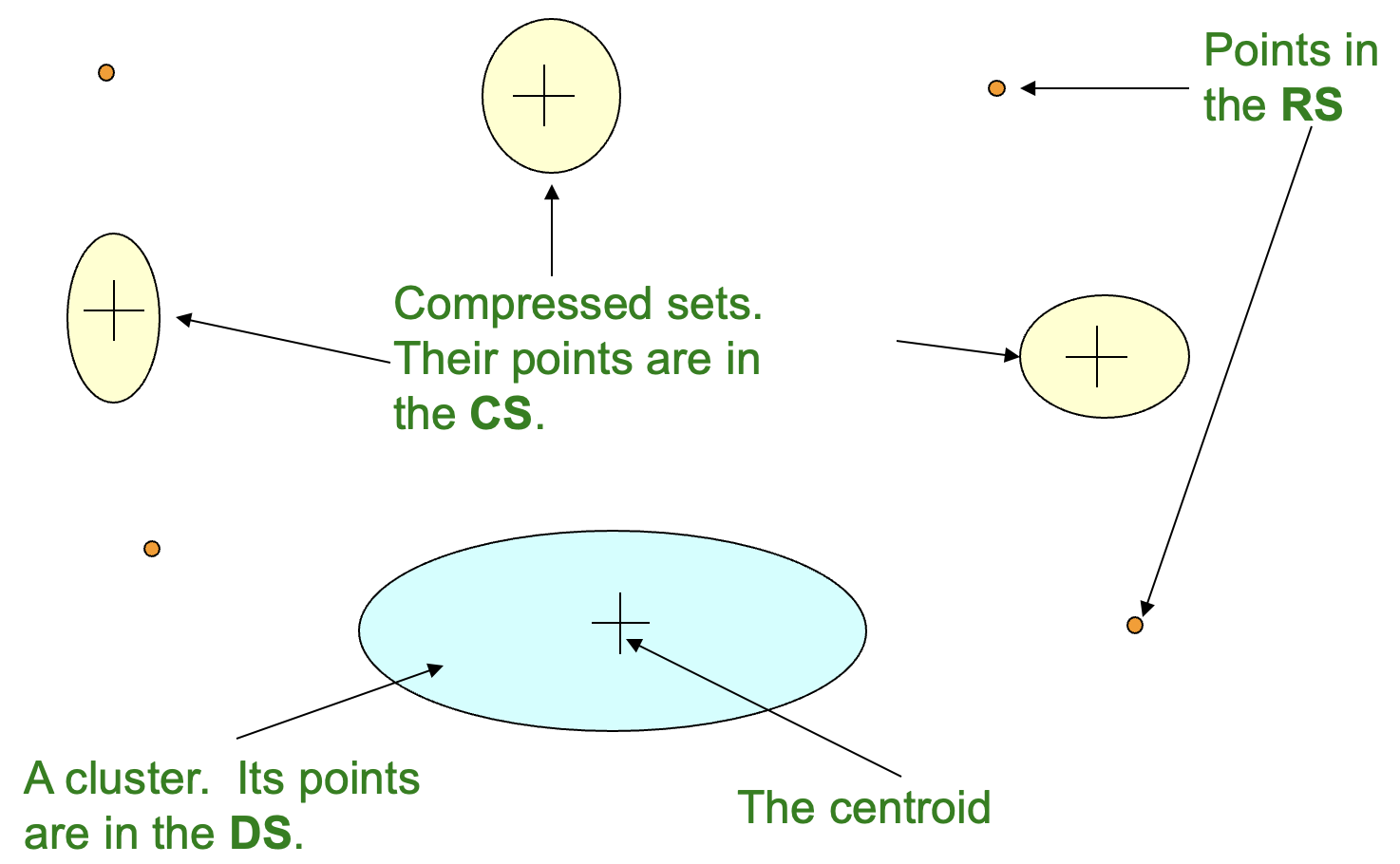

Three classes of points
Discard set (DS)
- Points close enough to a centroid to be summarized
Compression set (CS)
- Groups of points that are close together but not close to any existing centroid
- These points are summarized, but not assigned to a cluster
Retained set (RS)
- Isolated points waiting to be assigned to a compression set
Discard set (DS)
- Represented by:
- The number of points, N
- The vector
SUM, whose $i^{th}$ component is the sum of the coordinates of the points in the $i^{th}$ dimension - The vector
SUMSQ: whose $i^{th}$ component is the sum of squares of coordinates in $i^{th}$ dimension
- Properties:
- $2d + 1$ values represent any size cluster
- $d$ is the number of dimensions
- Average in each dimension (the centroid) can be calculated as $\frac{SUM_i}{N}$ with $SUM_i$ is the $i^th$ component of SUM.
- Variance of a cluster’s discard set in dimension i is: $\frac{SUMSQ_i}{N} - (\frac{SUM_i}{N})^2$
- And standard deviation is the square root of variance.
- $2d + 1$ values represent any size cluster
Processing the Memory-Load of points
- Start out with a selection of k centroids.
- Find those points that are “sufficiently close” to a cluster centroid and add those points to that cluster and the DS
- These points are so close to the centroid that they can be summarized and then discarded
- Use any main-memory clustering algorithm to cluster the remaining points and the old RS
- Clusters go to the CS; outlying points to the RS
- DS set: Adjust statistics of the clusters to account for the new points
- Add Ns, SUMs, SUMSQs
- Consider merging compressed sets in the CS
- If this is the last round, merge all compressed sets in the CS and all RS points into their nearest cluster
- How do we decide if a point is “close enough” to a cluster that we will add the point to that cluster?
BFR suggests two approaches
- The Mahalanobis distance is less than a threshold
- Normalized Euclidean distance from centroid
- For point $(x_1,x_2,…,x_d)$ and centroid $(c_1,c_2,…,c_d)$
- Normalize in each dimension: $y_i = \frac{x_i - c_i}{\sigma_i}$
- ${\sigma_i}$: standard deviation of points in the cluster in the $i^{th}$ dimension
- Take sum of the squares of the $y_i$
- Take the square root
- High likelihood of the point belonging to currently nearest centroid
- How do we decide whether two compressed sets (CS) deserve to be combined into one?
- Compute the variance of the combined subcluster
-
N,SUM, andSUMSQallow us to make that calculation quickly
-
- Combine if the combined variance is below some threshold
- Many alternatives: Treat dimensions differently, consider density

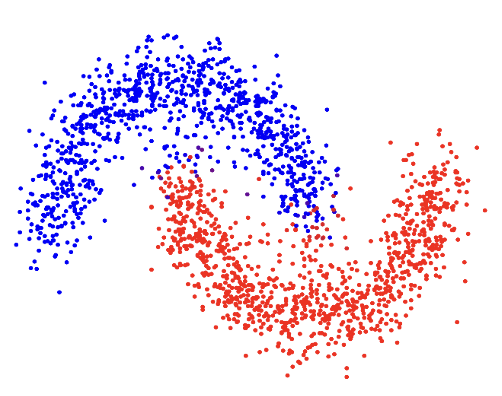

Improvement on BFR: CURE
Overview
- Problem with BFR/k-means:
- Assumes clusters are normally distributed in each dimension
- And axes are fixed - ellipses at an angle are not OK
- CURE (Clustering Using REpresentatives):
- Assumes a Euclidean distance
- Allows clusters to assume any shape
- Uses a collection of representative points to represent clusters
Two-pass algorithm
- Pass 1:
- Pick a random sample of points that fit in main memory
- Initial clusters:
- Cluster these points hierarchically – group nearest points/clusters
- Pick representative points:
- For each cluster, pick a sample of points, as dispersed as possible
- From the sample, pick representatives by moving them (say) 20% toward the centroid of the cluster
- Pass 2:
- Rescan the whole dataset and visit each point p in the data set
- Place it in the “closest cluster”
- Normal definition of “closest”: Find the closest representative to p and assign it to representative’s cluster
