Data Parallel Computing with Spark

Initial preparation

```python linenums=”1” import sys import os sys.path.insert(0, ‘/opt/spark/python’) sys.path.insert(0, ‘/opt/spark/python/lib/py4j-0.10.9.7-src.zip’) os.environ[‘SPARK_HOME’] = ‘/opt/spark’

import pyspark

conf = pyspark.SparkConf() conf.setMaster(“spark://spark-master:7077”) conf.set(“spark.driver.memory”,”1g”)

sc = pyspark.SparkContext(conf=conf) ```

Matrix-vector multiplication

Initial data

```python linenums=”1” import numpy as np np.random.seed(123) N = 4 M = np.random.randint(5, size = (N, N)) V = np.random.randint(5, size = N)

P = np.matmul(M, V)

Print the matrices

print(f”Matrix M:\n {M}”) print(f”Vector N:\n {V}”) print(f”Dot Product P:\n {P}”) ```

Output
Matrix M:
[[2 4 2 1]
[3 2 3 1]
[1 0 1 1]
[0 0 1 3]]
Vector N:
[4 0 0 4]
Dot Product P:
[12 16 8 12]
Initial assumption

Vector V fits into memory

Moving data from notebook’s memory into Spark cluster
  • Data can be generated on the driver side, then parallelize into RDD objects on the cluster.

```python linenums=”1” mspark = sc.parallelize(M) print(mspark.take(4))



1
2
3
4
5
6
7
8
9
10
11
12


<details class="details details--default" data-variant="default"><summary>Output</summary>
<pre><code class="language-output">[array([2, 4, 2, 1]), array([3, 2, 3, 1]), array([1, 0, 1, 1]), array([0, 0, 1, 3])]
</code></pre>

</details>
- This will not work well, as we no longer have an indicator of row order. We need to provide some additional information as we parallelize our local data.
    - [zipWithIndex](https://spark.apache.org/docs/latest/api/python/reference/api/pyspark.RDD.zipWithIndex.html)

```python linenums="1"
mspark = sc.parallelize(M).zipWithIndex()
print(mspark.take(4))
Output
[(array([2, 4, 2, 1]), 0), (array([3, 2, 3, 1]), 1), (array([1, 0, 1, 1]), 2), (array([0, 0, 1, 3]), 3)]

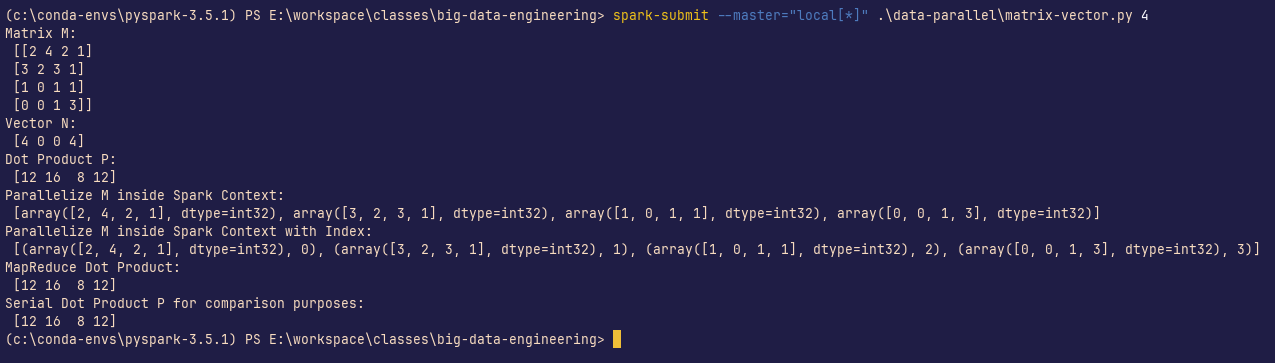

Direct multiplication

```python linenums=”1” def vectorDot(mRow): return mRow.dot(V)

mspark = sc.parallelize(M).zipWithIndex().
map(lambda item: (vectorDot(item[0])))

print(f”MapReduce Dot Product:\n {np.array(mspark.take(4))}”) print(f”Dot Product P:\n {P}”) ```

Output
MapReduce Dot Product:
[12 16 8 12]
Dot Product P:
[12 16 8 12]
Remove assumption
  • Vector V no longer fits into memory
Data processing for multiplication
  • Both matrix M and vector V are loaded onto Spark

```python linenums=”1” mspark = sc.parallelize(M).zipWithIndex() vspark = sc.parallelize(V).zipWithIndex() print(mspark.take(4)) print(vspark.take(4))



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17


<details class="details details--default" data-variant="default"><summary>Output</summary>
<pre><code class="language-output">[(array([2, 4, 2, 1]), 0),
(array([3, 2, 3, 1]), 1),
(array([1, 0, 1, 1]), 2),
(array([0, 0, 1, 3]), 3)]
[(np.int64(4), 0), (np.int64(0), 1), (np.int64(0), 2), (np.int64(4), 3)]
</code></pre>

</details>
- We want to use indices as keys

```python linenums="1"
mspark = sc.parallelize(M).zipWithIndex().map(lambda item: (item[1],item[0]))
vspark = sc.parallelize(V).zipWithIndex().map(lambda item: (item[1],item[0]))
print(mspark.take(4))
print(vspark.take(4))
Output
[(0, array([2, 4, 2, 1])),
(1, array([3, 2, 3, 1])),
(2, array([1, 0, 1, 1])),
(3, array([0, 0, 1, 3]))]
[(0, np.int64(4)), (1, np.int64(0)), (2, np.int64(0)), (3, np.int64(4))]
  • Let’s turn RDDs of M and V into a single RDD

```python linenums=”1” pspark = mspark.union(vspark) print(pspark.take(8))



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30


<details class="details details--default" data-variant="default"><summary>Output</summary>
<pre><code class="language-output">[(0, array([2, 4, 2, 1])),
(1, array([3, 2, 3, 1])),
(2, array([1, 0, 1, 1])),
(3, array([0, 0, 1, 3])),
(0, np.int64(4)),
(1, np.int64(0)),
(2, np.int64(0)),
(3, np.int64(4))]
</code></pre>

</details>
- Each of these numpy array represents one row
of the matrix (see `Initial data`).
    - The summation is made on the product of each element of the same column
    on each row.
- Because V no longer fits into memory, it can be reasoned taht each of these numpy arrays also does not fit in memory.
    - Need to extract column identifier from each numpy array and turn them into individual values, similar to the vector's values.
    - This needs to be done prior to `union`

```python linenums="1"
def getPos(t):
    res = []
    for idx,x in np.ndenumerate(t[1]):
        res.append((idx[0], (t[0], x))) # (row, (column, cell value))
    return res

pspark = mspark.flatMap(getPos).union(vspark)
print(pspark.take(20))
Output
[(0, (0, np.int64(2))), (1, (0, np.int64(4))), (2, (0, np.int64(2))), (3, (0, np.int64(1))),
(0, (1, np.int64(3))), (1, (1, np.int64(2))), (2, (1, np.int64(3))), (3, (1, np.int64(1))),
(0, (2, np.int64(1))), (1, (2, np.int64(0))), (2, (2, np.int64(1))), (3, (2, np.int64(1))),
(0, (3, np.int64(0))), (1, (3, np.int64(0))), (2, (3, np.int64(1))), (3, (3, np.int64(3))),
(0, np.int64(4)), (1, np.int64(0)), (2, np.int64(0)), (3, np.int64(4))]
  • The keys of the above pairs represent the row identifier.
  • If value is a tuple, first element is the column identifier and second element represent the value of the matrix cell corresponding to the specific row and column.

```python linenums=”1” def getPos(t): res = [] for idx,x in np.ndenumerate(t[1]): res.append((idx[0], (t[0], x))) return res

pspark = mspark.flatMap(getPos).union(vspark).groupByKey() print(pspark.take(16))



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20


<details class="details details--default" data-variant="default"><summary>Output</summary>
<pre><code class="language-output">[(0, &lt;pyspark.resultiterable.ResultIterable object at 0xffff885f62c0&gt;),
(1, &lt;pyspark.resultiterable.ResultIterable object at 0xffff885f4d30&gt;),
(2, &lt;pyspark.resultiterable.ResultIterable object at 0xffff885f6a70&gt;),
(3, &lt;pyspark.resultiterable.ResultIterable object at 0xffff885f6ec0&gt;)]
</code></pre>

</details>
- Convert data into `list` type instead of Spark's `iterables`

```python linenums="1"
def getPos(t):
    res = []
    for idx,x in np.ndenumerate(t[1]):
        res.append((idx[0], (t[0], x)))
    return res

pspark = mspark.flatMap(getPos).union(vspark).groupByKey().mapValues(list)
print(pspark.take(16))
Output
[(0, [(1, np.int64(3)), (2, np.int64(1)), (3, np.int64(0)), (0, np.int64(2)), np.int64(4)]),
(1, [(3, np.int64(0)), np.int64(0), (0, np.int64(4)), (1, np.int64(2)), (2, np.int64(0))]),
(2, [(0, np.int64(2)), (1, np.int64(3)), (3, np.int64(1)), (2, np.int64(1)), np.int64(0)]),
(3, [(1, np.int64(1)), np.int64(4), (3, np.int64(3)), (0, np.int64(1)), (2, np.int64(1))])]
  • Each element in this pspark frame is a key/value pair:
    • The key is the row index
    • The value is a 5-element array:
      • Four elements belong to a row of the matrix M, each of this element is a tuple with the key representing the column index and the value represent the corresponding matrix cell value.
      • One remaining element belong to the value of the vector V at that row index position.
  • As shown in the previous output, we cannot assume proper order after union, especially for large scale data
  • Need to flatten the final results (list of tupples instead of list of lists of tuples)

```python linenums=”1” def getPos(t): res = [] for idx,x in np.ndenumerate(t[1]): res.append((idx[0], (t[0], x))) return res

def arrayMul(t): res = [] vectorVal = 0 for x in t[1]: if type(x) != tuple: vectorVal = x for x in t[1]: if type(x) == tuple: res.append((x[0], x[1] * vectorVal)) return res

pspark = mspark.flatMap(getPos).union(vspark).groupByKey().mapValues(list).flatMap(arrayMul) print(pspark.take(16))



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


<details class="details details--default" data-variant="default"><summary>Output</summary>
<pre><code class="language-output">[(3, np.int64(0)), (2, np.int64(4)), (0, np.int64(8)), (1, np.int64(12)),
(1, np.int64(0)), (2, np.int64(0)), (0, np.int64(0)), (3, np.int64(0)),
(3, np.int64(0)), (2, np.int64(0)), (1, np.int64(0)), (0, np.int64(0)),
(0, np.int64(4)), (2, np.int64(4)), (3, np.int64(12)), (1, np.int64(4))]
</code></pre>

</details>
- Final steps:
    - groupByKey: Bring the values with same row index together.
    - mapValues: Convert value type `iterables` into `list`.
    - mapValues: Apply sum on the value list.

```python linenums="1"
dotspark = pspark.groupByKey().mapValues(list).mapValues(sum).map(lambda x: x[1])
print(f"MapReduce Dot Product:\n {np.array(dotspark.take(4))}")
print(f"Dot Product P:\n {P}")
Output
MapReduce Dot Product:
[12 16 8 12]
Dot Product P:
[12 16 8 12]

Analyzing text data (not using Spark SQL)

Getting MovieLens data
  • Downloading move review data

```python linenums=”1” !wget https://files.grouplens.org/datasets/movielens/ml-32m.zip !unzip ml-32m.zip



1
2
3
4
5


- How big of a data set are we talking about?

```python linenums="1"
!ls -lh ml-32m/
  • You can review the README of this data set.

```python linenums=”1” ratings = sc.textFile(working_dir + “/ml-32m/ratings.csv”) print(ratings.take(5))
ratings.cache()



1
2
3
4
5
6


- First count, not yet loaded into memory

```python linenums="1"
%%time
ratings.count()
Output
CPU times: user 252 ms, sys: 28.2 ms, total: 280 ms
Wall time: 1min 40s
32000205
  • Second count, preloaded

```python linenums=”1” %%time ratings.count()



1
2
3
4
5
6
7
8
9
10
11
12


<details class="details details--default" data-variant="default"><summary>Output</summary>
<pre><code class="language-output">CPU times: user 147 ms, sys: 19.8 ms, total: 167 ms
Wall time: 58.4 s
32000205
</code></pre>

</details>
- Third count, preloaded

```python linenums="1"
%%time
ratings.count()
Output
CPU times: user 147 ms, sys: 19.8 ms, total: 167 ms
Wall time: 58.4 s
32000205
Hands-on 1
  • What are the average ratings over the years of each movie?
  • Note: don’t forget to filter!
Hands-on 2
  • What are the average ratings over the years of each movie?
    • Display the results with movie titles instead of movie IDs
  • Assumption: movies.csv does not fit in memory
Hands-on 3
  • Identify movies that can be considered cult-classic?
Hands-on 4
  • What are the average ratings over the years of each genre
  • Assumption: movies.csv does not fit in memory
