Spark Computing Environment

What is Spark?

Overview and design philosophy

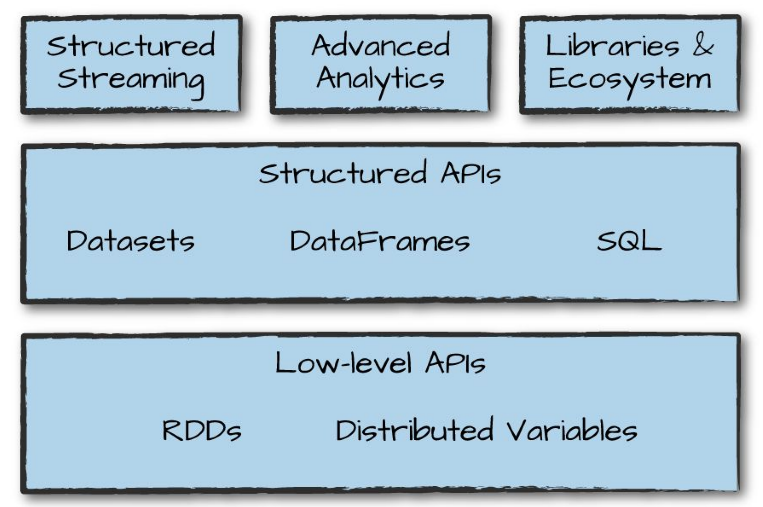

A unified compute engine and a set of libraries for parallel data processing on computer clusters.
- Unified: Spark supports a wide range of data analytic tasks over the same computing engine and a consistent set of APIs.
- Computing engine: Spark handles loading data from storage systems and perform computation on the data (in memory) rather than on permanent storage. To adhere to the data locality principle, Spark relies on APIs to provide a transparent common interface with different storage systems for all applications.
- Libraries: Via its APIs, Spark supports a wide array of internal and external libraries for complex data analytic tasks.

A brief history of Spark

Research project at UC Berkeley AMP Lab in 2009 to address drawbacks of Hadoop MapReduce.
Paper published in 2010: Spark: Cluster Computing with Working Sets
Source code is contributed to Apache in 2013. The project had more than 100 contributors from more than 30 organizations outside UC Berkeley.
Version 1.0 was released in 2014.
Currently, Spark is being used extensively in academic and industry (NASA, CERN, Uber, Netflix …).

A workflow system

A more advanced workflow system
Efficient way to cope with failures
Efficient way of group tasks among computing nodes and scheduling execution of tasks
Integration of programming language features and libraries

RDD: Resilient distributed dataset

Immutable file of objects of one type (e.g., files of key-value pairs)
Distributed: An RDD is broken into chunks and stored on different compute nodes.
Resilient: Spark is able to recovered from the loss of any of all chunks of an RDD.

Spark applications

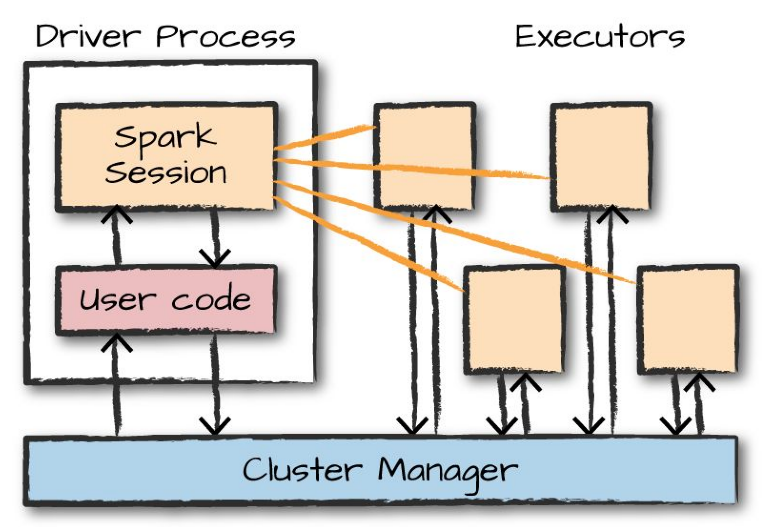

Typically consists of a driver process and a set of executor processes.
The driver runs the main function and is responsible for:
- maintaining information about the Spark application,
- responding to a user’s program or input, and
- analyzing, distributing, and scheduling work across the executors.
- Non-Spark codes are also managed by the driver
The executors carry out the actual work assigned to them by the driver. Executors are deployed on Spark cluster, on top of the compute nodes.
- Data in spark are managed as distributed collection: when running on a cluster, parts of the data are distributed across different machines and are manipulated by different executors.
- To allow executor to perform work in parallel breaks up data into chunks called partitions.

Spark also has a local mode (what we are using for this class), where driver and executors are simply processes on the same machine.
Spark application developed in local mode can be carried over almost as-is to run in cluster mode (one of the attractiveness of Spark).
Spark supports the following language APIs: Scala, Java, Python, SQL (ANSI SQL 2003 standard), and R.

Programming for Spark Computing Environment

Overview

Operations applied on RDDs:
- ‘transformations’: applying some functions on an RDD to create another RDD
  - In Spark, the core data structures are immutable, meaning they cannot be changed after creation.
  - To change a data collection means to create a new data collection that is a transformation from the old one.
  - There are two types of transformation:
    - Narrow dependencies (1-to-1 transformation).
    - Wide dependencies (1-to-N transformation).
- ‘actions’: storing RDDs to a file system or creating a result that is made available to the Spark application on the driver process. There are three kind of actions:
  - Actions to view data in the console (e.g., take).
  - Action to collect data to native objects (e.g., collect).
  - Action to write to output data sources (e.g., saveAsTextFile).
Lazy evaluation:
- Transformationsare logical plan only.
- Spark will wait until the very last moment to execute the graph of computation instructions (the logical plan).
- To trigger the computation, we run an action.
Detailed syntax can be found via Spark Python API

Common Spark transformations

map: Return a new distributed dataset formed by passing each element of the source through a function.
filter: Return a new dataset formed by selecting those elements of the source on which a condition returns true. This condition can be either a statement or a function.
flatMap: Similar to map, but the output items are brokened down into individual elements before aggregated into an output.
sample: Sample a fraction fraction of the data, with or without replacement, using a given random number generator seed.
union: Return a new dataset that contains the union of the elements in the source dataset and the argument.
intersection: Return a new RDD that contains the intersection of elements in the source dataset and the argument.
distinct: Return a new dataset that contains the distinct elements of the source dataset.
groupByKey: When called on a dataset of (K, V) pairs, returns a dataset of (K, Iterable) pairs.
reduceByKey: When called on a dataset of (K, V) pairs, returns a dataset of (K, V) pairs where the values for each key are aggregated using the given reduce function, which must be of type (V,V) => V.
aggregateByKey: When called on a dataset of (K, V) pairs, returns a dataset of (K, U) pairs where the values for each key are aggregated using the given combine functions and a neutral “zero” value.
sortByKey: When called on a dataset of (K, V) pairs where K implements Ordered, returns a dataset of (K, V) pairs sorted by keys in ascending or descending order, as specified in the boolean ascending argument.
join: When called on datasets of type (K, V) and (K, W), returns a dataset of (K, (V, W)) pairs with all pairs of elements for each key. Outer joins are supported through leftOuterJoin, rightOuterJoin, and fullOuterJoin.
pipe: Pipe each partition of the RDD through a shell command, e.g. a Perl or bash script. RDD elements are written to the process’s stdin and lines output to its stdout are returned as an RDD of strings.

Common Spark actions

reduce: Aggregate the elements of the dataset using a function func (which takes two arguments and returns one). The function should be commutative and associative so that it can be computed correctly in parallel.
collect: Return all the elements of the dataset as an array at the driver program. This is usually useful after a filter or other operation that returns a sufficiently small subset of the data.
count: Return the number of elements in the dataset.
first: Return the first element of the dataset (similar to take(1)).
take: Return an array with the first n elements of the dataset.
takeSample: Return an array with a random sample of num elements of the dataset, with or without replacement, optionally pre-specifying a random number generator seed.
takeOrdered: Return the first n elements of the RDD using either their natural order or a custom comparator.
saveAsTextFile: Write the elements of the dataset as a text file (or set of text files) in a given directory in the local filesystem, HDFS or any other Hadoop-supported file system. Spark will call toString on each element to convert it to a line of text in the file.

Word Count in Spark

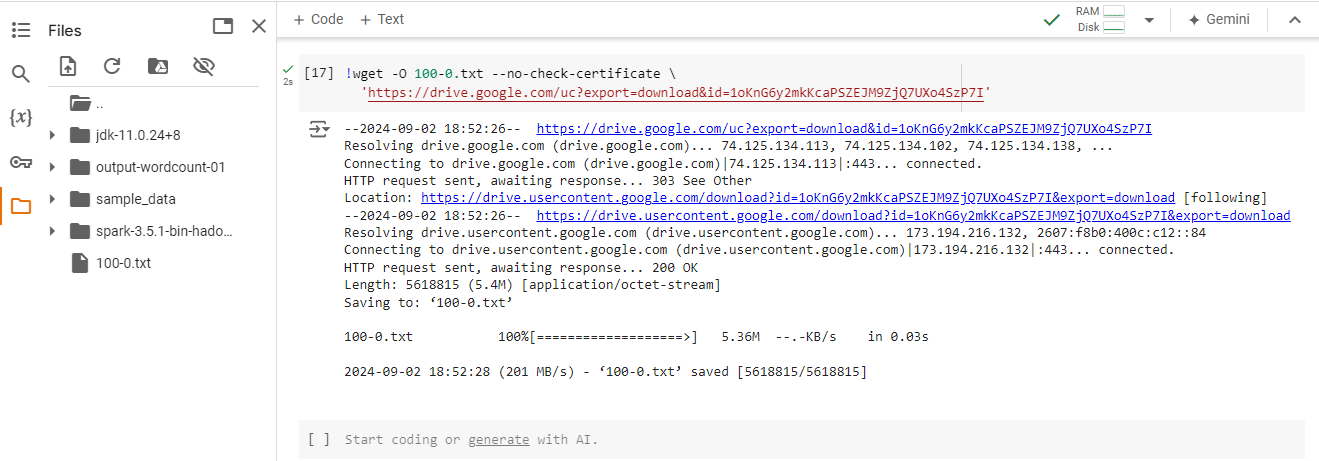

Preparation

Assuming that you have complete the setup mentioned in Introduction, the example code and data in the remainder of this lecture and the subsequent lectures will be available in the big-data-engineering directory. You will need to make sure that: - The terminal prompt is inside big-data-engineering - The conda environment pyspark-3.5.1 is activated.

 pwd
conda activate pyspark-3.5.1


Run the setup scripts

setup-pyspark-win.ps1 for Windows
source setup-pyspark-mac.sh for Mac/Linux

Running WordCount

This is the source code for wordcount.py inside the wordcount directory:

 import sys
from pyspark.sql import SparkSession

def wordcount(input_path: str, output_path: str):
    try:
        spark = SparkSession.builder.appName("WordCount").getOrCreate()
        sc = spark.sparkContext
        wordcount = sc.textFile(input_path) \
            .flatMap(lambda line: line.split(" ")) \
            .filter(lambda word: word != "") \
            .map(lambda word: (word, 1)) \
            .reduceByKey(lambda a, b: a + b)
        wordcount.saveAsTextFile(output_path)
        spark.stop()
    except Exception as e:
        print(f"Spark failed to start: {e}")

if __name__ == "__main__":
    wordcount(sys.argv[1], sys.argv[2])


Pay attention to input_path and output_path variables. They are used to provide a path to the location of the input file, and the directory containing the output files.
Run the program with the following command

 spark-submit --master="local[*]" ./wordcount/wordcount.py ./wordcount/data/100-0.txt ./wordcount/out-wc-1

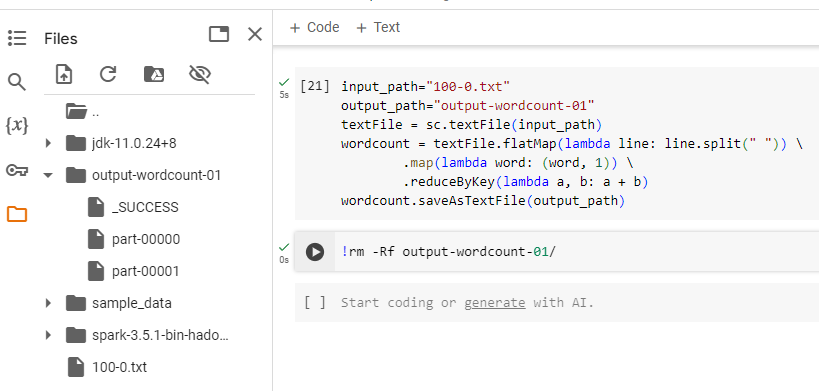

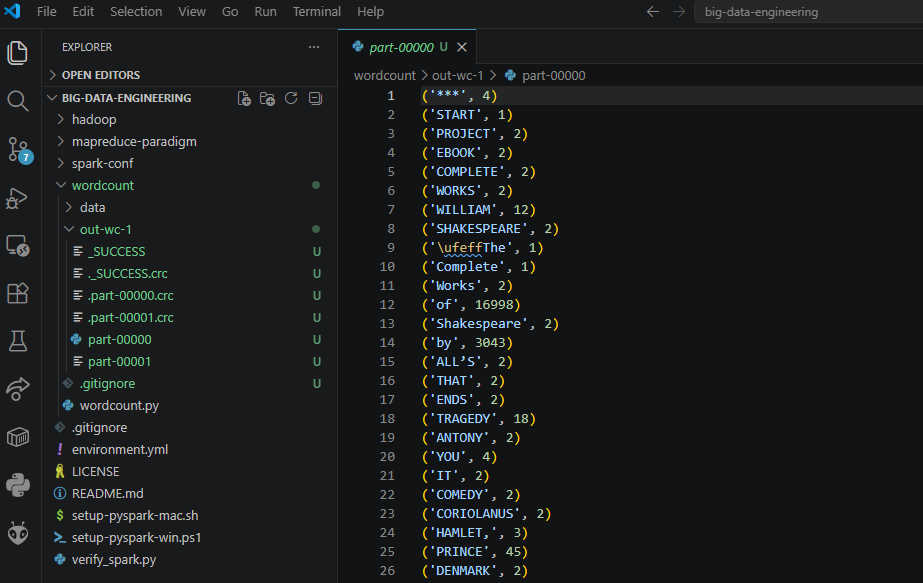

A successful run will generate the resulting output directory that contain _SUCCESS flag file (size 0).
- There will be several *.crc files, these are the check files to confirm data validity.
- The output of the word counting process is stored in two files: part-00000 and part-00001.

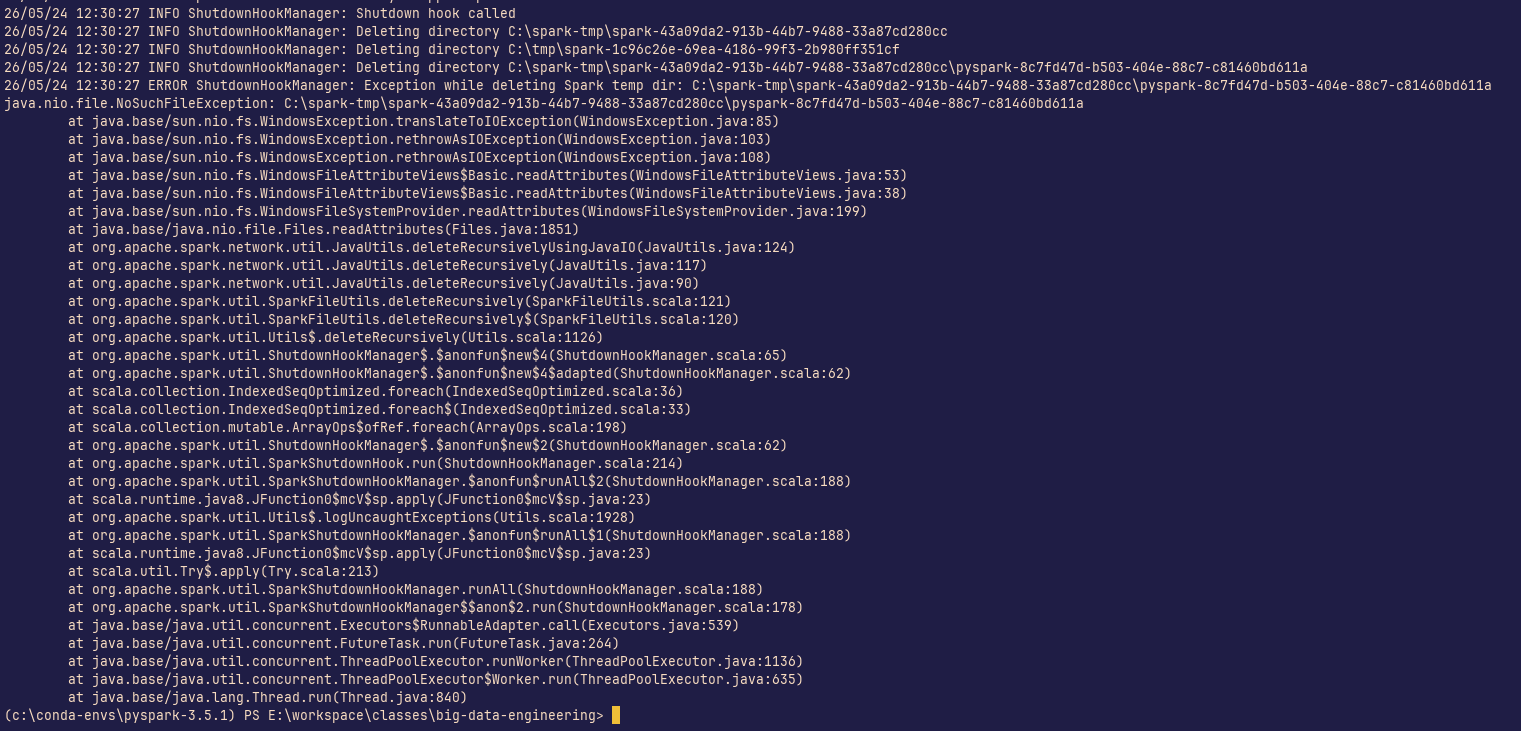

For Windows users: You might have an error message at the end. If the output files are generated correctly, feel free to ignore that error.

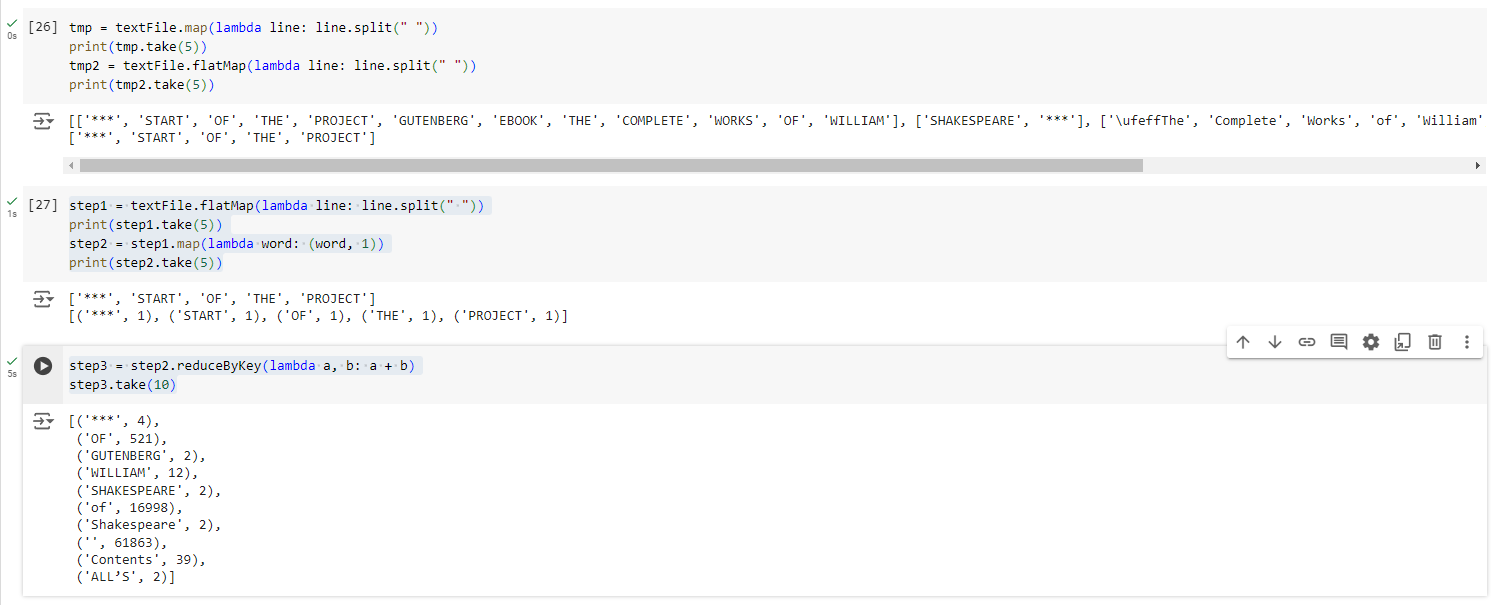

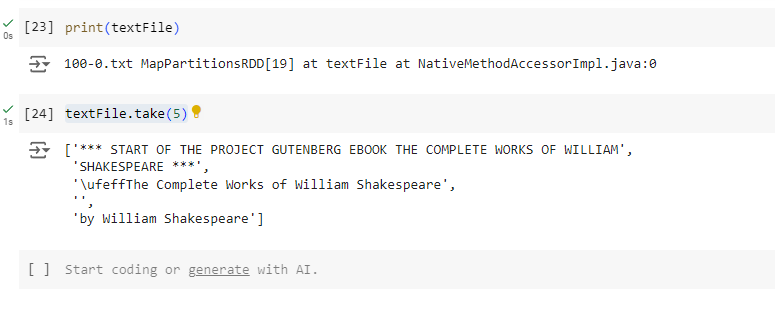

Word Count workflow breakdown

Let’s breakdown the WordCount Python statements by save each stage individually.

 import sys
from pyspark.sql import SparkSession

def wordcount(input_path: str, output_path: str):
    try:
        spark = SparkSession.builder.appName("WordCount").getOrCreate()
        sc = spark.sparkContext
        wordcount = sc.textFile(input_path)

        wordcount_flatMap = wordcount.flatMap(lambda line: line.split(" "))
        wordcount_flatMap.saveAsTextFile(output_path + "_flatMap")

        wordcount_filter = wordcount_flatMap.filter(lambda word: word != "")
        wordcount_filter.saveAsTextFile(output_path + "_filter")

        wordcount_map = wordcount_filter.map(lambda word: (word, 1))
        wordcount_map.saveAsTextFile(output_path + "_map")

        wordcount_reduceByKey = wordcount_map.reduceByKey(lambda a, b: a + b)
        wordcount_reduceByKey.saveAsTextFile(output_path + "_reduceByKey")

        spark.stop()
    except Exception as e:
        print(f"Spark failed to start: {e}")

if __name__ == "__main__":
    wordcount(sys.argv[1], sys.argv[2])


Run the program

 spark-submit --master="local[*]" ./wordcount/wordcount-stages.py ./wordcount/data/100-0.txt ./wordcount/out-wc

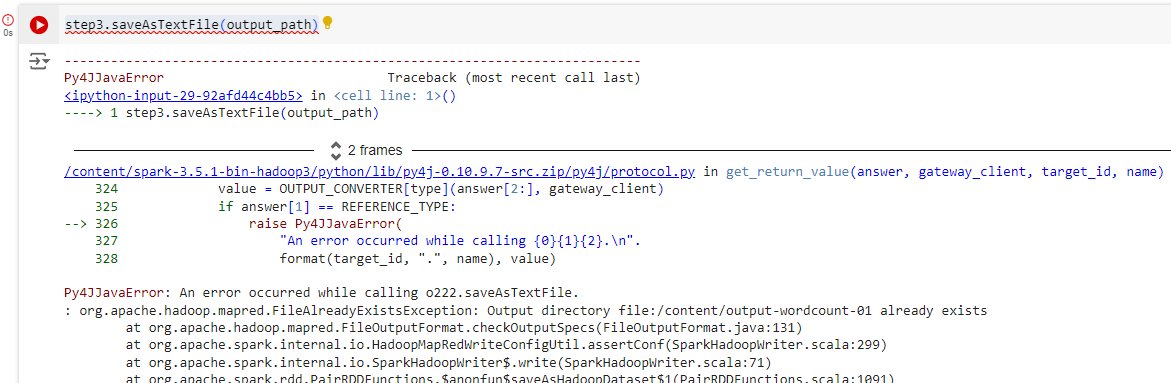

Try to save the RDD file in the output path is going to create an error: org.apache.hadoop.mapred.FileAlreadyExistsException.

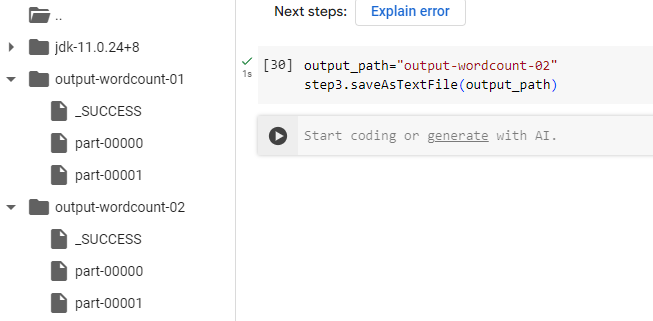

 step3.saveAsTextFile(output_path)


 output_path="output-wordcount-02"
step3.saveAsTextFile(output_path)

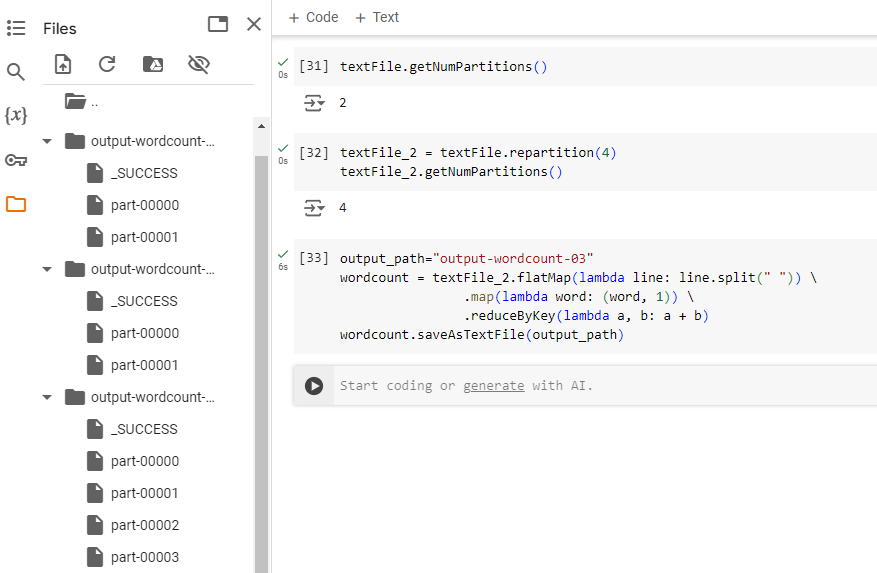

Data distribution in Spark

This is an updated word count code
- Log Level is set to display ERROR only.
- We print out the default number of partitions for the data.
- This value can be reset and change.

 import sys
from pyspark.sql import SparkSession

def wordcount(input_path: str, output_path: str):
    try:
        spark = SparkSession.builder.appName("WordCount").getOrCreate()
        sc = spark.sparkContext
        sc.setLogLevel("ERROR")
        wordcount = sc.textFile(input_path)

        print(f"Number of partitions before repartitioning: {wordcount.getNumPartitions()}")

        wordcount_repartitions = wordcount.repartition(4)
        print(f"Number of partitions after repartitioning: {wordcount_repartitions.getNumPartitions()}")

        output = (wordcount_repartitions.flatMap(lambda line: line.split(" "))
                  .filter(lambda word: word != "")
                  .map(lambda word: (word, 1))
                  .reduceByKey(lambda a, b: a + b)
                  )

        output.saveAsTextFile(output_path)
        spark.stop()
    except Exception as e:
        print(f"Spark failed to start: {e}")

if __name__ == "__main__":
    wordcount(sys.argv[1], sys.argv[2])
