Partitioning: Divide and Conquer

Partitioning: Divide and Conquer

Final Exam

• Final Exam: May 7, 1:00PM - 3:00PM

Overview

Partitioning

Partitioning simply divides the problem into parts and then compute the parts and combine results.

• The basis of all parallel programming, in one form or another.
• Pleasantly parallel used partitioning without any interaction between the parts.
• Most partitioning formulation require the results of the parts to be combined to obtain the desired results.
• Partitioning can be applied to the program data.
  • This is call data partitioning or domain decomposition.
• Partitioning can also be applied to the functions of a program.
  • This is called functional decomposition.

Divide and Conquer

• Characterized by dividing problem into sub-problems of same form as larger problem. Further divisions into still smaller sub-problems, usually done by recursion.
• Recursive divide and conquer amenable to parallelization because separate processes can be used for divided pairs. Also usually data is naturally localized.

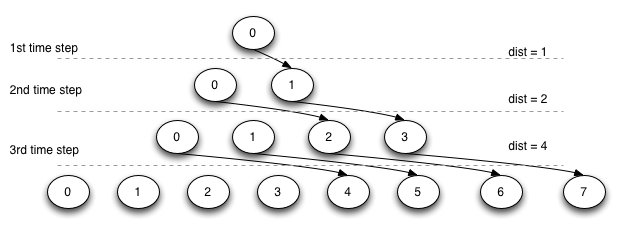

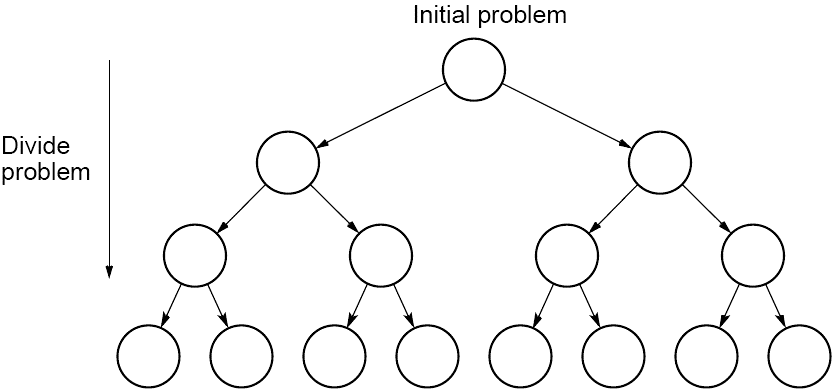

Divide

Create a file called divide.c

• Compile and run

1
2

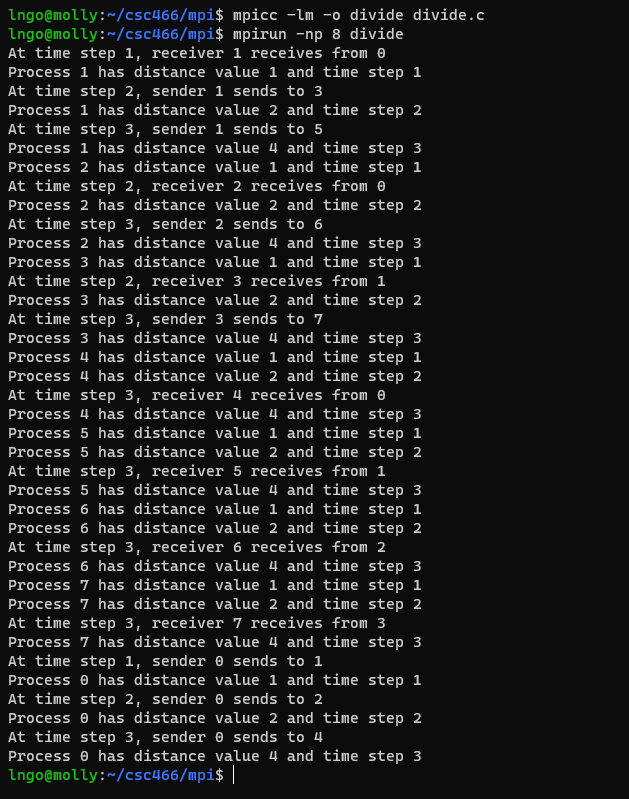

mpicc -lm -o divide divide.c
mpirun -np 8 divide


Conquer

• Create a file called conquer.c

1
2

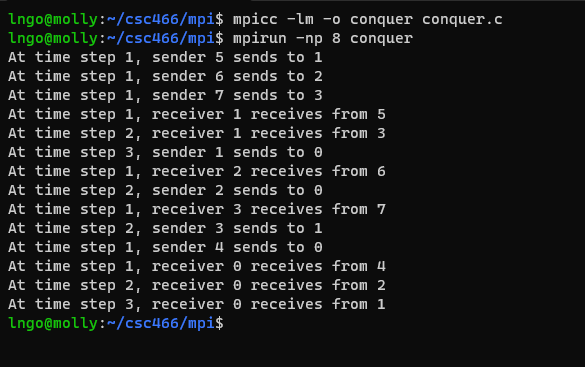

mpicc -lm -o conquer conquer.c
mpirun -np 8 conquer


Many sorting algorithms can be parallelized by partitioning using divide and conquer

Bucket Sort

Overview

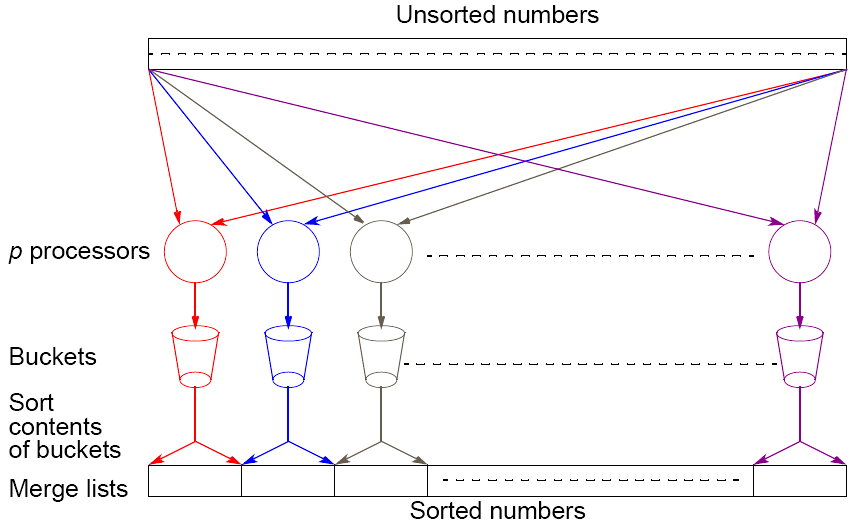

Simple approach

• Broadcast data
• Sort only those elements that fit in local interval bucket (determined by rank)
• Gather sorted bucket

Scatter and Scatterv Syntax

1
2
3
4
5
6
7
8
9

int MPI_Scatter(
    void *sendbuf,
    int sendcount,
    MPI_Datatype sendtype,
    void *recvbuf,
    int recvcnt,
    MPI_Datatype recvtype,
    int root,
    MPI_Comm comm);


1
2
3
4
5
6
7
8
9
10
11

int MPI_Scatterv(
  void *sendbuf,
  int *sendcount,
  int *displs,
  MPI_Datatype sendtype,
  void *recvbuf,
  int recvcnt,
  MPI_Datatype recvtype,
  int root,
  MPI_Comm comm
);


• sendbuf: address of send buffer (choice, significant only at root)
• sendcount: integer array (of length group size) specifying the number of elements to send to each processor
• displs: integer array (of length group size). Entry i specifies the displacement (relative to sendbuf from which to take the outgoing data to process i
• sendtype: data type of send buffer elements
• recvbuf: address of receive buffer (choice)
• recvcnt: number of elements in receive buffer (integer)
• recvtype: data type of receive buffer elements
• root: rank of sending process (integer)
• comm: communicator

Hands-on: Scatterv

1
2

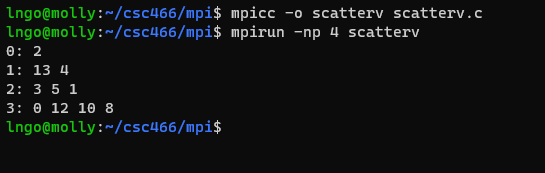

mpicc -o scatterv scatterv.c
mpirun -np 4 scatterv


Gather and Gatherv Syntax

1
2
3
4
5
6
7
8
9

int MPI_Gather(
    void *sendbuff,
    int sendcount,
    MPI_Datatype sendtype,
    void *recvbuff,
    int recvcnt,
    MPI_Datatype recvtype,
    int root,
    MPI_Comm comm);


1
2
3
4
5
6
7
8
9
10
11

int MPI_Gatherv(
  void *sendbuf,
  int sendcount,
  MPI_Datatype sendtype,
  void *recvbuf,
  int *recvcnts,
  int *displs,
  MPI_Datatype recvtype,
  int root,
  MPI_Comm comm
);


• sendbuf: starting address of send buffer (choice)
• sendcount: number of elements in send buffer (integer)
• sendtype: data type of send buffer elements
• recvbuf: address of receive buffer (choice, significant only at root)
• recvcnts: integer array (of length group size) containing the number of elements that are received from each process (significant only at root)
• displs: integer array (of length group size). Entry i specifies the displacement relative to recvbuf at which to place the incoming data from process i (significant only at root)
• recvtype: data type of recv buffer elements (significant only at root)
• root: rank of receiving process (integer)
• comm: communicator

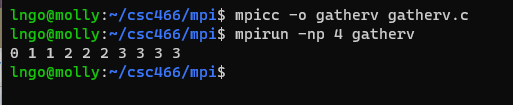

Hands-on: Gatherv

1
2

mpicc -o gatherv gatherv.c
mpirun -np 4 gatherv


Simple approach implementation

1
2

mpicc -o bucket1 bucket1.c
mpirun -np 8 bucket1

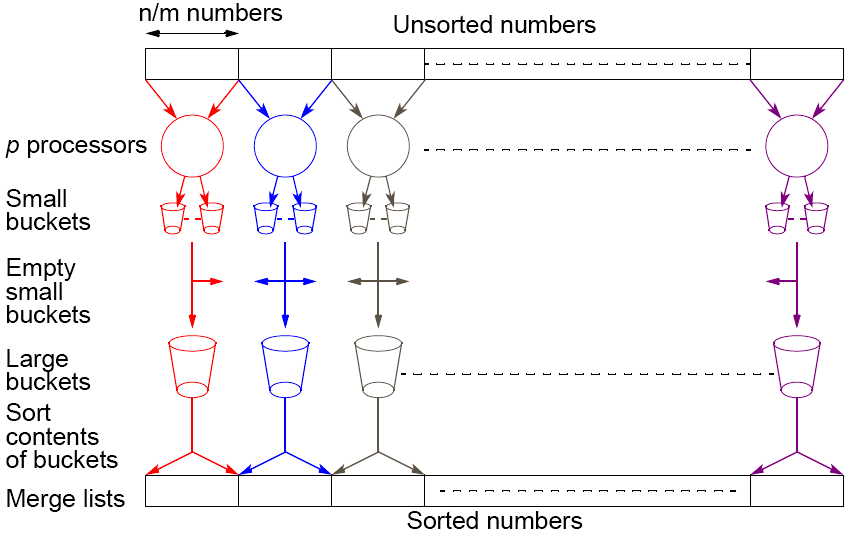

Complex Parallel Bucket Sort

Overview

• The data might be too large to be distributed via MPI_Bcast

• The necessary communication pattern: all to all

Alltoall

1
2
3
4
5
6
7
8
9

int MPI_Alltoall(
  void *sendbuf,
  int sendcount,
  MPI_Datatype sendtype,
  void *recvbuf,
  int recvcount,
  MPI_Datatype recvtype,
  MPI_Comm comm
);


• sendbuf: starting address of send buffer (choice)
• sendcount: number of elements to send to each process (integer)
• sendtype: data type of send buffer elements
• recvbuf: address of receive buffer (choice)
• recvcount: number of elements received from any process (integer)
• recvtype: data type of receive buffer elements
• comm: communicator

Hands-on: Alltoall

1
2

mpicc -o alltoall alltoall.c
mpirun -np 4 alltoall


Alltoallv

1
2
3
4
5
6
7
8
9
10
11

int MPI_Alltoallv(
  void *sendbuf,
  int *sendcounts,
  int *sdispls,
  MPI_Datatype sendtype,
  void *recvbuf,
  int *recvcounts,
  int *rdispls,
  MPI_Datatype recvtype,
  MPI_Comm comm
);


• sendbuf: starting address of send buffer (choice)
• sendcounts: integer array equal to the group size specifying the number of elements to send to each processor
• sdispls: integer array (of length group size). Entry j specifies the displacement (relative to sendbuf from which to take the outgoing data destined for process j
• sendtype: data type of send buffer elements
• recvbuf: address of receive buffer (choice)
• recvcounts: integer array equal to the group size specifying the maximum number of elements that can be received from each processor
• rdispls: integer array (of length group size). Entry i specifies the displacement (relative to recvbuf at which to place the incoming data from process i
• recvtype: data type of receive buffer elements
• comm: communicator

Hands-on: Alltoallv

1
2

mpicc -o alltoallv alltoallv.c
mpirun -np 4 alltoallv


Complex approach implementation

1
2

mpicc -o bucket2 bucket2.c
mpirun -np 8 bucket2


N-Body Problem

Overview

Fundamental settings for most, if not all, of computational simulation problems:

• Given a space
• Given a group of entities whose activities are (often) bounded within this space
• Given a set of equation that governs how these entities react to one another and to attributes of the containing space

• Simulate how these reactions impact all entities and the entire space overtime

• Computation requires parallelization
• Experimental spaces are simulated at massive scale (millions of entities)
• Individual time steps are significantly smaller than the total simulation time.

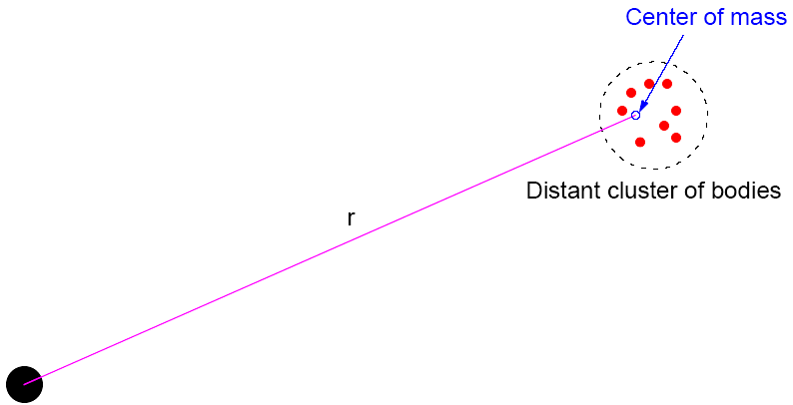

• Time complexity can be reduced by approximating a cluster of distant bodies as a single distant body with mass sited at the center of the mass of the cluster

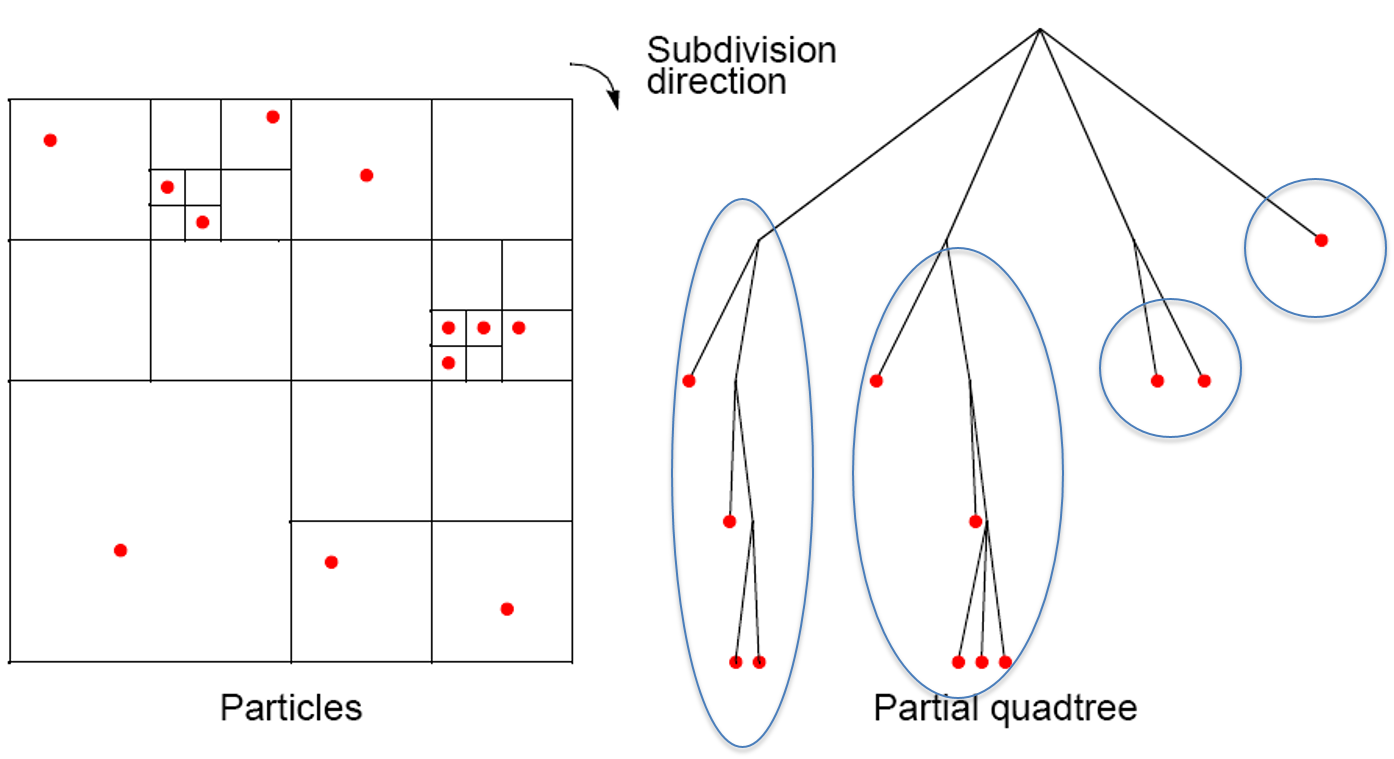

Barnes-Hut Algorithm (2-D)

Start with whole region in which one square contains the bodies (or particles).

• First, this cube is divided into four subregions.
• If a subregion contains no particles, it is deleted from further consideration.
• If a subregion contains one body, it is retained.
• If a subregion contains more than one body, it is recursively divided until every subregion contains one body.
• Create an quadtree – a tree with up to four edges from each node
• The leaves represent cells each containing one body.
• After the tree has been constructed, the total mass and center of mass of the subregion is stored at each node.

Orthogonal Recursive Bisection

• First, a vertical line found that divides area into two areas each with equal number of bodies.
• For each area, a horizontal line found that divides it into two areas, each with equal number of bodies.
• Repeated as required.
