Pleasantly parallel and workload allocation

Overview

Definition

Embarrassingly/naturally/pleasantly parallel.
A computation that can obviously be divided into a number of completely different parts, each of which can be executed by a separate process.
Each process can do its tasks without any interaction with the other processes, therefore, …
- No communication or very little communication among the processes.

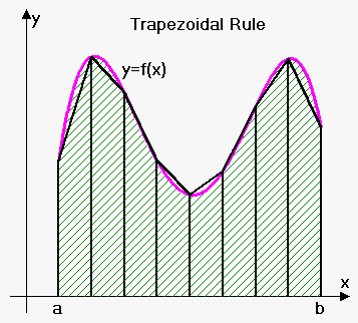

Example: integral estimation using the trapezoid method

A technique to approximate the integral of a function f.
Integral is defined as the area of the region bounded by the graph f, the x-axis, and two vertical lines x=a and x=b.
We can estimate this area by dividing it into infinitesimal trapezoids.

Divide the area under the curve into 8 trapezoids with equal base h.
- N = 8
- a = 0
- b = 2
The base h can be calculated as:
- h = (b - a) / N = 0.25
Which trapezoid (workload/task) goes to which process?
- Start with small number of processes.
- Calculation workload assignment manually for each count of processes.
- Generalize assignment for process i based on sample calculations.

4 processes: P0, P1, P2, P3: size = 4
N = 8
a = 0
b = 2
The height h can be calculated as:
- h = (b - a) / N = 0.25
The amount of trapezoid per process:
- local_n = N / size = 2;
local_a: variable represent the starting point of the local interval for each process. Variable local_a will change as processes finish calculating one trapezoid and moving to another.
- local_a for P0= 0 = 0 + 0 * 2 * 0.25
- local_a for P1= 0.5 = 0 + 1 * 2 * 0.25
- local_a for P2= 1 = 0 + 2 * 2 * 0.25
- local_a for P2= 1.5 = 0 + 3 * 2 * 0.25

MPI implementation of trapezoid

Compile and run trapezoid.c:

 mpicc -o trapezoid trapezoid.c
mpirun --host compute01:2,compute02:2 -np 4 ./trapezoid 0 1 10
mpirun --host compute01:2,compute02:2 -np 4 ./trapezoid 0 1 100
mpirun --host compute01:2,compute02:2 -np 4 ./trapezoid 0 1 1000
mpirun --host compute01:2,compute02:2 -np 4 ./trapezoid 0 1 10000


Accessing PSC

Set up jobs on Pittsburg Supercomputing Center

Access the OnDemand online interface of Pittsburgh Supercomputing Center.
Click on the home directory card.
Go to Ocean/projects/cis250077p/YOUR_PSC_USERNAME
Create a directory called intro-mpi using the New Directory button.

Creating MPI file

Click + New File, and type in trapezoid.c
Next to the file name, click on the three dot and then click Edit.
Copy the content of the trapezoid.c file above into the Edit windows.
Click Save to save the file.
Close the Edit browser tab.
If you click on the Refresh button (next to New File), you will see the updated size of trapezoid.c

Create submission file

Click + New File, and type in trapezoid.sh
Next to the file name, click on the three dot and then click Edit.
Enter the following contents

```bash linenums=”1” #!/bin/bash #SBATCH -N 1 #SBATCH -p RM #SBATCH -t 1:00:00 #SBATCH –ntasks-per-node=128

type ‘man sbatch’ for more information and options

this job will ask for 1 full RM node (128 cores) for 1 hours

this job would potentially charge 128 RM SUs

#echo commands to stdout set -x

move to working directory

this job assumes:

- all input data is stored in this directory

- all output should be stored in this directory

- please note that groupname should be replaced by your groupname

- PSC-username should be replaced by your PSC username

- path-to-directory should be replaced by the path to your directory where the executable is

echo ${PROJECT} cd ${PROJECT}/intro-mpi

module load openmpi/4.1.1-gcc8.3.1

mpicc -o trapezoid trapezoid.c mpirun -np 1 ./trapezoid 0 10 10000000000 mpirun -np 2 ./trapezoid 0 10 10000000000 mpirun -np 4 ./trapezoid 0 10 10000000000 mpirun -np 8 ./trapezoid 0 10 10000000000 mpirun -np 16 ./trapezoid 0 10 10000000000 mpirun -np 32 ./trapezoid 0 10 10000000000 ```

Click Save to save the file.
Close the Edit browser tab.

Submit and run

From the main Dashboard, click Bridges-2 Shell Access
Type in your PSC password to log in the in-browser terminal.
Run the followings:

 cd ${PROJECT}/intro-mpi
dos2unix trapezoid.sh
sbatch trapezoid.sh
squeue -u $USER


Observer your job in the queue.
Go back to the File Browser and study the slurm output file.

Workload assignment

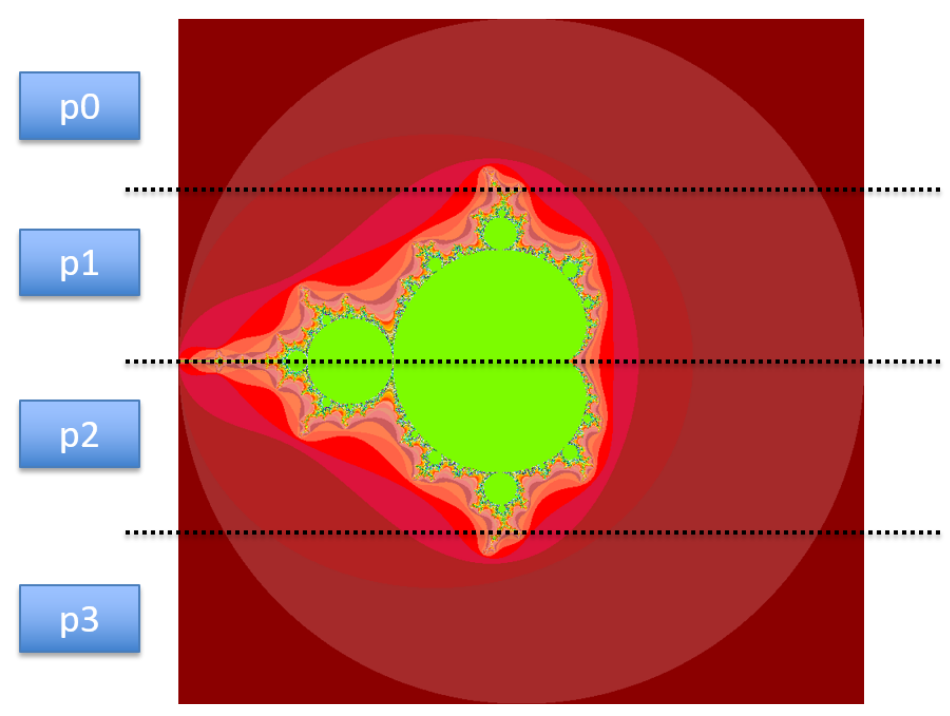

Static workload assignment

Is this fair?
On PSC, create a copy of trapezoid.c called trapezoid_static.c and modify trapezoid_static.c to have the following contents

Modify your submission script to compile and run trapezoid_static.c.
- What do you observe?
This is called static workload assignment.

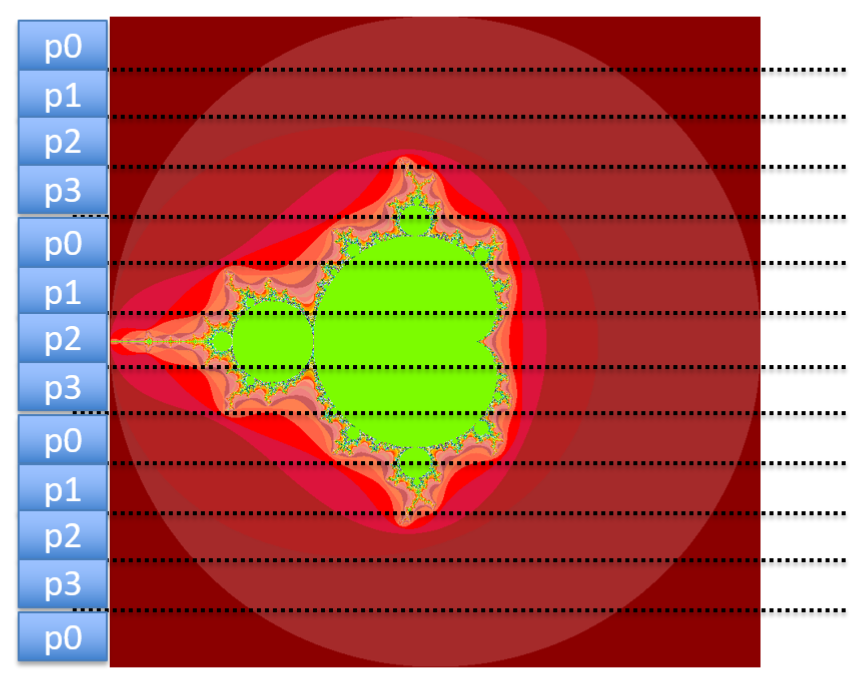

Cyclic workload assignment

On PSC, create a copy of trapezoid_static.c called trapezoid_cyclic.c and modify trapezoid_cyclic.c to have the following contents

Modify your submission script to compile and run trapezoid_cyclic.c:
- What do you observe?
This is called cyclic workload assignment.

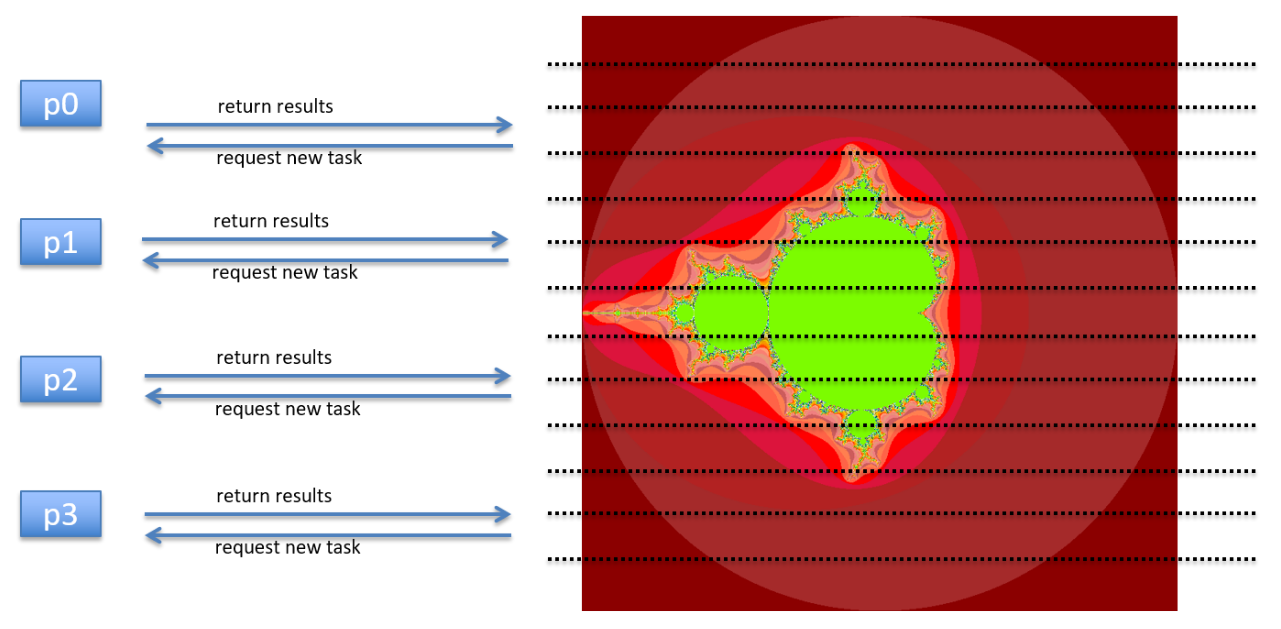

Dynamic workload assignment

Create a file called trapezoid_dynamic_.c with the following contents:

 - Modify your submission script to compile and run `trapezoid_dynamic.c`:
- What do you observe?


This is called dynamic workload assignment.
