Introduction to MPI

Introduction to MPI

History of MPI

Message passing
  • Processes communicate via messages
  • Messages can be:
    • Raw data used in actual calculations
    • Signals and acknowledgements for the receiving processes regarding the workflow.
Early 80s
  • Various message passing environments were developed.
  • Many similar fundamental concepts:
    • Cosmic Cube and nCUBE/2 (Caltech),
    • P4 (Argonne),
    • PICL and PVM (Oakridge),
    • LAM (Ohio SC)
1991-1992
  • More than 80 researchers from different institutions in US and Europe agreed to develop and implement a common standard for message passing.
  • Follow-up first meeting of the working group hosted at Supercomputing 1992 in Minnesota.

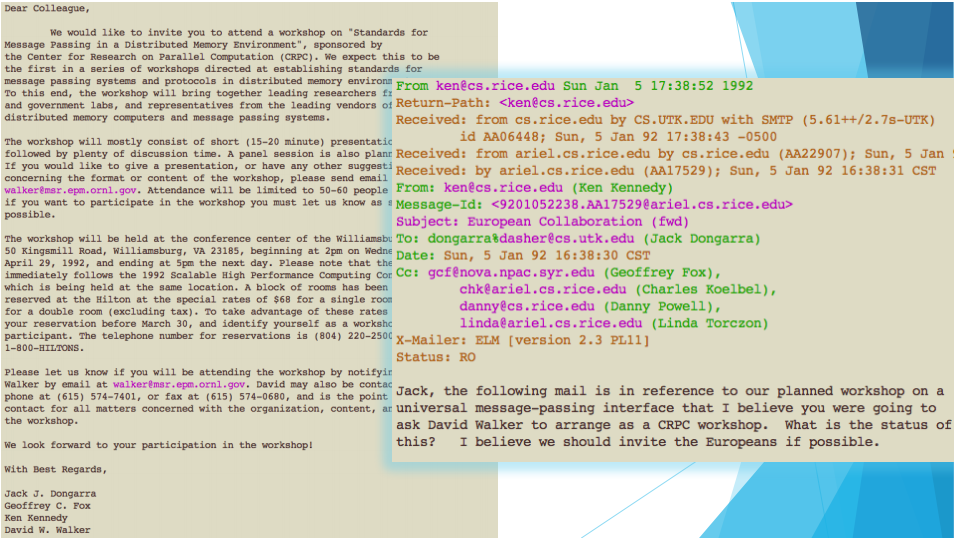

MPI letters
  • After the finalization of working technical draft
    • MPI becomes the de-facto standard for distributed memory parallel programming.
    • Available on every popular operating system and architecture.
    • Interconnect manufacturers commonly provide MPI implementations optimized for their hardware.
    • MPI standard defines interfaces for C, C++, and Fortran.
    • Language bindings available for many popular languages (quality varies)
      • Python (mpi4py)
      • Java (no longer active)
1994: MPI-1
  • Communicators
    • Information about the runtime environments
    • Creation of customized topologies
  • Point-to-point communication
    • Send and receive messages
    • Blocking and non-blocking variations
  • Collectives
    • Broadcast and reduce
    • Gather and scatter
1998: MPI-2
  • One-sided communication (non-blocking)
    • Get & Put (remote memory access)
  • Dynamic process management
    • Spawn
  • Parallel I/O
    • Multiple readers and writers for a single file
    • Requires file-system level support (LustreFS, PVFS)
2012: MPI-3
  • Revised remote-memory access semantic
  • Fault tolerance model
  • Non-blocking collective communication
  • Access to internal variables, states, and counters for performance evaluation purposes
Hands-on: create and compile MPI codes
  • Inside csc466, create a directory named intro-mpi
  • Change into intro-mpi


1
2
3


cd
mkdir intro-mpi
cd intro-mpi
  • Inside intro-mpi, create a file named first.c with the following contents
  • Compile and run first.c:


1
2
3
4


mpicc -o first first.c
mpirun -np 1 ./first
mpirun -np 2 ./first
mpirun -np 4 ./first

MPI in a nutshell

Overview
  • All processes are launched at the beginning of the program execution.
    • The number of processes are user-specified
    • This number could be modified during runtime (MPI-2 standards)
    • Typically, this number is matched to the total number of cores available across the entire cluster
  • All processes have their own memory space and have access to the same source codes.
  • MPI_Init: indicates that all processes are now working in message-passing mode.
  • MPI_Finalize: indicates that all processes are now working in sequential mode (only one process active) and there are no more message-passing activities.
Basic routines
  • MPI_COMM_WORLD: Global communicator
  • MPI_Comm_rank: return the rank of the calling process
  • MPI_Comm_size: return the total number of processes that are part of the specified communicator.
  • MPI_Get_processor_name: return the name of the processor (core) running the process.
MPI communicators (first defined in MPI-1)

MPI defines communicator groups for point-to-point and collective communications:

  • Unique IDs (rank) are defined for individual processes within a communicator group.
  • Communications are performed based on these IDs.
  • Default global communication (MPI_COMM_WORLD) contains all processes.
  • For N processes, ranks go from 0 to N−1.

MPI Examples

hello.c
  • Inside intro-mpi, create a file named hello.c with the following contents
  • Compile and run hello.c:


1
2
3
4


mpicc -o hello hello.c
mpirun -np 1 ./hello
mpirun -np 2 ./hello
mpirun -np 4 ./hello
evenodd.c
  • In MPI, processes’ ranks are used to enforce execution/exclusion of code segments within the original source code.
  • Inside intro-mpi, create a file named evenodd.c with the following contents
  • Compile and run evenodd.c:


1
2
3
4


mpicc -o evenodd evenodd.c
mpirun -np 1 ./evenodd
mpirun -np 2 ./evenodd
mpirun -np 4 ./evenodd
rank_size.c
  • In MPI, the values of ranks and size can be used as means to calculate and distribute workload (data) among the processes.
  • Inside intro-mpi, create a file named rank_size.c with the following contents
  • Compile and run rank_size.c:


1
2
3
4


mpicc -o rank_size rank_size.c
mpirun -np 1 ./rank_size
mpirun -np 2 ./rank_size
mpirun -np 4 ./rank_size
