OpenMP: parallel regions and loop parallelism

OpenMP: parallel regions and loop parallelism

Loop parallelism

Overview
  • Very common type of parallelism in scientific code
  • OpenMP paralell:
    • Example of OpenMP worksharing constructs
OpenMP for: template
  • Manual approach (we have seen this before)
    • In previous trapezoid example, we calculate the division of iteration manually.


1
2
3
4
5
6
7
8
9


#pragma omp parallel
{
  int threadnum = omp_get_thread_num(),
    numthreads = omp_get_num_threads();
  int low = N*threadnum/numthreads,
    high = N*(threadnum+1)/numthreads;
  for (int i=low; i<high; i++)
    // do something with i
}
  • An alternative is to use parallel for pragma


1
2
3
4
5


#pragma omp parallel
#pragma omp for
for (int i=0; i<N; i++) {
  // do something with i
}

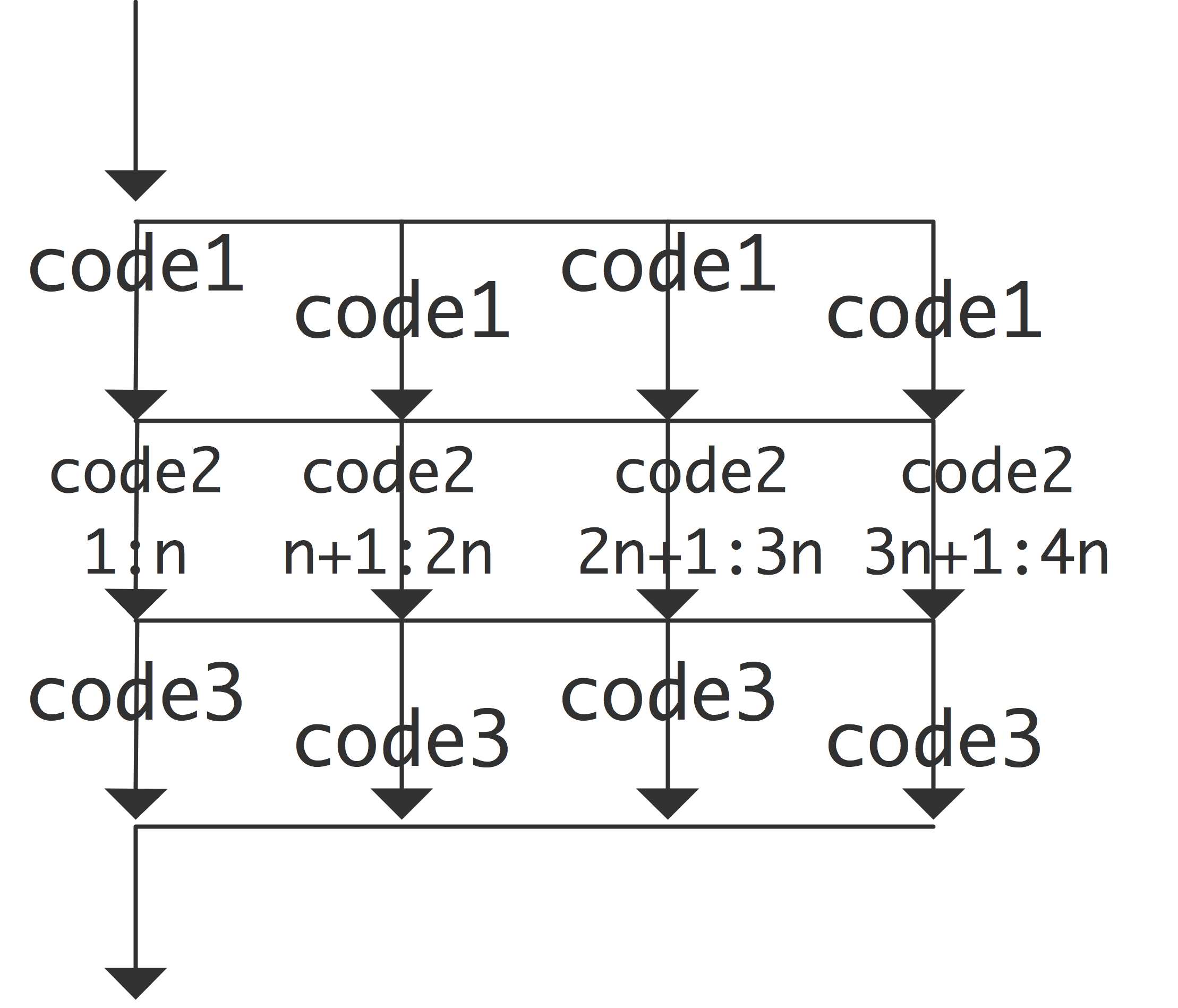

OpenMP for: visualization

~~~c #pragma omp parallel { code1() #pragma omp for for (int i=0; i<N; i++) { code2() } code3() }

Execution flow
  • The do and for pragmas do not create a team of threads:
    • they take the team of threads that is active, and divide the loop iterations over them.
  • This means that the omp for or omp do directives need to be inside a parallel region.
Limitation
  • OpenMP needs to be able to determine in advance how many iterations there will be.
  • The loop can not contains break, return, exit statements, or goto to a label outside the loop.
  • The continue (for C/C++) statement is allowed.
  • The index update has to be an increment (or decrement) by a fixed amount.
  • The loop index variable is automatically private, and no changes to it inside the loop are allowed.

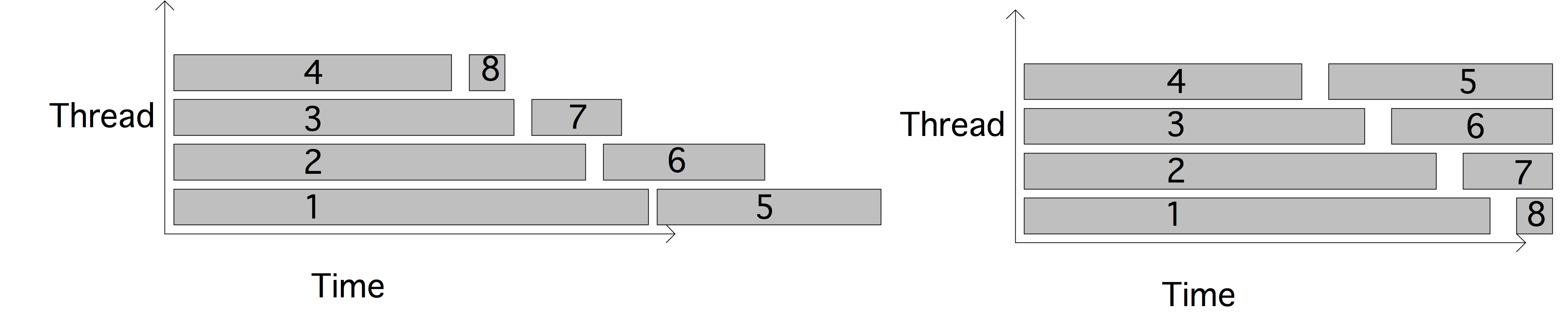

Loop Schedule

Overview
  • Strategy in assigning the work portions to individual threads
    • Static
    • Dynamic


1


#pragma omp for schedule(...)

The schedules can be setup in a more fine-grained manner

Static

  • Do we specify chunk size?

  • Create a file named for.c, compile and run

pragma for

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/for.c"



1
2


gcc -o for for.c -fopenmp
./for 20 4
pragma for, schedule static, chunk size 2
  • Create a file named for_static.c, compile and run

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/for_static.c"



1
2


gcc -o for_static for_static.c -fopenmp
./for 20 4
Questions
  • What happens when number of work partitions is not divisible by number of thread?
  • What happens when number of work partitions is not divisible by chunk size?
Dynamic

  • Create a file named for_dynamic.c, compile and run

    c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/for_dynamic.c"



    1
2


    gcc -o for_dynamic for_dynamic.c -fopenmp
./for 20 4

  • What is the difference?

pragma for, schedule static, workload simulation by sleep
  • Create a file named for_static_rand.c, compile and run

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/for_static_rand.c"



1
2


gcc -o for_static_rand for_static_rand.c -fopenmp
./for 20 4
pragma for, schedule dynamic, workload simulation by sleep
  • Create a file named for_dynamic_rand.c, compile and run

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/for_dynamic_rand.c"



1
2


gcc -o for_dynamic_rand for_dynamic_rand.c -fopenmp
./for 20 4

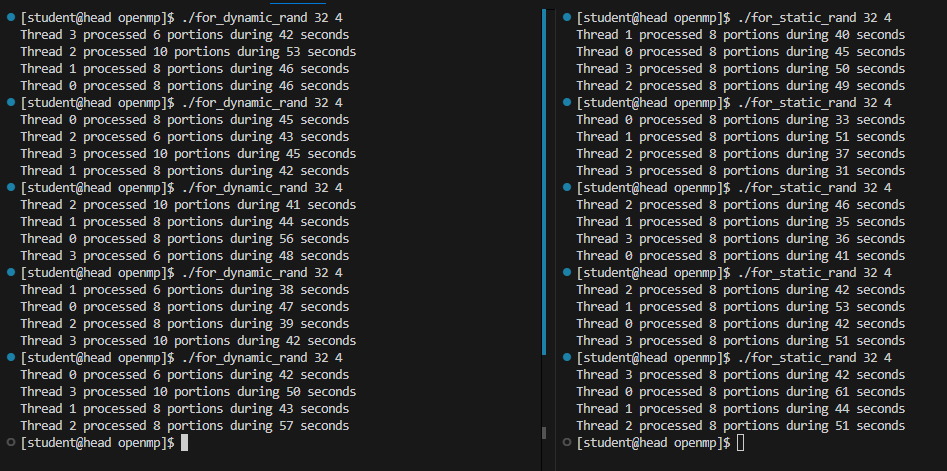

32 portions, 4 threads

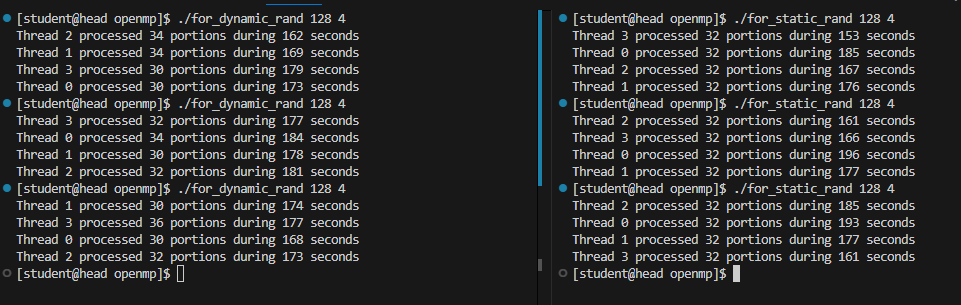

128 portions, 4 threads
Guided
  • Similar to dynamic, but the chunk size can change as the program runs.
  • This is to help with load balancing.

Nested Loops

Collapsing nested loops
Nested loops without collapse
  • Create a file named nested_loops.c, compile and run

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/nested_loops.c"



1
2


gcc -o nested_loop nested_loop.c -fopenmp
./for 2 4
  • How many printf statements are there in total?
  • How many threads contribute to the execution of these statements?
Nested loops with collapse
  • Create a file named nested_loops.c, compile and run

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/nested_loops_collapse.c"



1
2


gcc -o nested_loops_collapse nested_loops_collapse.c -fopenmp
./for 2 4
  • How many printf statements are there in total?
  • How many threads contribute to the execution of these statements?
Requirements for collapsing
  • Only possible for perfectly nested loops
    • There must be no statements before or after the two loops.
Hands-on: Collapsing a nested loop

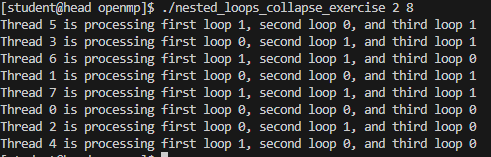

  • Given the following outputs of an OpenMP program done with collapsed nested loop, reconstruct the source code
Solution

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/collapse_3.c"

Hands-on:

Sum series implementation example
  • Create a file named sum_series_for.c using the code below:

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/sum_series_openmp_for.c"

Improving sum series implementation
  • In the EXPLORER window, right-click on openmp and select New File.
  • Type sum_series_for_2.c as the file name and hits Enter.

c linenums="1" --8<-- "docs/csc466/lectures/data/openmp/sum_series_openmp_for_2.c"

  • Is this implementation faster? Why?
Trapezoids
  • Reimplement the trapezoid example using #pragma parallel for
