Introduction to paralel and distributed computing

Introduction to paralel and distributed computing

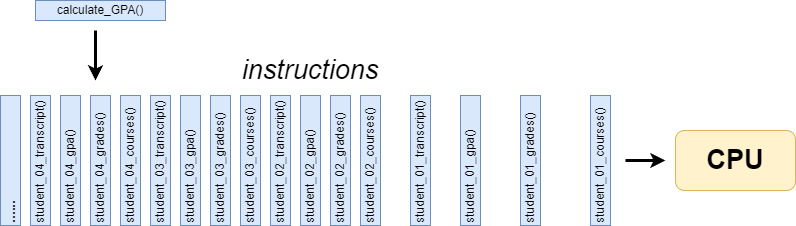

A simple computation problem

Final GPA calculation
Components of a computation problem
  • Computational task
  • Execution framework.
  • Computing resources.
Computational tasks should be able to …
  • Be broken apart into discrete pieces of work that can be solved simultaneously.
  • Be solved in less time with multiple computing resources than with a single computing resource.
Execution framework should be able to …
  • Execute multiple program instructions concurrently at any moment in time
Computing resources might be …
  • A single computer with multiple processors.
  • An arbitrary number of computers connected by a network.
  • A special computational component inside a single computer, separate from the main processors (GPU), or
  • Any combinations of the above.

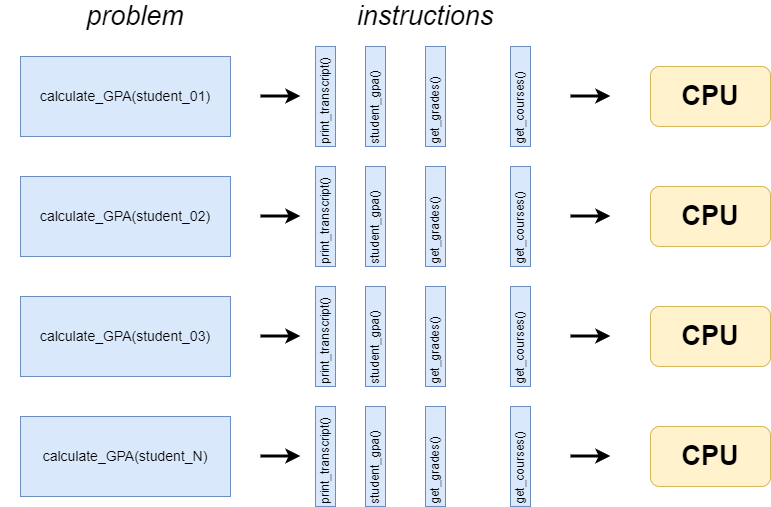

Parallelizing final GPA calculations

Parallel and distributed computing systems

Definition

A collection of individual computing devices that can communicate with each other. (Attiya and Welch, 2004)

How have parallel and distributed computing resources evolved?
  • Single site, single computer, single core
  • Single site, single computer, multiple cores
  • Single site, multiple computers, multiple cores
    • Cluster computing
  • Multiple sites, multiple computers, multiple cores, federated domains
    • Grid computing
  • Multiple site, multiple computers, multiple cores, virtual unified domain
    • Cloud computing

Can we just throw more computers at the problem?

Definitions
  • Parallel speedup: how much faster the program becomes once some computing resources are added.
  • Parallel efficiency: Ratio of performance improvement per individual unit of computing resource.
Parallel speedup
  • Given p processors,
  • Speedup, S(p), is the ratio of the time it takes to run the program using a single processor over the time it takes to run the program using p processors.
  • The time it takes to run the program using a single processor, $t_{s}$: sequential run time
  • The time it takes to the the program using multiple processor, $t_{p}$: parallel run time

$S(p) = \frac{sequential\ run\ time}{parallel\ run\ time} = \frac{t_s}{t_p}$

Example 01

A program takes 30 seconds to run on a single-core machine and 20 seconds to run on a dual-core machine. What is the speedup of this program?

Solution

$t_s=30$ $t_p=20$
$S=\frac{t_s}{t_p}=\frac{30}{20}=1.5$

Theoretical max
  • Let f be the fraction of the program that is not parallelizable.
  • Assume no overhead.
  • Running the program using one processor will take time $t_s$.
  • The parallel run time, $t_p$, can be calculated as the time it take to run the fraction that is non-parallelizable ($f\times t_s$) plus the remaining parallelizable fraction ($1-f$).
  • If $p=1$, this simplifies to $t_p=f\times t_s + (1-f)\times t_s$.
  • Assume no overhead, this means that we reduce the speed by half as we double the number of processor.
  • And so on …
Amdahl’s Law
  • This brings us to Amdahl’s Law, which quantifies speedup in term of number of processors and fraction of non-parallelizable code:

$S(p)=\frac{t_s}{t_p}=\frac{t_s}{f\times t_s + (1-f)\times t_s}=\frac{1}{f + \frac{1-f}{p}}=\frac{p}{f \times (p-1) + 1}$

Parallel efficiency
  • The efficiency E is then defined as the ratio of speedup S(p) over the number of processors p.

$E=\frac{\frac{p}{f \times (p-1) + 1}}{p}=\frac{1}{f \times (p-1) + 1}$

  • E is often measured as percentage.
  • For example, E = 0.8 means the parallel efficiency is 80%.
Example 02

Suppose that 4% of my application is serial. What is my predicted speedup according to Amdahl’s Law on 5 processors?

Solution

$f=0.04$ $p=5$ $S=\frac{p}{(p-1)f + 1}=\frac{5}{4 \times 0.04 +1}=4.3103$

Example 03

Suppose that I get a speedup of 8 when I run my application on 10 processors. According to Amdahl’s Law:

Solution

$S=8$

$p=10$

$S=\frac{p}{(p-1)f + 1}$

$8=\frac{10}{9f+1}$

$9f + 1 = \frac{10}{8}$

$f=\frac{1}{36}$

Solution

$f=\frac{1}{36}$

$p=20$

$S_{20}=\frac{p}{(p-1)f + 1}=\frac{20}{\frac{19}{36}+1} \approx 13.0909$

Solution

$E=\frac{1}{(p-1)f + 1}$

$E_5=\frac{1}{\frac{4}{36}+1} = 90\% $

$E_{20}=\frac{1}{\frac{19}{36} + 1} \approx 65.45\% $

Solution

$f=\frac{1}{36}$

$S_{\infty}=\lim_{p \to +\infty} \frac{p}{(p-1)f + 1} = \lim_{p \to +\infty} \frac{1}{\frac{p}{p-1}f + \frac{1}{p}}=\frac{1}{f}$

$S_{\infty}= 36$

  • In other word, the highest number of processors one should add to this problem is 36.
Limiting factors of parallel speedup
  • Non-parallelizable code.
  • Communication overhead.
If there is no limiting factor …
  • 0% non-paralellizable code.
  • No communication overhead.

$S_{\infty}=\lim_{f \to 0} \frac{p}{(p-1)f + 1} = p$

$S \leq p$

Superlinear speedup
  • The unicorn of parallel and distributed computing.
  • Poor sequential reference implementation.
    • Memory caching.
    • I/O blocking.

Parallel and distributed computing system architectures

Types of distributed computing systems
  • Streaming SIMD extensions for x86 architectures.
  • Shared memory.
  • Distributed shared memory.
  • Heterogeneous computing (accelerators).
  • Message passing.

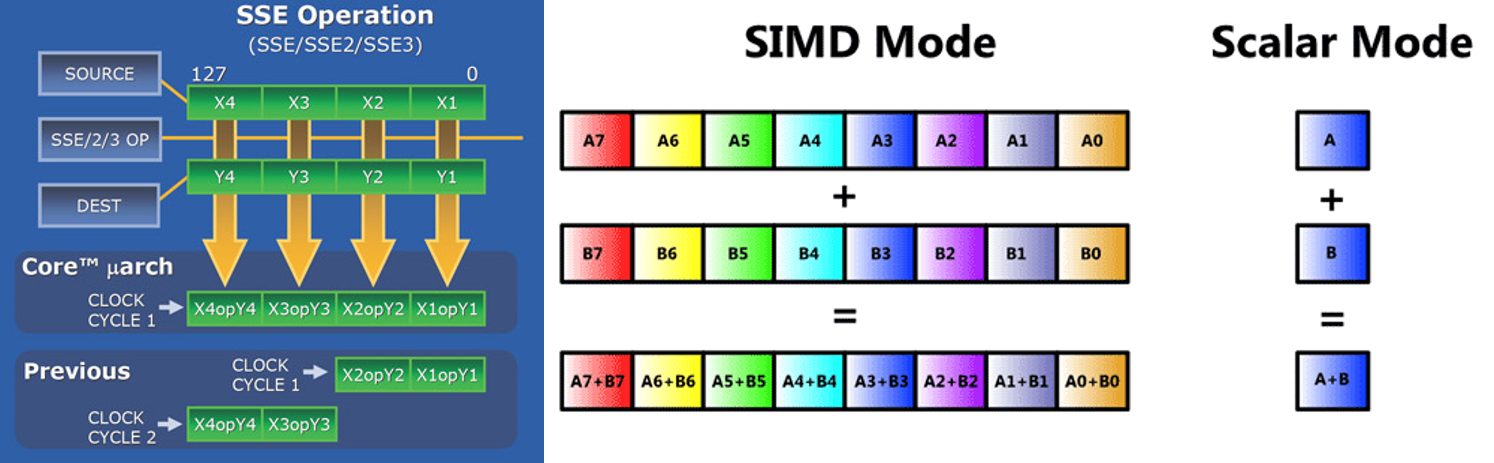

Streaming SIMD
Streaming SIMD
Shared memory
  • One processor, multiple threads.
  • All threads have read/write access to the same memory.
  • Programming models:
    • Threads (pthread) - programmer manages all parallelism.
    • OpenMP: compiler extensions handle.
    • Vendor libraries: (Intel MKL - math kernel libraries)
shared memory
Heterogeneous computing
  • GPU
  • FPGA
  • Co-processors
GPU - graphics processing unit
  • Processor unit on graphic cards designed to support graphic rendering (numerical manipulation).
  • Significant advantage for certain classes of scientific problems.
  • Programming models:
    • CUDA: Library developed by NVIDIA for their GPUs.
    • OpenACC: Standard developed by NVIDIA, Cray, and Portal Compiler (PGI).
    • OpenAMP: Extension to Visual C++ to direct computation to GPU.
    • OpenCL: Public standard by the group the developed OpenGL.

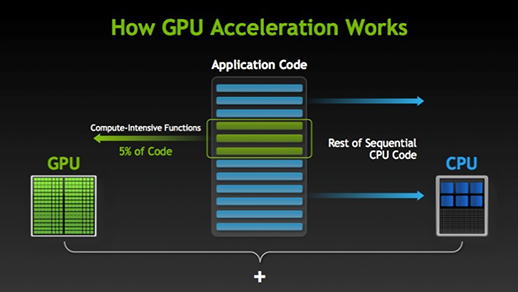

GPU
FPGA - field programmable array
  • Dynamically reconfigurable circuit board.
  • Expensive, difficult to program.
  • Power efficient, low heat.
Co-processors
  • Enables offloading of computationally intensive tasks from main CPU.
  • Similar to GPU, but can support a wider range of computational tasks.
  • Intel
    • Xeon Phi processor line.
    • PCIe-based add-on cards, but could also be used as a stand alone CPU.
    • Unlike GPU, Intel Xeon supports all programs targeted to standard x86 CPU (very minor modification if any)
Message passing distributed computing
  • Processes handle their own memory.
  • Data is passed between processes via messages.
    • Scales well.
    • Cluster can be built from commodity parts.
    • Cluster can easily be expanded.
    • Cluster can be heterogeneous.
  • Programming models:
    • MPI: standardized message passing library.
    • MPI + OpenMP: hybrid model.
    • MapReduce programming model for big data processing.

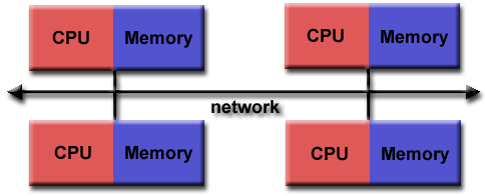

Message passing

Benchmarking

Benchmarking suites
  • LINPACK (Linear Algebra Package): Dense Matrix Solver
  • HPCC: High-Performance Computing Challenge.
    • HPL (LINPACK to solve linear system of equations)
    • DGEMM (Double precision general matrix multiply)
    • STREAM (Memory bandwidth)
    • PTRANS (Parallel matrix transpose to measure processors communication)
    • RandomAccess (random memory updates)
    • FFT (double precision complex discrete fourier transform)
    • Communication bandwidth and latency
  • SHOC: Scalable heterogeneous computing
    • Non-traditional system (GPU)
  • TestDFSIO
    • I/O performance of MapReduce/Hadoop Distributed File System.
Ranking systems
  • TOP500: Rank the supercomputers based on their LINPACK score.
  • GREEN500: Rank the supercomputers with emphasis on energy usage (LINPACK/power consumption).
  • GRAPH500: Rank systems based on benchmarks designed for data-intensive computing.
