More Architectures Styles

More Architectures Styles

Three-tier architecture

Overview
  • Extension of client/server model
  • Commonly used for small-medium web sites
    • Example: LAMP stack
Example

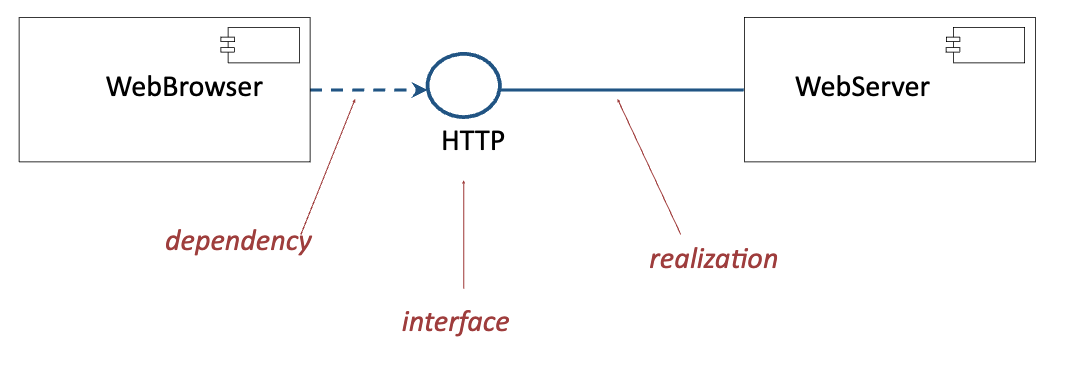

  • Naive client/server

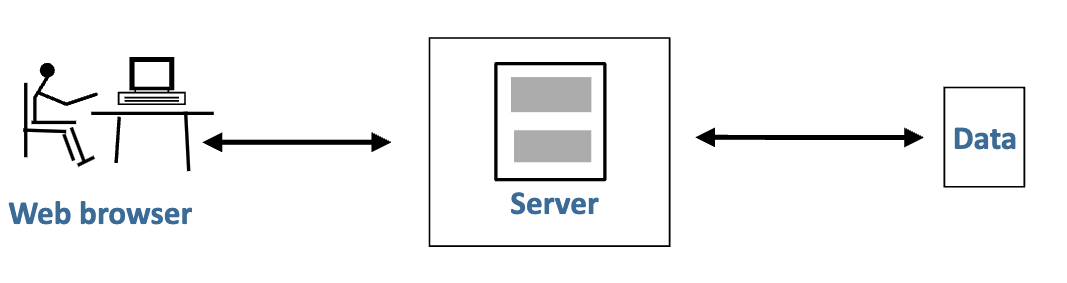

  • Data store extension

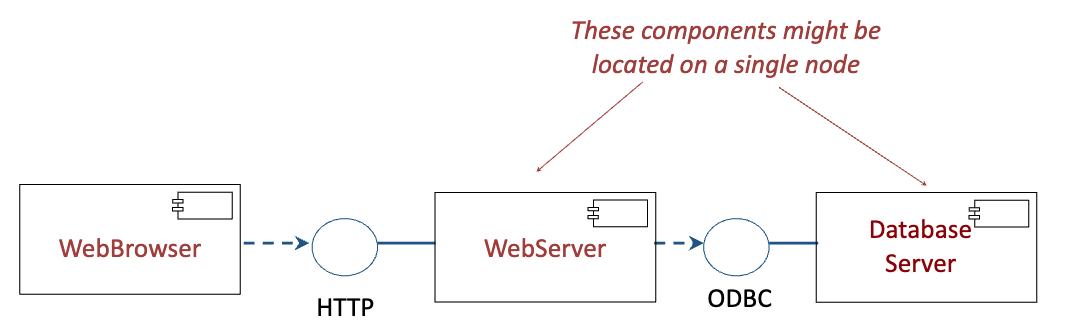

  • Data store extension with component diagrams:
    • Any web browser can access the website
    • Database can be replaced by another that supports the same interface
Architectural style

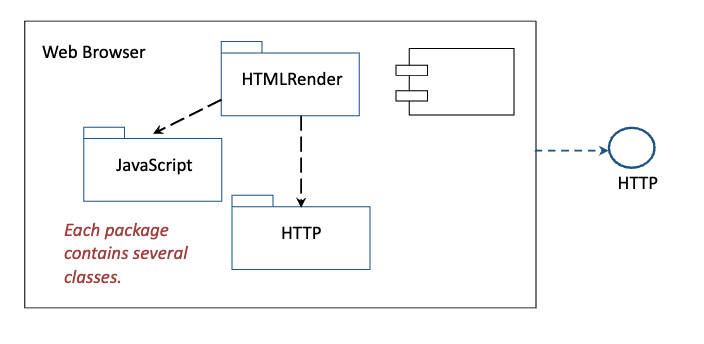

Presentation tier complexity
  • As long as same interface, this is still a binary-replaceable component

Model-view-controller

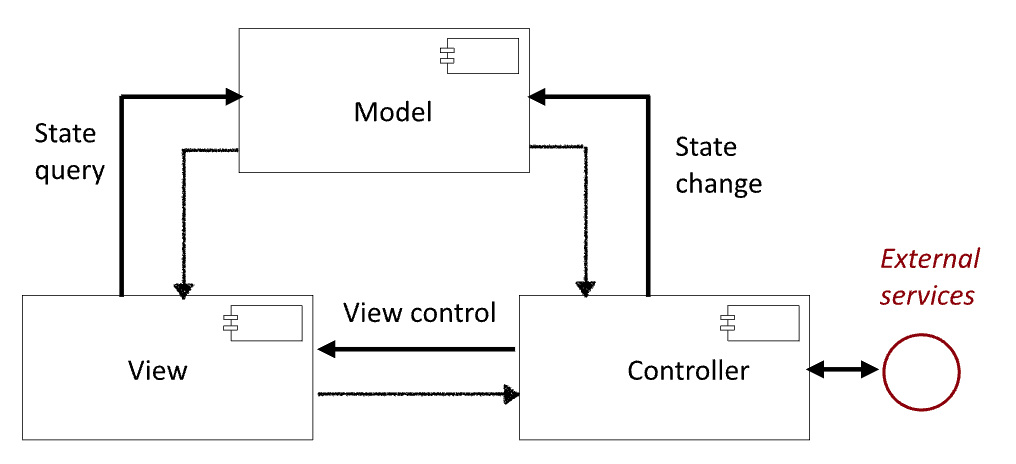

Component diagram
Features
  • Separated presentation
    • Decoupled model and view (replaceable components)
    • Multiple (possibly simultaneous) views supported
Example
  • Mission Control terminal
    • A vehicle (unmanned aircraft) is flown by a pilot interfacing with a computer terminal on the ground
    • Vehicle communicates with ground station via radio signals
      • Actuation commands (uplink): change throttle, angle flaps, etc.
      • Sensor measurements (downlink): air speed, GPS position, actuator settings, etc.
  • View
    • Graphical user interface shows model properties (sensor readings, derived state) as instrument dials and provides input widgets for commanding actuators
  • Model
    • Maintain record of state of vehicle
    • Computes derived properties of vehicle (rate of turn, predicted trajectory, …)
    • Updates state in response to actions from controller (e.g. new telemetry received)
    • Provides view with information to be displayed to user
    • Different vehicles will need different models but might not require new views or controllers.
  • Controller: Pilot wishes to change flap angle to 20 deg to increase lift and accommodate a slower speed for landing.
    • View sends message to controller: setFlaps(20)
    • Controller sends radio command to vehicle: setFlaps(20)
    • Vehicle acts on command and replies to controller: flapsSet(20)
    • Controller relays telemetry to model: flapsSet(20)
    • Model updates state and recomputes stall speed
    • Model notifies view of new state (flap setting, stall speed)
    • View displays new state in user interface
View
  • Presents application state and controls to user
  • Typically subscribes to model for notifications of state changes
  • “Observer pattern”
  • Responsible for rendering to a particular interface
  • Drawing graphics, generating HTML, printing text
  • Sends user input to controller
  • A single model can support multiple views
  • Example: web app, native app
Model
  • Records state of application and notifies subscribers
  • Responds to instructions to change state (from controller)
  • Does not depend on either controller or view
  • State may be stored in objects or databases
  • May be responsible for some application logic (e.g. input validation)
Controller
  • Manages user input and navigation
  • Defines application behavior
  • Maps user actions to changes in state (model) or view
  • May interact with external services via APIs
  • May be responsible for some application logic (e.g. input validation)
  • Variety in distribution of duties between model and controller

Publish-Subscribe

Overview
  • Event-driven control
    • Application responds to external stimuli and timeouts
    • No centralized orchestration
  • Very loose coupling – components communicate via message broker
    • Easy to extend
    • Difficult to analyze (observer pattern)
      • No control over what (if any) code responds to an event
      • Potential for conflicts (multiple components respond in incompatible ways)
      • Potential for silently dropped events
      • Call stacks may not reflect causality
