Architectures

Architectures

System Design

Design steps
  • Given requirements, must design a system to meet them
    • System architecture
    • User experience
    • Program design
  • Ideal: requirements are independent of design (avoid implementation bias)
  • Reality: working on design clarifies requirements
    • Methodology should allow feedback (strength of iterative & agile methods)
Design principles
  • Design is an especially creative part of the software development process
    • More a “craft” than a science
    • Many tools are available; must select appropriate ones for a given project
  • Strive for simplicity
    • Use modeling, abstraction to (hopefully) find simple ways to achieve complex requirements
    • Designs should be easy to implement, test, and maintain
  • Easy to use correctly, hard to use incorrectly
  • Low coupling, high cohesion
What is architecture
  • Brooks: Conceptual integrity is key to usability and maintainability; architect maintains conceptual integrity
  • Johnson: The shared understanding that expert developers have of the system / The decisions you wish you could get right early in a project
  • Sommerville: Dominant influence on non-functional system characteristics
  • Highest level organization of system
Levels of abstraction
  • Requirements
    • High level what
  • Architecture
    • High-level how
    • Mid-level what
  • Program design
    • Mid-level how
    • Low-level what
  • Code
    • Low-level how
  • Documentation for each step should respect its level of abstraction
    • Avoid biasing later steps
    • Avoid redundancy
Example
  • Requirements:
    • Drone can hover
  • Architecture
    • Sensing → navigation → control → actuation
    • Radio input
  • Program design
    • PID controller, low-pass filter
    • Gain registry
  • Code
    1
    2
    3

      def lpf(x1, y0, a):
          """exp filter w/ smoothing factor a"""
          return a*x1 + (1-a)*y0

Architectural considerations
  • Infrastructure
    • Hardware
    • Operating systems
    • Virtualization
  • Interfaces
    • Networks/buses
    • Protocols
  • Services
    • Databases
    • Authentication
  • Operations
    • Testing
    • Logging/monitoring
    • Backups
    • Rolling deployment
  • Product line
Architectural models
  • Diagram and supporting specification
    • Be specific with notation
  • Multiple perspectives
    • Conceptual
    • Static (subsystems)
    • Dynamic (data flow)
    • Physical (deployment)
  • Appropriate level of detail
    • A single diagram should fit cleanly on one page
  • Distinct from program models
    • Inheritance diagrams don’t show interactions
Subsystems
  • Improve comprehensibility of system by decomposing into subsystems
  • Group elements into subsystems to minimize coupling while maintaining cohesion
  • Coupling: Dependencies between two subsystems
    • If coupling is high, can’t change one without affecting the other
  • Cohesion: Dependencies within a subsystem
    • High cohesion implies closely-related functionality

UML

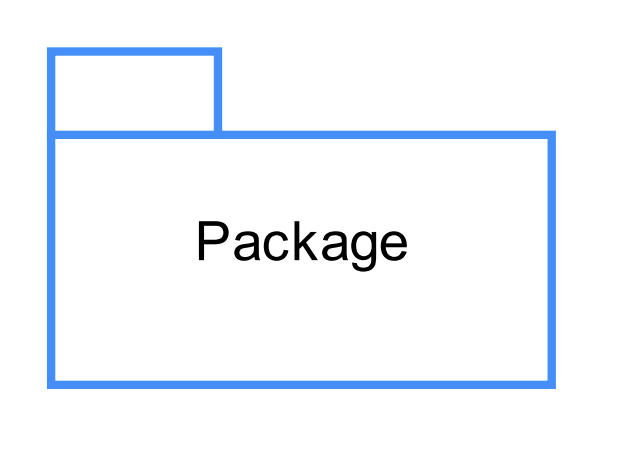

UML: Package
  • General grouping of system elements
  • Appropriate for denoting subsystem at conceptual level

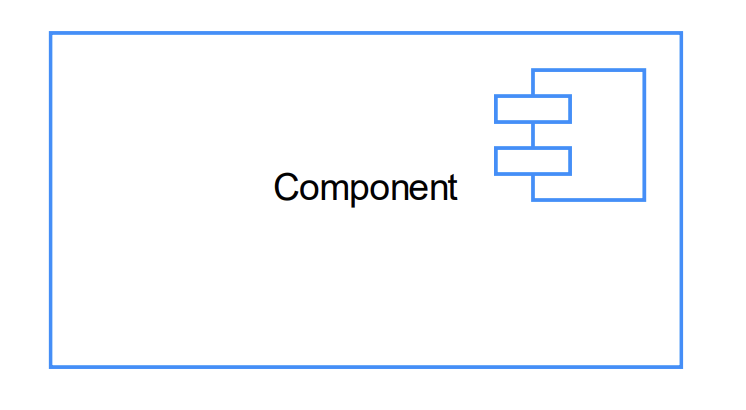

UML: Component
  • Replaceable part of a system
    • Conforms to and realizes a set of interfaces
    • An implementation of a subsystem
    • Could be replaced by another component that realizes the same interfaces, and system would still function
  • Distinct from classes
    • Classes may have fields, are assembled into programs
    • Components realize interfaces, are assembled into systems

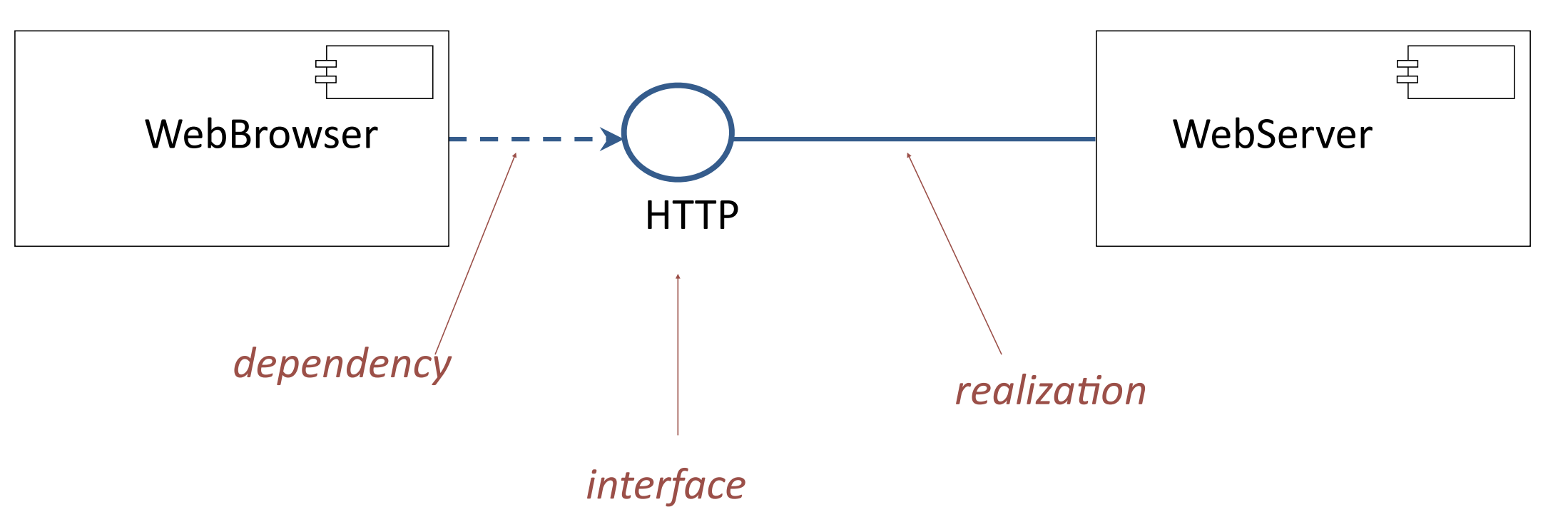

Interface diagram
UML: Node
  • Physical element that exists at runtime, provides a computational resource
    • Computer
    • Smartphone
    • Network router
  • Components live on nodes

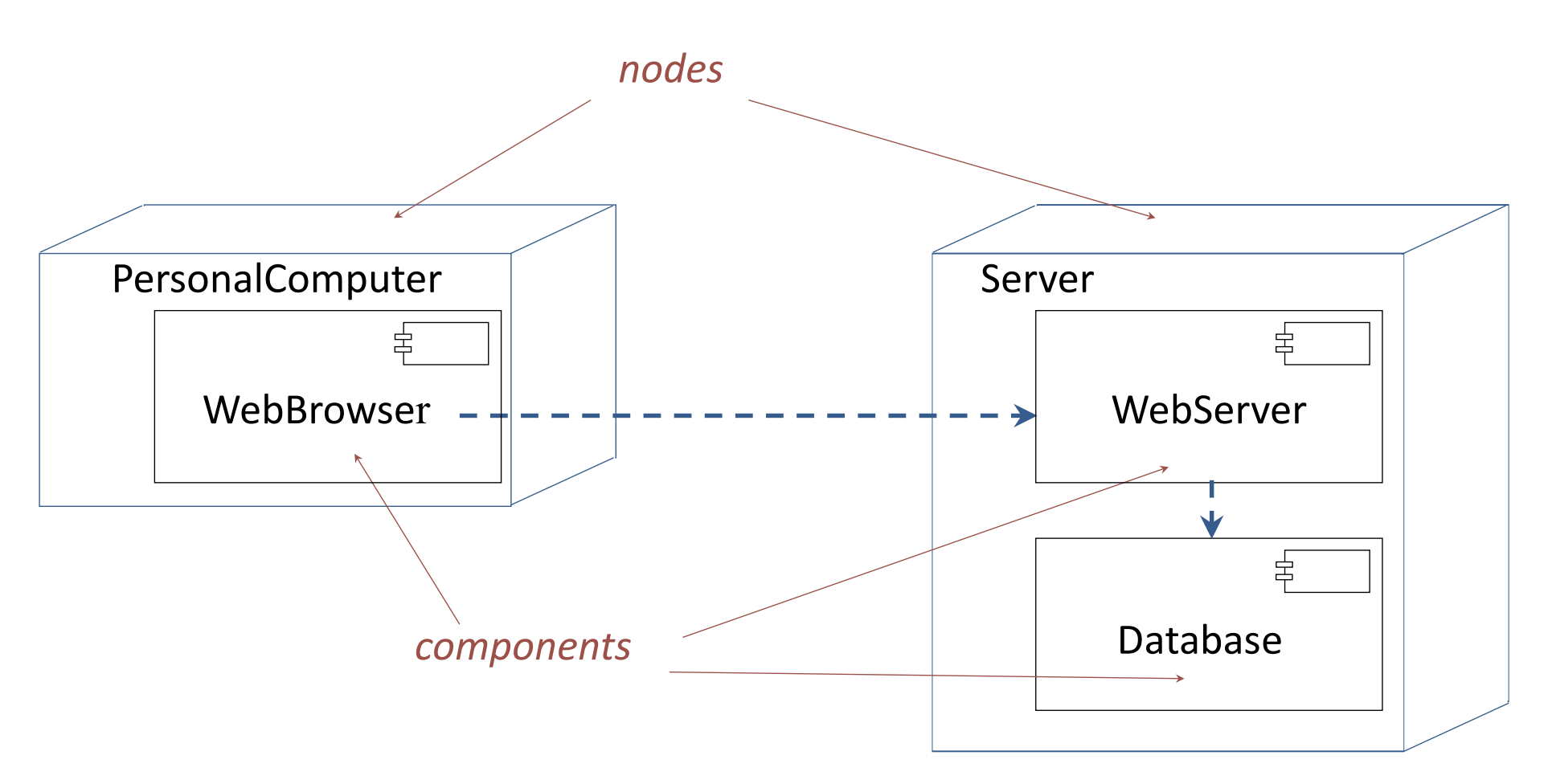

Example: deployment diagram
Deployment environments
  • Development
  • Production
  • Staging
  • (Acceptance testing)

Architectural styles

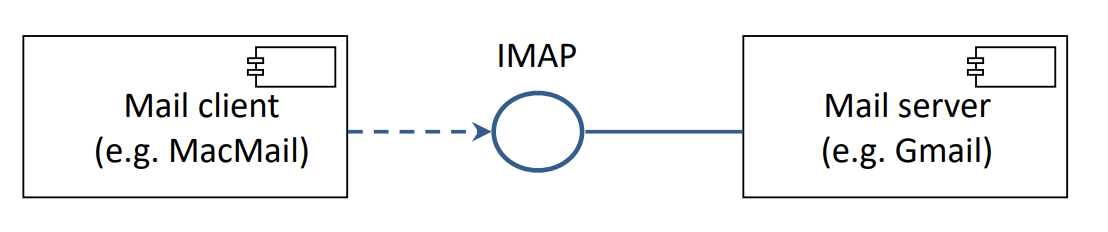

Client/sever
  • Control flow in client and server are independent
  • Communication follows a protocol
  • If protocol is fixed, either side can be replaced independently
  • Peer-to-peer: same component can act as both client and server
Layered
  • Partition subsystems into stack of layers
    • Layer provides services to layer directly above
    • Layer relies on services to layer directly below
  • Advantage: constrains coupling
  • Danger: leaky abstractions
    • May need services of multiple lower layers
Pipe and filter
  • Transformation components process inputs to produce outputs
    • Subsystems coupled via data exchange
    • Good match for data flow models
    • May be dynamically assembled
  • Applications:
    • Streaming media
    • Graphics shaders
    • Signal processing
  • Caveats:
    • Awkward to handle events (interactive systems)
    • Rate mismatches if branches merge
Example: Oscillatory
  • Problem statements:
    • develop a reusable system architecture for oscilloscopes.
    • An oscilloscope is an instrumentation system that
      • samples electrical signals and displays pictures (called traces) of them on a screen,
      • perform measurements on the signals, and
      • display these on the screen.
    • Modern oscilloscopes rely primarily on digital technology and have quite complex software:
      • perform dozens of measurements,
      • supply megabytes of internal storage,
      • interface to a network of workstations and other instruments,
      • provide sophisticated user interface including a touch panel screen with menus, built-in help facilities, and color displays.
    • Problem 1: there was little reuse across different oscilloscope products.
    • Problem 2: there were increasing performance problems because the software was not rapidly configurable within the instrument.
  • User requirements:
    • develop an architectural framework for oscilloscopes that would address these problems.
    • a domain-specific software architecture that formed the basis of the next generation of Tektronix oscilloscopes.

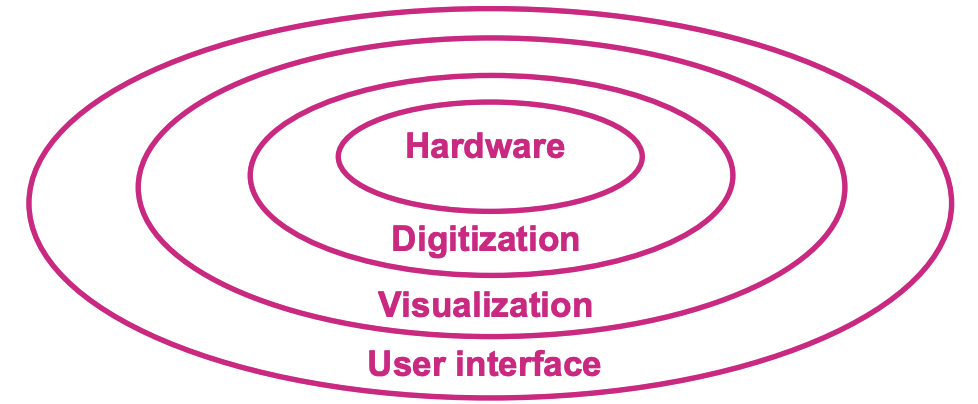

Oscillatory: layered model
  • Model design
    • The core layer represented the signal manipulation functions that filter signals as they enter the oscilloscope.
    • The next layer represented waveform acquisition where signals are digitized and stored internally for later processing.
    • The third layer consisted of waveform manipulation, including measurement, waveform addition, Fourier transformation, etc.
    • The fourth layer consisted of display functions
    • The outermost layer was the user interface.
  • Analysis
    • Intuitively appealing since it partitioned the functions of an oscilloscope into well-defined groupings.
    • Wrong model for the application domain.
      • The boundaries of abstraction enforced by the layers conflicted with the needs for interaction between the various functions.
      • For example, the model suggests that all user interactions with an oscilloscope should be in terms of the visual representations.
      • In practice real oscilloscope users need to directly affect the functions in all layers.

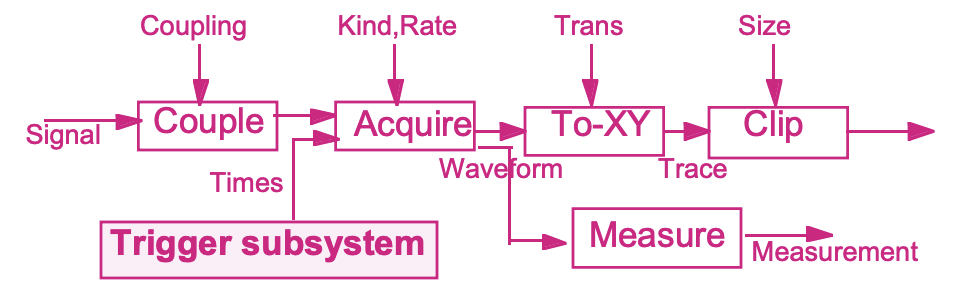

Oscillatory: pipe and filter
  • Model design
    • Oscilloscope functions were viewed as incremental transformers of data.
      • Signal transformers serve to condition external signals.
      • Acquisition transformers derive digitized waveforms from these signals.
      • Display transformers convert these waveforms into visual data.
      • Accounted for user inputs by associating with each filter a control interface that allows an external entity to set parameters of operation for the filter.
  • Analysis
    • Pipe and filter computational model led to poor performance.
      • Waveforms can occupy a large amount of internal storage
      • Different filters may run at radically different speeds
    • To handle these problems the model was further specialized.
      • Several colors of pipes were introduced.
      • Some of these allowed data to be processed without copying.
      • Others permitted data to be ignored by slow filters if they were in the middle of processing other data.

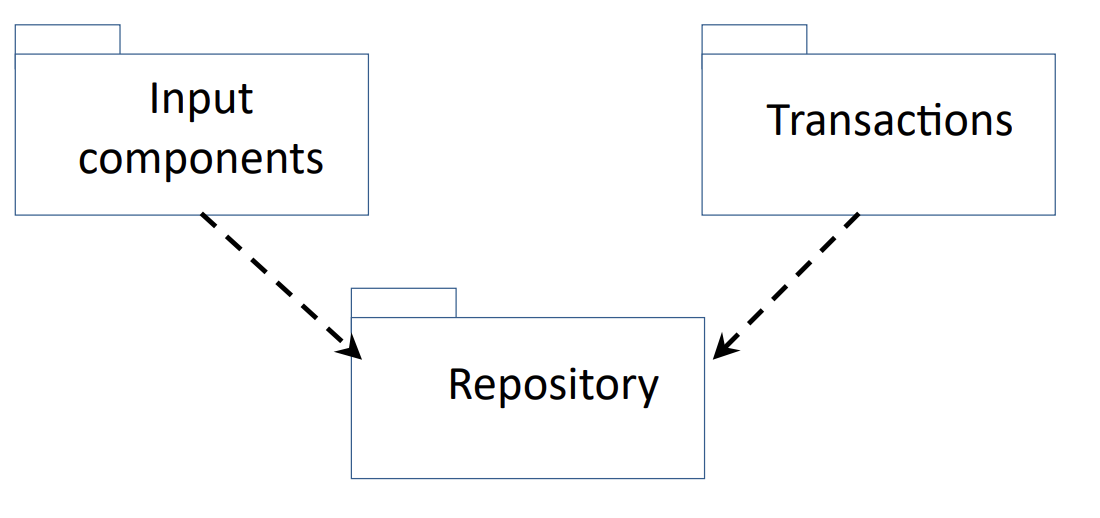

Repository
  • Couple subsystems via shared data
    • Repository may need to support atomic transactions
  • Advantages:
    • Components are independent (low coupling)
    • Centralized state storage (good for backups)
  • Dangers:
    • Bottleneck / single point of failure

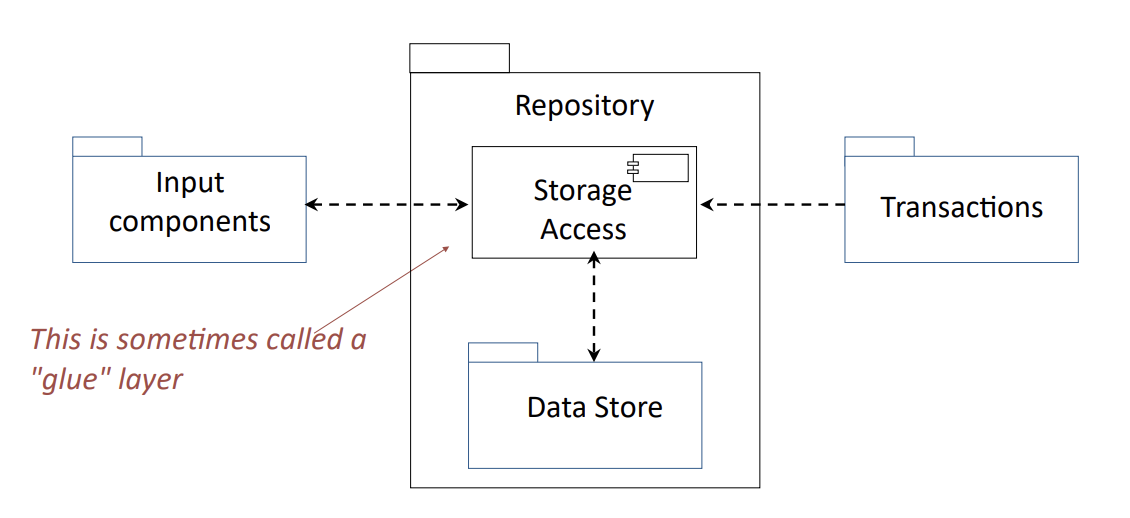

Repository: flexibility through indirection
  • Repository is highly coupled – difficult to change data store
  • By defining higher-level storage access interface, data store is now lightly coupled
