Input/Output devices
Overview
- Critical to computer systems
- Without input: Same results every time.
- Without output: What’s the point?
- How should I/O be integrated into systems?
- What are the general mechanisms?
- How can we make them efficient?

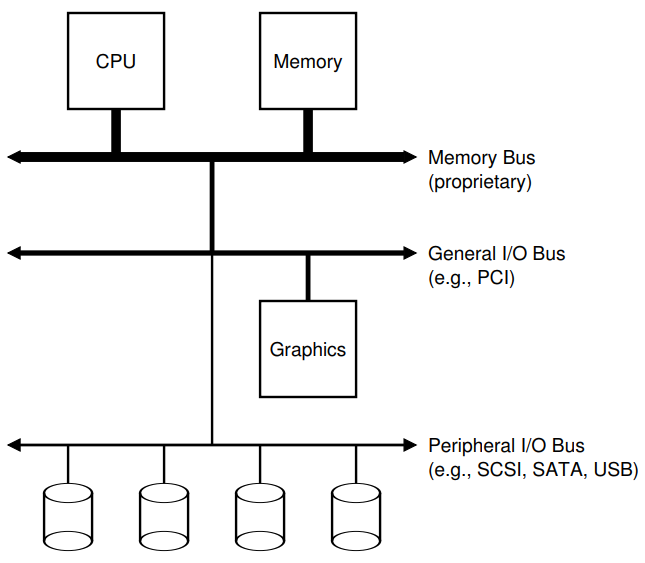

Classical system architecture
- Hierarchical structure due to the relationship between physics and costs:
- The faster the bus, the shorter it is.
- The faster the bus, the more complex it is to design and build (hence more costly).

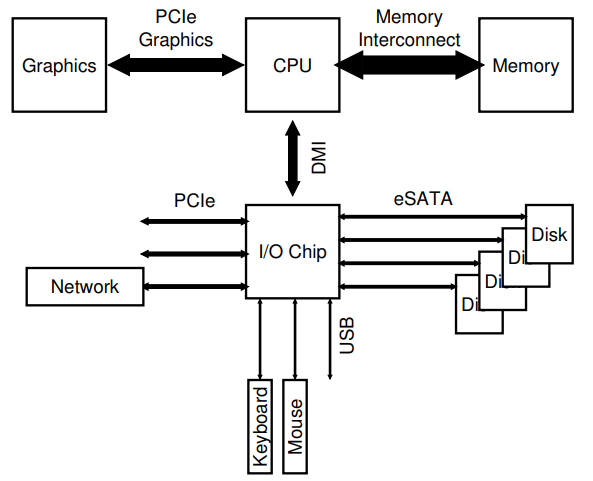

Modern system architecture
- Specialized chipsets and faster point-to-point interconnects.

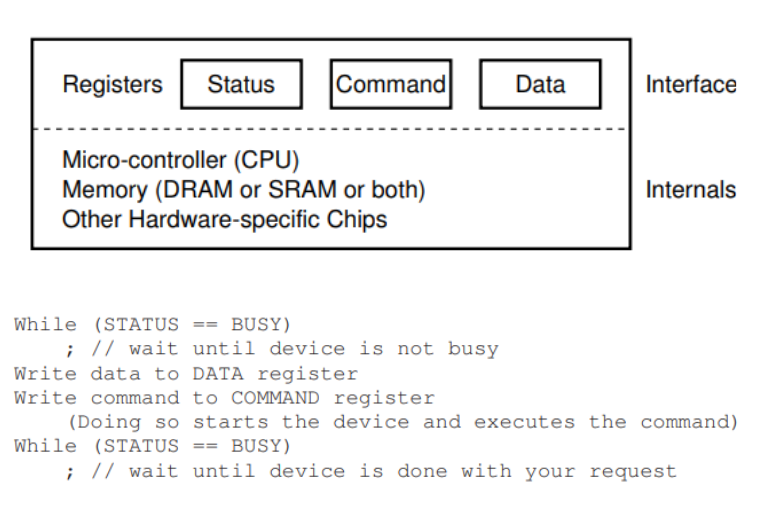

A Canonical Device
A common abstraction
- Conceptual model/template for all I/O devices.
- Interface: allowing system software to control the device’s operations
- Initialize/configure
- Start/stop operation
- Check status/handle interrupts
- Bridged with OS by
device driver.
- Internal structure: implementing the abstraction presented to the system.
- Controller/firmware
- Registers
- Buffer memory
- Bus interface
- Common Abbreviations:
- DMI: Direct Memory Interface
- ATA: IBM’s PC AT Attachment.
- SATA: Serial ATA
- eSATA: External Serial ATA
- PCIe: Peripheral Component Interconnect Express
A simple canonical protocol
- Repeatedly read the register for READY status.
- Send data to register (Programmed I/O - PIO).
- Write a command to the command register to initiate device execution.
- Wait until the device is done.
- What is a problem with this approach?
Hardware interrupts

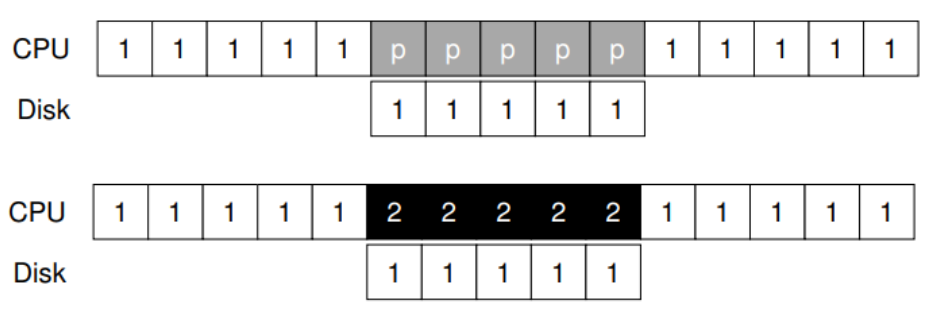

- Instead of polling the device, the OS can:
- After issue an I/O request, put the calling process to sleep and context switch to another.
- When the request is finished, the device will raised a hardware interrupt to return CPU to the OS.
- Predetermined interrupt service routine (ISR) - interrupt handler.
- This allows overlap of computation and I/O (recall CPU scheduling slides)
- To avoid interrupts all the time, a hybrid model is employed (scheduling).
Programmed I/O overheads
- Programmed I/O: I/O instructions that move data from storage into register for computation purposed. This requires the CPU’s involvement in every transactions.
- With programmed I/O, the CPU spends too much time moving data to and from devices.

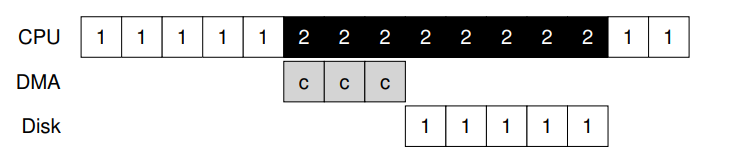

- How do we offload this work: Direct Memory Access (DMA) device
- Orchestrate transfer between devices and main memory without much CPU intervention.
- Example: Intel Broadwell Crystal Beach DMA Application
- Supports write operations from memory to I/O, but not from I/O to memory
- Instantiated as a root complex integrated PCIe end-point device
- Chipset DMA that is controllable by software executing on the processor
- A standardized software interface for controlling and accessing DMA features
- There are eight software visible CB DMA engines, visible as PCI functions.
- Each engine has one channel.
- Each can be independently operated.
- In a virtualized system, each can be independently assigned to a VM.
- Copying of data is handled by DMA controller.
Method of device interaction
- First method
- Explicit I/O instructions (privileged)
- Second method
- Memory-mapped I/O
- The hardware makes the device registers available as if they were memory locations.
- No clear advantages on either method

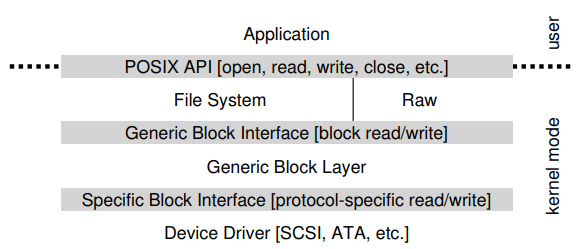

Device driver
- How to fit various I/O devices with different interfaces into the OS (which is supposed to be generic)?
- Abstraction, abstraction and abstraction: device driver
- 70% of OS code is found in device drivers.
- Unofficial device drivers are often the cause for kernel crashes.
- Example:

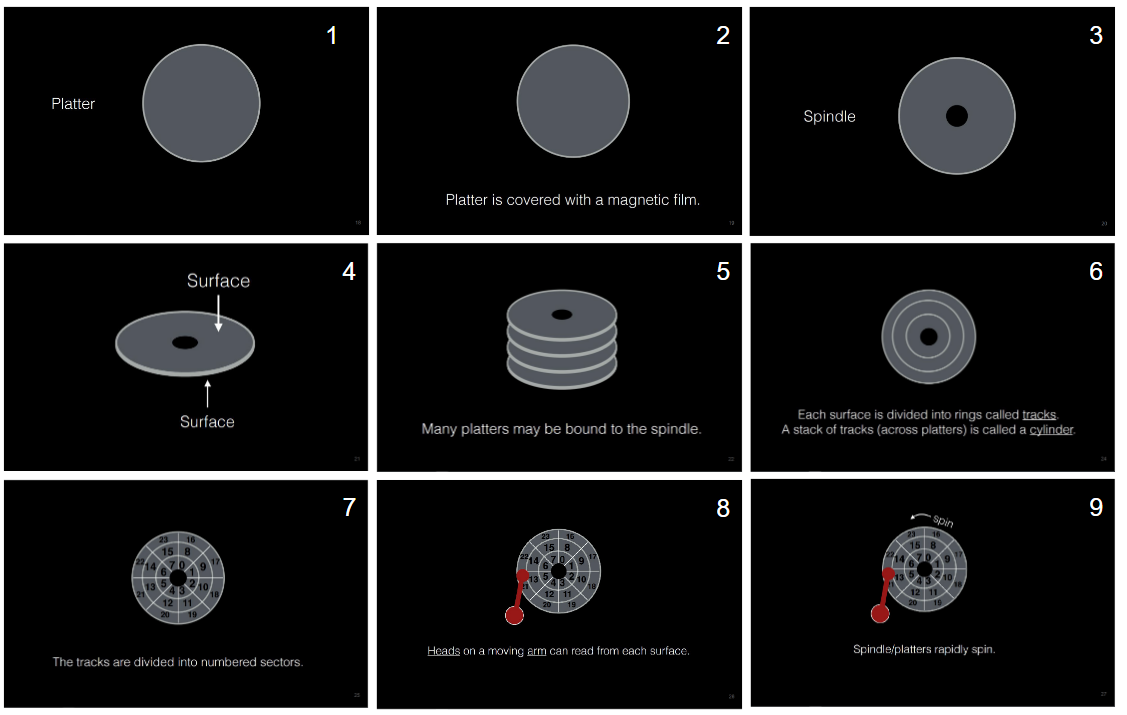

Disk Drive
Overview
- Large number of sectors (512-byte blocks)
- Sectors are numbered 0 to n-1 on disks with n sectors. This is the address space of the drive.
- Multi-sector operations are possible (read or write 4K bytes at a time).
- Only a single 512-byte write is guaranteed atomic.
Seek, rotation, transfer
- Seek: move the disk arm to the correct cylinder
- depends on how fast disk arm can move
- typical time: 1-15ms, depending on distance (average 5-6ms)
- improving very slowly: 7-10% per year
- Rotation: waiting for the sector to rotate under the head
- depend on the rotation rate of the disk (7200 RPM SATA, 15K RPM SCSI)
- average latency of ½ rotation (~4ms for 7200 RPM disk)
- has not changed in recent years
- Transfer: transferring data from surface into disk controller electronics, or the other way around
- depends on density, higher density, higher transfer rate
- ~100MB/s, average sector transfer time of ~5 microseconds
- improving rapidly (~40% per year)
Disk scheduling
Details
- The OS has a queue of disk requests, therefore there is a chance to schedule these requests
- We want to minimize seeking

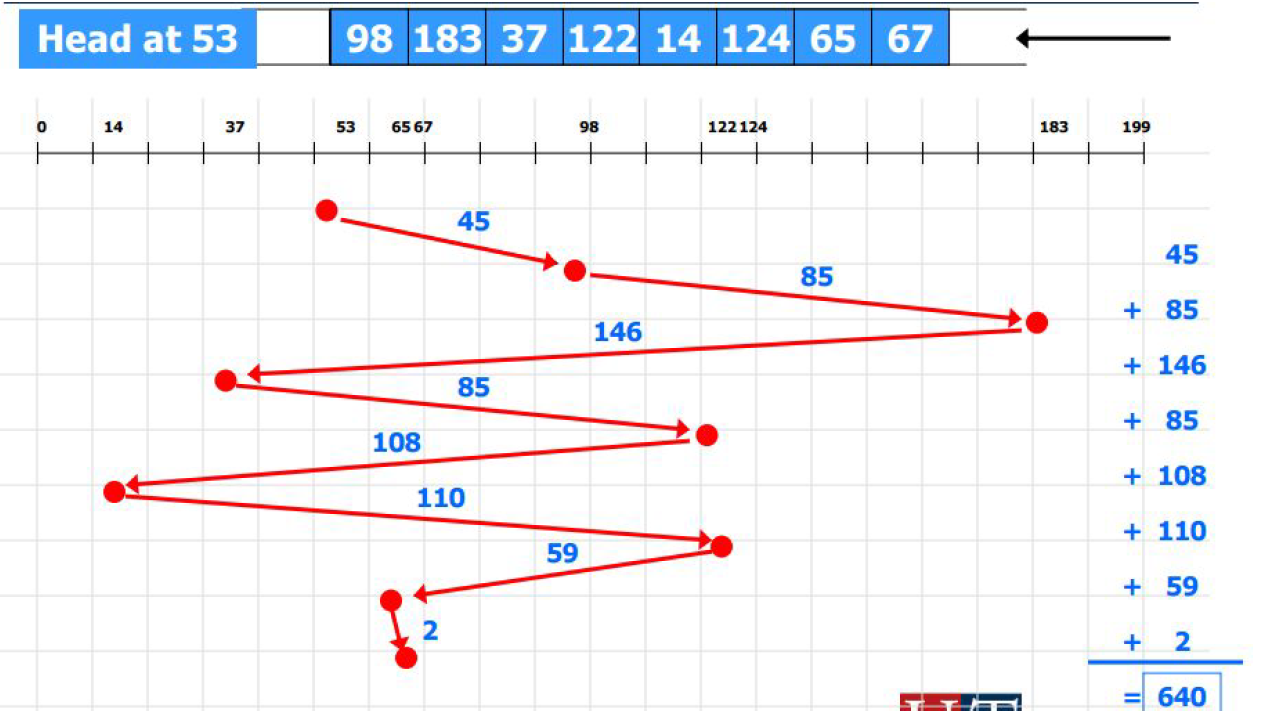

FCFS (do nothing)
- reasonable when load is low, long waiting time when load is high

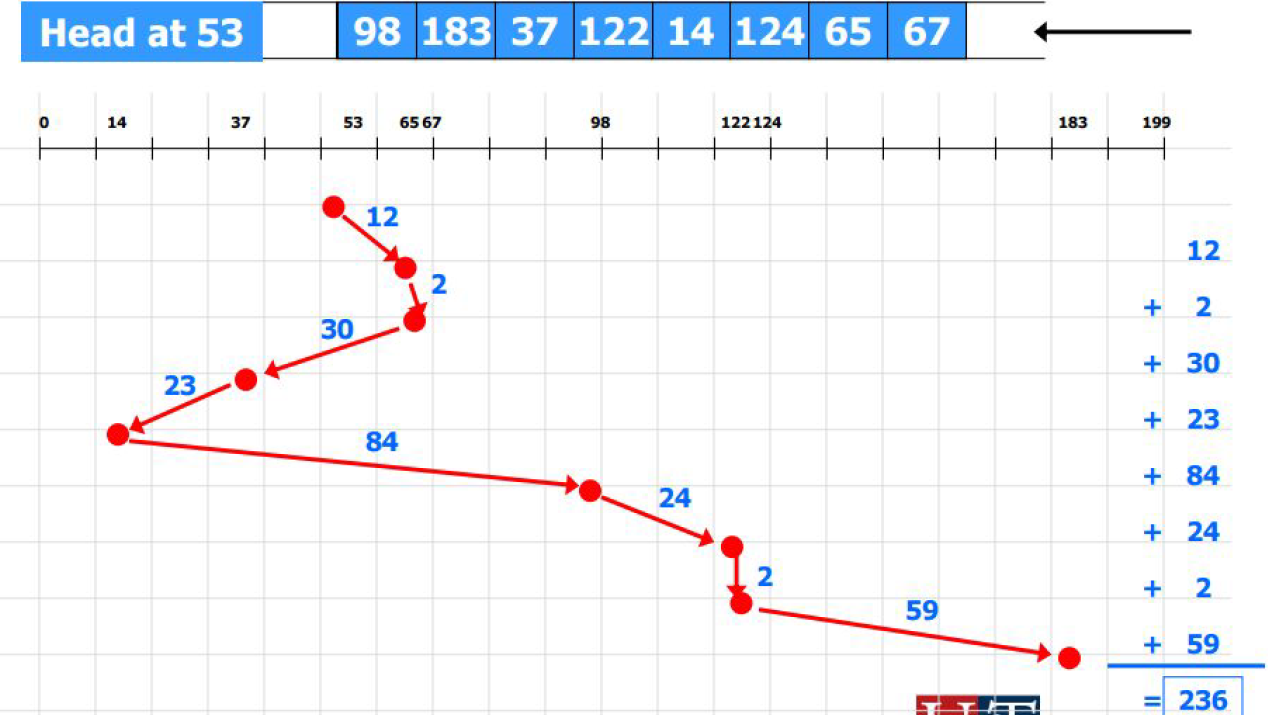

SSTF (shortest seek time first)
- minimizes arm movement
- favors blocks in middle tracks, because they have more blocks nearby.
SCAN (elevator)
- serve request in one direction until done, then reverse
- like an elevator, avoid going back and forth in the middle

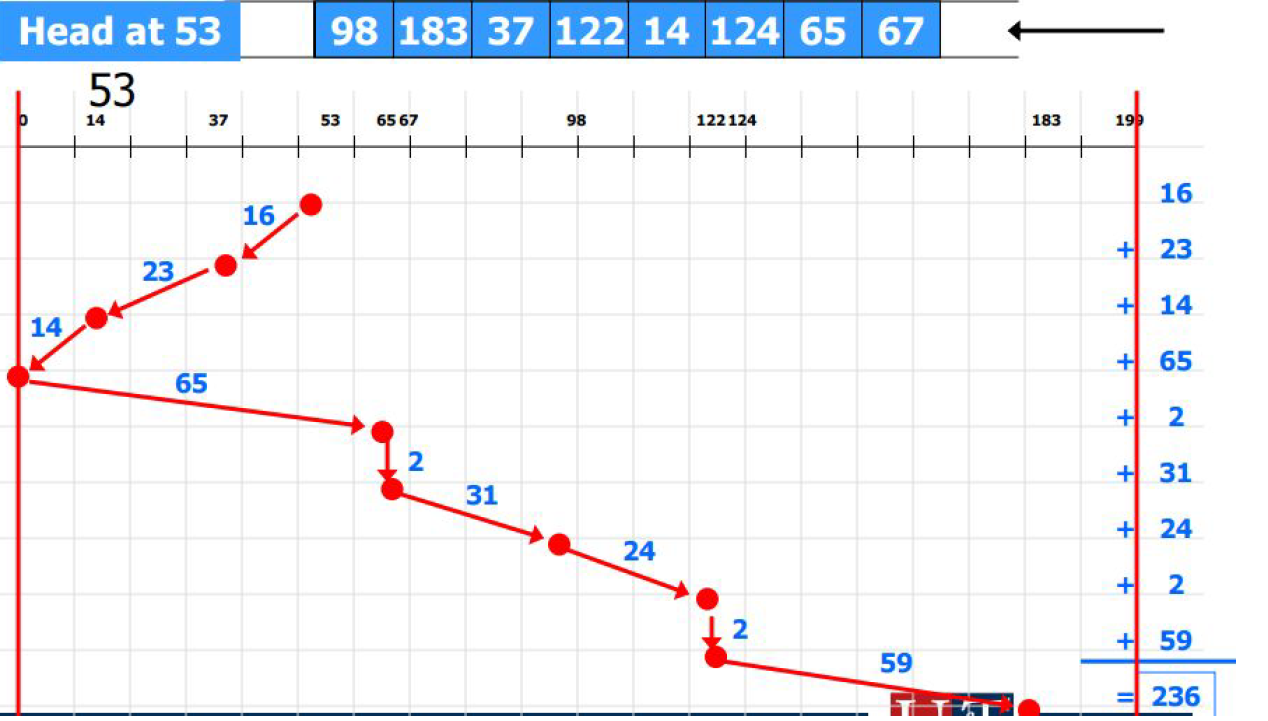

- C-SCAN (typewriter)
- like SCAN, but only go in one direction (no reverse direction)

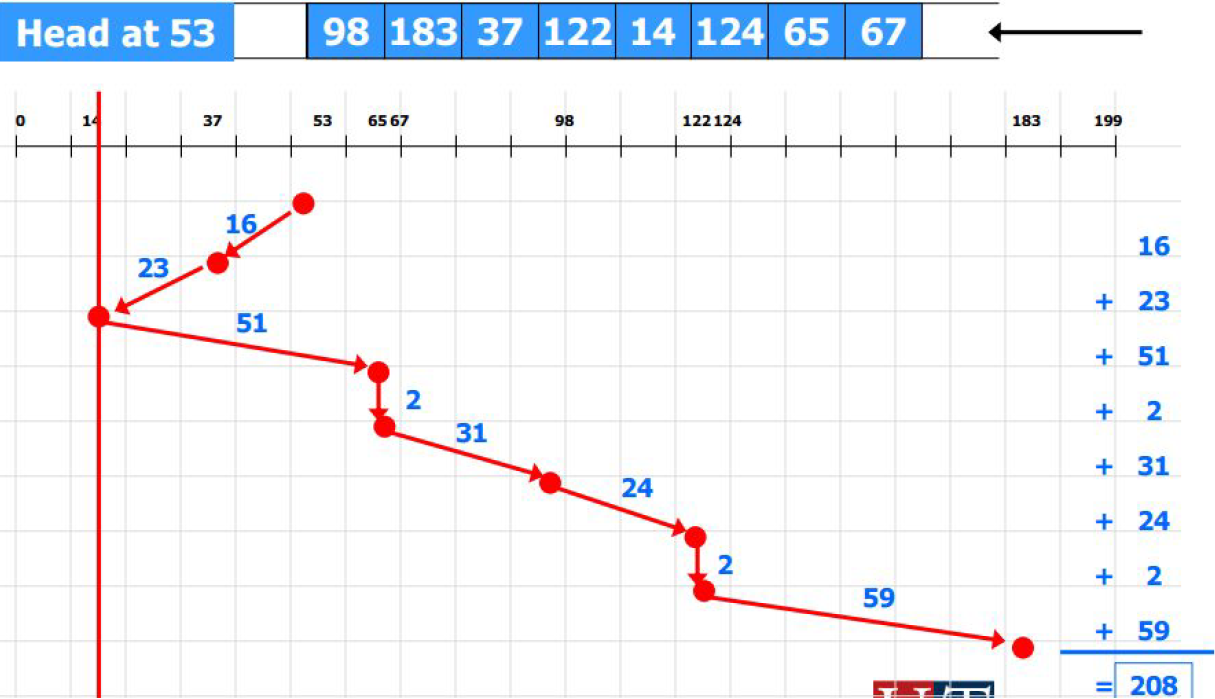

LOOK / C-LOOK
- like SCAN/C-SCAN, but only go as far as last request in each direction, instead of going full width of the disk.
- Disk scheduling is important only when disk requests queue up
- important for servers
- not so much for PCs
- Modern disks often do disk scheduling themselves
- Disks know their layout better than the OS, can optimize better
- on-disk scheduling ignores, undoes any scheduling done by the OS
