Memory virtualization mechanism: address translation

Memory virtualization mechanism: address translation

The questions

Question: Details
  • How can we build an efficient virtualization of memory?
  • How do we provide the flexibility needed by applications?
  • How do we maintain control over which memory locations an application can access?
General technique
  • Hardware-based address translation (address translation)
    • HW transforms virtual address from memory access into physical address.
  • The OS gets involved to ensure correct translations take place and manage memory to keep track of and maintain control over free and used memory locations.

Initial assumptions

Details
  • User’s address space must be place contiguously in physical memory.
  • The size of the address space is less than the size of physical memory.
  • Each address space is exactly the same size.

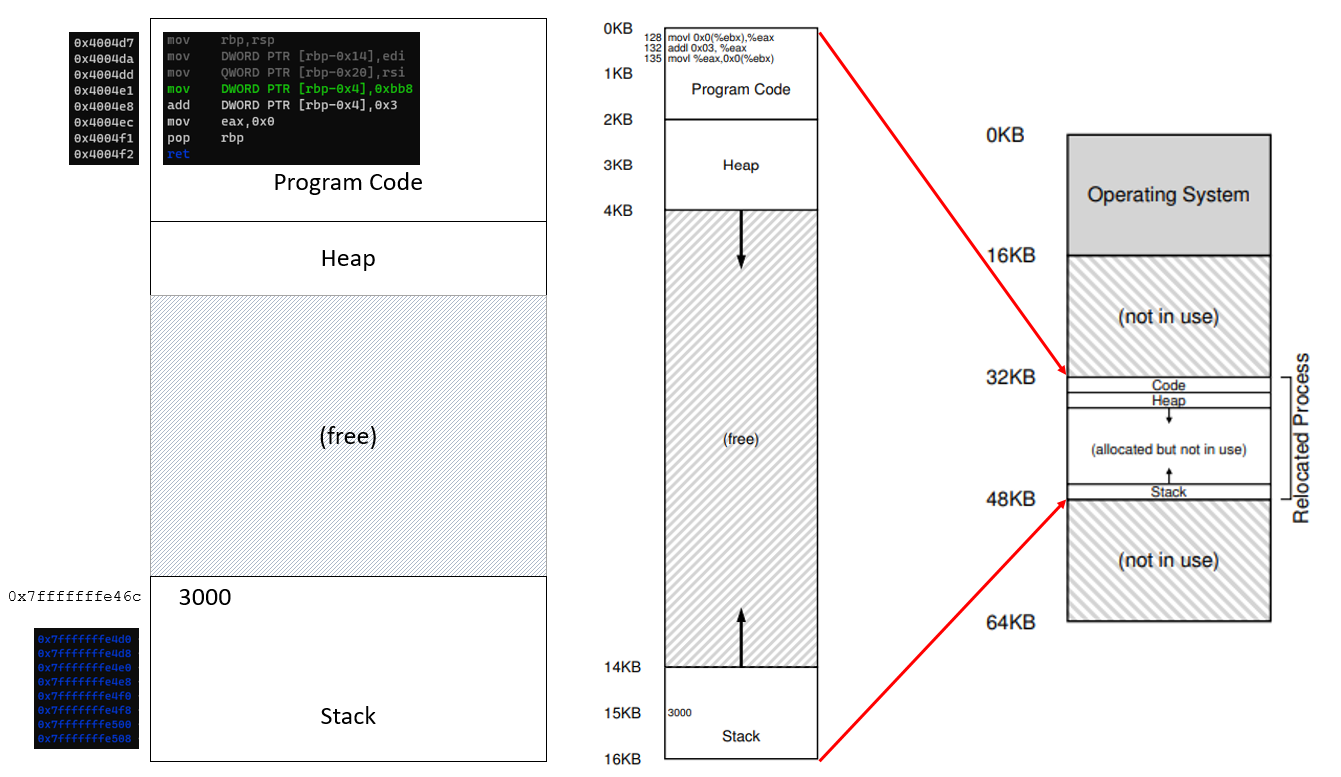

Early attempt: dynamic relocation
  • Hardware-based
  • Aka base and bounds
  • Two hw registers within each CPU:
  • Base register
  • Bounds (Limit) register


1
2


physical address = virtual address + base
0 <= virtual address <= bound

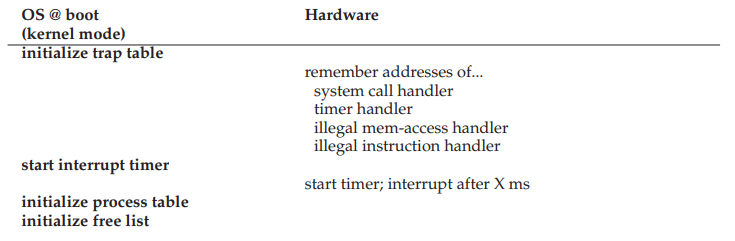

What happen after boot?

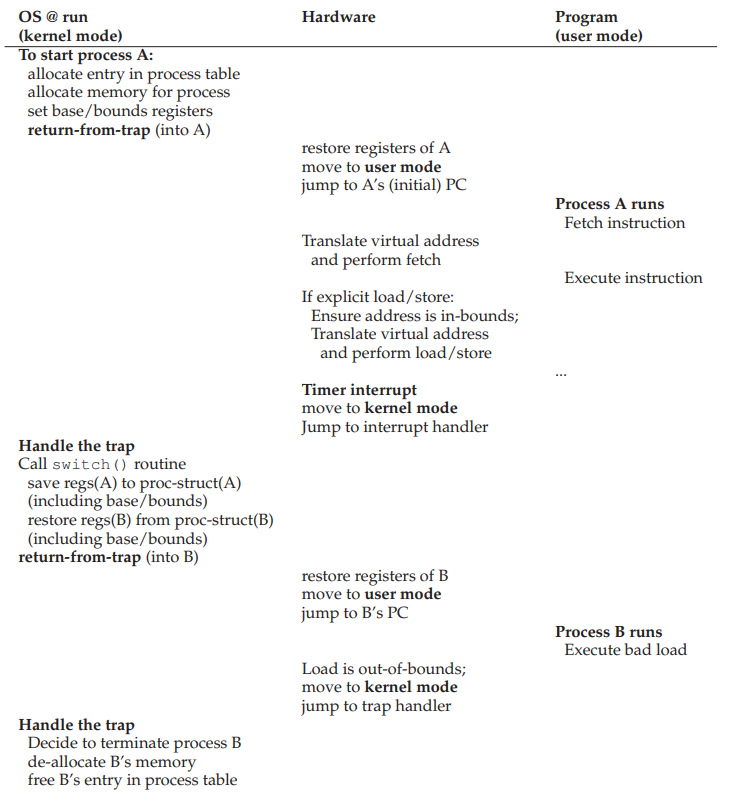

What happen during process run?
Summary: Details
  • Pros:
    • Highly efficient through simple translation mechanisms
    • Provides protection
  • Cons:
    • Wastage through internal fragmentation due to space inside the allocated (contiguous) memory units are not fully utilized.

Initial assumptions

How do we support a large address space with (potentially) a lot of free space between the stack and the heap?

Segmentation: generalized base/bounds
  • Original: One base/bound pair for one address space.
  • Segmentation: One base/bound pair per logical segment of an address space:
    • Code
    • Stack
    • Heap

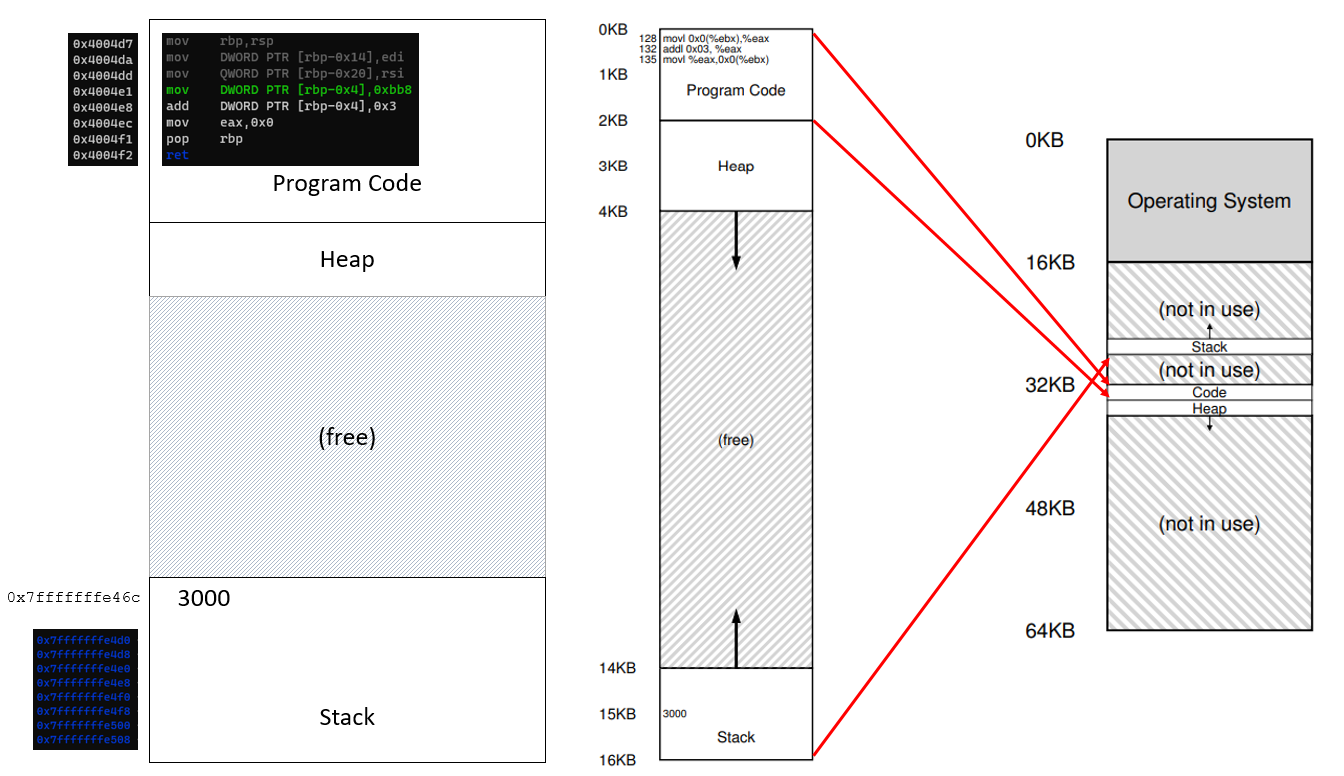

Example: Details
  • Note: $32K=2^{15}=32768$
Segment Virtual segment base Virtual segment bound Physical segment base Physical segment bound Size
Code 0KB 2KB 32KB 34KB 2KB
Heap 4KB 6KB (can grow up) 34KB 36KB 2KB
Stack 16KB 14KB (can grow down) 28KB 26KB 2KB
  • Reference is made to virtual address 100 (code segment)
    • This is called the offset
    • physical address = physical segment base + offset = 32K (32768) + 100 = 32868
  • Reference is made to virtual address 4200 (heap segment)
    • What is the correct offset:
    • offset = virtual address - virtual segment base = 4200 - 4096 = 104
    • physical address = physical segment base + offset = 34K (34816) + 104 = 34920
  • Reference is made to virtual address 7000?
    • Look likes heap segment
    • Is it heap segment?
    • offset = virtual address - virtual segment base = 7000 - 4096 = 2904
    • physical address = physical segment base + offset = 34K (34816) + 2904 = 37720
    • This falls into physical addresses that are markedas not in use.
    • Segmentation Fault: AKA segmentation violation
    • Illegal virtual address
Summary: Details
  • Pros:
    • Efficient saving of physical memory (avoid internal fragmentation)
    • Enable the creation of segments with various sizes
  • Cons:
    • External fragmentation

External fragmentation:

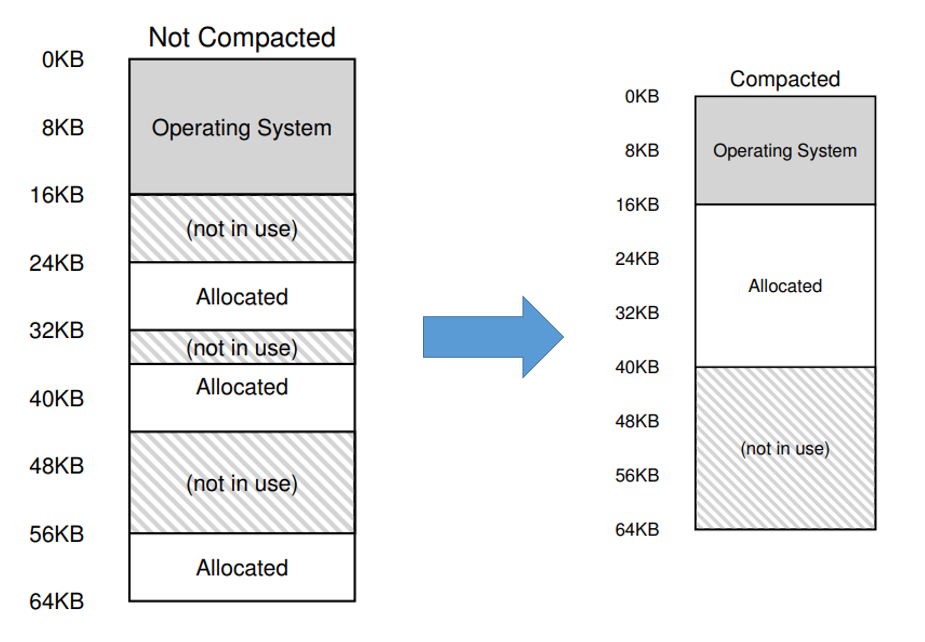

Compacting
  • Computationally expensive
Algorithmic allocation
  • A data structure that keeps track of free memory regions:
    • Best-fit
    • Worst-fit
    • First-fit
    • Next-fit
    • Buddy algorithm
  • Does not address the core of the issue, only minimize it as much as possible. New solution is needed!
