Process in xv6

Editing files in xv6

Since the csc331 container mounts the workspace directory on the host machine into /workspace, you are able to edit contents directly from the host machine via an IDE. The screenshot belows show a VSCode IDE session into the xv6-riscv repo that had been cloned into the host machine’s workspace folder and editing a file called xv6-test.txt.

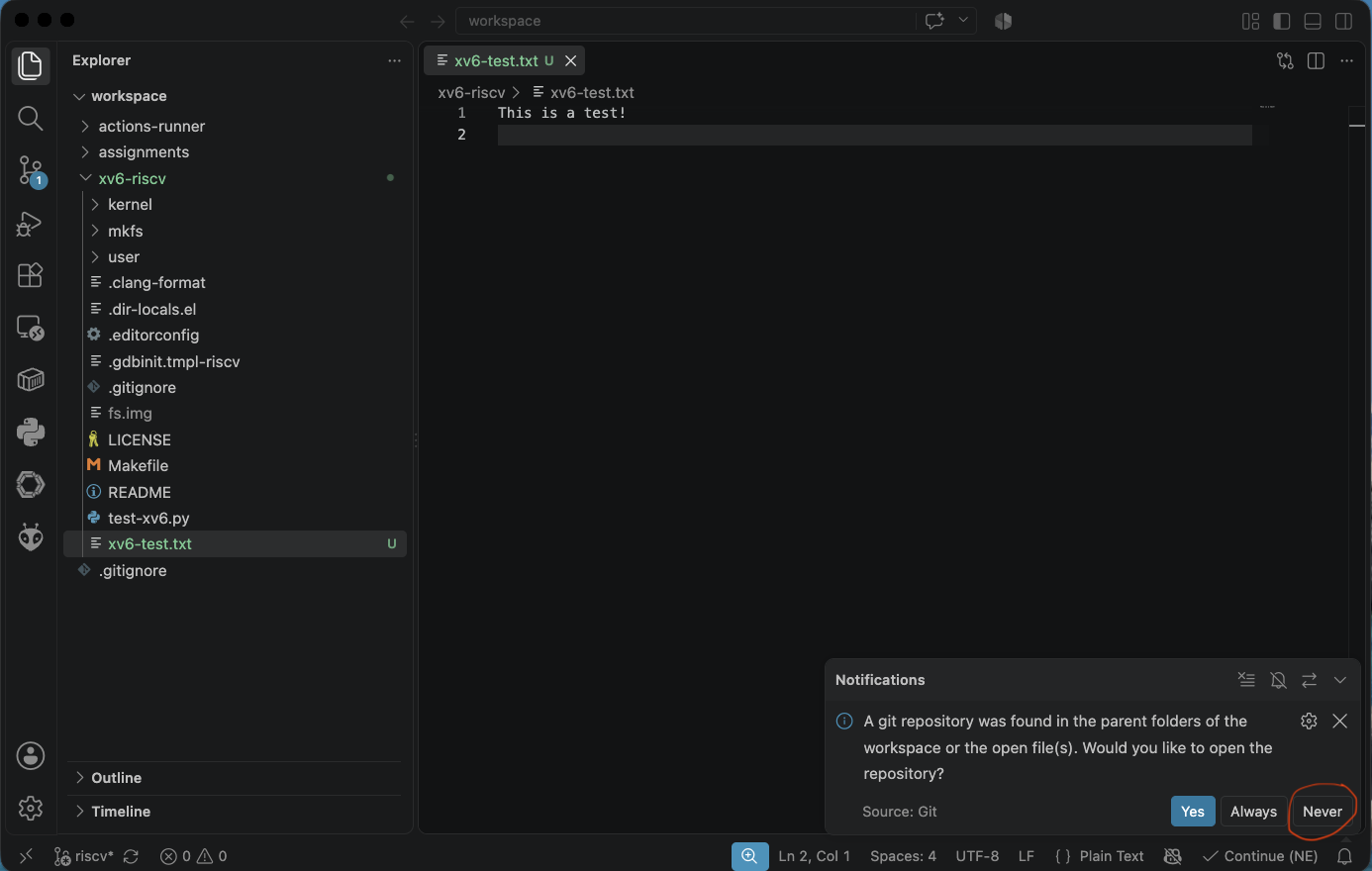

WarningDo not open git repository of parent folder

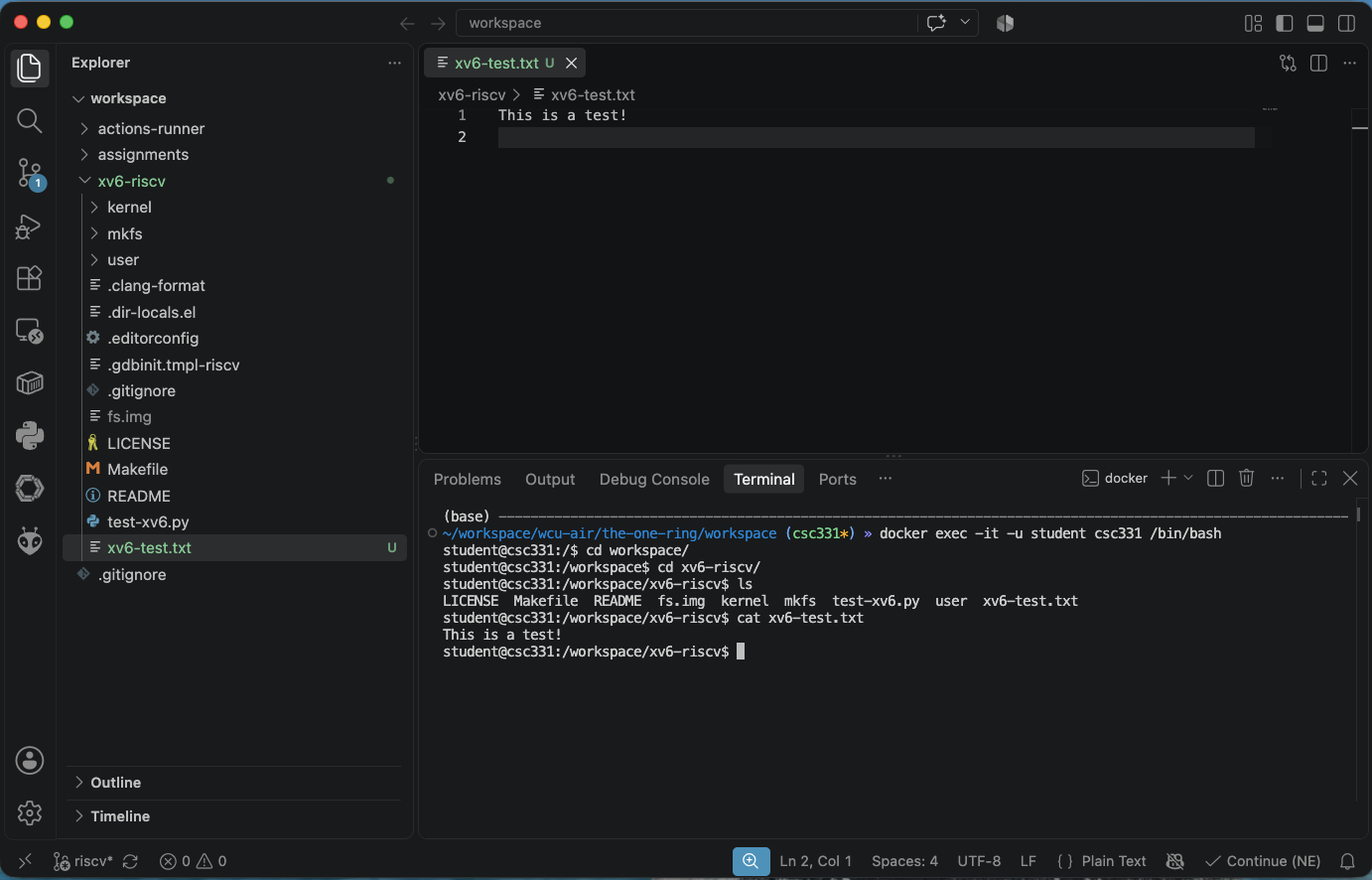

You can also leverage the Terminal space of VSCode to docker exec into the container and test your code modifications.

This file also shows up inside the csc331 container.

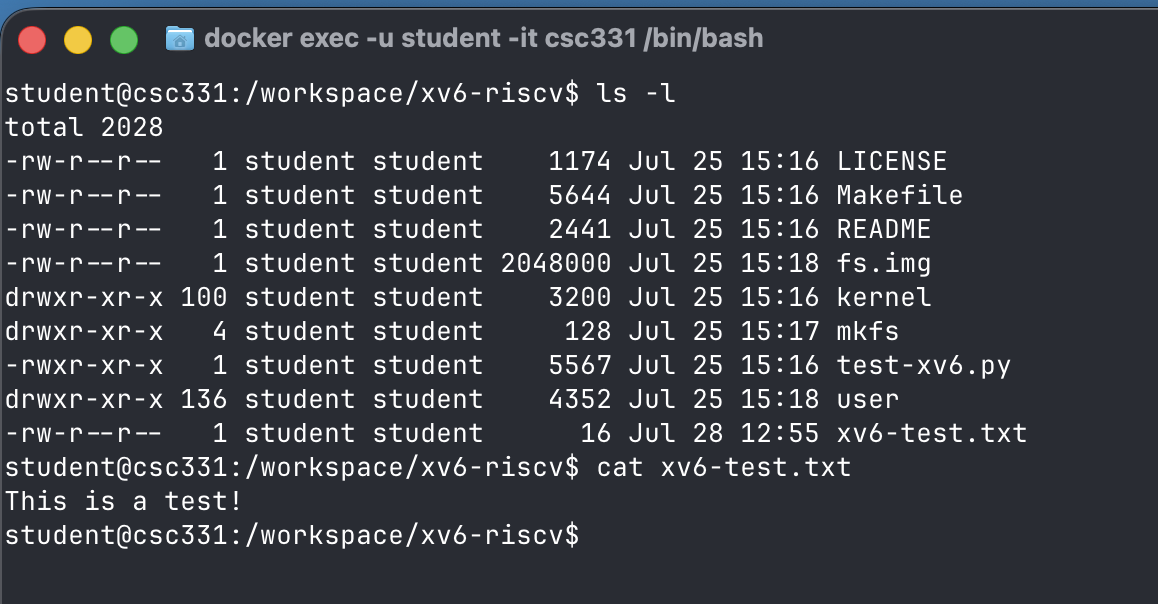

Screenshot: Contents of /workspace inside container

Going forward, you can edit all files in the workspace directory from your host computer and they will be reflected immediately inside the container. This will help with all hands-on activities, labs, and assignments for the class.

How does fork() behave in xv6?

• Using the code browser, create a file called p1.c inside the user directory of xv6-riscv directory with the following content:

1
2
3
4
5
6
7
8
9
10
11
12
13

#include "kernel/types.h"
#include "user/user.h"

int main() {
  int pid = fork();
  if (pid == 0) {
    printf("Child: my pid is %d\n", getpid());
    exit(0);
  } else {
    printf("Parent: my pid is %d, child is %d\n", getpid(), pid);
  }
  exit(0);
}

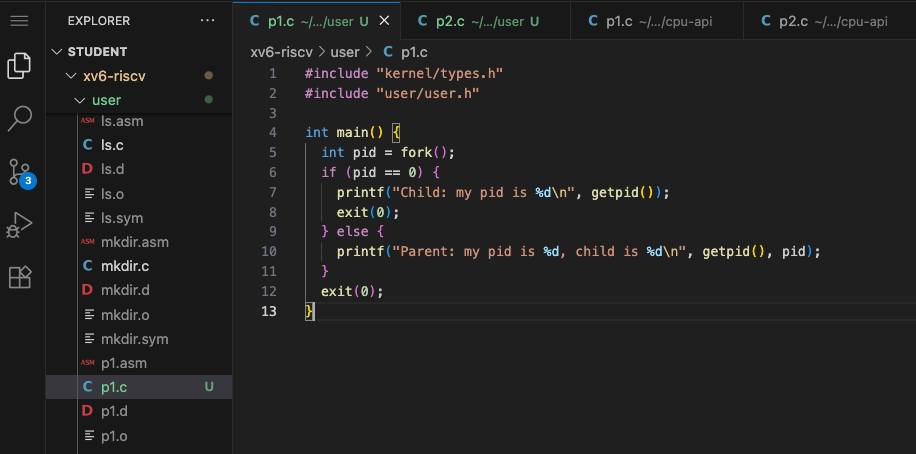

Screenshot: creating p1.c inside xv6-riscv/user

• In Makefile under xv6-riscv, find the section UPROGS= and edit to include the $U/_p1\ line.

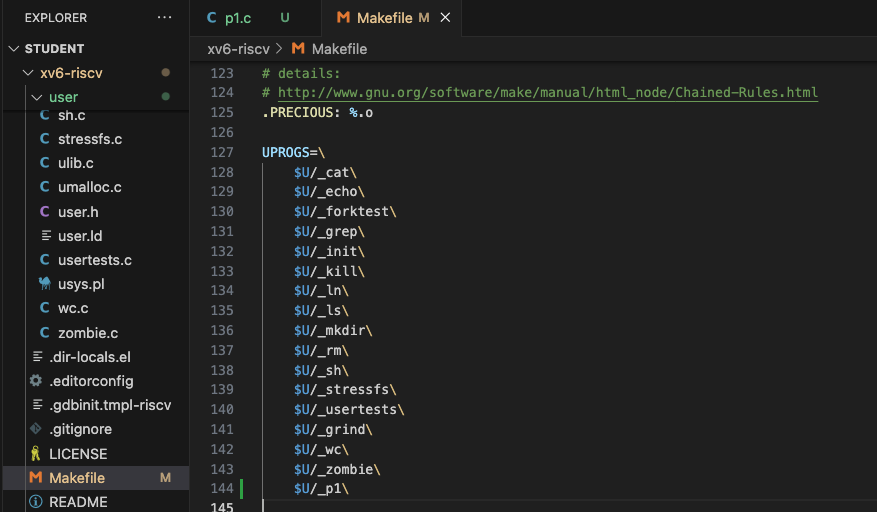

Screenshot: Edit xv6-riscv/Makefile

• Let’s rebuild and relaunch xv6. In a terminal, run the followings

1
2
3
4

cd ~/xv6-riscv
make clean
make
make qemu


• When you run ls, you will see the content of the available commands in xv6, which now includes p1.
• Run p1 several times.

Screenshot: content of ls

What do you expect to see, and what do you have? Why?

What about wait()?

• Using the code browser, create a file called p2.c inside the user directory of xv6-riscv directory with the following content:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

#include "kernel/types.h"
#include "user/user.h"

int main() {
  int pid = fork();
  if (pid == 0) {
    printf("Child: my pid is %d\n", getpid());
    exit(0);
  } else {
    wait(0);
    printf("Parent: my pid is %d, child is %d\n", getpid(), pid);
  }
  exit(0);
}

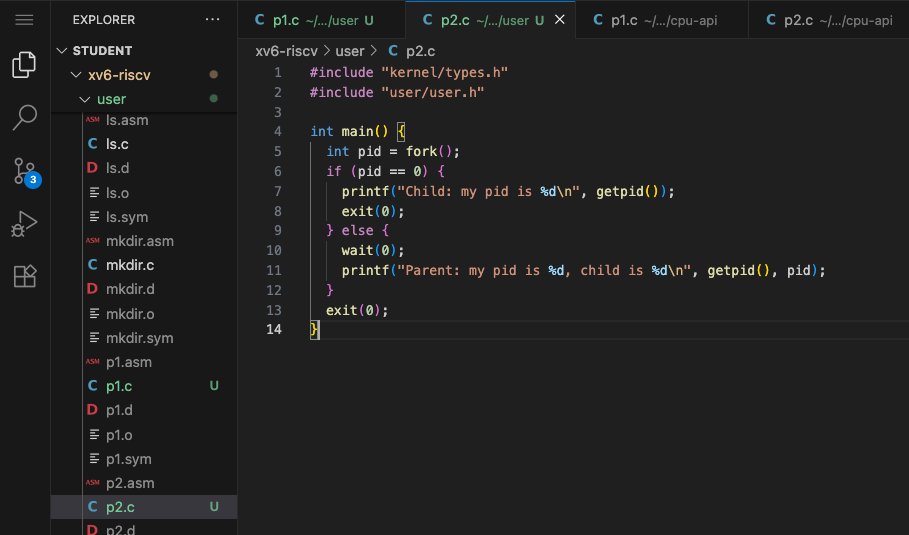

Screenshot: creating p2.c inside xv6-riscv/user

• In Makefile under xv6-riscv, find the section UPROGS= and edit to include the $U/_p2\ line.

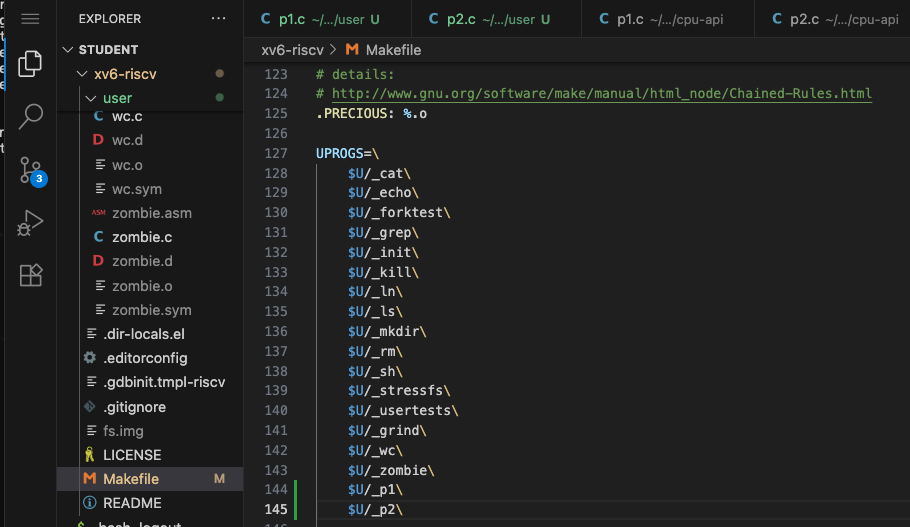

Screenshot: Edit xv6-riscv/Makefile

• Let’s rebuild and relaunch xv6. In a terminal, run the followings

1
2
3
4

cd ~/xv6-riscv
make clean
make
make qemu


• When you run ls, you will see the content of the available commands in xv6, which now includes p1 and p2.
• Run p2 several times. Observe the change in output.

---

The implementation of fork() in xv6

• Source code of fork() can be found in kernel/proc.c.
  • This is the kernel implementation of the fork() system call.
  • Goal: Create a new process that is an (almost) exact copy of the calling process.

InfoDetails

1
2
3

int i, pid;
struct proc *np;
struct proc *p = myproc();


• p = myproc() retrieves the current running process (caller of fork()).
  • myproc() is defined in kernel/proc.c.
  • Uses r_tp() (thread pointer register) to find the process on the current CPU.
• np: placeholder for the new process structure.
• i: loop index.
• pid: the child’s PID to return.

InfoDetails

1
2
3
4

// Allocate process.
if((np = allocproc()) == 0){
    return -1;
}


• allocproc() finds an UNUSED struct proc and sets up a kernel stack and page table.
  • Defined in kernel/proc.c
  • Initializes trapframe, pagetable, and locks the process.
  • Returns -1 on failure, signaling fork error.
  • Expect to find an available proc slot in the process table. Maximum limit is 64 (see kernel/param.h).

InfoDetails

1
2
3
4
5
6
7

// Copy user memory from parent to child.
if(uvmcopy(p->pagetable, np->pagetable, p->sz) < 0){
    freeproc(np);
    release(&np->lock);
    return -1;
}
np->sz = p->sz;


• uvmcopy(...) copies the parent’s entire user address space into the child.
  • uvmcopy() is defined in kernel/vm.c
  • On failure, clean up the new proc and return error.
  • sz is the size of the user memory (stack, heap, etc), defined in struct proc.

InfoDetails

1
2

// copy saved user registers.
*(np->trapframe) = *(p->trapframe);


• The trapframe stores user-space registers saved during a syscall/trap.
  • trapframe is a struct defined in kernel/riscv.h
  • This ensures that when the child resumes in user space, it resumes from the same point.

InfoDetails

1
2

// Cause fork to return 0 in the child.
np->trapframe->a0 = 0;


• In RISC-V calling convention:
  • a0 is the return value register.
  • The parent’s a0 will be set to the child’s PID (done after fork returns).
  • The child’s a0 is set to 0 here, so that when the child process is ready to resume running, it will see that fork() returned 0.
• This mimics how fork() returns in POSIX:
  • In the parent, it returns child’s PID.
  • In the child, it returns 0.

InfoDetails

1
2
3
4

// increment reference counts on open file descriptors.
for(i = 0; i < NOFILE; i++)
    if(p->ofile[i])
    np->ofile[i] = filedup(p->ofile[i]);


• Copies the parent’s open file table to the child.
  • At the very least, you have the entries 0, 1, 2 for input, output, and error.
  • ofile[] is an array of file pointers in struct proc (📍 in kernel/proc.h)
  • filedup() increases reference counts.
    • Defined in kernel/file.c

InfoDetails

1

np->cwd = idup(p->cwd);


• Duplicates the parent’s current working directory inode for the child.
  • idup() increments the inode’s ref count.
  • idup() is defined in kernel/fs.c

InfoDetails

1

safestrcpy(np->name, p->name, sizeof(p->name));


• Copies the process name (for debugging purposes).
  • safestrcpy() is defined in kernel/string.c

InfoDetails

1

pid = np->pid;


• Store the child’s PID for returning to the parent.

InfoDetails

1

release(&np->lock);


• Done modifying the child; release its lock temporarily.

InfoDetails

1
2
3

acquire(&wait_lock);
np->parent = p;
release(&wait_lock);


• Set the parent pointer.
• This is protected by wait_lock so that wait() and exit() (which also touch parent) are synchronized.
  • wait_lock is declared in kernel/proc.c

InfoDetails

1
2
3

acquire(&np->lock);
np->state = RUNNABLE;
release(&np->lock);


• Marks the child process as RUNNABLE, so it can be scheduled.
  • Process states are defined as enum procstate in kernel/proc.h
  • Once marked RUNNABLE, the child will be picked up by the scheduler in a future time slice.

InfoDetails

1

return pid;


• Return the child’s PID to the parent.
• The child will resume execution from the exact point where fork() was called, but will receive return value 0 because of trapframe->a0 = 0.

Summary of key structures and calls

Symbol	Description	File
struct proc	Per-process control block	kernel/proc.h
myproc()	Get current process	kernel/proc.c
allocproc()	Allocate and initialize new proc	kernel/proc.c
uvmcopy()	Copy address space (page tables)	kernel/vm.c
trapframe	Saved user-space CPU registers	kernel/riscv.h
filedup()	Increment file descriptor refcount	kernel/file.c
idup()	Increment inode refcount	kernel/fs.c
safestrcpy()	Safe string copy	kernel/string.c
wait_lock	Lock for parent/child relationships	kernel/proc.c
