Abstraction: Process and Process API

Abstraction: Process and Process API

Program and process

What is a program?
  • A program is a static list of intsructions and data.
  • When a program runs, the OS takes this list and asks the CPU to execute them.
  • If we only have one CPU, how can we run more than one program at a time.
What is a process?
  • A process is a running program.
  • But the program itself is not running …
  • A process is an abstraction provided by the OS to describe the running of a program.
  • What is a process made of?
  • Memory that the process (running program) can address.
  • Memory registers.
  • Program counter.
  • Stack pointer.
  • Frame pointer.
  • I/O devices.

Process API

The operating system provides an API to help managing processes. Minimally, the followings are provided:

Process creation

When a program is run, the OS performs the following steps:

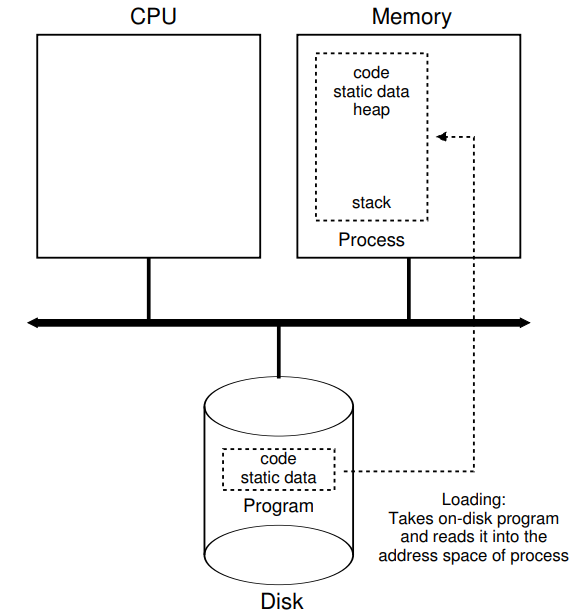

Loading: from program to process

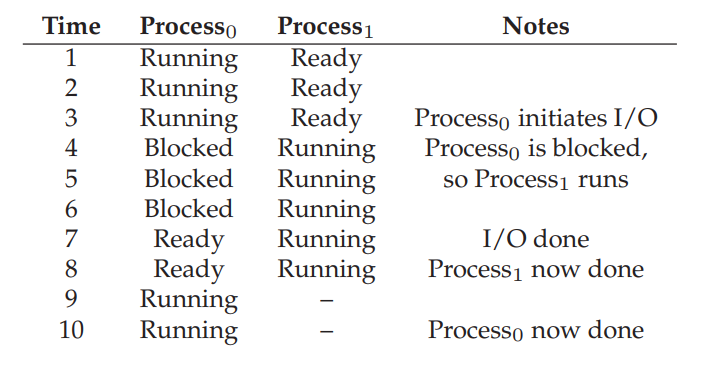

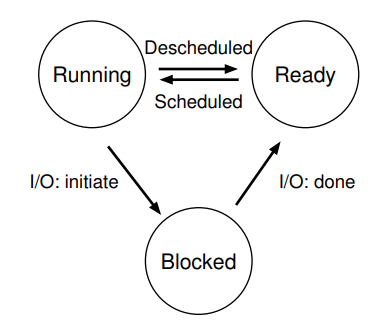

Process: data structure

Process API

Include three function calls:

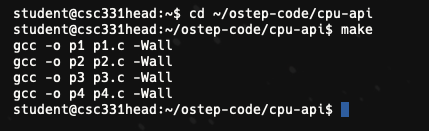

Hands-on: setup
  • Open a shell into your csc331 container (ssh or Code browser)
  • Run the following command to build the example code for process API


1
2


cd ~/ostep-code/cpu-api
make
fork()
  • … is a system call.
  • … is used to create a new process.
  • Documentation for fork()
  • Some important points:
  • fork() creates a new process by duplicating the calling process. The new process is referred to as the child process. The calling proces is referred to as the parent process.
  • The child process and the parent process run in separate memory spaces. At the time of fork() both memory spaces have the same content.
  • The child process is an exact duplicate of the parent process except for the following points:
    • The child has its own unique process ID, and this PID does not match the ID of any existing process group (setpgid(2)) or session.
    • The child’s parent process ID is the same as the parent’s process ID.
    • The child does not inherit outstanding asynchronous I/O operations from its parent (aio_read(3), aio_write(3)), nor does it inherit any asynchronous I/O contexts from its parent (see io_setup(2)).
    • The child inherits copies of the parent’s set of open file descriptors. Each file descriptor in the child refers to the same open file description (see open(2)) as the corresponding file descriptor in the parent. This means that the two file descriptors share open file status flags, file offset, and signal-driven I/O attributes.
Hands-on: fork()
View source code of p1.c on Code browser
  • Line 5-6: No idea why the author sets up the source code that way …
  • Line 8: prints out hello world and the process identifier (pid) of the current process.
  • Line 9: calls fork(), which initiate the creation of a new process. The return of this fuction call is assigned to variable rc.
  • Line 10: If rc is negative, the function call failed and the program exits with return value 1. This line is evaluated within the parent process (since the child process creation failed).
  • Line 14: If rc is non-negative
  • The fork call is successful, and you now have two process.
    • The new process is an almost exact copy of the calling process.
    • The new process does not start at main(), but begins immediately after fork().
  • The value of rc differs in each process.
    • The value of rc in the new process is 0.
    • The value of rc in the parent process is non-zero and actually is the pid of the new process.
  • Line 16 and line 19 confirms the above point by having the child process prints out its own process ID and the parent process prints out the rc value. These two values should be the same.

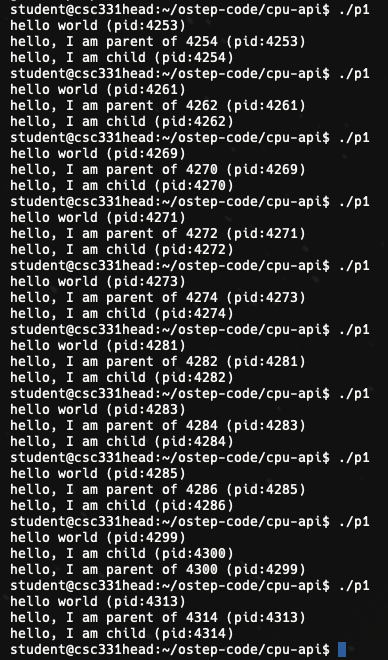

  • Run p1 several times.

~~~bash ./p1

What do you notice?
  • What is one point of inconsistency in this screenshot?
Processes management using wait()
  • … belongs to a family of system calls.
  • … are used to make a process to wait for its child process.
  • Documentation for wait()
  • Some important points:
  • What are we waiting for? state changes.
    • The child process was stopped by a signal.
    • The child process terminated.
    • The child process was resumed by a signal.
  • wait(): suspends execution of the calling thread until one of its child processes terminates.
Hands-on: wait()
View source code of p2.c on Code browser
  • Line 1-4: Pay attention to the libraries included.
  • Line 6-7: No idea why the author sets up the source code that way …
  • Line 9: prints out hello world and the process identifier (pid) of the current process.
  • Line 10: calls fork(), which initiate the creation of a new process. The return of this fuction call is assigned to variable rc.
  • Line 11: If rc is negative, the function call failed and the program exits with return value 1. This line is evaluated within the parent process (since the child process creation failed).
  • Line 15: If rc is equal to 0.
  • The child process will execute the codes inside this conditional block.
  • Line 17: prints out a statement and the child’s pid.
  • Line 18: sleeps for one second.
  • Line 19: This is the parent process (rc is non-negative and not equal to 0)
    • Line 21: calls the wait() function.
    • Line 22: prints out the information of the parent process.

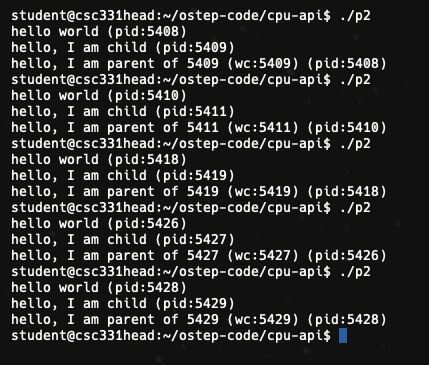

  • Run p2 several times.

~~~bash ./p2

What do you notice?
exec()
  • Documentation for exec()
  • fork() lets you create and run a copy of the original process.
  • exec() lets you run a different process in place of the copy of the original process.
Hands-on: exec()
View source code of p3.c on Code browser
  • Line 1-5: Pay attention to the libraries included.
  • Line 7-8: main
  • Line 10: prints out hello world and the process identifier (pid) of the current process.
  • Line 11: calls fork(), which initiate the creation of a new process. The return of this fuction call is assigned to variable rc.
  • Line 12: If rc is negative, the function call failed and the program exits with return value 1. This line is evaluated within the parent process (since the child process creation failed).
  • Line 16: If rc is equal to 0.
  • The child process will execute the codes inside this conditional block.
  • Line 18: prints out a statement and the child’s pid.
  • Line 19-22: sets up parameters for a shell command (wc in this case).
  • Line 23: exec replaces the current child process with a completely new process to execute the wc command.
  • Line 24: This line’s code is contained in the current child process, but was wiped out when exec replaces the current child process with the new process for wc.
  • Line 25: This is the parent process (rc is non-negative and not equal to 0)
    • Line 27: calls the wait() function.
    • Line 28: prints out the information of the parent process.
  • Run p3.


1


./p3
  • What is not being printed? Why?
Why fork(), wait(), and exec()?
  • The separation of fork() and exec() is essential to the building of a Linux shell.
  • It lets the shell runs code after the call to fork(), but before the call to exec().
  • This facilitates a number of interesting features in the UNIX shell.

The Shell

What is the UNIX shell?

In Unix, the shell is a program that interprets commands and acts as an intermediary between the user and the inner workings of the operating system. Providing a command-line interface (that is, the shell prompt or command prompt), the shell is analogous to DOS and serves a purpose similar to graphical interfaces like Windows, Mac, and the X Window System.

Hands-on: redirection
  • Run the following command


1
2
3


wc p3.c
wc p3.c > newfile.txt
cat newfile.txt
  • The shell …
    • finds out where wc is in the file system.
    • prepares p3 as in input to wc.
    • calls fork() to create a new child process to run the command.
    • recognizes that > represents a redirection, thus closes the file descriptor to standard output and replaces it with a file descriptor to newfile.txt.
    • calls one of exec() family to run wc p3.c.
    • output of wc p3.c are now send to newfile.txt.
    • calls wait() to wait for the child process to finish before giving user the prompt again.
Hands-on: redirection and file descriptors
  • Run the following commands


1
2
3
4


./p4
ls
cat p4.output
cat -n p4.c
  • wc p4 should have printed out to terminal.
  • close(STDOUT_FILENO) closes the file descriptor that writes to the terminal (hence free up that particular file descriptor ID).
  • open(“./p4.output”, …) creates a file descriptor for the p4.output file, but since the file descriptor ID for the terminal is now free, this file descriptor is assigned to p4.output.
  • As wc p4 is executed and attempts to write to terminal, it actually writes to p4.output instead.
  • This is the basis for the concepts of redirection and pipelining in Linux.

Other system calls …
