Introduction to Operating Systems

Introduction to Operating Systems

---

What happens when a computer program run?

• The process
  • fetches an instruction from memory,
  • decodes the instruction, and
  • executes the instruction.
• This is the fundamental Von Neumann model of computing.

---

Why do we need OS?

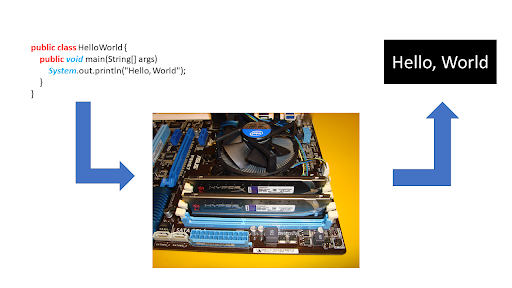

• What a programmer see is all code, lines of codes.
• Underneath, there is a complex ecosystem of hardware components.
• How do we hide this complexity away from the programmers?

---

How do the OS help (1)?

This is possible due to virtualization.

• Virtualization: presents general, powerful, and easy-to-use virtual forms of physical computing resources to users (programmers).
• The linkage between virtual interfaces and physical components are enabled through the OS’ system calls (or standard library).

---

How do the OS help (2)?

• Each physical component in a computing system is considered a resource.
• The OS manages these resources so that multiple programs can access these resources (through the corresponding virtual interface) at the same time.

• This is called concurrency.

Hands-on: Getting started

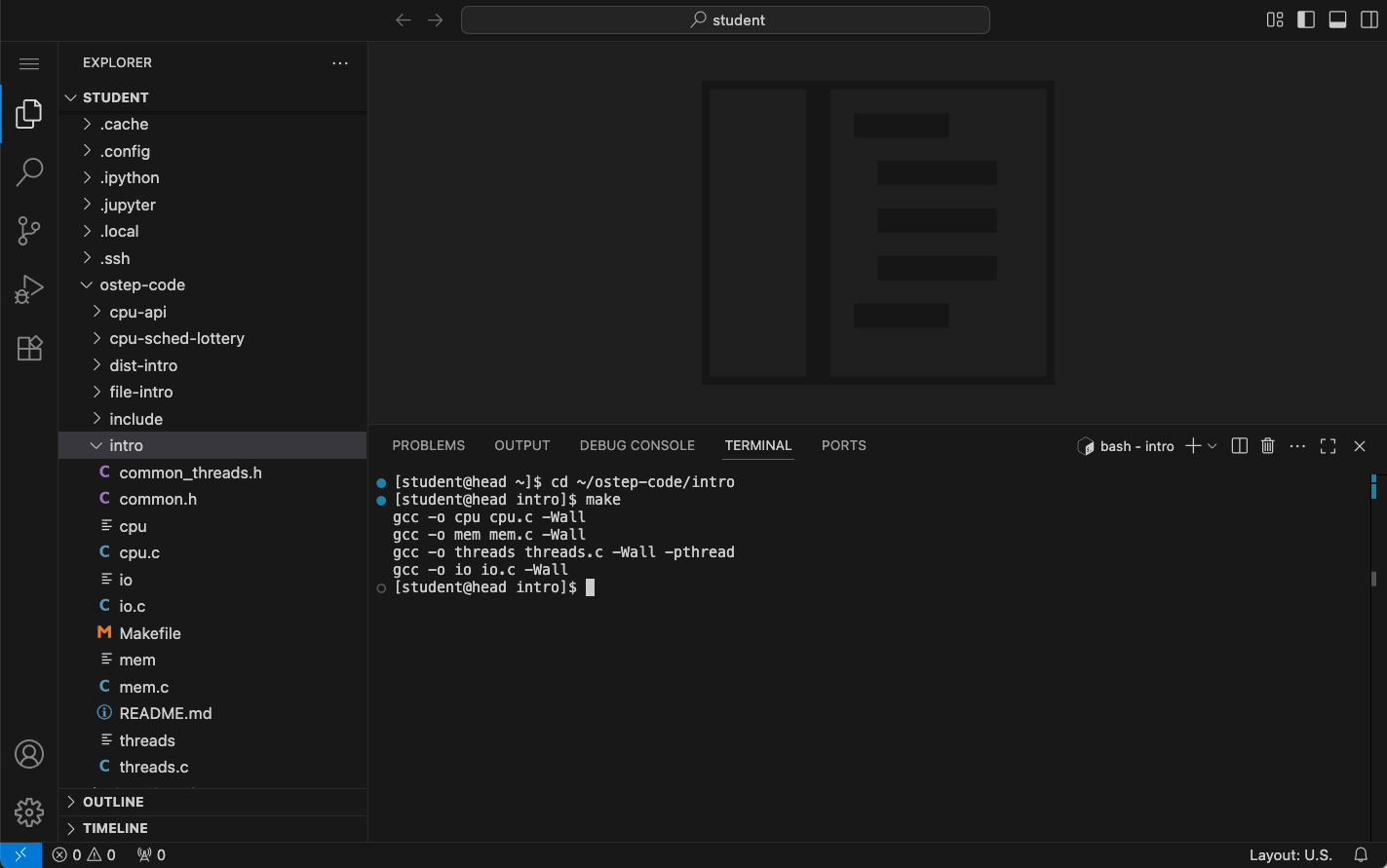

• Launch your csc331 container.
• Visit the VSCode server http://localhost:18088/ in a web browser, open a terminal.

1
2

cd ~/ostep-code/intro
make


---

Hands-on: CPU Virtualization

• Use Code server browser to view the source code of cpu.c.

CPU limit

In docker-compose.yml, the amount of cpus made available to the containers are only 2:

1
2
3
4

deploy:
  resources:
    limits:
      cpus: 2.0

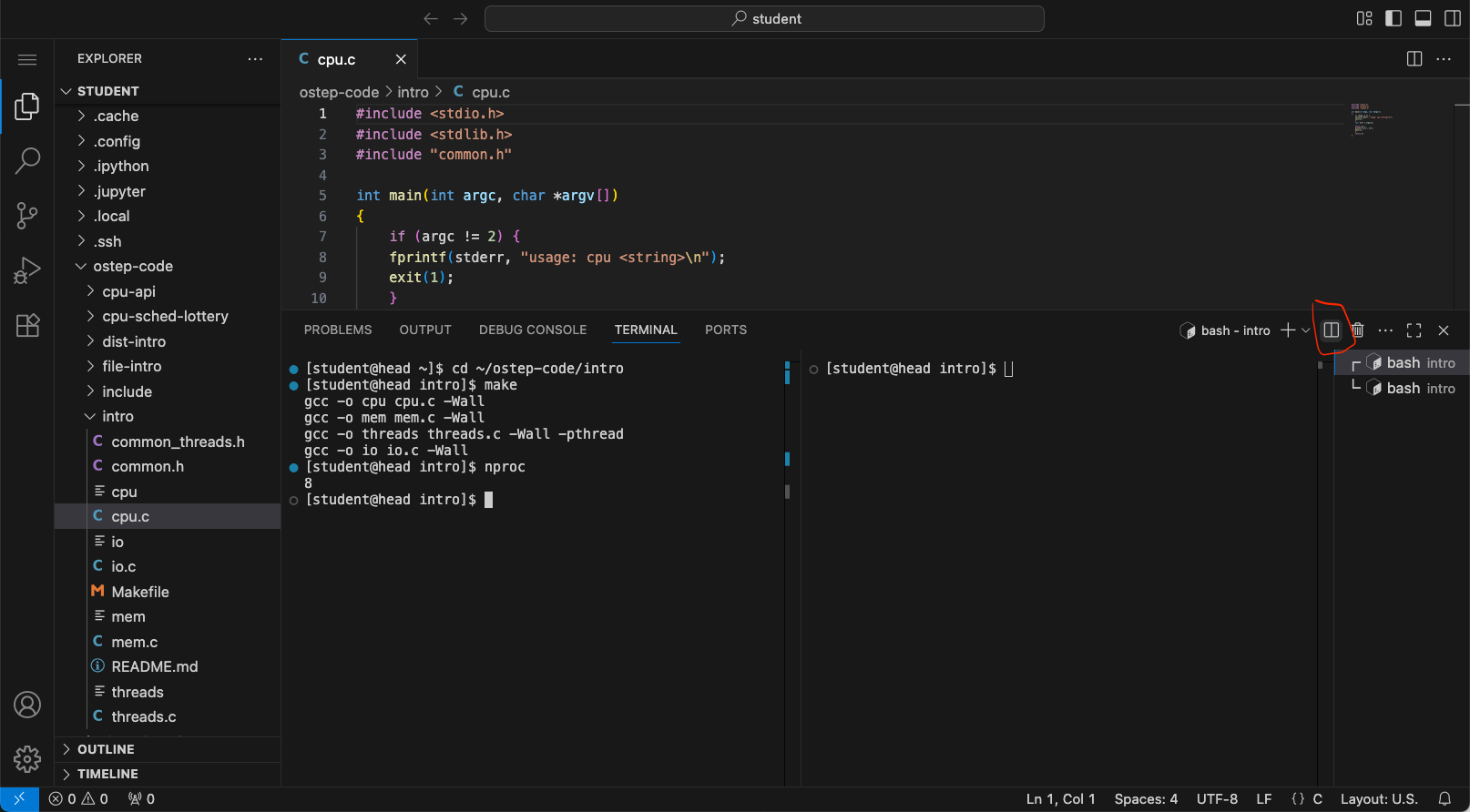

• From the in-browser terminal, setup the dual terminal using the Split Terminal icon (top right corner of the terminal panel).

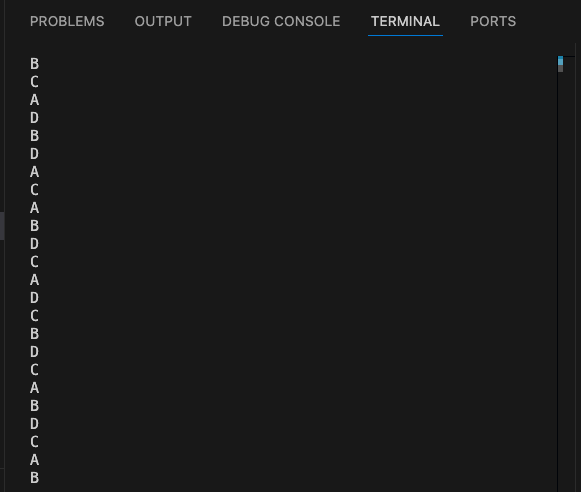

• In the left terminal pane, run the following command.

1

./cpu A & ./cpu B & ./cpu C &./cpu D

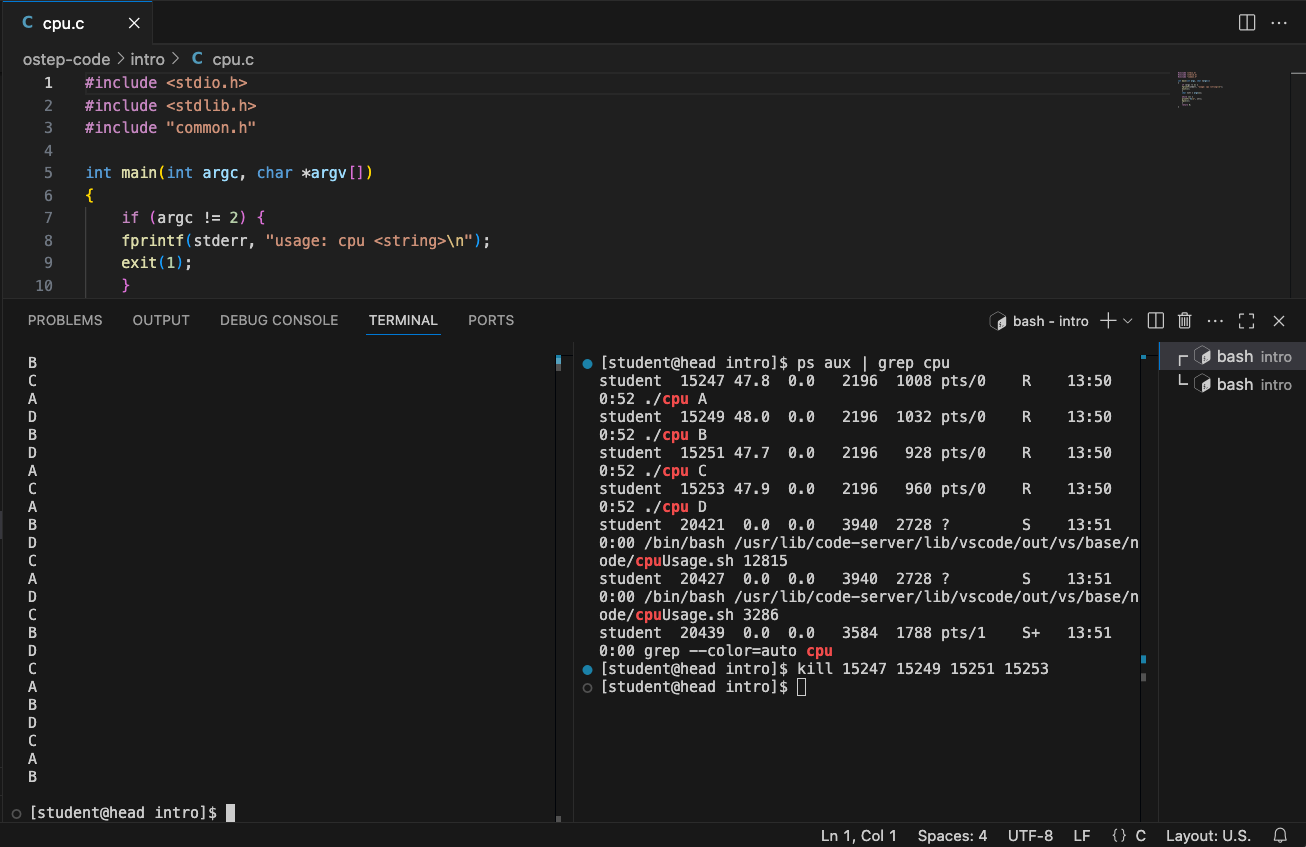

• To stop the running processes on the left pane, move to the right pane and running the following commands:

1

ps aux | grep cpu


• Identify the process ID (the second columns), then use the kill to kill all the process IDs (see figure below).

The illusion of infinite CPU resources

• A limited number of physical CPUs can still be represented as infinite number of CPUs through virtualization.
• The OS will manage the scheduling and allocation of the actual run on physical resources.

---

Hands-on: Memory Virtualization

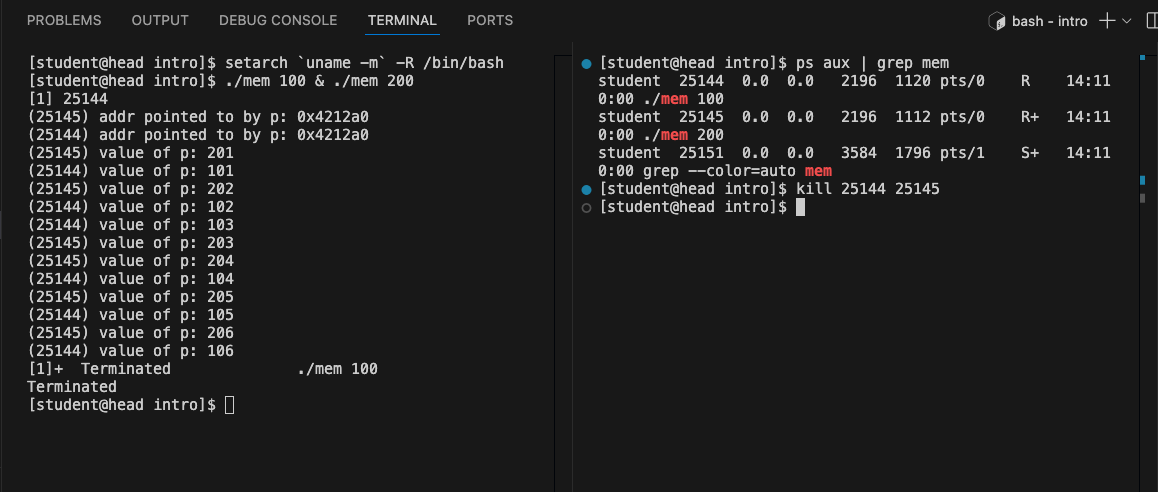

• In the left terminal pane, run the following commands:
  • -R will disable randomization of virtual memory address space for shells.

1
2
3

clear
sudo setarch `uname -m` -R /bin/bash
./mem 100 &./mem 200


• In the right pane, use the same procedure as above to kill the two running programs after a few iterations.

Do programs running concurrently occupy the same memory locations (addresses)?

No

The illusion of dedicated memory resources

• Many running program share the physical memory space.
• Each runnning program is presented with the illusion that they have access to their own private memory. This is called virtual address space, which is mapped to physical memory space by the OS.
• Making memory references within one running program (within one’s own virtual address space) does not affect the private virtual address space of others.
• Without the setarch command, the location of variable p will be randomize within the virtual address space of a process. This is a security mechanism to prevent others from guessing and applying direct manipulation techniques to the physical memory location that acually contains p.

---

Concurrency

• As shown in CPU Virtualization and Memory Virtualization examples, the OS wants to manage many running programs at the same time.
• This is called concurrency, and it leads to a number of interesting challenges in designing and implementing various management mechanisms within the OS.

• This can be observed through the following hands-on exercise.

• Type exit to close one of the two terminal panes.

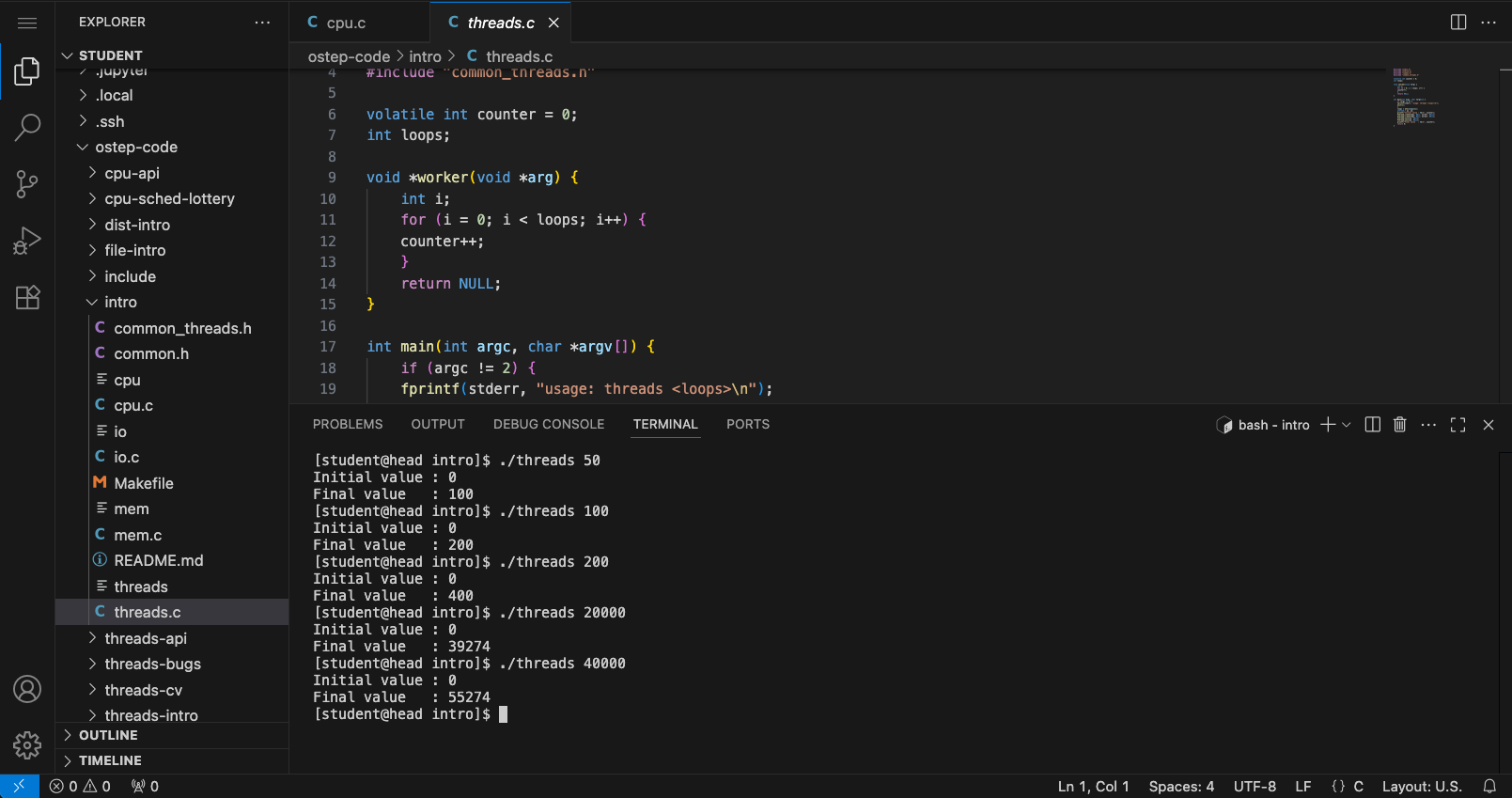

• Run the following commands in the remaining terminal:

1
2
3

./threads 50
./threads 100
./threads 200


• threads.c creates two functions running at the same time, within the same memory space of the main program.
• A single global variable named counter is being increased by both functions, thus the final value of counter should be twice that of the command line argument.
• Now run with bigger values.

1
2
3
4

./threads 20000
./threads 30000
./threads 30000
./threads 30000


Problem with concurrency

• Naive concurrency gives you wrong results.
• Naive concurrency gives you wrong and inconsistent results.

Why does this happen?

• At machine level, incrementing counter involves three steps:
  • Load value of counter from memory into register,
  • Increment this value in the register, and
  • Write the value of counter back to memory.
• What should have happened:
  • One thread increments counter (all three steps), then the other thread increments counter, now with the updated value.
• What really happened:
  • One thread increments counter.
  • While this thread has not done with all three steps, the other thread steps in and attempts to increment the stale content of counter in memory.

---

Persistency

• When the programs stop, everything in memory goes away: counter, p, str.
• Physical components to store information persistently are needed.
• Input/output or I/O devices:
  • Hard drives
  • Solid-state drives
• Software managing these storage devices is called the file system.
• Examples of system calls/standard libraries supporting the file system:
  • open()
  • write()
  • close()

---

A brief history of operating system research and development

A good paper to read: Hanser, Per Brinch. “The evolution of oeprating systems” 2001

• Early operating systems: just libraries
  • Include only library for commonly used functions.
  • One program runs at a time.
  • Manual loading of programs by human operator.
• Beyond libraries: protection
  • System calls
  • Hardware privilege level
  • User mode/kernel mode
  • trap: the initiation of a system call to raise privilege from user mode to kernel mode.
• The era of multiprogramming
  • Minicomputer
  • multiprogramming: multiple programs being run with the OS switching among them.
  • Memory protection
  • Concurrency
• The modern era
  • Personal computer
  • DOS: the Disk Operating System
  • Mac OS
  • Multics (MIT) -> UNIX (Bell Labs) -> BSD (Berkeley) -> Sun OS/Linux
