Environmen Variables

Environmen Variables

Technical overview

• Environment variables (EV) are a set of dynamic name-value pairs stored inside a process.
  • Can affect a process’s behaviors.
  • Example: The PATH environment varible provides a list of diectories where executable programs are stored. When a shell executes a program, it uses this EV to find where the program is if the full path is not provided.

1
2
3
4
5
6
7
8
9
10

echo "Hello World"
mkdir test
cp $(which echo) test/myecho
myecho "Hello World"
echo $PATH
export PATH=$PATH:/home/seed/test
echo $PATH
myecho "Hello World"



• Two approaches for C programs
  • A third argument can be passed to the main function. This argument will contain the environment variables.
  • A global variable that points to the environment array called environ.

:::::{tab-set} ::::{tab-item} envp

1
2
3
4

gcc -w -o my_envp /local/repository/setup_scripts/software/env/my_envp.c
./my_envp



:::: ::::{tab-item} environ

1
2
3
4

gcc -w -o my_environ /local/repository/setup_scripts/software/env/my_environ.c
./my_environ



:::: :::::

• A process is created through two ways
  • Via fork() system call
  • Via execve() system call
• Process created via fork():
  • A child process is a duplicate of the parent’s memory
  • All EV are inherited
• Process created via execve():
  • The copy of parent’s memory for the child is overwritten
  • EV need to be specifically passed.

1
2
3
4
5
6
7

gcc -w -o passenv /local/repository/setup_scripts/software/env/passenv.c
./passenv
./passenv 1
./passenv 2
./passenv 3

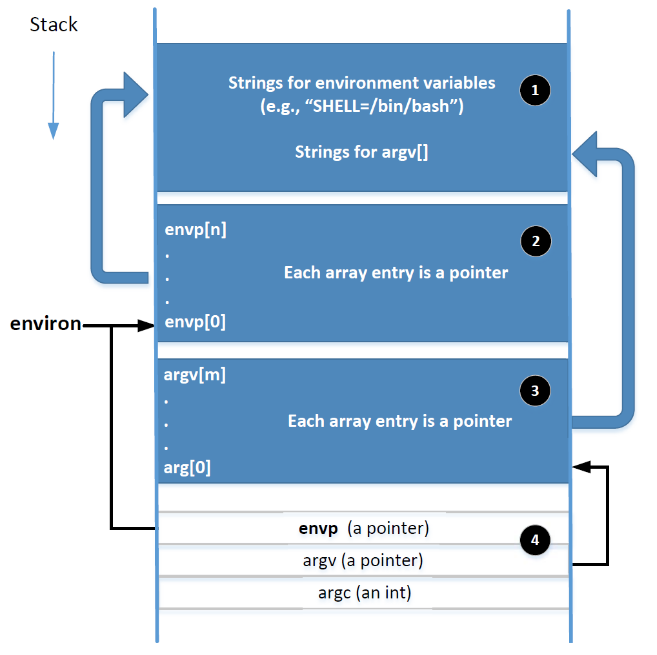

• Recompile my_envp.c with GDB flag and check the location of the environment variables

1
2
3
4
5
6
7
8
9
10

gcc -g -o my_envp_gdb my_envp.c
gdb my_envp_gdb
gdb-peda$ b main
gdb-peda$ run
gdb-peda$ n
gdb-peda$ p argv
gdb-peda$ p envp
gdb-peda$ x/s *((char **)envp + 1)



• Are not the same thing
• Different but related concepts
• Shell is a command line interface for users to interact with an operating system (Linux)
  • Shell variables are internal variables maintained by a shell program
  • User can create, assign, and delete shell variables
• Environment variables can become shell variables and vice versa
  • The shell defines a shell variable for each environment variable of the process (the shell process)
  • Same name, same value
  • The shell can easily get the value of the environment variables by referring to its own shell variables

1
2
3
4
5
6
7

strings /proc/$$/environ | grep LOGNAME
echo $LOGNAME
LOGNAME=ram
echo $LOGNAME
strings /proc/$$/environ | grep LOGNAME



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

## Attack surface caused by environment variables







<figure

>
  <picture>
    <!-- Auto scaling with imagemagick -->
    <!--
      See https://www.debugbear.com/blog/responsive-images#w-descriptors-and-the-sizes-attribute and
      https://developer.mozilla.org/en-US/docs/Learn/HTML/Multimedia_and_embedding/Responsive_images for info on defining 'sizes' for responsive images
    -->


        <source
          class="responsive-img-srcset"

            srcset="/assets/img/courses/csc302/env/attack_surface-480.webp 480w,/assets/img/courses/csc302/env/attack_surface-800.webp 800w,/assets/img/courses/csc302/env/attack_surface-1400.webp 1400w,"
            type="image/webp"


            sizes="95vw"

        >


    <img
      src="/assets/img/courses/csc302/env/attack_surface.png"


        width="50%"


        height="auto"



        alt="Attack surface caused by environment variables"



        data-zoomable


        loading="lazy"

      onerror="this.onerror=null; $('.responsive-img-srcset').remove();"
    >
  </picture>


</figure>




- Linking finds the external library code referenced in the
program and links the code to the program (think import in Java).
- Linking can be done when a program is compiled
  - Static linking
  - Requires a lot of memory
  - Compiled external functions are static and cannot be updated/patched

```bash

gcc -o my_envp my_envp.c
gcc -static -o my_envp_static my_envp.c
ls -lh my_envp*



• Linking can be done on the fly
  • External functions are linked at run time, called shared libraries.
  • .so on Unix system, .dll on Windows system
  • ldd can be used to see what shared libraries a program depends on.

1
2
3
4

ldd my_envp_static
ldd my_envp



• Part of what is being executed is undecided during compilation time, when the developer has full control.
• Instead, the binaries rely on linked libraries, which are determined during runtime, under users’ control.
• Examples: LD_PRELOAD and LD_LIBRARY_PATH
  • During the linking stage, the Linux system search for library functions from default locations.
  • These locations are determined via LD_PRELOAD and LD_LIBRARY_PATH

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

echo $LD_PRELOAD
echo $LD_LIBRARY_PATH
cp /local/repository/setup_scripts/software/env/linking.c .
gcc -o linking linking.c
./linking
cp /local/repository/setup_scripts/software/env/sleep.c .
gcc -c sleep.c
gcc -shared -o libmylib.so.1.0.1 sleep.o
export LD_PRELOAD=./libmylib.so.1.0.1
echo $LD_PRELOAD
./linking
export LD_PRELOAD=""
./linking



• Linux system libraries, ld.so or ld-linux.so, implement a countermeasure, which ignores LD_PRELOAD and LD_LIBRARY_PATH when there is a difference in a process’ real and effective user IDs or group IDs.

1
2
3
4
5
6
7
8
9
10
11
12

cp $(which env) myenv
export LD_PRELOAD=./libmylib.so.1.0.1
export LD_LIBRARY_PATH=.
export LD_MYOWN="my own EV"
env
env | grep LD_
myenv | grep LD_
sudo chown root myenv
sudo chmod 4755 myenv
myenv | grep LD_



• PATH environment variable

1
2
3

echo $PATH



• Many system commands are placed in /usr/bin or /bin, which are mapped in PATH

1
2
3
4
5
6
7
8
9
10
11
12
13

cp /local/repository/setup_scripts/software/env/vul.c .
gcc -o vul vul.c
./vul
cp /local/repository/setup_scripts/software/env/cal.c .
gcc -o cal cal.c
sudo chown root vul
sudo chmod 4755 vul
export PATH=.:$PATH
vul
$ id
$ exit



• Open a new terminator shell to reset PATH to default.
• What happens when you switch the order of the new PATH export for the previous exercise?
• Why?

1
2
3
4
5
6
7
8
9
10
11
12
13

cp /local/repository/setup_scripts/software/env/vul.c .
gcc -o vul vul.c
./vul
cp /local/repository/setup_scripts/software/env/cal.c .
gcc -o cal cal.c
sudo chown root vul
sudo chmod 4755 vul
export PATH=$PATH:.
vul
$ id
$ exit



• Happens when application uses environment variables, which can be manipulated.

1
2
3
4
5
6
7
8
9
10

cp /local/repository/setup_scripts/software/env/pwd.c .
echo $PWD
gcc -o pwd pwd.c
./pwd
cd /tmp
~/pwd
PWD=randomdir
~/pwd



```
