Introduction to Operating Systems

Introduction to Operating Systems

The process

• fetches an instruction from memory,
• decodes the instruction, and
• executes the instruction. This is the fundamental Von Neumann model of computing.

• When the shell loaded and ran the HelloWorld program, and when the HelloWorld program prints its message, neither program accessed the keyboard, display, disk, or main memory directly.
• Rather, they relied on the services provided by the operating system.

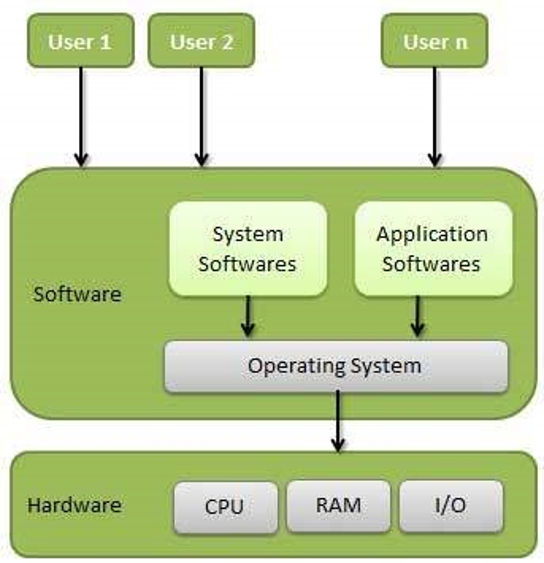

• We can think of the operating system as a layer of software interposed between the application program and the hardware.

• An operating system is software that manages all the hardware resources associated with your electronic devices.
• It manages the communication between your software and hardware.
• Without the operating system (OS), the software wouldn’t function.
  • Examples: Windows 8 and Mac OS X, Linux
• Daemons: These are background services (printing, sound, scheduling, etc) that either start up during boot, or after you log into the desktop.
• The Shell: is a user interface that allows you to control the computer. OS shells use either command-line interface (CLI) or graphical user interface (GUI). It is named a shell because it is a layer around the OS kernel.
• Graphical Server: This is the sub-system that displays the graphics on your monitor.

• Desktop Environment: This is the piece of the puzzle that the users actually interact with. Each desktop environment includes built-in applications (such as file managers, configuration tools, web browsers, games, etc)

• The operating system has two primary purposes:
  • To protect the hardware from misuse by runaway applications and
  • To provide applications with simple and uniform mechanisms for manipulating complicated and often widely different low-level hardware devices.
• The operating system achieves both goals via the fundamental abstractions
  • Processes
  • Virtual memory
  • Files
• A process is the operating system’s abstraction for a running program.
• Multiple processes can run concurrently on the same system, and each process appears to have exclusive use of the hardware.
  • Many running program share the physical memory space.
  • Each runnning program is presented with the illusion that they have access to their own private memory. This is called virtual address space, which is mapped to physical memory space by the OS.
  • Making memory references within one running program (within one’s own virtual address space) does not affect the private virtual address space of others.

• By concurrently, we mean that the instructions of one process are interleaved with the instructions of another process.

• The transition from one process to another is managed by the operating system Kernel.
• The kernel is the portion of the operating system code that is always resident in memory.
• When an application program requires some action by the operating system, such as to read or write a file, it requires some action by the operating system, such as to read or write a file, it executes a special system call instruction, transferring control to the kernel.
• The kernel then performs the requested operation and returns back to the application program.

• Note that the kernel is not a separate process. Instead, it is a collection of code and data structures that the system uses to manage all the processes.

• CPU receives interrupt
• Interrupt stores in program counter
• Interrupt invokes handler
• Handler saves rest of process state
• Handler does its business
• Handler invokes the scheduler
• Scheduler selects a process to run
• Scheduler restores state for that process

• Scheduler jumps execution to that process

• Rule 1: If Priority(A) > Priority(B), A runs (B doesn’t)
• Rule 2: If Priority(A) = Priority(B), RR(A, B)
• Rule 3: When a job enter the system, it is placed at the highest priority (the top most queue).
• Rule 4: Once a job uses up its time allotment at a given level (regardless of how many time it has given up the CPU), its priority is reduced.
• Rule 5: After some time period S, move all the jobs in the system to the topmost queue.
• MLFQ observes the execution of a job and gradually learns what type of job it is, and prioritize it accordingly.
  • Excellent performance for interactive I/O bound jobs: good response time.
  • Fair for long-running CPU-bound jobs: good turnaround time without starvation.
  • Used by many systems, including FreeBSD, MacOS X, Solaris, Linux 2.6, and Windows NT
  • Invented by Fernando Jose Corbato (1926 - )
    • Ph.D. in Physics (CalTech)
    • MIT Professor
    • One of the original developers of Multics (Predecessor of UNIX)
    • First use of password to secure file access on computers.
    • Recipient of the 1990 Turing Award (The Nobel prize in computing)

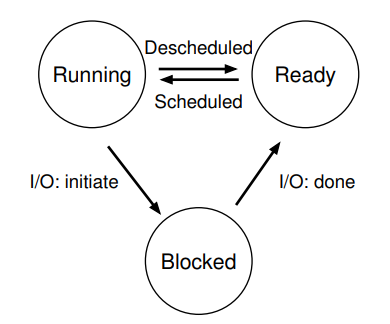

• A process can be in one of the three states.
  • Running: the CPU is executing a process’ instructions.
  • Ready: the process is ready to run, but the OS is not running the process at the moment.
  • Blocked: the process has to perform some operation (e.g., I/O request to disk) that makes it not ready to run.

• When a process moves from ready to running, this means that it has been scheduled by the OS.
• When a process is moved from running to ready, this means that it has been descheduled by the OS.

• When an I/O request (within the process) is initiated, the running process become blocked by the OS until the I/O request is completed. Upon receiving the I/O completion signal, the OS moves the process’ state from blocked to ready, to wait to be scheduled by the OS.

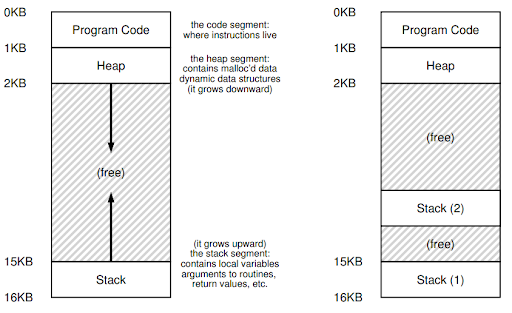

• Provide users (programmers) with an easy-to-use abstarction of physical memory.
• The running program’s view of memory in the system.

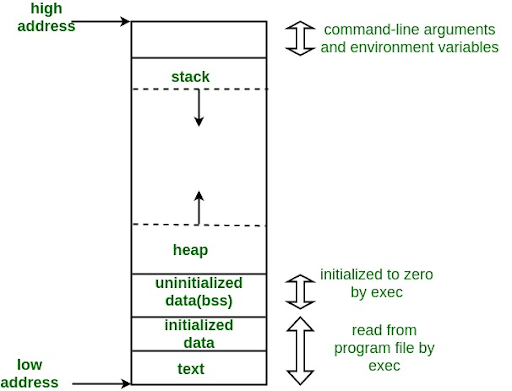

• Contains all memory states of the running program:
  • Stack to keep track of where it is in the function call chain (stack frames), allocate local variables, and pass parameters and return values to and from routines.
  • Heap is used for dynamically allocated, user-managed memory (i.g., malloc()).
  • BSS (block started by symbols) contains all global variables and static variables that are initialized to zero or do not have explicit initialization in source code.
  • Data contains the global variables and static variables that are initialized by the programmer.
  • Code (binary) of the program.
• Each process can only access its own memory, while OS can access all the memory of processes.
• This is enforced by the CPU running in two different privilege levels
  • When OS code runs, the CPU is put into a privilege level that allows access to the I/O devices and any address of memory.
  • When a process runs, the CPU is put into a level that triggers a hardware exception when the code attempts to directly access the I/O devices or addresses that are not allowed for that process.

:::::{tab-set} ::::{tab-item} low-to-high view

:::: ::::{tab-item} high-to-low view

:::: :::::

• System calls are the means that processes initiate request to the OS.
• These system call provides functions for things like reading/writing files or sending/receiving data over the network
• To invoke system calls, a process must use specific CPU instructions, a system call number. The processor look in the system call table for the address for the system call corresponding to the number and jump execution to that address.
• User space definition:
  • libc’s definition for write()
• Kernel definition:
  • Linux definition for write()

• The user space definition will eventually call the kernel definition.

• File: a linear array of bytes, each of which you can read and write.
• A file has some high-level, user-readable name, e.g., interceptor.c.
  • One file may have multiple user-readable names, as we will see.
• Each file has a low-level name called the inode number.
  • This is the real identifier of a file.
• File system does NOT care about what type of file it is (C code, picture or video, it just makes sure to store all bytes in a file persistently.

• A normal process is a running program with a single point of execution, i.e, a single PC (program counter).
• A multi-threaded program has multiple points of execution, i.e., multiple PCs.
• Each thread is very much like a separate process, except for one difference:
  • All threads of the same process share the same address space and thus can access the same data.

• Each thread has its own PC.
• Each thread has its own private set of registers for computation.
• Context switching is still needed.
• Threads use Thread Control Blocks (TCP) to store their execution states.
• Context switching is similar to that of processes, except for:
• Thread context-switching keep the same address space (i.e., no need to switch out the page table).

```
