Code optimization

Code optimization

:class: tip

This lecture will cover contents from Chapter 12 of the book.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38


## Debugging


- A systematic approach to debugging.
  - The programmer creates a defect
  - The defect causes an infection
  - The infection propagates
  - The infection causes a failure
- Not every defect causes a failure!
- Testing can only show the presence of errors - not their absence.
  - In other words, if you pass every tests, it means that your program has yet to fail.
  It does not mean that your program is correct.



- Stating the problem
  - Describe the problem aloud or in writing
  - A.k.a. `Rubber duck` or `teddy bear` method
- Often a comprehensive problem description is sufficient to solve the failure



:::::{tab-set}
::::{tab-item} Bad Fib

- A bad implementation of Fibonacci sequence

<script src="https://gist.github.com/linhbngo/d1e9336a82632c528ea797210ed0f553.js?file=bad_fib.c"></script>

- Specification defined the first Fibonacci number as 1.
- Compile and run the following `bad_fib.c` program:
- `fib(1)` returns an incorrect result. Why?

```bash
$ gcc -o bad_fib bad_fib.c
$ ./bad_fib


:::: ::::{tab-item} Scientific debugging

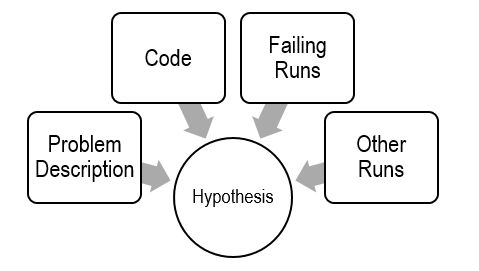

• Before debugging, you need to construct a hypothesis as to the defect.
  • Propose a possible defect and why it explains the failure conditions
• Ockham’s Razor: given several hypotheses, pick the simplest/closest to current work

• Make predictions based on your hypothesis
  • What do you expect to happen under new conditions
  • What data could confirm or refute your hypothesis
• How can I collect that data?
  • What experiments?
  • What collection mechanism?
• Does the data refute the hypothesis?
  • Refine the hypothesis based on the new inputs :::: ::::{tab-item} SD: Bad Fib!
• Constructing a hypothesis:
  • while (n 1): did we mess up the loop in fib?
  • int f: did we forget to initialize f?
• Propose a new condition or conditions
  • What will logically happen if your hypothesis is correct?
  • What data can be
  • fib(1) failed // Hypothesis
    • Loop check is incorrect: Change to n >= 1 and run again.
    • f is uninitialized: Change to int f = 1;
• Experiment
  • Only change one condition at a time.
  • fib(1) failed // Hypothesis
    • Change to n >= 1: ???
    • Change to int f = 1: Works. Sometimes a prediction can be a fix. :::: ::::{tab-item} Brute force
• Strict compilation flags: -Wall, -Werror.
• Include optimization flags (capital letter o): -O3 or -O0.

1

$ gcc -Wall -Werror -O3 -o bad_fib bad_fib.c


• Use valgrind, memory analyzer.

1
2

$ gcc -Wall -Werror -o bad_fib bad_fib.c
$ valgrind ./bad_fib


:::: ::::{tab-item} Observation

• What is the observed result?
  • Factual observation, such as Calling fib(1) will return 1.
  • The conclusion will interpret the observation(s)
• Don’t interfere.
  • Sometimes printf() can interfere
  • Like quantum physics, sometimes observations are part of the experiment
• Proceed systematically.
  • Update the conditions incrementally so each observation relates to a specific change

• Do NOT ever proceed past first bug. :::: :::::

• Common failures and insights
  • Why did the code fail?
  • What are my common defects?
• Assertions and invariants
  • Add checks for expected behavior
  • Extend checks to detect the fixed failure
• Testing
  • Every successful set of conditions is added to the test suite
• Not every problem needs scientific debugging
• Set a time limit: (for example)
  • 0 minutes – -Wall, valgrind
  • 1 – 10 minutes – Informal Debugging
  • 10 – 60 minutes – Scientific Debugging
  • 60 minutes – Take a break / Ask for help ```

Performance realities

• There’s more to performance than asymptotic complexity.
• Constant factors matter too!
  • Easily see 10:1 performance range depending on how code is written
  • Must optimize at multiple levels: algorithm, data representations, procedures, and loops
• Must understand system to optimize performance
  • How programs are compiled and executed
  • How modern processors + memory systems operate
  • How to measure program performance and identify bottlenecks
  • How to improve performance without destroying code modularity and generality.
• Create the following two files called matrix_mult.c and block_matrix_mult.c

:::::{tab-set} ::::{tab-item} matrix_mult.c

:::: ::::{tab-item} block_matrix_mult.c

:::: :::::

• The difference between matrix_mult.c and block_matrix_mult.clays with how the loops are broken up to align with cache size.

:::::{tab-set} ::::{tab-item} Cache blocks

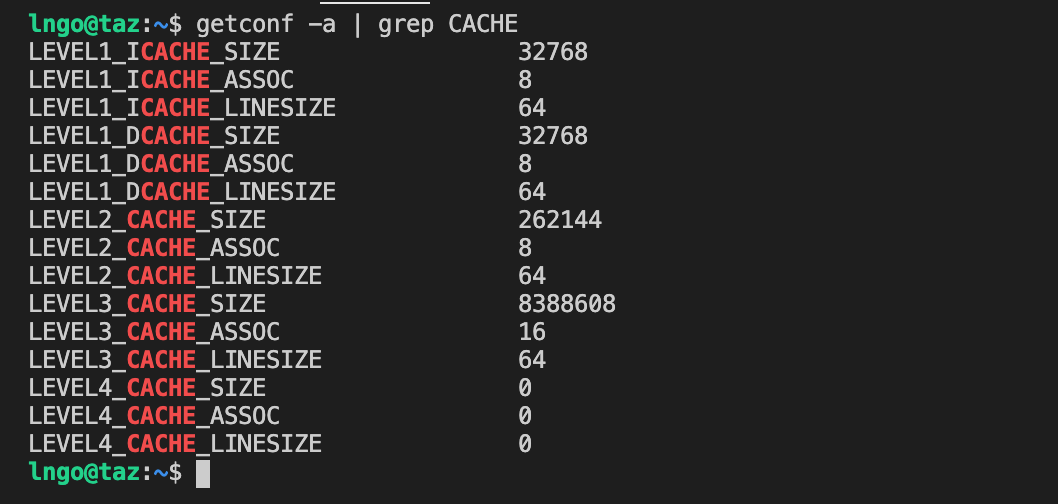

• Check the size of cache blocks

1

$ getconf -a | grep CACHE


• We focus on cache blocks for optimization:

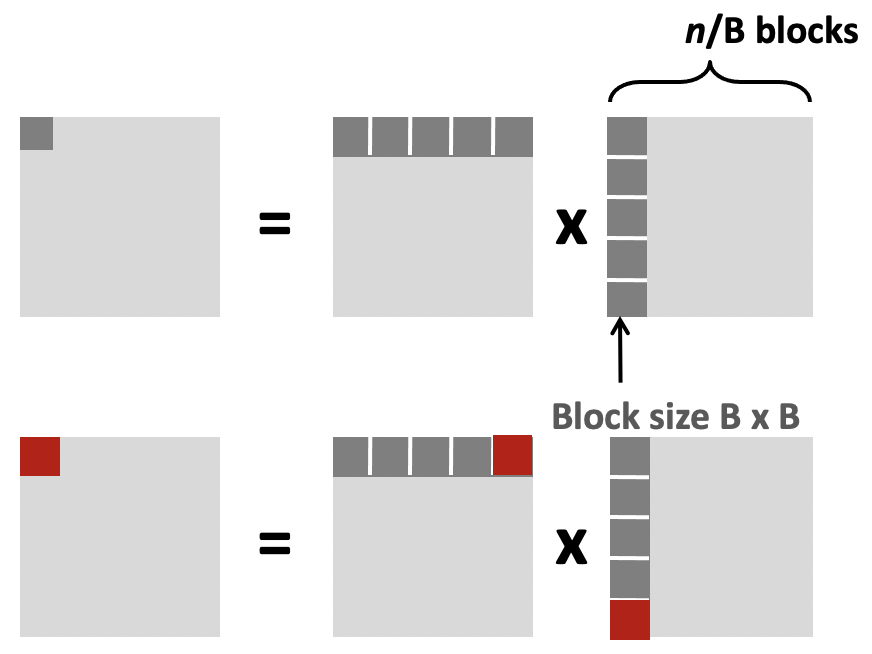

  • If calculations can be performed using smaller matrices of A, B, and C (blocks) that all fit in cache, we can further minimize the amount of cache misses per calculation.

• 3 blocks are needed (for A, B, and C).
• Each block has dimension B, so the total block size is $B^2$
• Therefore: $3B^{2} < cache_size$
• Based on the information above: B = 8 (so that 8 * 8 = 64 fits in cache line).

• 3 * 8 * 8 < 32768. :::: ::::{tab-item} Without cache

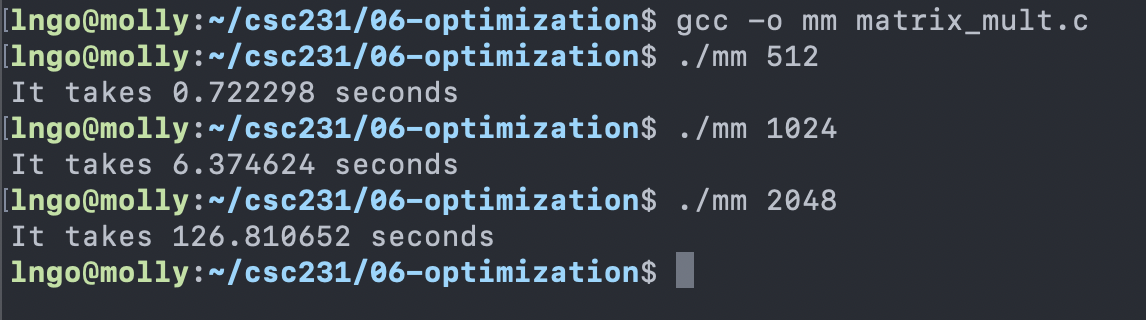

• Compile and run matrix_mult.c.

1
2
3
4

$ gcc -o mm matrix_mult.c
$ ./mm 512
$ ./mm 1024
$ ./mm 2048


:::: ::::{tab-item} With cache

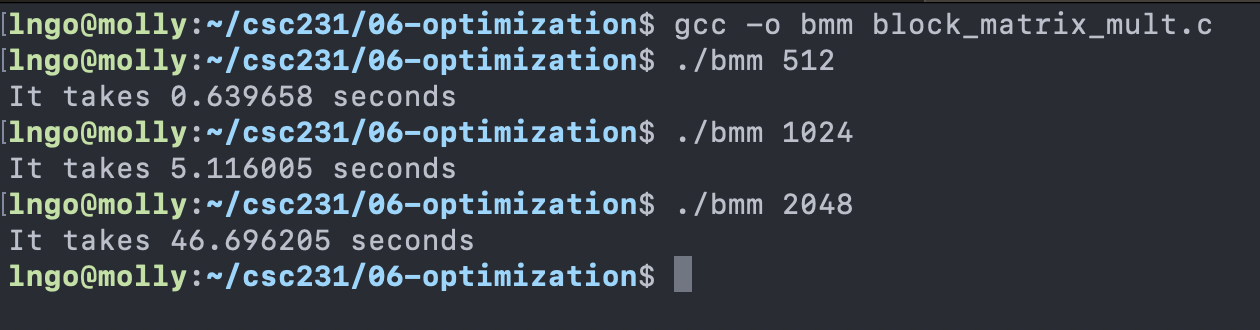

• Compile and run block_matrix_mult.c.

1
2
3
4

$ gcc -o bmm block_matrix_mult.c
$ ./bmm 512
$ ./bmm 1024
$ ./bmm 2048


:::: :::::

• Reduce code motion
• Reduction in strength

:::::{tab-set} ::::{tab-item} Reduce code motion

• Reduce frequency with which computation performed
  • Need to produce same results
  • Move code out of loop.

:::: ::::{tab-item} Reduction in strength

• Replace costly operation with simpler ones (multiply to addition).
• Recognize sequence of products.

:::: ::::{tab-item} Scripting

• Create the following file to automate the installations.

1
2
3
4

$ chmod 755 eval.sh
$ ./eval.sh block_matrix_mult
$ ./eval.sh block_matrix_mult_2
$ ./eval.sh block_matrix_mult_3


:::: ::::{tab-item} Outcome

:::: :::::

• A function whose implementation is handled specially by the compiler.
• Languages: C, C++, Rust
  • HotSpot JVM for Java’s JRE also has some intrinsic built-in (no direct access from programmers)
• Compilers for C/C++, Intel, and GCC implement intrinsics mapping directly to x86_64’s single instructions, multiple data (SIMD) instructions.
  • Streaming SIMD Extensions (SSE), SSE2, SSE3, AVX, AVX2, …
  • Vectorization: registers

:::::{tab-set} ::::{tab-item} Example: AVX/AVX2

• Addition 16 YMM registers to perform a single instruction on multiple data elements (SIMD).
• Each YMM register can hold and carry out the math operations on:
  • 8 32-bit single-precision floating point numbers (or integer), or
  • 4 64-bit double-precision floating point numbers (or long).

:::: ::::{tab-item} Intrinsic Code

1
2
3
4
5
6
7
8

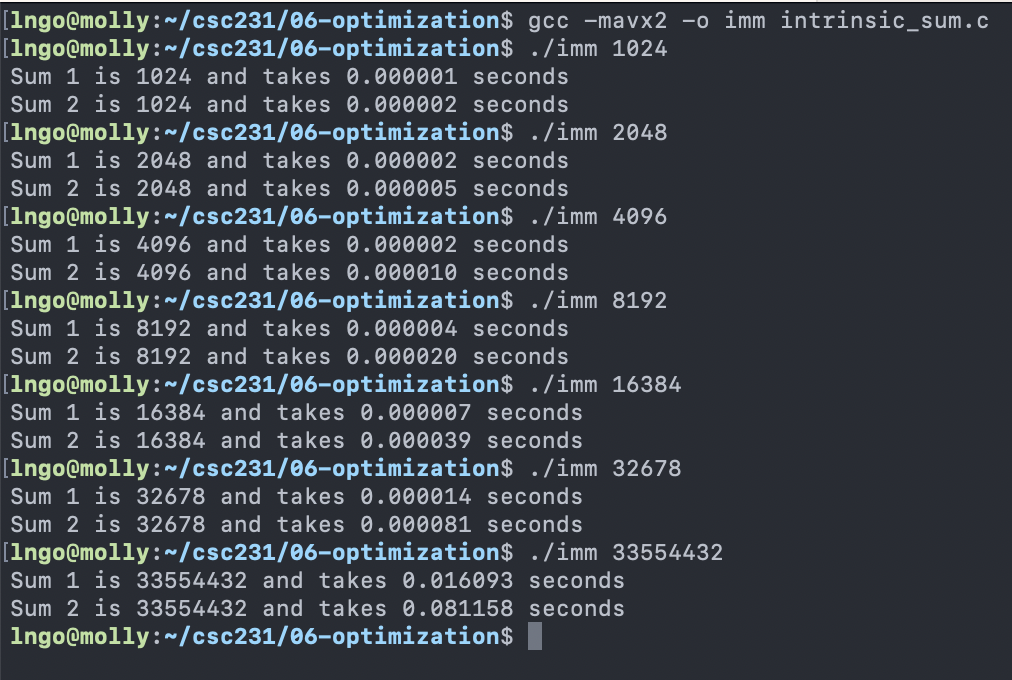

$ gcc -mavx2 -o imm intrinsic_sum.c
$ ./imm 1024
$ ./imm 2048
$ ./imm 4096
$ ./imm 8192
$ ./imm 16384
$ ./imm 32678
$ ./imm 33554432


:::: ::::{tab-item} Outcome

:::: :::::

• Operate under fundamental constraint
• Must not cause any change in program behavior
• Often prevents optimizations that affect only “edge case” behavior
• Behavior obvious to the programmer is not obvious to compiler
  • e.g., Data range may be more limited than types suggest (short vs. int)
• Most analysis is only within a procedure
  • Whole-program analysis is usually too expensive
  • Sometimes compiler does inter-procedural analysis within a file (new GCC)
• Most analysis is based only on static information
  • Compiler has difficulty anticipating run-time inputs
• When in doubt, the compiler must be conservative

```
