Programmatic Deployment of Infrastructures

1. Deploy OpenStack on CloudLab

Find CloudLab profile for OpenStack

Log into CloudLab

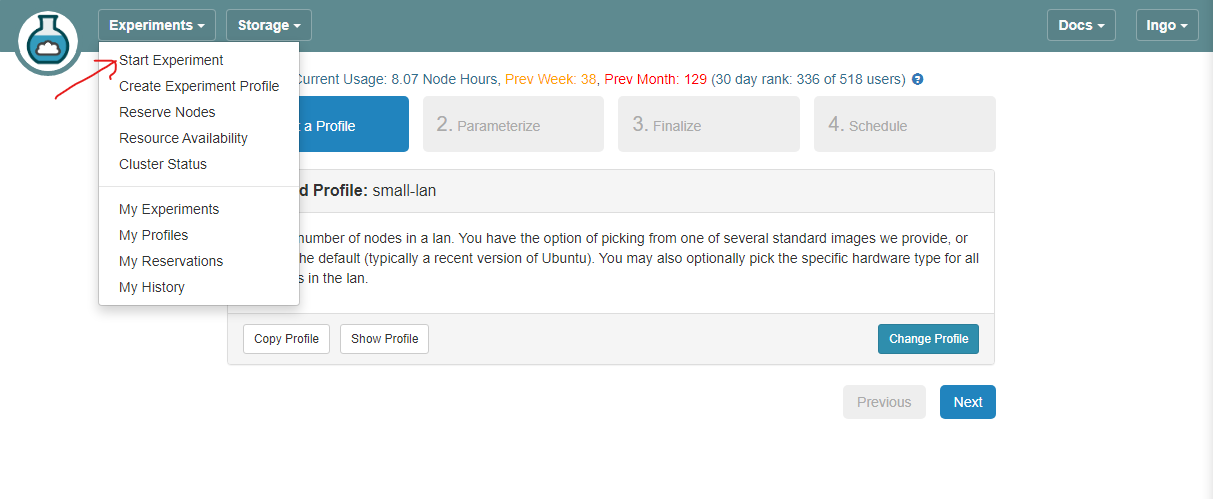

Under Experiments drop down box, select Start Experiment.

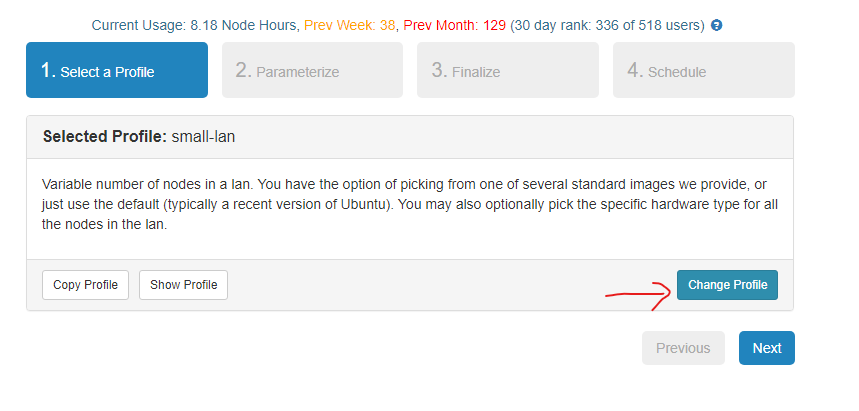

Click Change Profile.

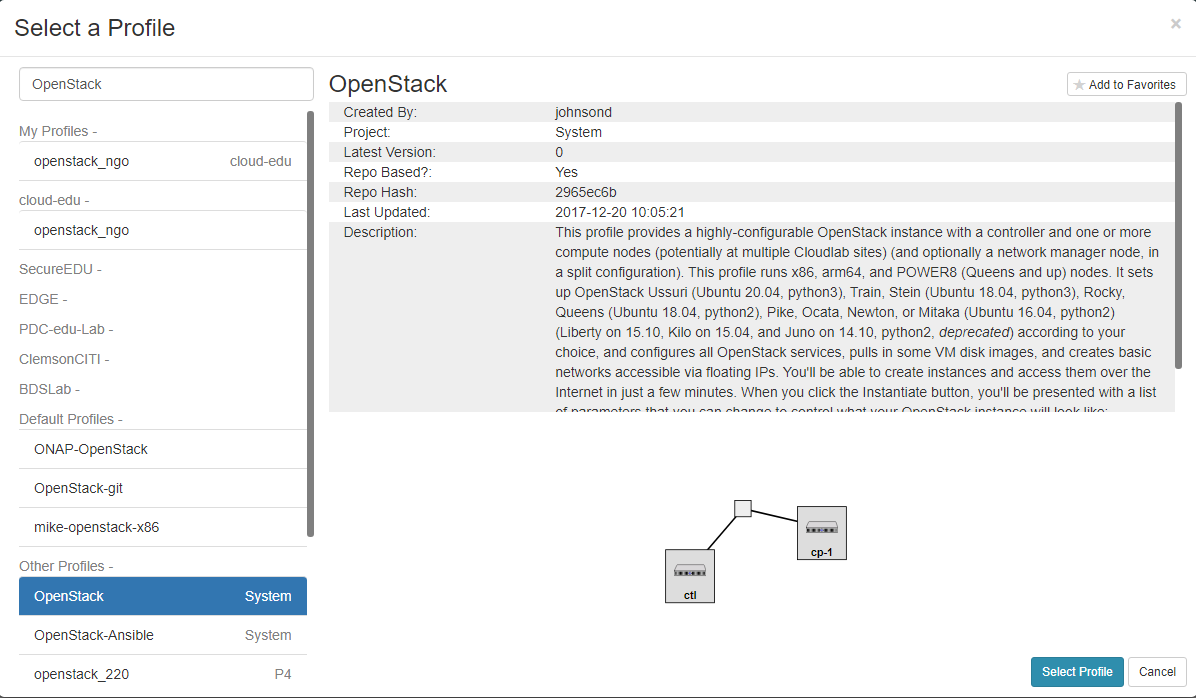

Type OpenStack in the search box, and select the profile OpenStack as shown in the figure below.
- Created By: johnsond
- Last Updated: 2017-12-20 10:05:21
- Click Select Profile when done.

Click Next.

Setup parameters and selecting sites

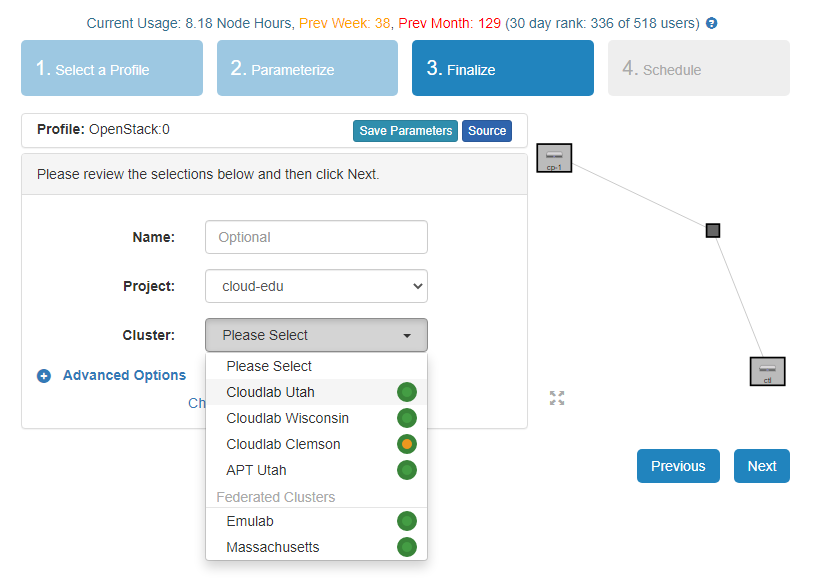

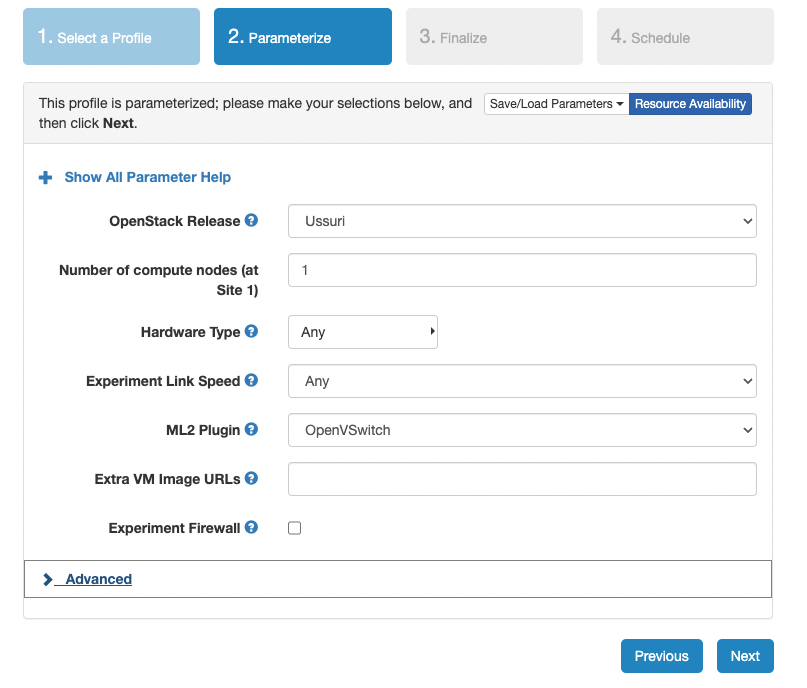

Select the options similar to the figure below.
If the Parameterize tab does not look like this, click Previous to go back one step, and then click Next again.

Only Utah, Wisconsin, and Clemson have been known to work with this profile.
I will use Utah for the remaining steps.

Do not change anything on the Schedule step and click Finish.

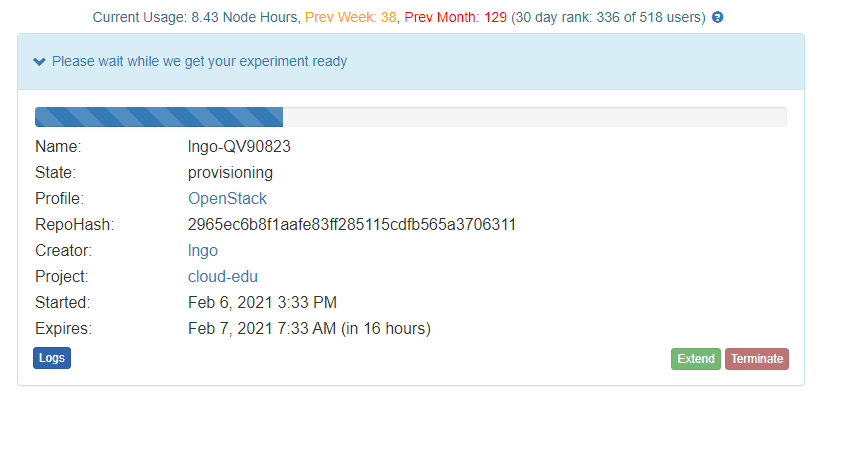

The startup scripts of this profile will take sometimes to run, approximately thirty minutes to one hour.

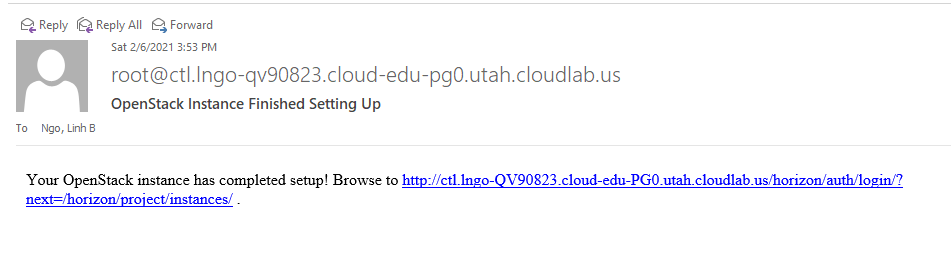

You will receive an email from CloudLab (to the registered) to inform you when the experiment is ready.

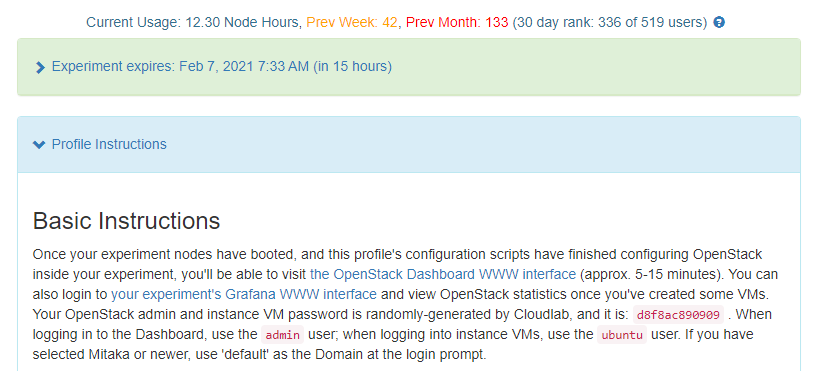

Go to the experiment, and open the blue *Profile Instructions** box.

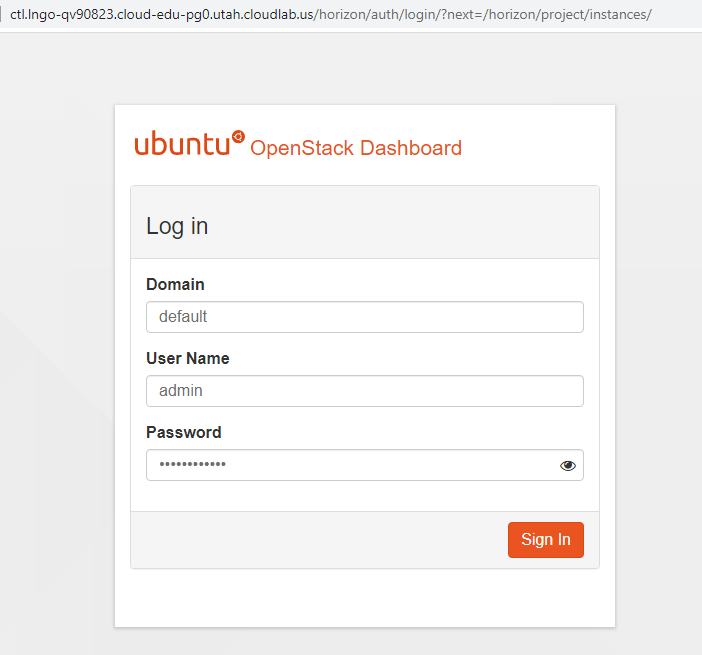

Follow the instructions to login to OpenStack dashboard. Your passwords will be randomly generated and unique to each experiment.

You will see a Dashboard on a successful deployment as follows.

2. Deployment on OpenStack

In the next sequence of hands-on, we will look at how OpenStack can support the deployment of a virtual machine inside its Nova compute components.

Hands-on: Download Linux distribution

We will use Alpine Linux, a light-weight distribution that was created for containerization/cloud deployment.

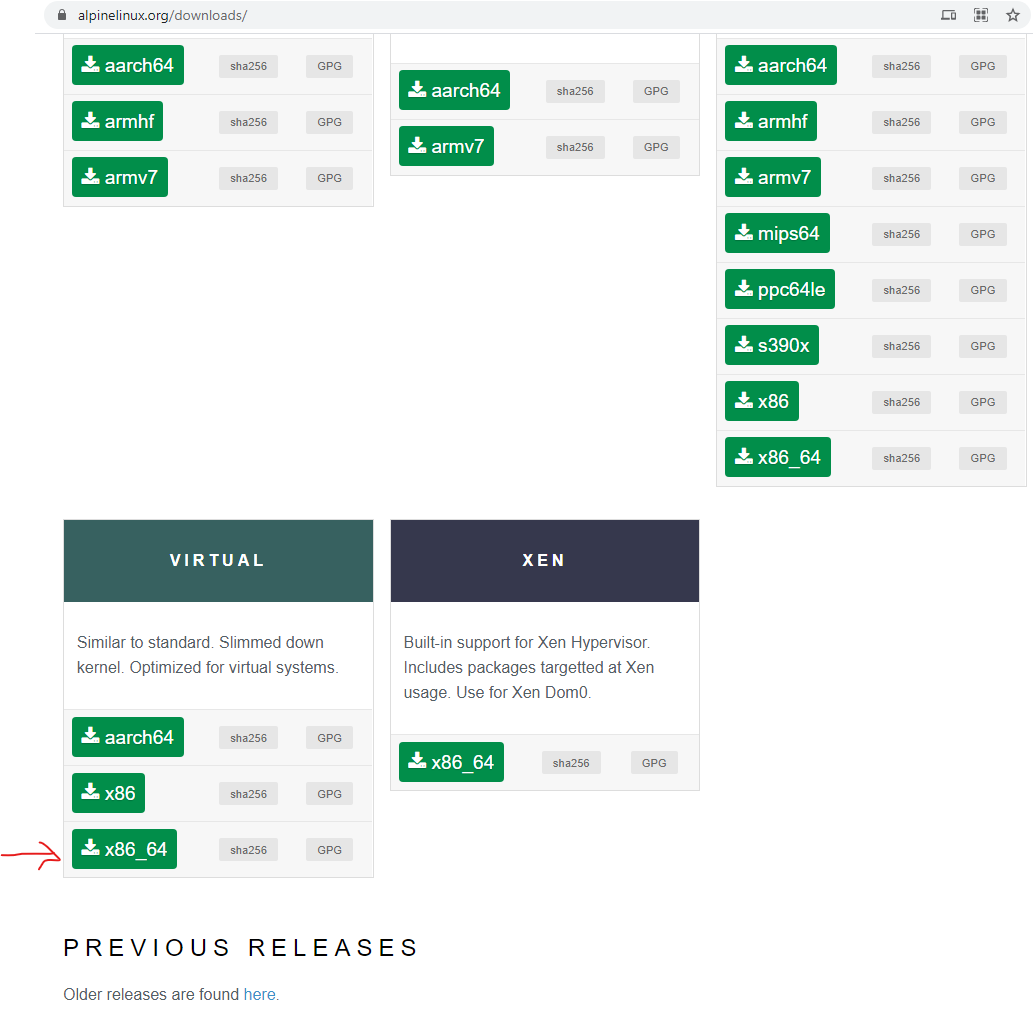

From Alpine Download Page, select the x86_64 Virtual version.

Create cloud image

Go to your CloudLab Dashboard.

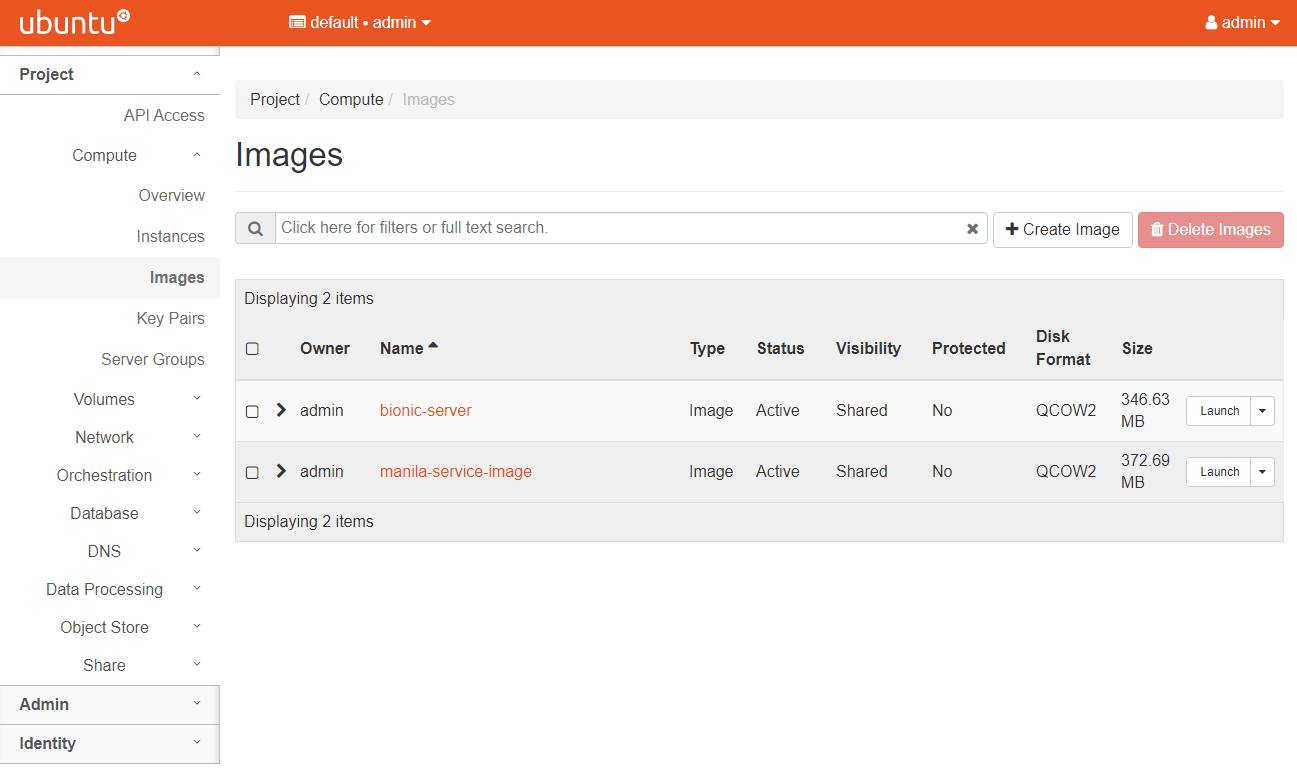

Go to Compute/Images, then click on Create Image.

Click Browse and find and select the downloaded ISO file from the the previous slide.
Set the other parameters as shown in the figure below.
Click Create Image when done.

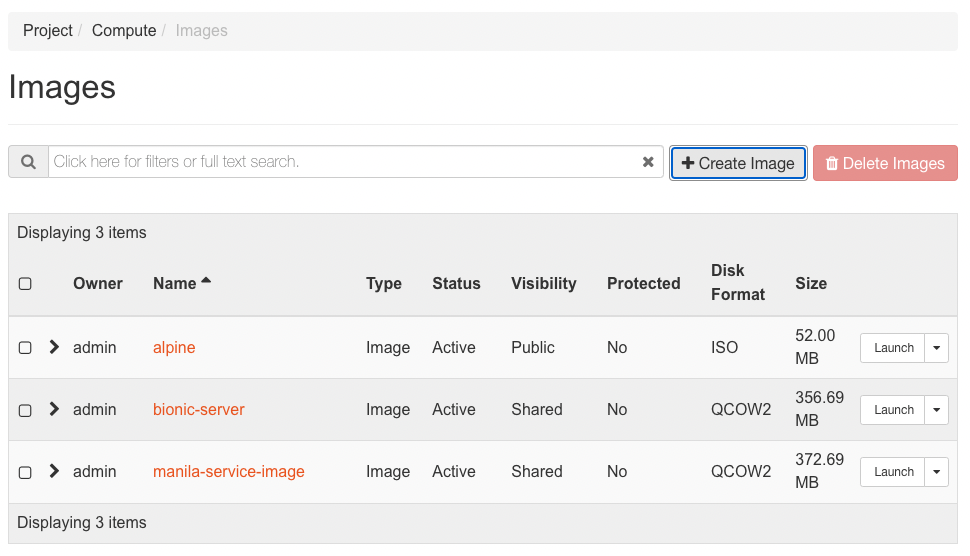

The image will show up in the Images tab.

Create volumes

Go to your CloudLab Dashboard.

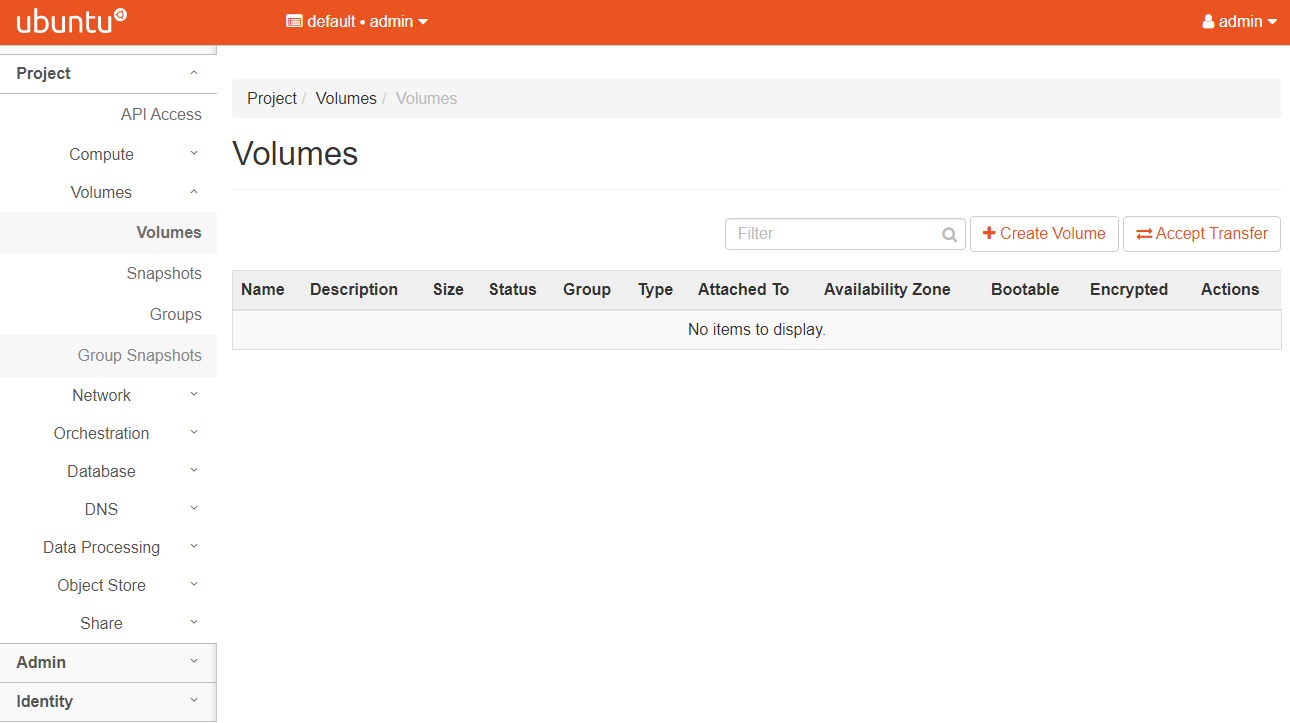

Go to Volumes/Volumes, then click on Create Volume.

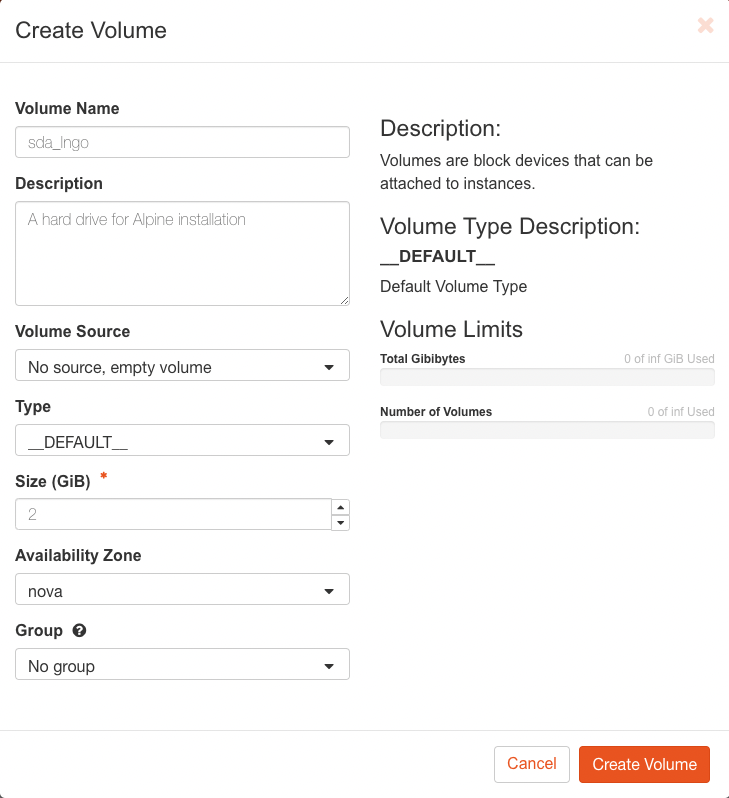

Set the other parameters as shown in the figure below.
Alpine takes up a small amount of storage, so 2GB is more than enough for a simple installation.
Click Create Volume when done.

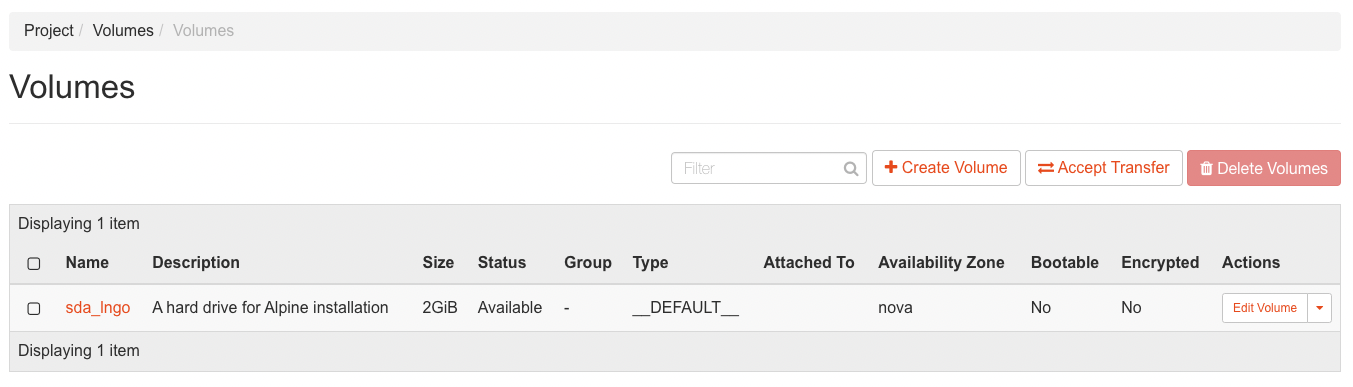

The volume will show up in the Volumes tab.

Launching a compute instance

Go to your CloudLab Dashboard.
Go to Compute/Instances and click on Launch Instance.

Set the instance name and other parameters, then click Next

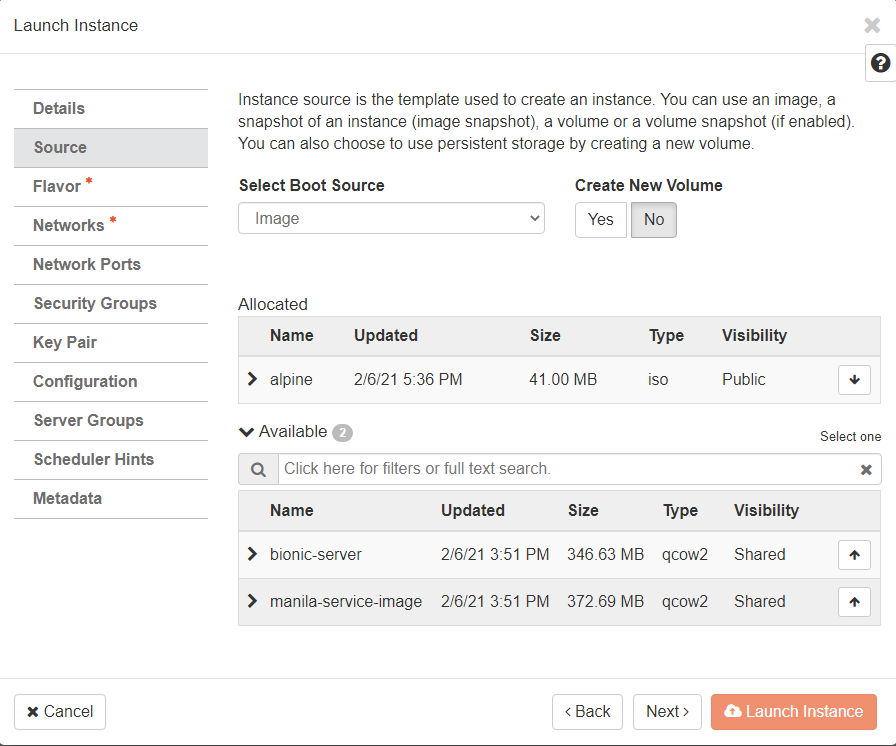

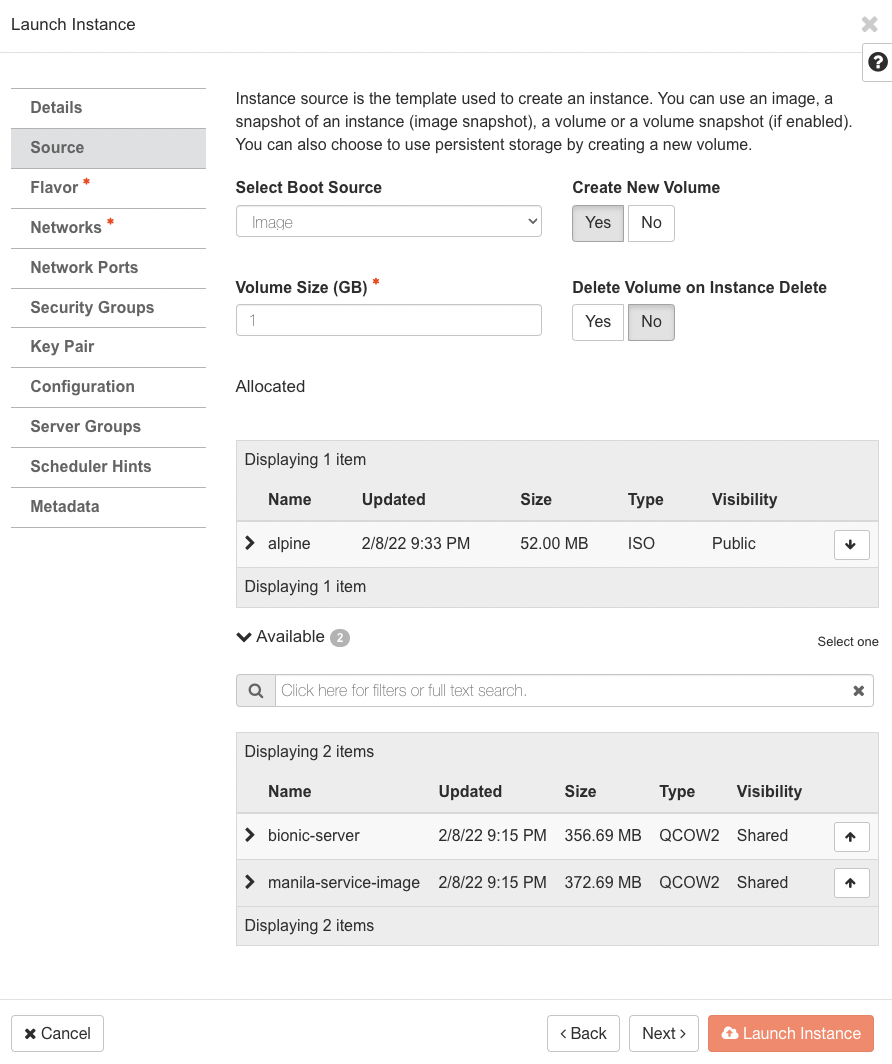

Use the up arrow to select the alpine image as the allocated image. Click Next.

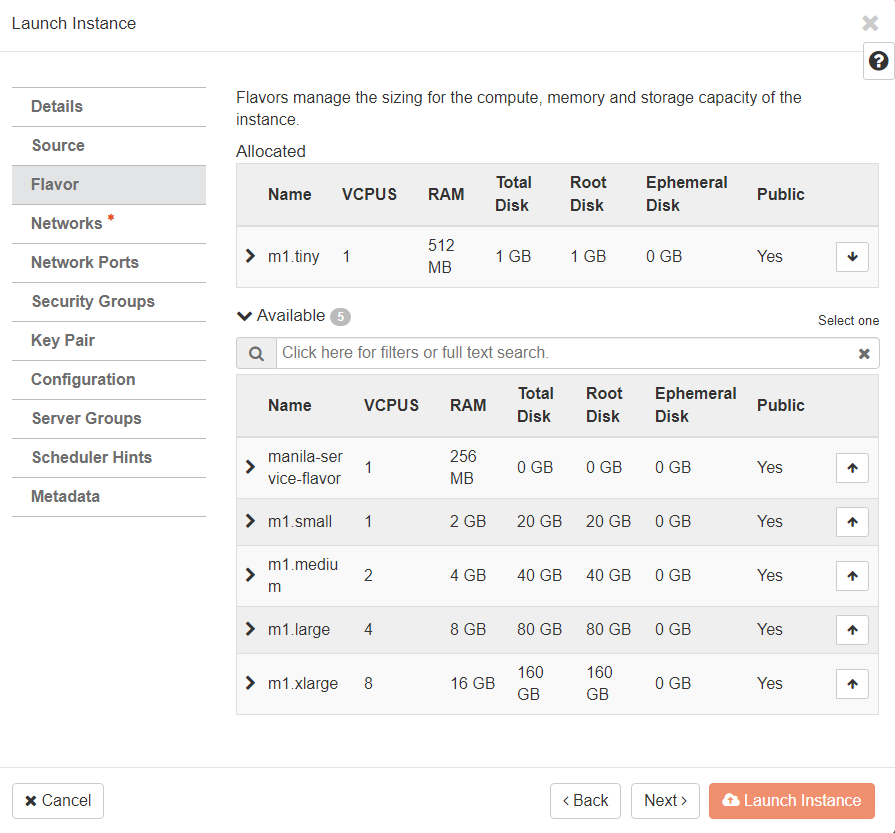

Select m1.tiny as the compute flavor. Click Next.

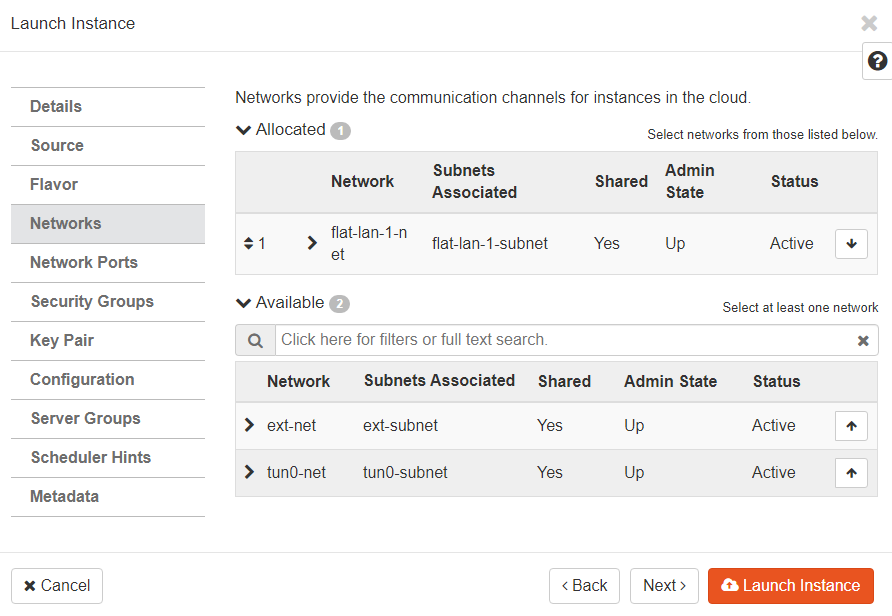

Select flat-lan-1-net as the connected network. Click Launch Instance.

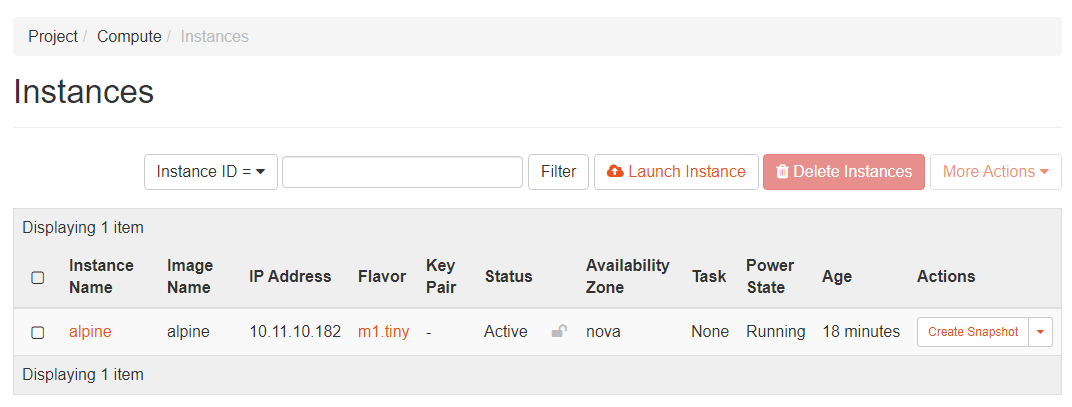

It should take a few minute for the instance to become ready.

Volume attachment and Linux installation

Go to your CloudLab Dashboard.
Go to Compute/Instances

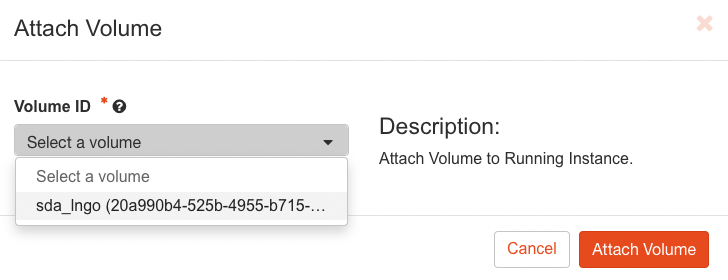

Click on the drop-down arrow under Actions for the alpine instance, then click Attach Volume.

Select your sda_**** volume ID created earlier, then click Attach Volume

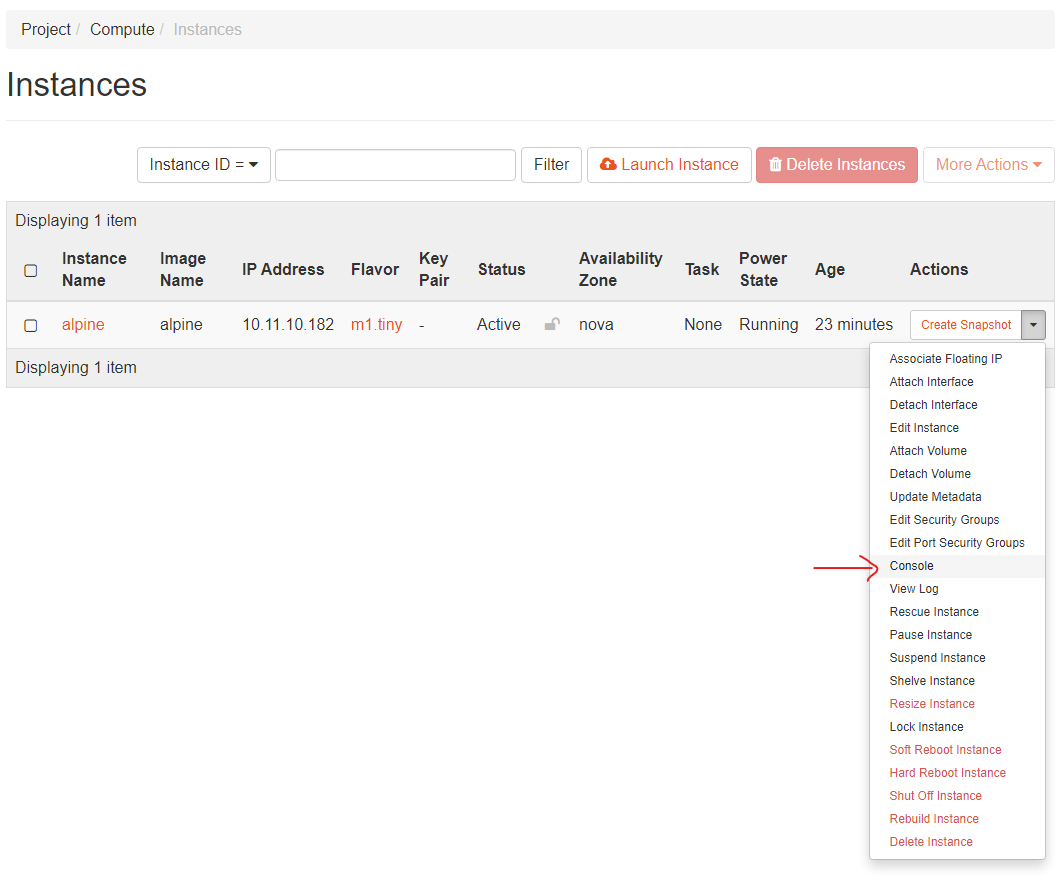

Click on the drop-down arrow under Actions for the alpine instance.
Select Console.

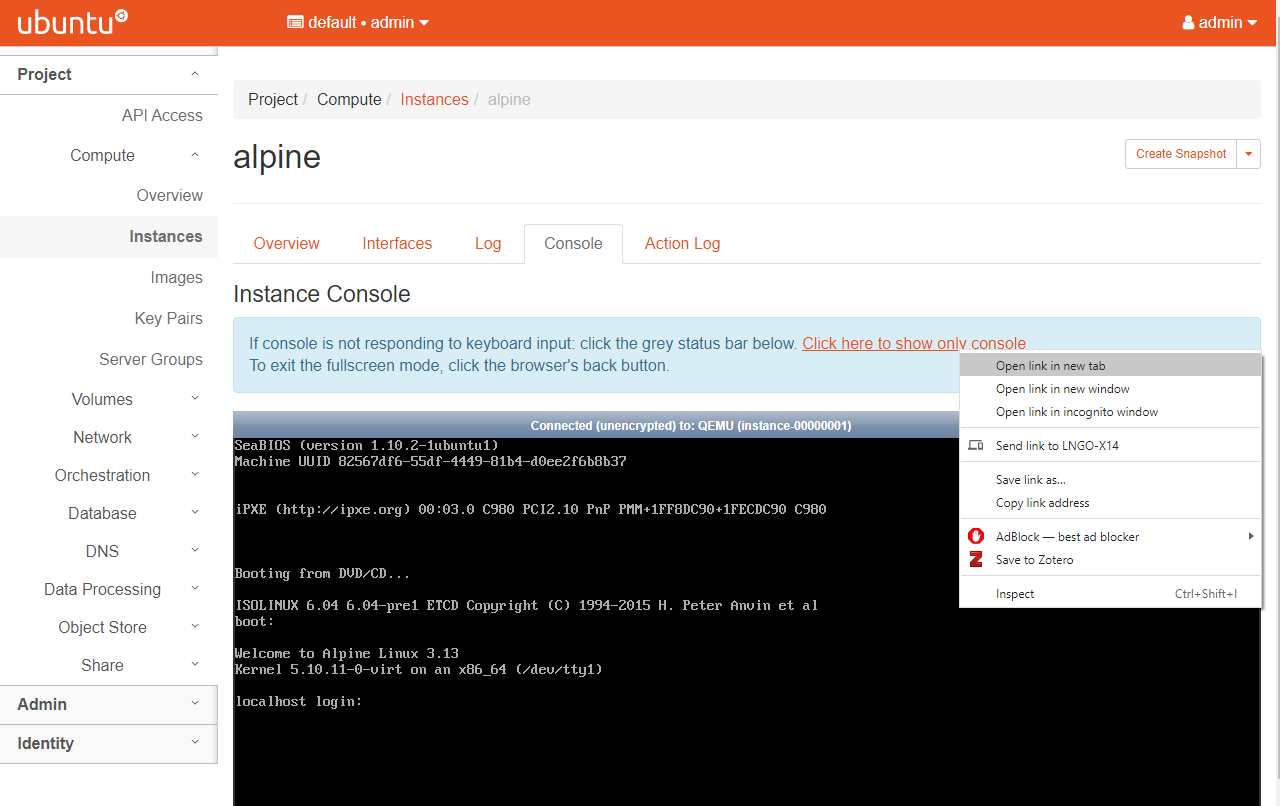

Right click on Click here to show only console and select Open link in new tab.
This helps with navigating back and forth.

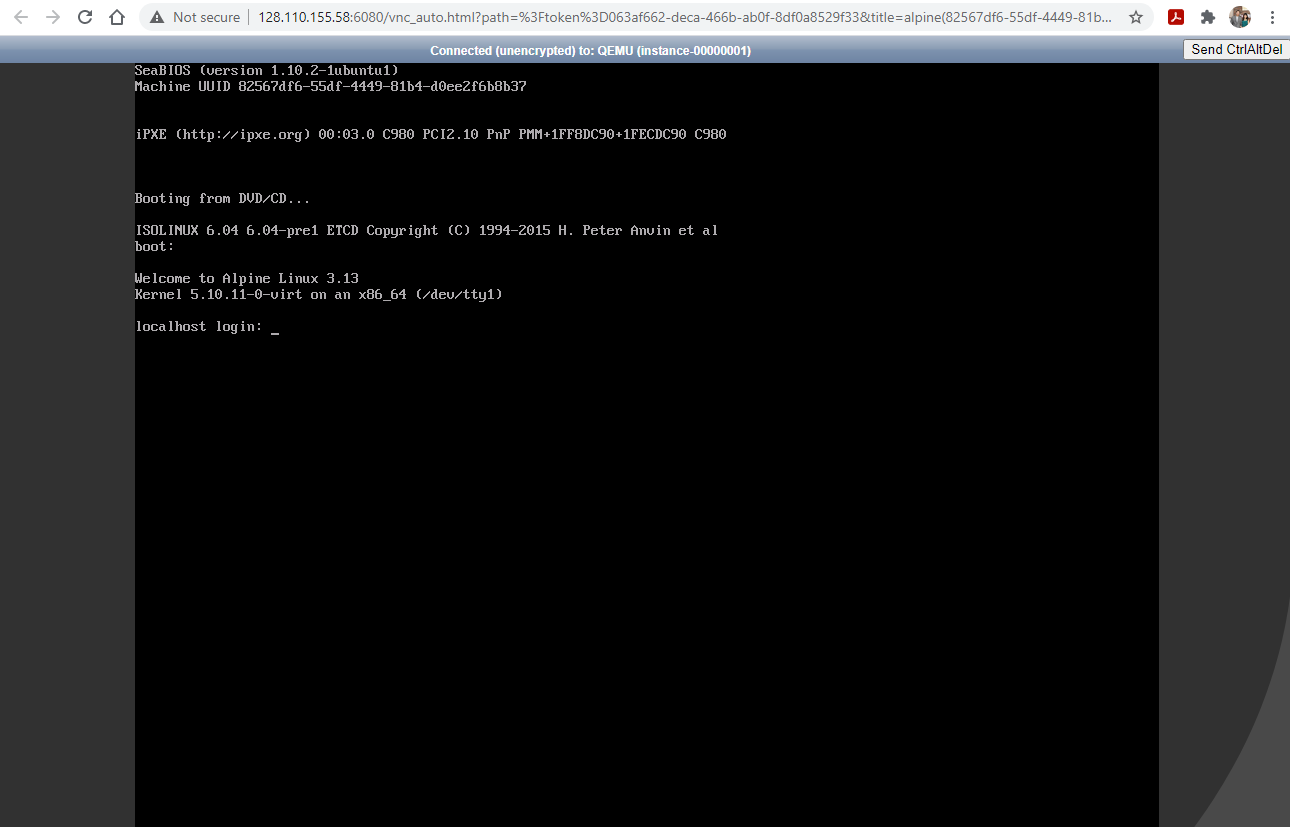

A new console tab appears!
You are now booting from the Alpine distro.

Type root into thelocalhost login: prompt and hit Enter to log in.

A quick review of Alpine installation process can be found on their wiki
Type setup-alpine and hit Enter to start the installation process.
Use the following options:
- Select keyboard layout: us
- Select variant: us
- Enter system hostname ...: Hit Enter to accept default.
- Which one do you want to initialize?: Hit Enter to accept eth0 as the default interface.
- Ip address for eth0: Hit Enter to accept dhcp as the default value.
- Do you want to do any manual network configuration?: Hit Enter to accept n as the default value.
- Enter a complex password for root. DO NOT MAKE AN EASY PASSWORD. If your cloud instance got hacked and used for malicious purposes, you will be banned from CloudLab. Retype the password.
- Which timezone are you in?: Type EST and hit Enter.
- HTTP/FTP proxy URL?: Hit Enter to accept none as the default value.
- For the mirror question, type 30 (the one from princeton), then hit Enter.
- Which SSH server?: Hit Enter to accept openssh as the default value.
- Which disk(s) would you like to use?: Review the lines above, and select the listed disk. There should be one as we already attached a volume to this instance. For me, it is vdb, so I type in vda and hit Enter.
- How would you like to use it?: Type sys and hit Enter.
- WARNING: Erase the above disk(s) and continue?: Type y and hit Enter.

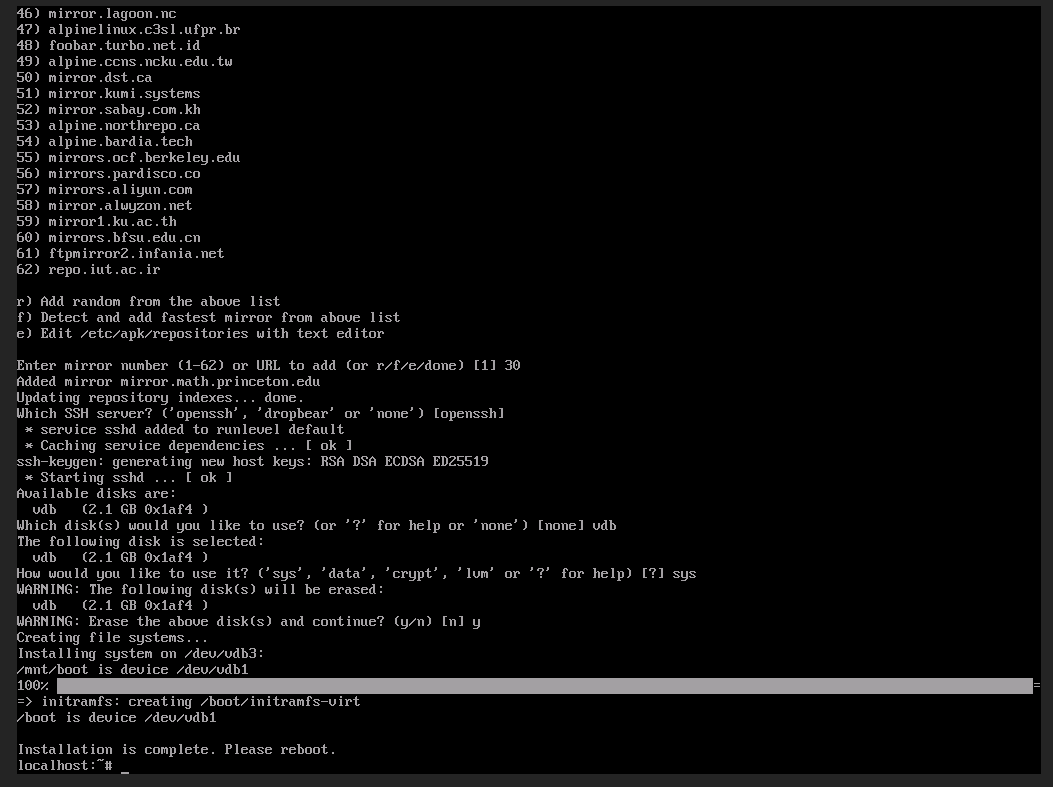

Once the installation process is completed, Leave this console running and return to the Dashboard.
Go to Compute/Instances
Click on the drop-down arrow under Actions for the alpine instance.

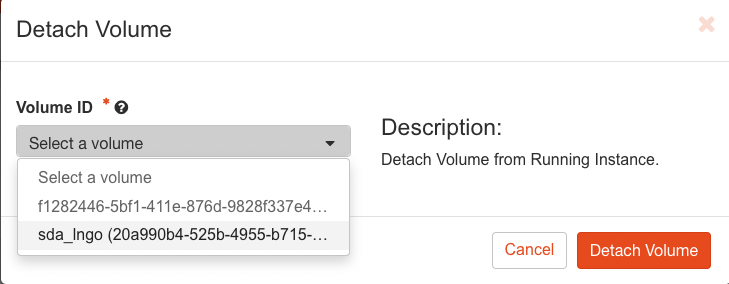

Select the sda_**** volume ID selected earlier, then click Detach Volume

Select the sda_**** volume ID created earlier, then click Detach Volume

Go to your CloudLab Dashboard.
Go to Volumes/Volumes.

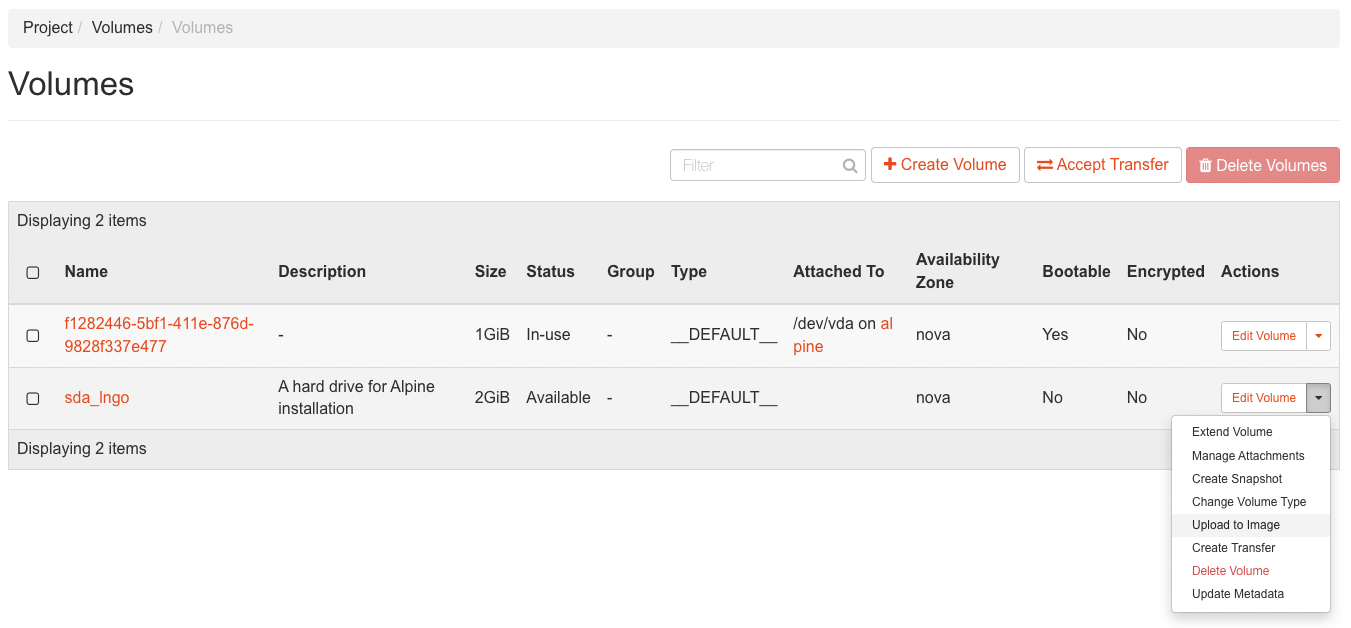

In the Actions box of sda_****, click the drop-down arrow and select Upload to Image.

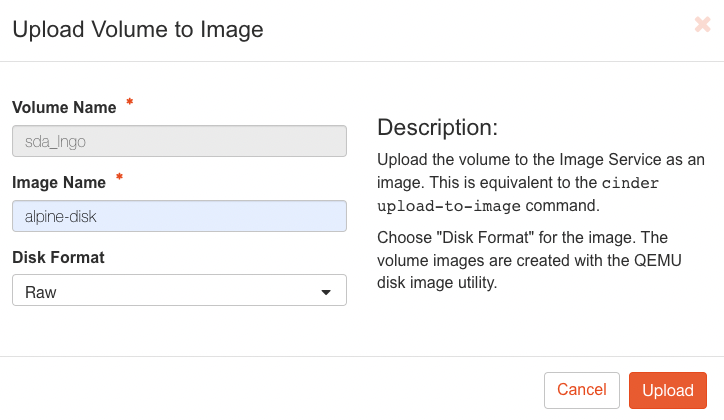

Set Image Name to alpine-disk and Disk Format as Raw, then click Upload.

Successful upload:

3. Challenge

Setup new instance

Launch another compute instance using the newly created alpine-disk image.
- Pay attention to the flavor.
Log into the console and confirm that you can use the root password created earlier to log in

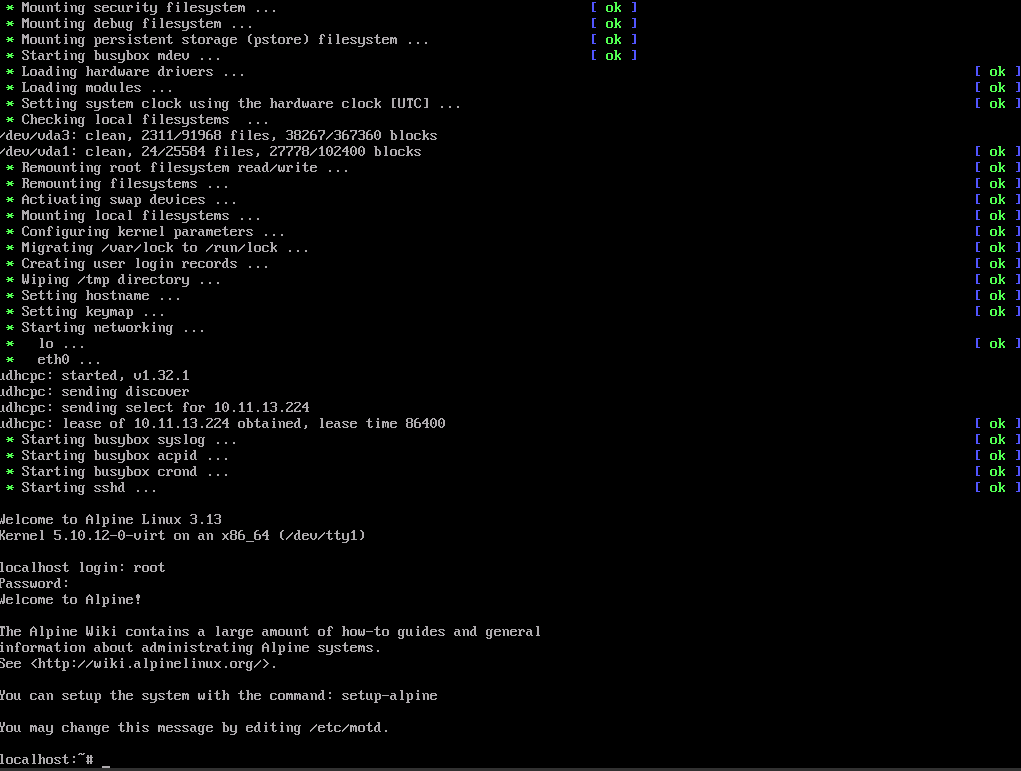

New launched instance with working image

Setup Apache webserver on the previous new instance

You should be inside the console after log in as root and have the root password.

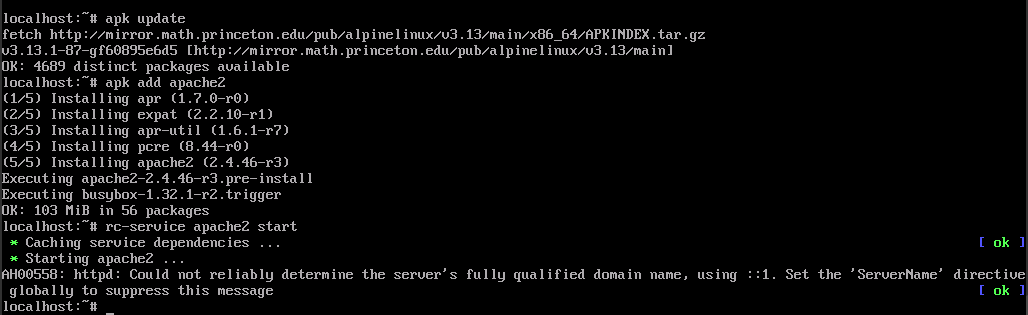

Run the following commands to install Apache webserver

 $ apk update
$ apk add apache2
$ rc-service apache2 start


Setup public IP address

To expose the webserver, we need a public IP address.
Go to your CloudLab Dashboard.
Go to Compute/Instances

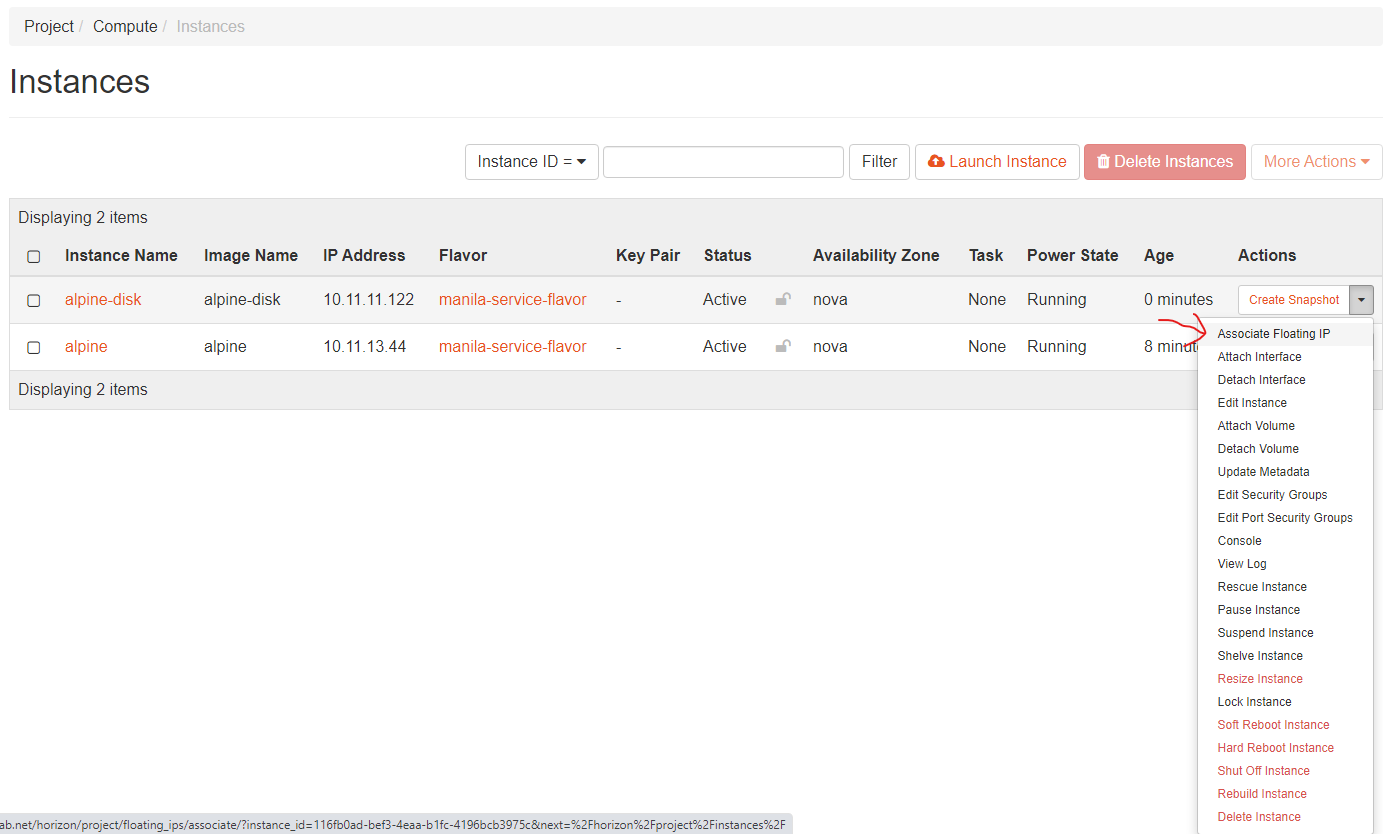

Click on the drop-down arrow under Actions for the alpine instance, then click Associate Floating IP.

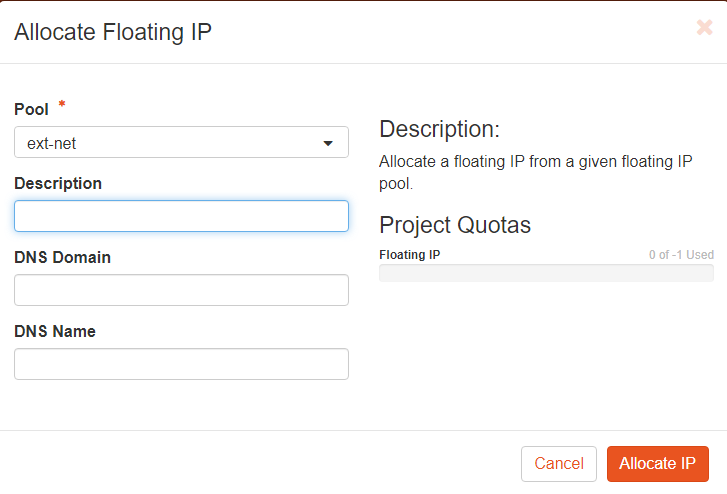

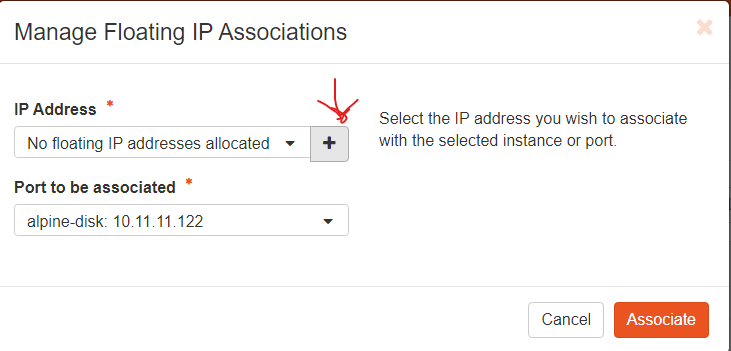

Click on the + sign to allocate IP address.

Click on Allocate IP.

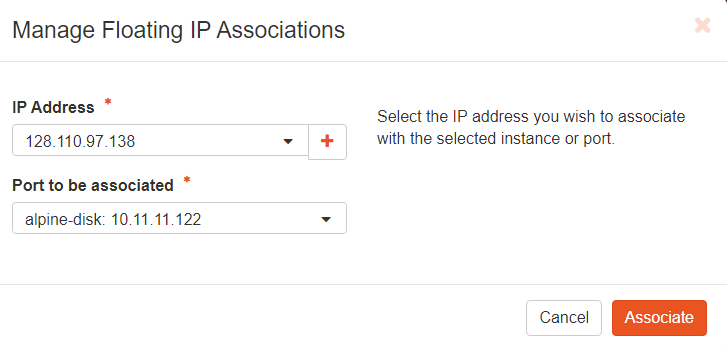

Associate public IP address with the running instance

Click on Associate.

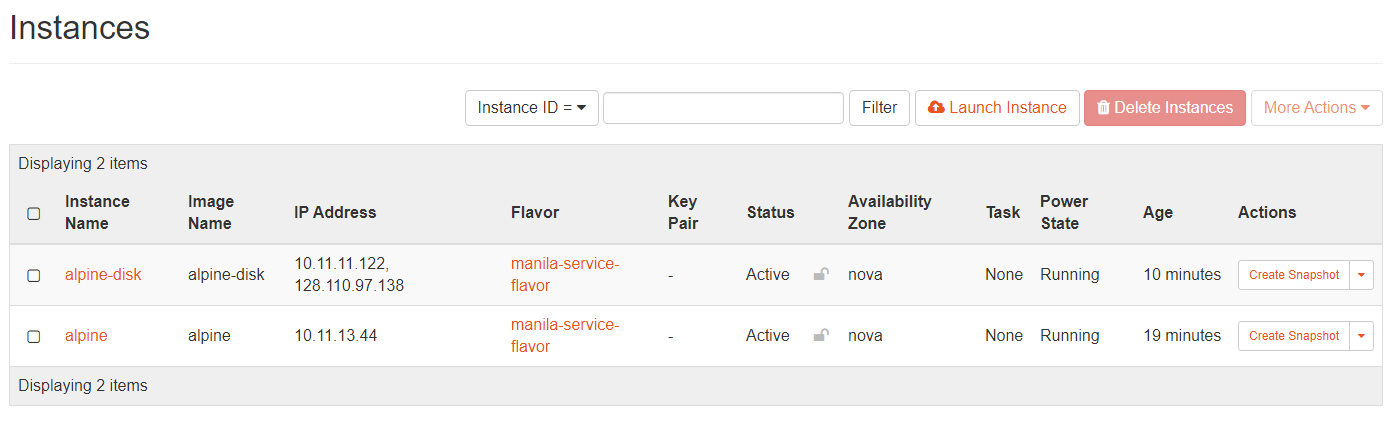

You should see the public IP address with your instance

Try visiting this IP address now, anything?

4. Cloud Security Basic

Cloud security basic

In the cloud, egress means traffic that’s leaving from inside the private network out to the public internet (similar to standard network definition).

Egress traffic generated from inside the cloud

In the cloud, ingress refers to unsolicited traffic sent from an address in public internet to the private network – it is not a response to a request initiated by an inside system. In this case, firewalls are designed to decline this request unless there are specific policy and configuration that allows ingress connections.

Ingress traffic generated from inside the cloud

Handle security

Go to your CloudLab Dashboard.

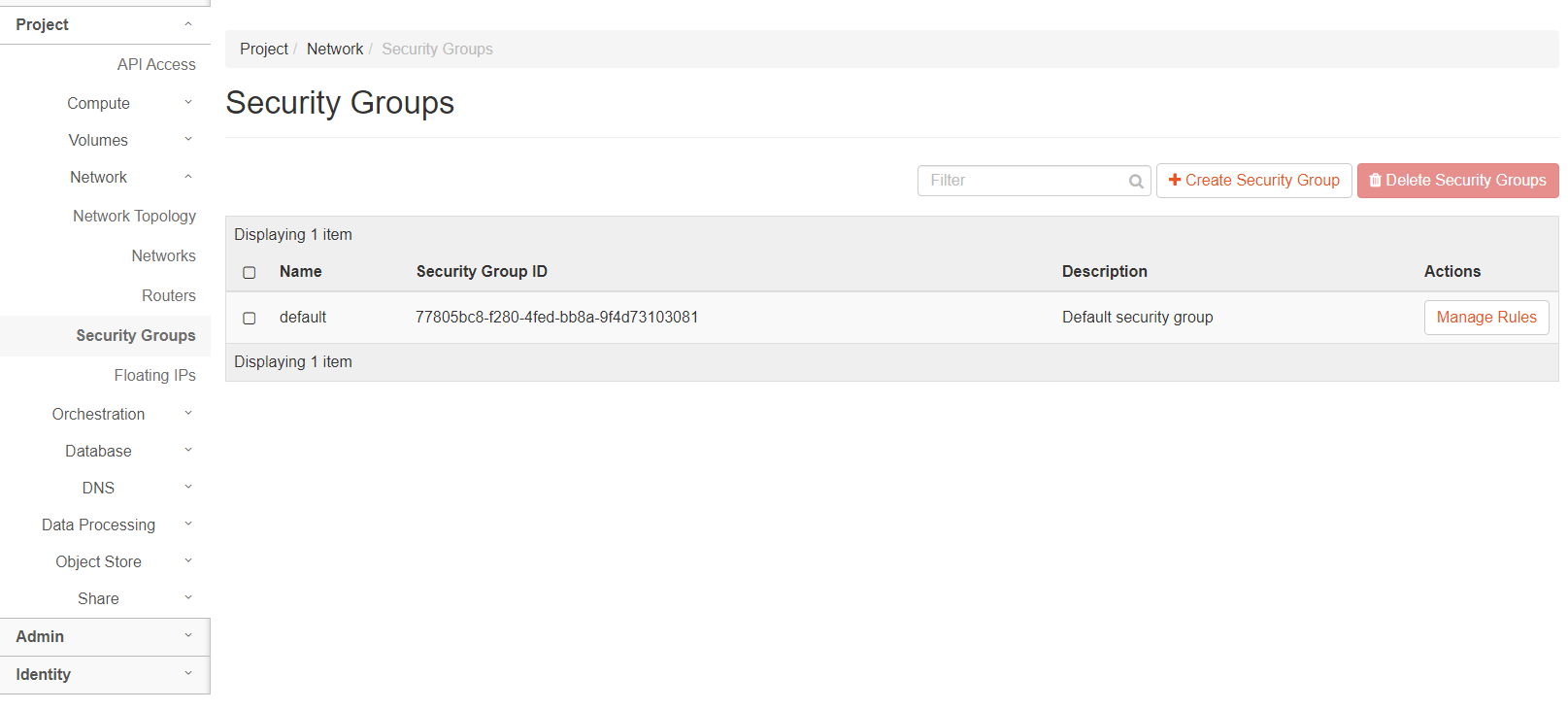

Go to Network/Security Group
Click on Manage Rules.

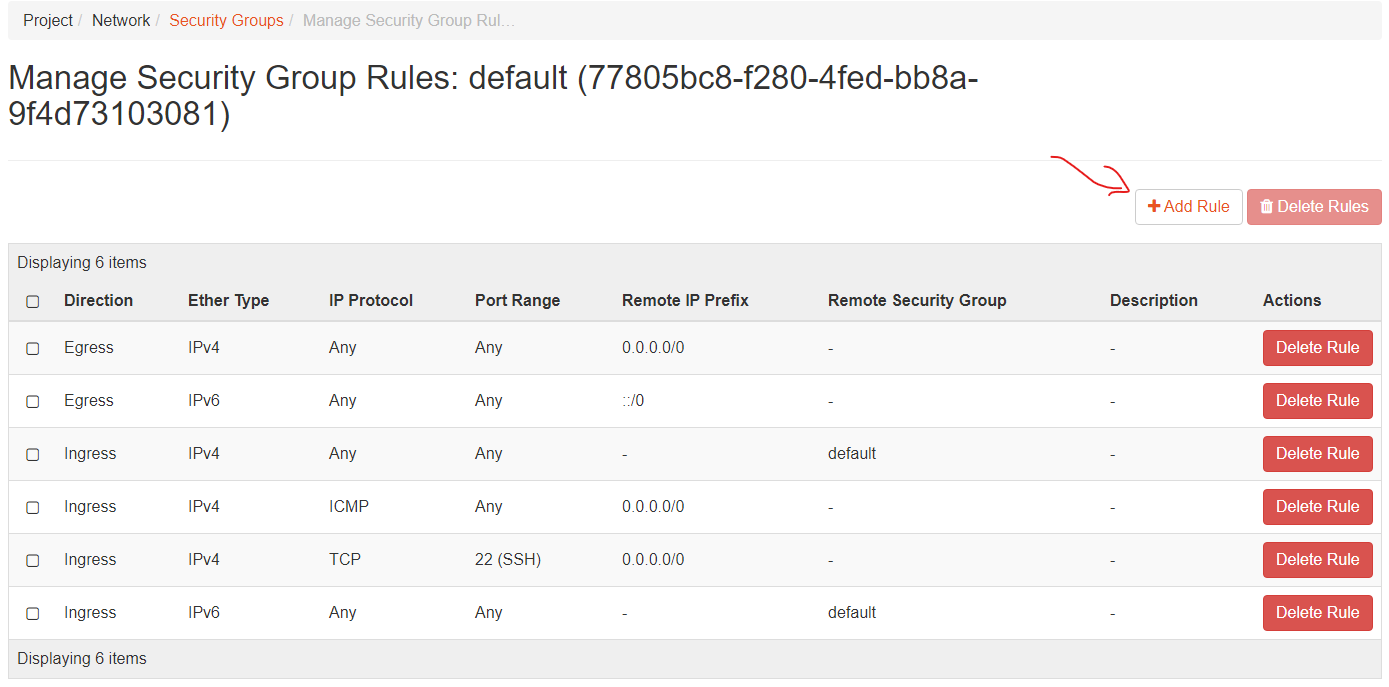

Click Add Rules

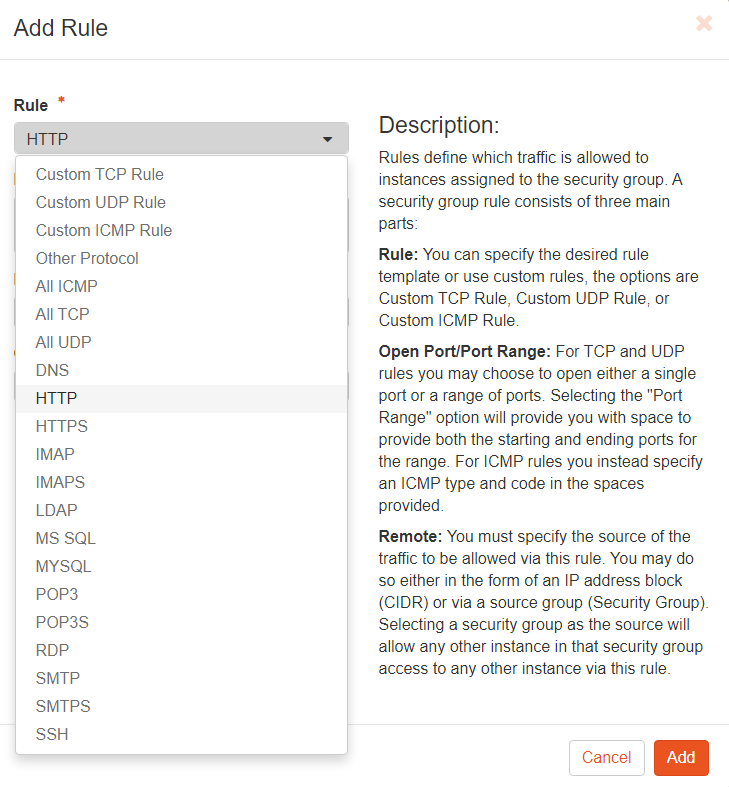

In the Rule drop down box, select HTTP, then click Add.

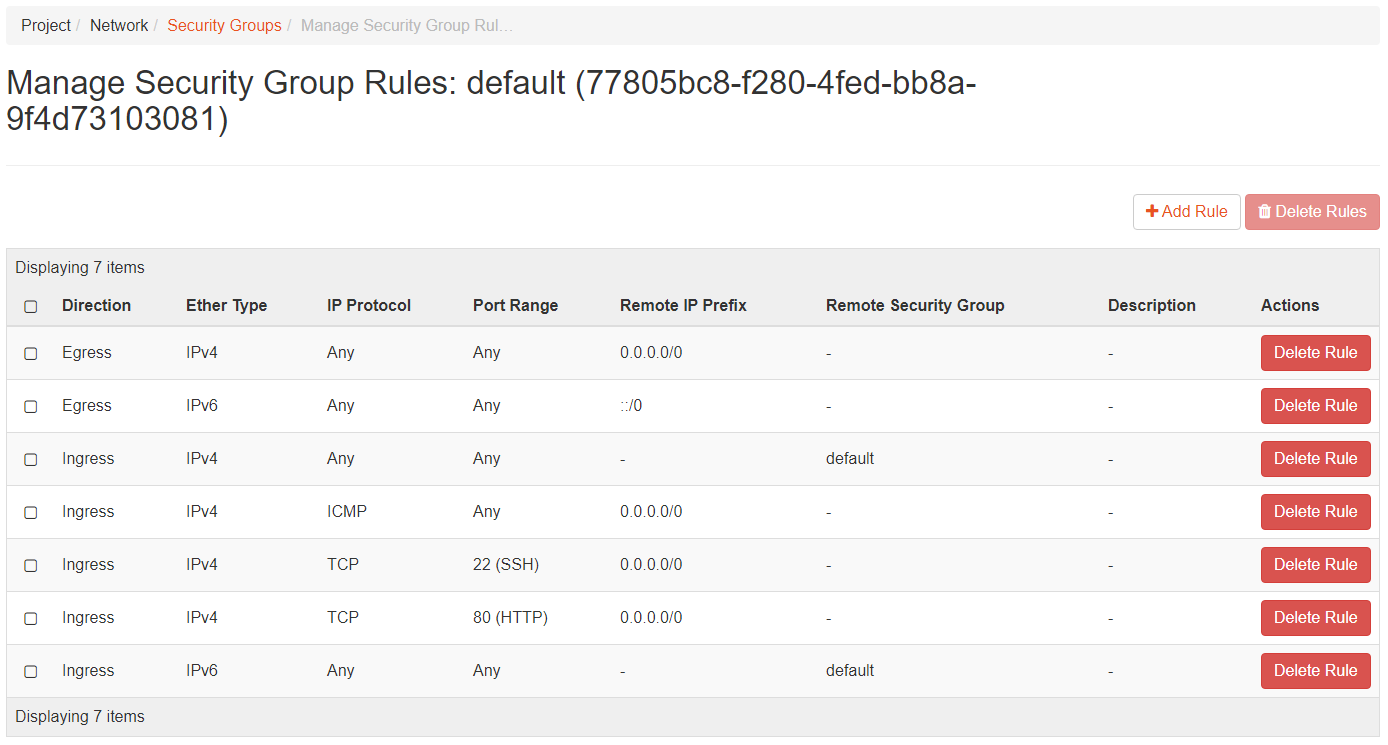

You can see the new Ingress rule for HTTP.

The apache webserver is now visible
