Virtualization for cloud computing: KVM, docker, singularity, and podman

1. KVM

Overview

Created by Avi Kivity at Qumranet
- Become part of the Linux kernel in 2007
- Hardware-based virtualization
Virtualizing the x86 architecture (Intel and AMD)
Hardware vendors provide the following extensions to the x86 architectures
- A new guest operating mode: the CPU can switch into a guest mode that allows system software to trap specific privileged instructions or accesses.
- Hardware state switch: Hardware is responsible for switching the control registers that affect the CPU operation modes and relevant segment registers.
- Exit reason reporting: When a switch from guest to host happens, the hardware reports the reason so that the software can take appropriate responses.
KVM has been developed to take advantage of these extensions.

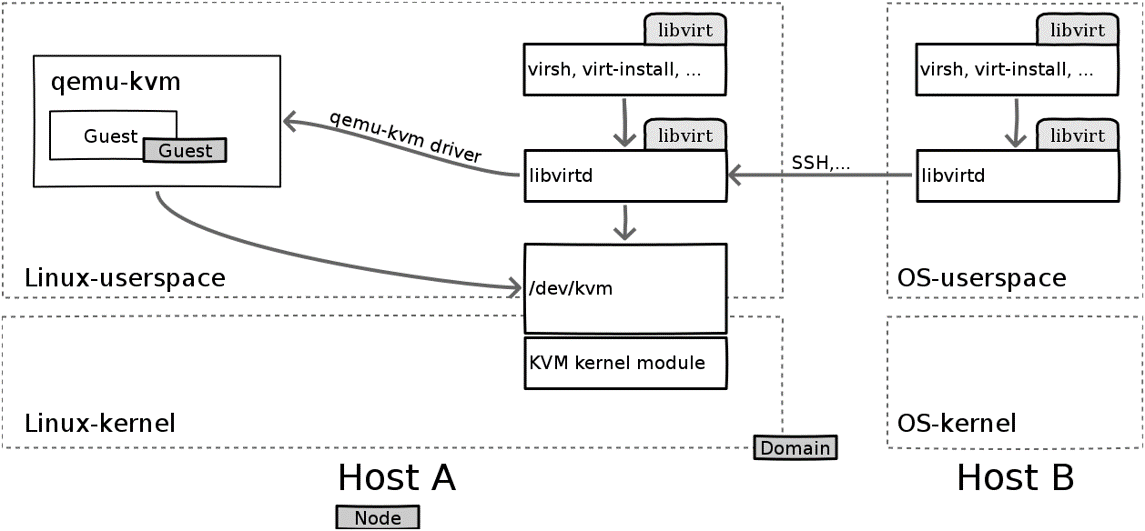

General architecture

Virtual machines are created by opening a device node (/dev/kvm) - essentially a file.
Operations provides by /dev/kvm includes:
- Create a new VM
- Allocate memory to a VM
- Reading and writing virtual CPU registers
- Injecting an interrupt into a virtual CPU
- Running a virtual CPU

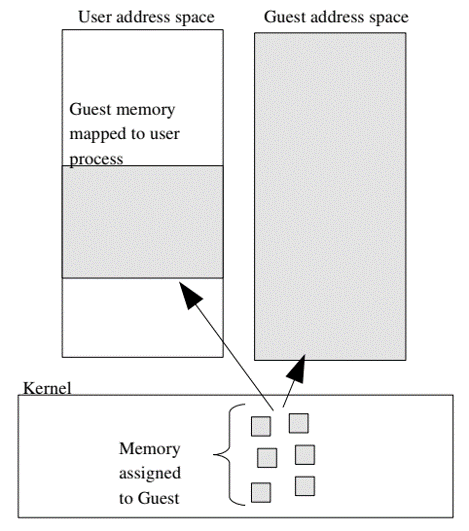

Memory mapping

Kernel allocates discontiguous pages to form the Guest address space.
User address space (of processes inside the VM) can mmap directly to these allocation to provide direct-memory-access capability.

CPU execution

A new mode is added called guest mode.
User space calls the kernel to execute guest code.
Kernel causes hardware to enter guest mode and handles interrupts when CPU exits guest mode.
Hardware execute guest code until it encounters instructions that needs assistance.

Intel versus AMD - X86 family has different branches - KVM uses C’s function pointer vector (kvm_arch_ops) to call the appropriate function that handles each architecture.

Virtualizing the MMU (memory management unit)

MMU: Translate virtual address space (from users’ perspective) to physical addresses.
- Page table: virtual-to-physical translation, located in hardware registers
- Page faults mechanism (missing translation)
- On-chip cache (translation lookaside buffer) that accelerates lookup of the page table.
Hardware support mmu virtualization:
- Provides support for guest_virtual to guest_physical
- Does not account for guest_physical to host_physical
Solutions: shadow page table that performs the later task.

MMU: Initial implementation

Less complicated, but also sacrificed performance.
Copy the contents changes due to guest instructions that require access to TLB’s page tables.
Most common TLB instruction is context_switch, which invalidate the entire TLB (impacting shadow table).
Rebuilding the shadow table is expensive.
Impact guest’s workload with multiple processes

Caching virtual mmu

Virtual MMU implementation (from hardware vendor) was enhanced to allow page tables to be cached across context switches.
Guest memory pages (on physical host) that are shadowed by KVM need to be write-protected.
Write access to guest page table needs to be emulated (rather than trying to use the host x86 instructions) so that we know exactly what happens to the guest memory and to the shadow page table.

I/O Virtualization

Software uses programmed I/O (pio) and memory mapped I/O (mmio) to communicate with hardware devices.
KVM needs to be able to trap and emulate pio and mmio request (from guest to physical host) and simulate interrupts from virtual hardware to programs running in guest.

Why the complexity

Essential characteristics of VMM: - Essentially identical to the physical resource - Efficiency - Complete control of system resources (with regard to the processes running inside the VM)

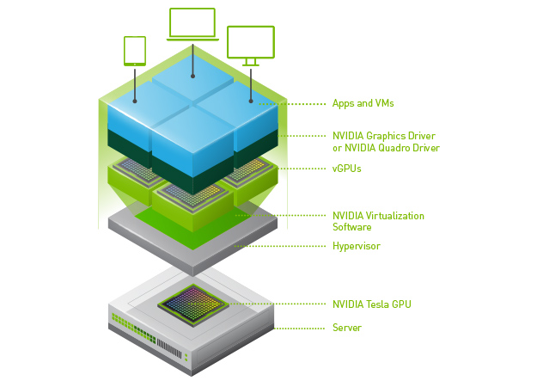

Support advanced complex devices in modern computers - Graphical devices - High speed storage devices

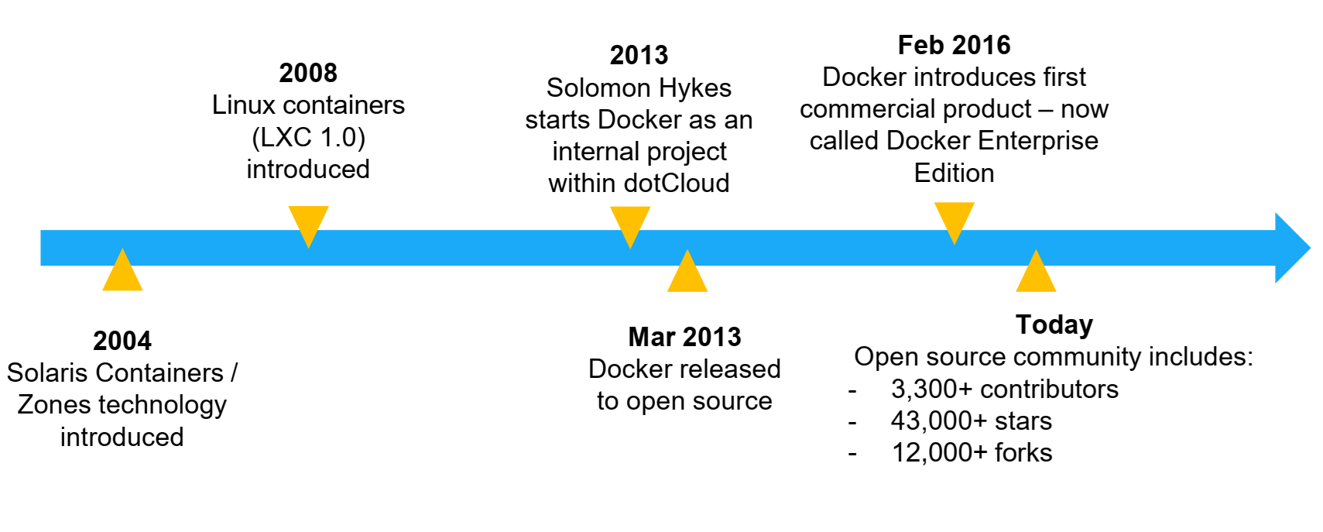

History

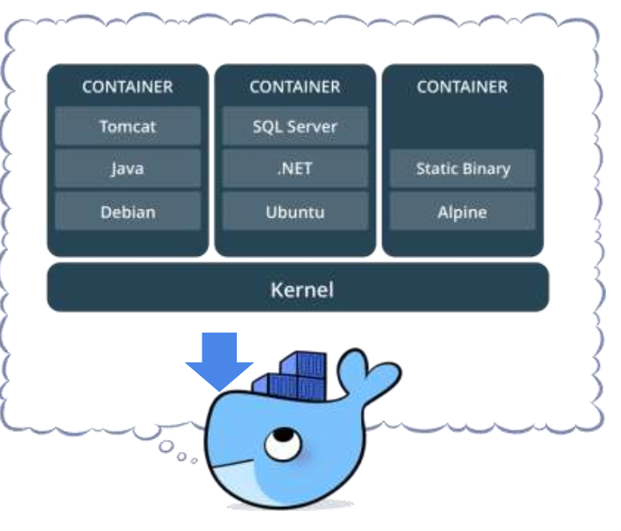

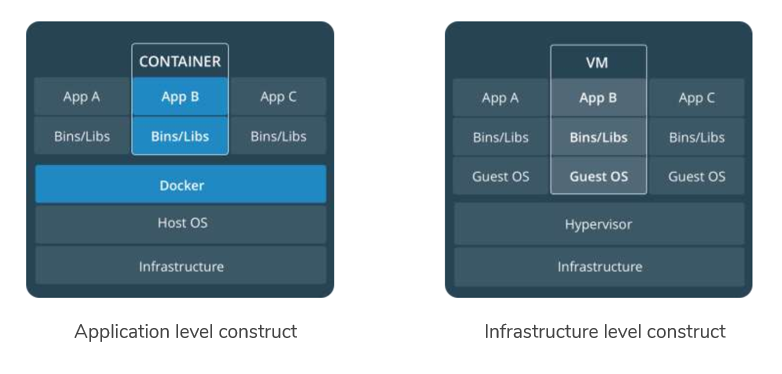

What is a container

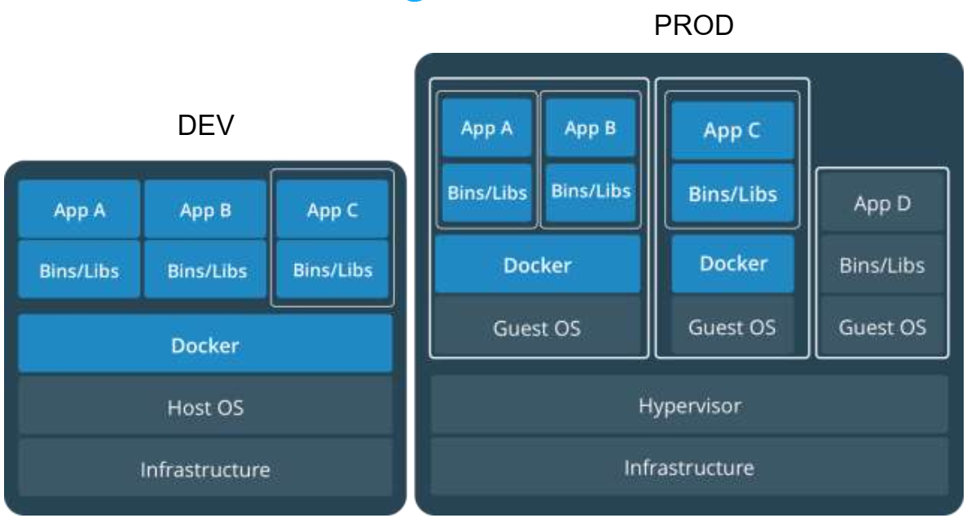

Containers and VMs together

Key benefits of Dockers

Overview

Begin as an open source project in 2015 at Lawrence Berkeley National Laboratory.
Released until BSD License
Top 5 new technologies to watch in 2016-2017 (HPCWire)
Being used in academic:
- Standard University Research Computing Center
- National Institute of Health
- 60% of the Open Science Grid Consortium.
- Ohio State, Michigan State, TACC, SDSC, and Oak Ridge National Lab
Supports for native high performance interconnects (InfiniBand, OmniPath)
Supports for native graphic accelerators
Supports for Open MPI, including a hybrid mode (inside and outside of containers)
Useful for new advanced research areas such as ML, Deep Learning, and data-intensive workloads

Motivation: container software unit for scaled science

Current approaches suitable for industry’s micro-service virtualization and web-enabled cloud application.
- Wiki: Microservices are a software development technique—a variant of the service-oriented architecture (SOA) architectural style that structures an application as a collection of loosely coupled services. In a microservices architecture, services are fine-grained and the protocols are lightweight.
Not quite suitable for scientific world, and HPC communities.
The reproducibility and portability aspects of containers are highly desirable.
Security level of Docker is not good enough for a shared research environment.

The needs of scientists

Technological innovation of container-based environments
The needs for scalable and reproducible products
Preference for usability
Necessity to operate on everything from laptops to large-scale HPC
Before: Scientists exchange data files and source codes
Today: Scientists exchange workflows
These two things need to be encapsulated into a single computing environment
Challenges with Docker:
- Security concerns: Docker’s containers are spawned as a child of a root-owned Docker daemon
  - Potential issue: privilege leakage
- Lack of administrative control in what’s being run/monitored (opposite of an industry environment)

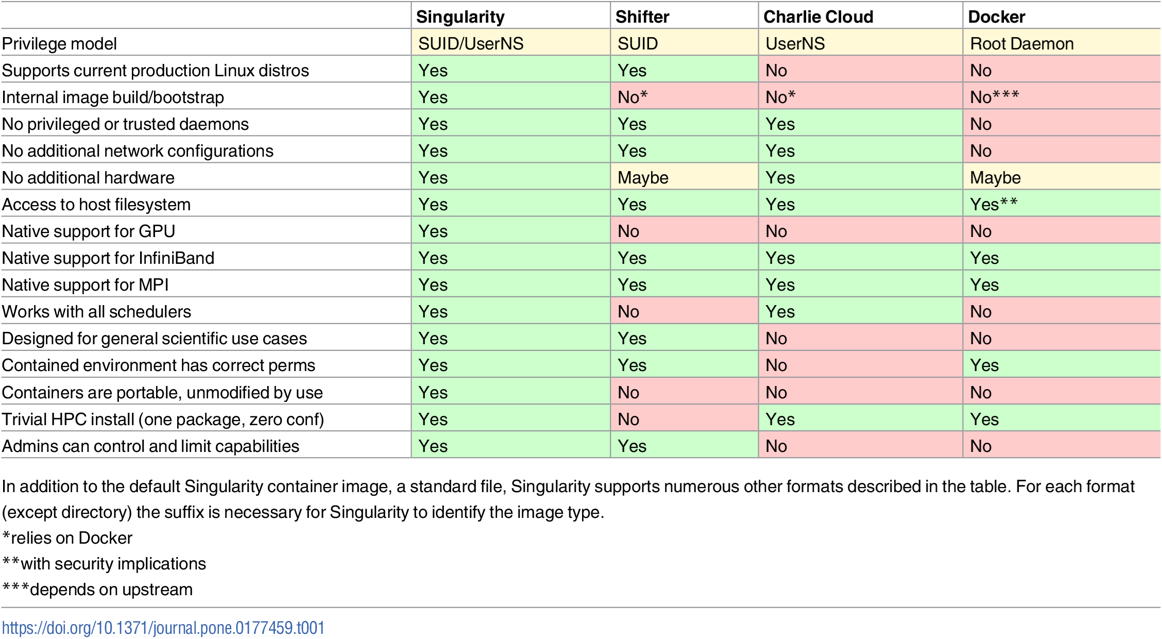

What Singularity aims to solve

Overview

Container engine developed by RedHat.
Addressing issues with Docker
- Persistent daemon on host.
- Root/privileged concerns
OCI: Open Container Initiative (2015).
Podman
- Client-only tool, based on Docker CLI
- No Daemon
- Similar CLI experience as Docker CLI
- Build and run containers as non-root
- Simple CLI, no client-server architecture.
