Why Cloud

Why Cloud

---

1. What services does Cloud offer?

• Before we can evaluate the necessity of moving to the cloud, we need to to know what services are available.
  • SaaS: Software-as-a-Service
  • PaaS: Platform-as-a-Service
  • IaaS: Infrastructure-as-a-Service
  • AaaS: Anything-as-a-Service
• Vendor: cloud service provider.

---

2. SaaS: Software-as-a-Service

Overview

• Vendor controlled applications that are accessed over the network by users.
• Characteristics:
  • Network-based access
  • Multi-tenancy
  • Single software release for all
• Examples:
  • Applications in the Google Suite
  • Dropbox
  • Cisco WebEx

Application Design

• Net native
  • Cloud-specific design, development, and deployment
  • Multi-tenant data
  • Built-in metering and management
  • Browser-based
  • Customization via configuration
• High degree of configurability, efficiency, and scalability

Disadvantages

• SaaS providers are dependent on network and cloud service providers.
  • A Dropbox story
• Performance is dependent on individual client’s bandwidth.
• Security
  • Good: Better security than personal computers
  • Bad: SaaS vendors (and cloud providers) are in charge of the data
  • Ugly: Privacy

Privacy: Google Drive ToS

• Who owns your data in SaaS?
• Google Drive ToS

Privacy: Google ToS

• Who has access to your data in SaaS?
• Google ToS

---

3. PaaS: Platform-as-a-Service

Overview

• Vendors provide development environment.
  • Tools and technologies are selected by vendors.
  • Users maintain control over data (application) life-cycle.
• Examples:
  • Google App Engine
  • AWS Elastic Beanstalk
  • Heroku

PaaS: Architectural characteristics

• Support multi-tenancy at various scale: sessions, processes, and data.
  • Isolation at: physical, virtual, and logical levels
  • Microsoft’s offerings of isolation choices
• Native scalability
  • Load balancing and fail-over (AWS Elastic Beanstalk)
• Native integrated management
  • Performance
  • Resource consumption/utilization
  • Load

PaaS: Disadvantages

• Inherits all from SaaS
• Options on technologies and tools are limited by the PaaS vendors

---

4. IaaS: Infrastructure-as-a-Service

Overview

• Vendors provide computing resources.
• Users provision computing resources.
  • Compute resources include processing, storage, memory, network etc.
  • Users are provided with customized virtual machines.
• Users maintain control over:
  • Operating system, memory
  • Storage,
  • Servers and deployment configurations, and
  • Some limited control over network resources via software-defined networking

Advantages

• Infrastructure scalability
• Native-integrated management via vendors’ utilities
  • Performance, resource consumption/utilization, load
• Economical cost
  • Hardware, IT support

Disadvantages

• Require more technical efforts than SaaS and PaaS.

---

5. Comparing service models

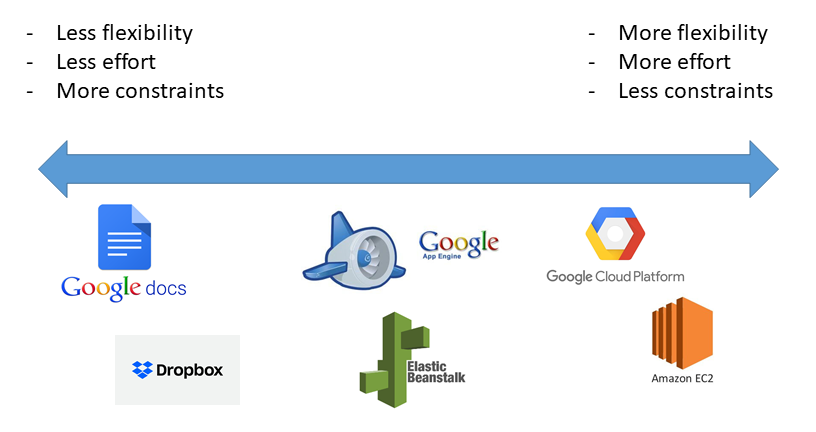

Flexibility-effort-constraints

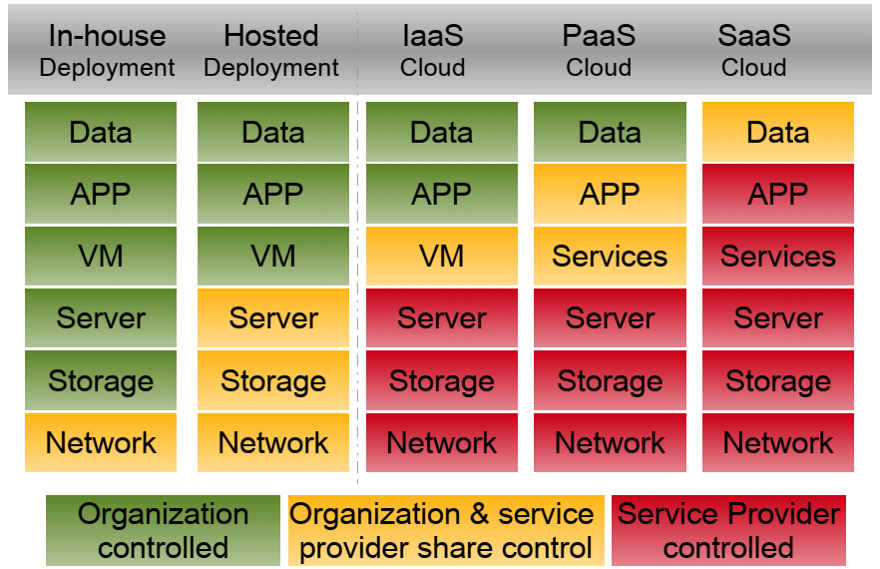

Sharing of controls: Organization versus Provider

XaaS: Everything-as-a-Service

• Composite second level services
• NIST Evaluation of Cloud Computing Services (2018) p. 20

---

6. NIST: Four deployment models

Four deployment models

• Private Cloud
• Community Cloud
• Public Cloud
• Hybrid Cloud

Private cloud

• Infrastructure is organized solely for an organization
• Infrastructure is managed by the organization or by a third party

Community cloud

• Supports a specific community
• Infrastructure is shared by several organizations
• Examples: CloudLab

Public cloud

• Infrastructure is made available to the general public
• Infrastructure is owned by an organization selling cloud services
• Example: Azure Notebook free tier.

Hybrid cloud

• Infrastructure is a composition of two or more clouds deployment models.
• Enables data and application portability

---

7. Computer Security

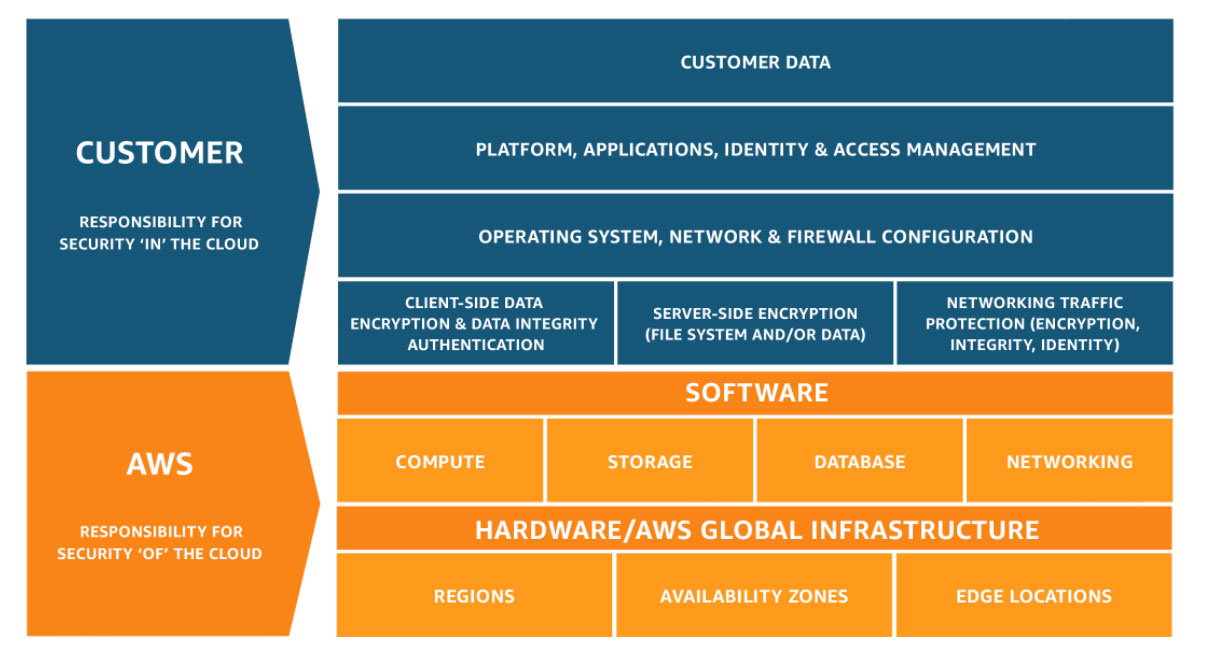

Who is doing what

• The cloud provider is responsible for the security OF the Cloud.
• The cloud consumer (users) is responsible for the security IN the Cloud.

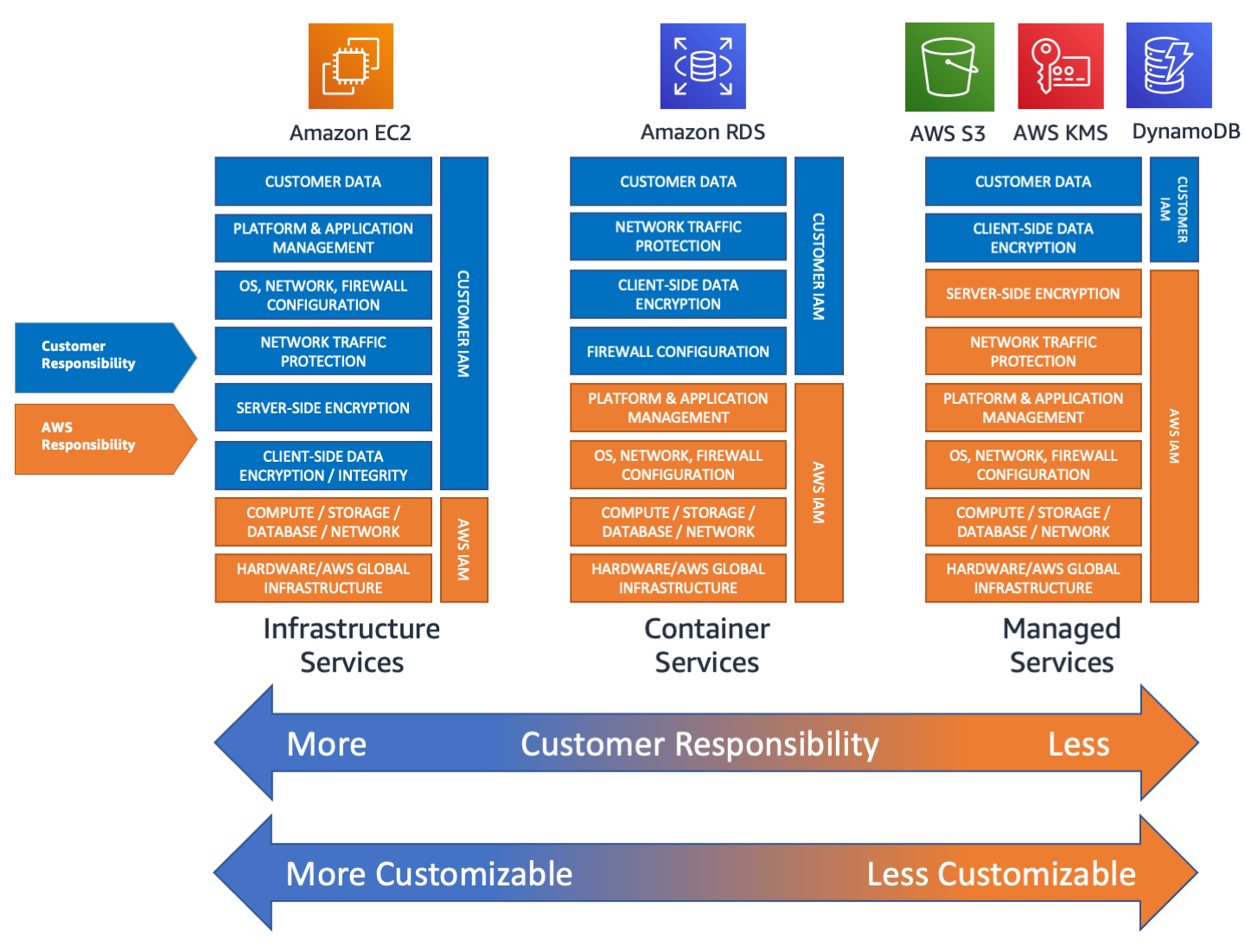

• Responsibility scale according to control level

Cloud consumer

• SaaS/PaaS:
  • Standard security procedure for online presences.
• IaaS:
  • Standard security procedure as any on-premise infrastructures.
  • Benefits from native administrative tools from the Cloud Provider.

Cloud provider: SaaS security

• SaaS:
  • Web application security: OWASP’s Top 10
  • Multi-tenancy: data isolation/leakage
  • Data security: accessibility versus security trade-off

Cloud provider: PaaS security

• Similar security concerns as SaaS
• Complex security schemes due to potential third-party relationships.
• Development Lifecycle
  • Users depend on PaaS providers to patch security issues of the individual tools.

Cloud provider: IaaS security

• Standard security measures.
  • To Cloud Provider, cloud resources are on-premise.
• Concerns with virtual machines’ security
• Concerns with virtual networking security
