CD/CI with Docker Compose

CD/CI with Docker Compose

---

1. Set up environment

CloudLab

• Deploy your Cloud experiment, Docker branch.
• For today’s lecture, each student should launch their own experiment.

Setup GitHub repository

• Visit branch go_app_compose_cdci of the hello repository
• Create a new repository, and make sure that you have copied all contents from the branch.
  • We will modify the contents later.

Docker Hub Token

• Open a browser, visit Docker Hub and login to your account.
• On the top right corner, click on your profile, then select Account Settings

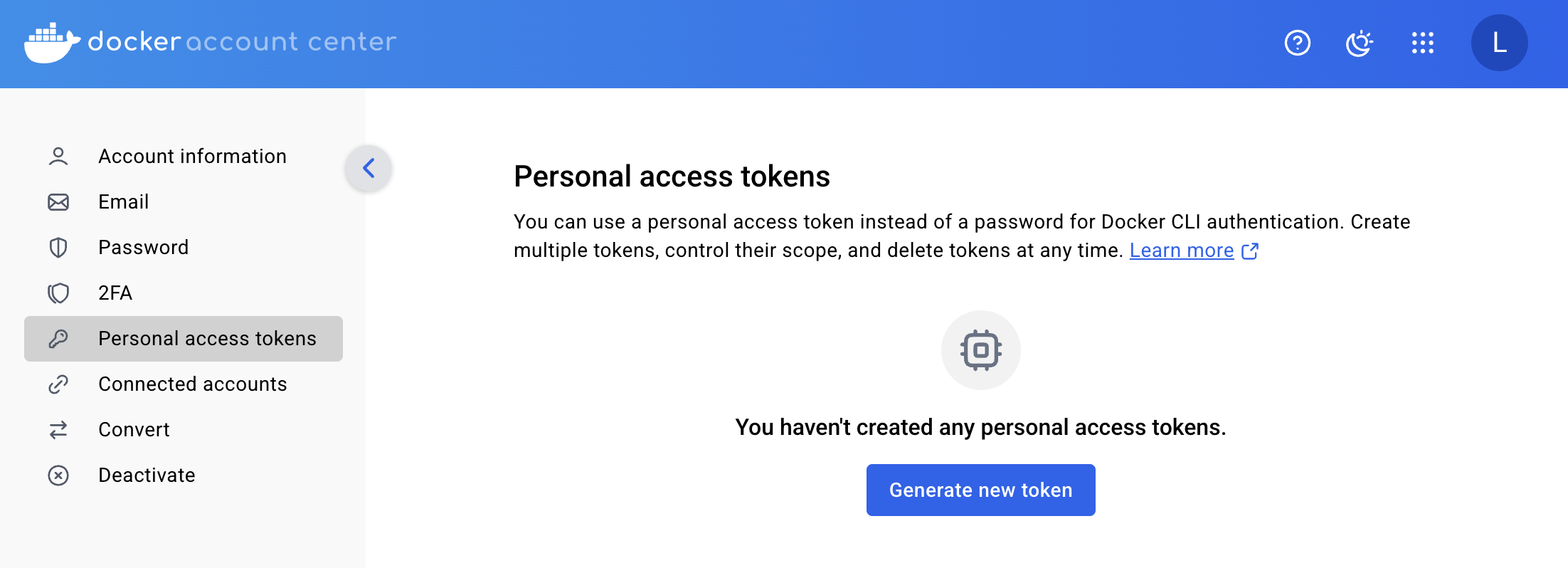

• Select Personal access tokens

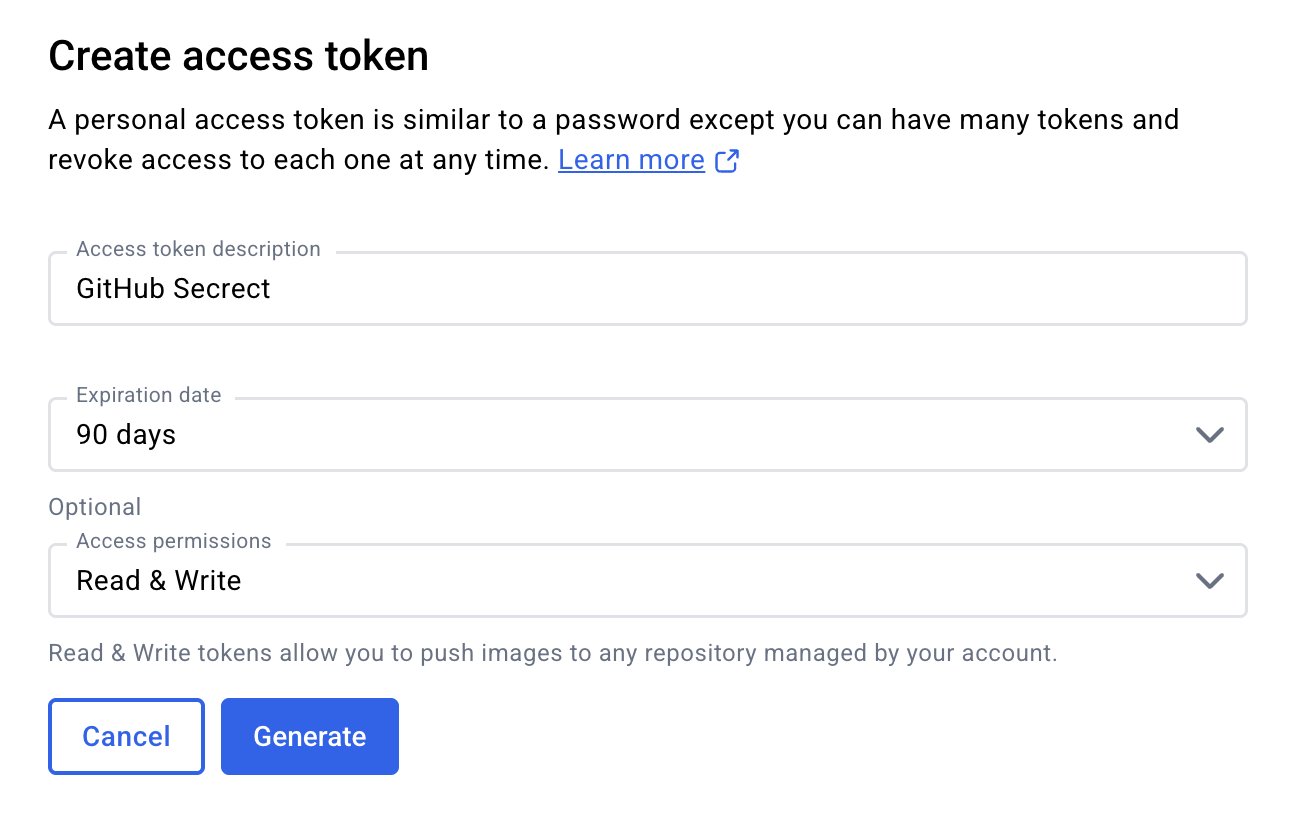

• Click on Generate new token
  • Access token description: GitHub Secret
  • Expiration date: 90 days
  • Access permissions: Read & Write

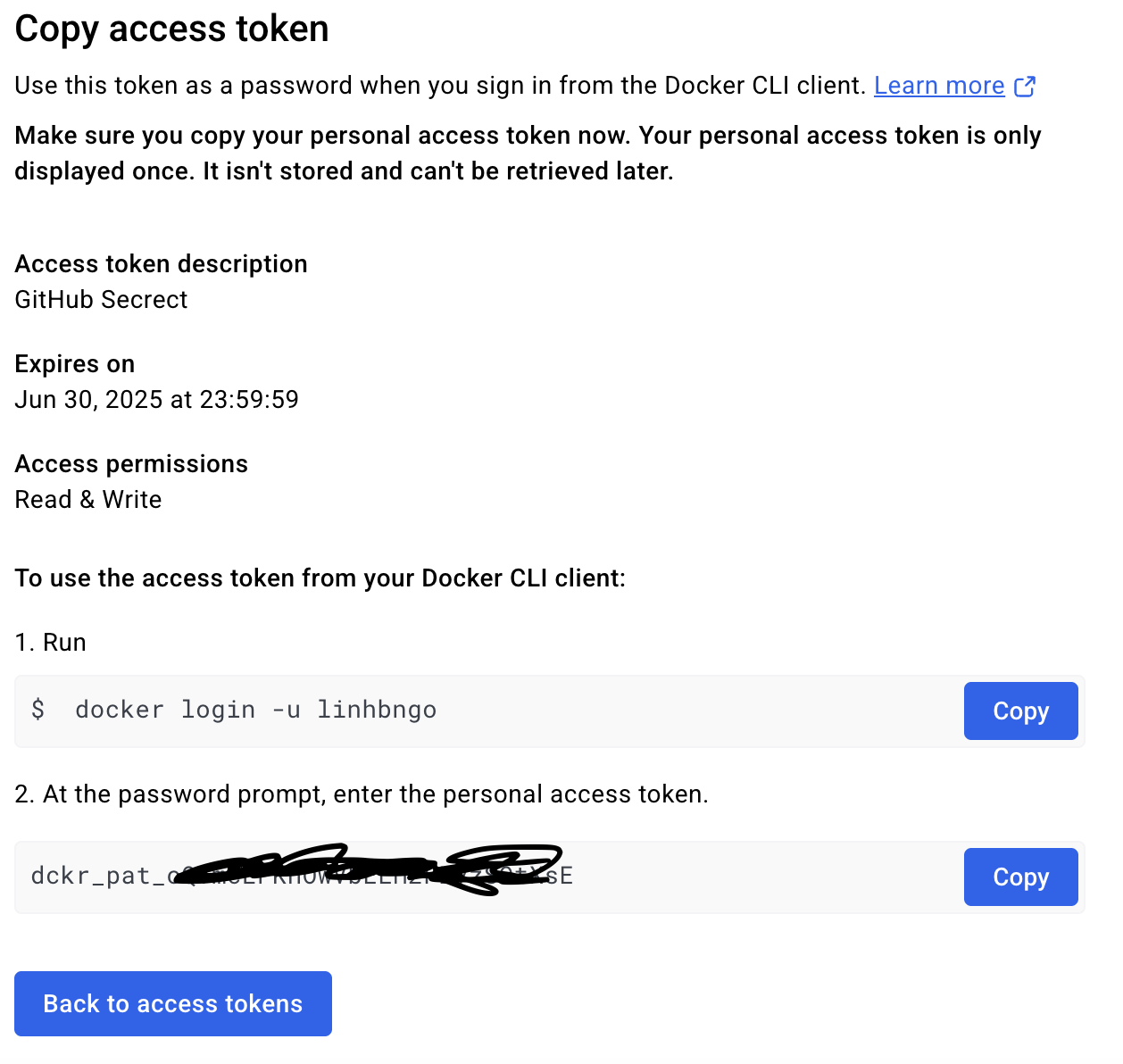

• Then click on Generate

• Keep the page with the personal access token open, as we will need that for later.

Setup GitHub secret

• Go to the GitHub repository that you crealed earlier.

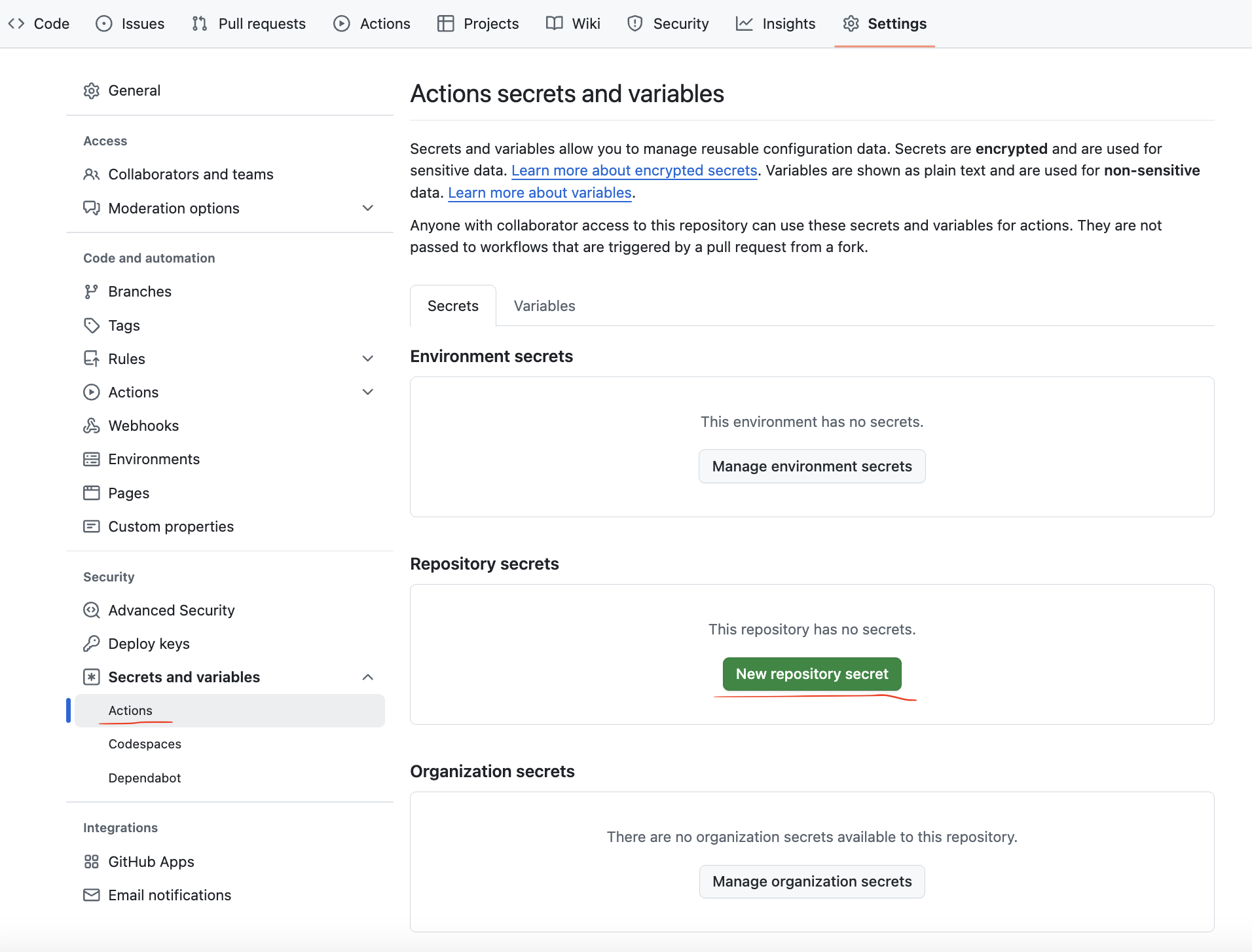

• Visit Settings/Secrets and variables/Actions/new repository secret

• Add the following secrets:
  • DOCKERHUB_TOKEN: your DockerHub login name
  • DOCKERHUB_USERNAME: The secret token generated by Docker Hub earlier.

Setup GitHub runner

• Go to the GitHub repository that you crealed earlier.
• Visit Settings/Actions/Runners
• Click on New self-hosted runner
  • Select Linux/x64
  • SSH into your Docker experiment on CloudLab
  • Run all the commands under Download and Configure section.
  • Keep the terminal open.

---

2. Prepare the service

Making edit

• You can do this directly via the GitHub browser environment.
• Modify docker-compose.yml as follows
  • Adjust lines 6 and 8 to replace my Docker Hub username with your DockerHub username.
• Modify .github/workflows/publish.yml as follows
  • Adjust lines 5 and 15 with the branch containing your contents (most likely main)
  • Adjust line 32 to replace my Docker Hub username with your DockerHub username.

Deploy your service

• Login into your CloudLab Docker experiment using another terminal.
• Clone the Git repository (use HTTPS option)
• Change into the repository and run the followings:

1
2

docker compose build go_app --no-cache
docker compose up -d


• Open a browser tab and use your experiment hostname at port 8080.

Observe CD/CI

• Change to the test being displayed by editing the main.go file.
• Observe the Action workflow being carried out, and that the browser display the content of the web app being changed by refreshing.
