Docker Storage

Docker: Storage

1. Overview

Why does storage matter?
  • Applications (and supporting libraries) are packaged inside container images.
  • Running containers are instants of these images
    • Will eventually be removed.
    • Modifications will be lost if not committed into a new image.
  • This has implications on the application: stateless or stateful?
Stateless applications
  • Do not retain any client or session data beyond the request/response cycle
    • All requests/responses are independent from one another
    • No historical knowledge is necessary
    • Have no dependency on persistent storage
    • Can be easily scaled by adding more containers
    • Will not loose critical data if containers are properly stopped/restarted
  • Examples: web servers, REST APIs
Stateful applications
  • Retain data across multiple interactions or previous session information
    • Require persistent storage
    • If containers are stopped or restarted, there are risk of loosing critical data
    • Scaling can be complex
  • Examples: databases, message queues

2. The Linux Storage Model

The Virtual File System (VFS)
  • In Linux, Everything is a file, but
    • not all files are on disks.
  • The VFS (Virtual File System) is a kernel layer that abstracts physical storage.
  • It allows the kernel to treat a physical disk, a network share, and a memory block (tmpfs) identically.
  • Docker does not “create” storage; it manipulates the Mount Namespace to map VFS pointers.
Inodes: The Reality of Files
  • A filename (e.g., /app/data.txt) is just a human-readable label.
  • The actual data is referenced by an Inode (Index Node), which contains metadata (permissions, owner) and pointers to disk blocks.
  • If two filenames point to the same Inode, they are the same physical file.
The mechanics of linking: Hard vs. Soft Links
  • Before understanding Docker Volumes, we must understand how Linux handles file references.
  • Hard Link: A second filename pointing to the same Inode number.
    • All hard links are equal; there is no “original.”
    • The data is deleted only when the last link to the Inode is removed.
  • Soft (Symbolic) Link: A file that points to another path.
    • Has its own unique Inode.
    • If the target path is deleted, the link becomes “broken.”
Hands-on: Proving Links in Linux
  • Step 1: Create Data


1


echo "Important Data" > original.txt
  • Step 2: Create Links


1
2
3
4


# Create a Hard Link (Direct reference to inode)
ln original.txt hard.txt
# Create a Soft Link (Reference to path)
ln -s original.txt soft.txt
  • Step 3: Forensic Inspection


1


ls -li *.txt
  • Observation:
    • Look at the first column (Inode Number). original.txt and hard.txt have the identical number.
    • Look at soft.txt. It has a different number, and explicitly points -> original.txt.
  • Step 4: The Persistence Test


    1
2
3


    rm original.txt
cat hard.txt   # SUCCEEDS: Data still exists because Inode ref count > 0
cat soft.txt   # FAILS: "No such file or directory"
Connection to Docker
  • Docker storage options utilize these kernel linking concepts across namespaces.
  • Key Takeaway: The persistence nature of data depends on the mounting mechanism used.

3. Docker Storage

Docker Storage Concepts
  • Multiple layers
    • Read-only and writable layers for containers and their images.
  • OverlayFS
    • Based on UnionFS
  • Have three types:
    • Volumes
    • Bind mounts
    • Tmpfs mounts
The Persistence Model
  • Data persists on the disk as long as the Inode Reference Count > 0.
  • We can classify Docker storage types by who holds the “Anchor” (the primary link to the Inode).
Case A: Bind Mounts (The User Anchor)
  • Mechanism: You explicitly link a directory on your Host (/home/user/data) to the Container (/app).
  • The Anchor: The Host Operating System holds the primary reference.
  • Lifecycle: Even if Docker removes the container’s reference, the data persists because the User/Host OS still holds the “Anchor.”
Case B: Docker Volumes (The Managed Anchor)
  • Mechanism: Docker creates a directory in its own protected area (/var/lib/docker/volumes/).
  • The Anchor: The Docker Daemon holds the primary reference.
  • Lifecycle: Even if the container is deleted, the data persists because the Docker Daemon maintains the Volume object separate from the container’s lifecycle.
Case C: Container Root (The Ephemeral Link)
  • Mechanism: The container writes to the UpperDir of the OverlayFS.
  • The Anchor: The Container Process itself is the only entity holding a reference to this specific layer.
  • Lifecycle: When the container dies, the Inode reference count drops to zero. The data is garbage collected (deleted).
Union file systems
  • “Combines the namespaces of two or more file systems to produce a single merged namespace” - Valerie Aurora, LWN 2009.
    • A real-only file system with an writable overlay on top
  • The overlay store changes and allow arbitrary manipulation of the combined namespace
    • whiteout items from the read-only layer if they are modified in the writable layer.
  • Docker uses OverlayFS, an implementation of a union file system
  • Run docker info and identify your Docker’s Storage Driver
The Architecture of Overlay2
  • Docker uses the overlay2 storage driver by default.
  • It constructs the container’s root filesystem using four directories:
    1. LowerDir: Read-only Image layers.
    2. UpperDir: The read-write layer (where the container writes).
    3. WorkDir: Internal directory for atomicity.
    4. MergedDir: The unified view the container sees.
Container storage
  • Layered storage: Each Docker image is built from multiple layers
  • Read-only base layers: Image layers are immutable and shared between containers.
  • Writable container layer: Any changes made in a running container occur in this topmost layer.
  • Copy-on-Write (CoW): When a file in a lower layer is modified, it is copied to the writable layer.
  • Example: linhbngo/csc331:19.05
The Engineering Cost of Copy-on-Write (CoW)
  • The Scenario: A container tries to modify a 1GB file that exists in the Image (LowerDir).
  • The Mechanics:
    1. Trap: The kernel intercepts the write attempt.
    2. Pause: The writing process is blocked.
    3. Copy: The kernel copies the entire 1GB file from LowerDir up to UpperDir.
    4. Write: The process is unblocked and writes to the copy in UpperDir.
  • The Consequence: This introduces massive I/O Latency.
  • Engineering Principle: NEVER put high-write workloads (like Databases) on the Container Root. Always use Volumes to bypass OverlayFS.
Volume and Bind Mounts
The mount --bind Syscall
  • Both Volumes and Bind Mounts bypass the slow OverlayFS driver.
  • They function by injecting a VFS pointer directly into the container’s Mount Namespace.
  • Performance: Zero overhead. Reads/Writes happen at native disk speed.
Engineering Distinction: Volume vs. Bind Mount
  • Bind Mount: User can specify the host Inode location (e.g., /home/user/project).
    • Use Case: Development (Source code edits reflect instantly).
  • Volume: Docker controls the host Inode location.
    • Use Case: Production & Ops. Docker handles permissions, migrations, and drivers.
Docker Volume
  • A persistent storage mechanism that allows data to be stored outside of a container’s filesystem.
    • This allows data to be retained after the containers are stopped or restarted.
  • Run the following commands to create and inspect a new volume


1
2
3


docker volume create myrepo
docker volume ls
docker volume inspect myrepo
  • Create two containers called point1 and point2 in interactive mode
  • Container point1 is an alpine container and will mount myrepo as directory /point1
    • The flag v represents the mount of the volume myrepo to /point1.


1


docker run -it --name point1 -v myrepo:/point1 alpine sh
  • Create a directory called the_ram_was_here inside /point1.
  • Container point2 is an alpine container and will mount myrepo as directory /point2


1


docker run -it --name point2 -v myrepo:/point2 ubuntu sh
  • Check that the_ram_was_here exists inside /point2
Bind Mounts
  • Allow the mounting of a specific directory from the host into a container.
  • Files created inside the container appear immediately on the host machine, and vice versa.
  • The directory must exist on the host before the container starts.
    • We are still using the v flag, but the part in front of the : should now point to a directory.
  • Create a new directory called my_host_repo in the current directory.
  • Use the realpath command to get the full path to my_host_repo (Linux/Mac only).
  • Launch an interactive container with the alpine image and mount the new directory to a directory called /from_host using the v flag.
    • The host directory path must be the full path!
    • Create some test contents inside /from_host
    • Exit the running container.


1
2
3
4
5
6


mkdir my_host_repo
realpath my_host_repo
docker run -it -v /Users/lngo/my_host_repo:/from_host alpine sh
cd /from_host
touch test
exit
  • Check that test is now created in the my_host_repo directory.
  • Launch an interactive container with the ubuntu image and mount the new directory to a directory called /from_host using the v flag.
    • The host directory path must be the full path!
    • Check that /from_host directory also contains the test file.


1
2
3
4


docker run -it -v /Users/lngo/my_host_repo:/from_host alpine sh
cd /from_host
ls
exit
Tmpfs Mounts
  • temporary in-memory filesystem that does not write data to disk, but to memory directly.
  • OS Concept: This utilizes the Linux Virtual Memory manager.
  • Security Theory: Data is stored in Pages (RAM). If the host loses power, data vanishes. It is never flushed to the physical disk platter, making it ideal for secrets.
  • Fast ephemeral storage will go away once the container stops.

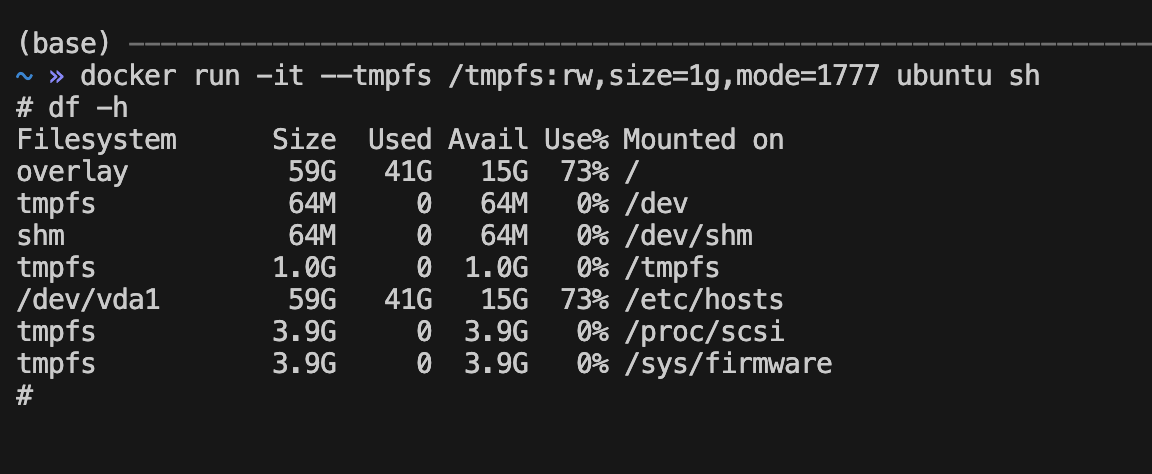

  • Run an interactive shell with a tmpfs mount using the following command.
    • --tmpfs flag specifies the setup of the tmpfs mount, with permission, size, and management mode.
    • Use df -h to check that your mount is available inside the container.


1
2
3


docker run -it --tmpfs /tmpfs:rw,size=1g,mode=1777 ubuntu sh
df -h
exit
Best Practices for Docker Storage?
  • Docker Volume
    • Persistent storage that can survive container restarts
    • Portable data across different Docker host
    • Sharing databases, logs, application data, or shared storage across multiple containers
    • Docker-managed storage
    • Isolation from host
  • Bind mount
    • Access to host files from inside containers
    • Access to configuration files, logs, or source code from host
    • Real-time file updates
    • Security is not a primary focus
  • tmpfs mount
    • Fast, temporary storage on RAM
    • Data that disappears when container stops
    • Reduce disk writes

4. Hands-on

Bind mounts
  • Launch a nodejs container with a bind mount to a host directory.
  • Mount this host directory to an internal directory called /app
  • Create the server.js file inside the host directory and use the nodejs container to test:


1
2


cd /app
node server.js
Forensics and Inodes
  • This must be done on a Linux environment (CloudLab)
    • Windows and Mac use a virtual machine to run the Linux host file, therefore this cannot be observed on either Windows WSL2 or Mac Terminal.
  • On the host machine, create a file and identify its Inode Number.


1
2
3


echo "This is physical evidence" > host_evidence.txt
ls -i host_evidence.txt
# Example Output: 123456 host_evidence.txt
  • Run a container mapping this file.


1


docker run -it -v $(pwd)/host_evidence.txt:/container_evidence.txt ubuntu:20.04 bash
  • Inside the container, check the Inode.


1
2


ls -i /container_evidence.txt
# Output: 123456 /container_evidence.txt
  • Observation: The Inode numbers are identical.
  • Conclusion: There is no “Container File” vs “Host File”. There is only one physical set of blocks on the disk, with two different doors (VFS entries) leading to it.
