Introduction to Docker Containers

1. Setup

Older version of Docker Desktop

If you had previously installed Docker Desktop on your system, you need to make sure that what you have installed is up to date. The latest Docker Desktop and the accompanying Docker Engine contain many useful tools to help administrating your images and containers.

This material is written on: - Docker Desktop version 4.35.1 (173168) - Docker Engine: 27.3.1 - Docker Compose: v2.29.7-desktop.1

It is possible that by the time that you read this setup, the versions you have will be higher. That would be a good thing!

Links to download and install Docker Desktop

Select the appropriate link for your computing platform:
- Mac
- Windows
  - You should run Linux containers when installing Docker Desktop for Windows
  - It is recommended that you use WSL2 option when installing Docker Desktop on Windows
- Linux

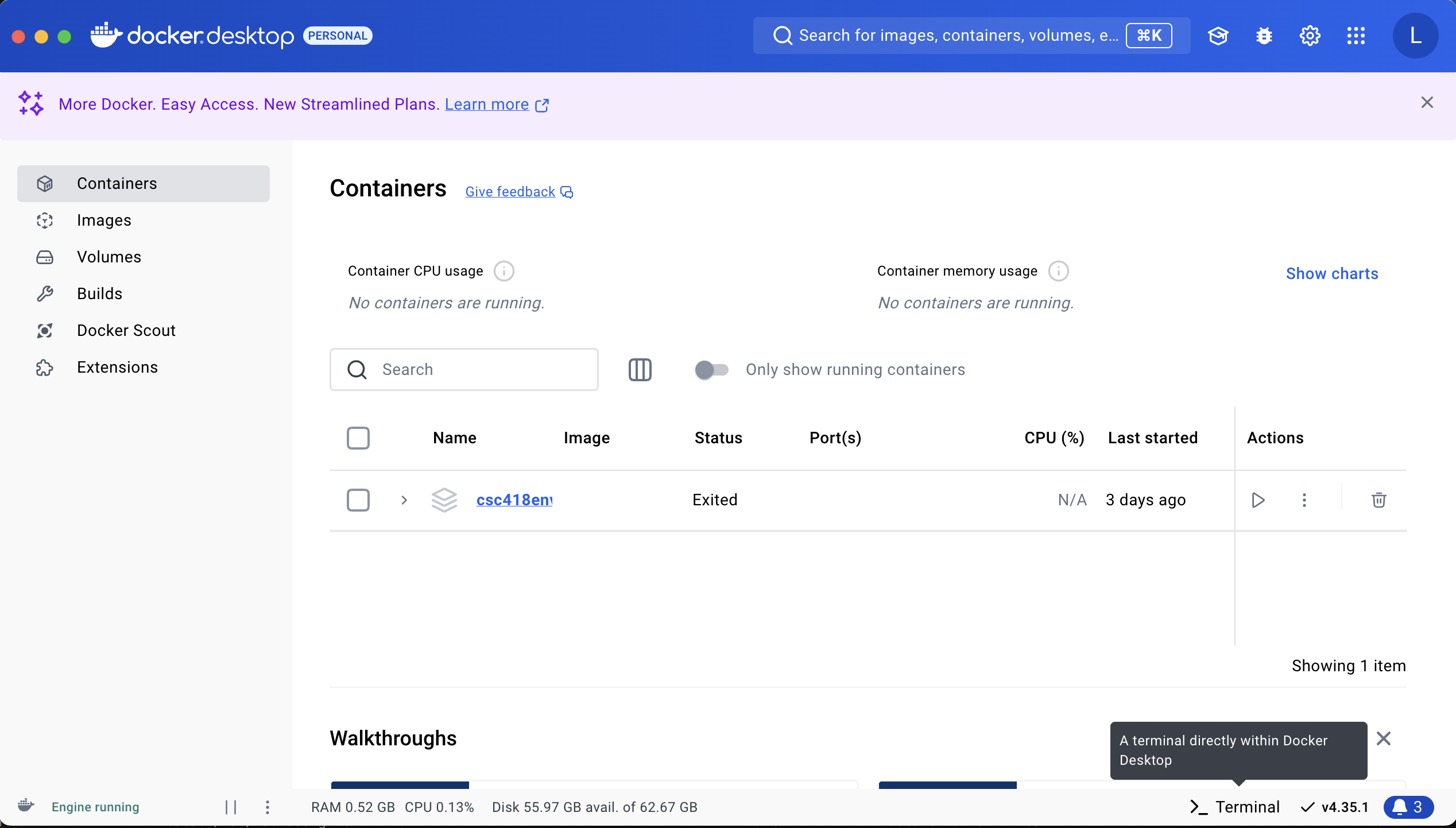

Successful installation and startup of Docker will show the following application
- Screenshot is taken on a Mac, but the GUI should be the same across platforms

Docker Desktop Terminal

The most recent version of Docker Desktop comes with a built-in Terminal.
If you are running the latest Docker Desktop version (4.35.1), this is a default feature available on the lower right corner of the GUI.
For earlier versions, this could show up as a beta feature.

The remainder of this workshop will use the Docker Desktop Terminal app for consistency purpose. All the CLI docker commands can be executed on the standard Linux-based terminal of Mac and Linux platforms.

Docker Hub

Docker Hub is one of the public repository for Docker images (think GitHub for container images).
You should register for Docker Hub account at https://hub.docker.com and use it to log into your Docker Desktop environment (similar to how you link your GitHub account to GitHub Desktop, if you use GitHub Desktop).

2. Introduction to Docker

Motivation

Limit the chaos between computing platforms of
- Development and production
- Developers, Testers, and Users
- Dependencies of various software components across a full-stack infrastructure
- …
Inspiration
- Shipping containers
- Ship anything under any forms anywhere

Getting started

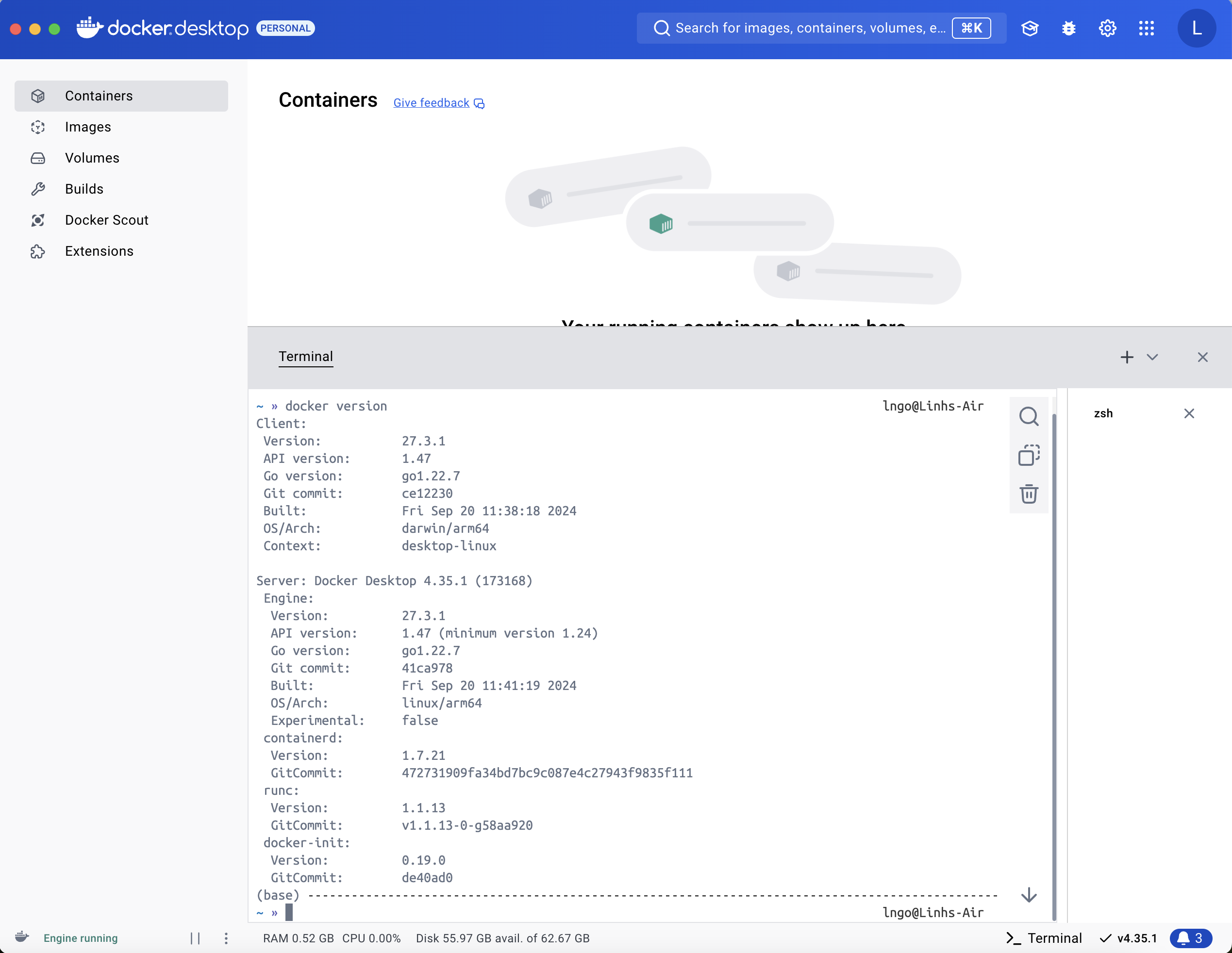

Launch your Docker Desktop app
Open the built-in terminal and run

 docker version


Overview of Docker

Docker is client-server application.
- Docker daemon (Engine): receives and processes incoming Docker API request and requires root privilege.
- Docker Hub registry: collection of public images (https://hub.docker.com/).
- Docker client : Talks to the Docker daemon via the docker API and the registry API.

Hands-on: Hello world

Docker containers are instantiated from Docker images.

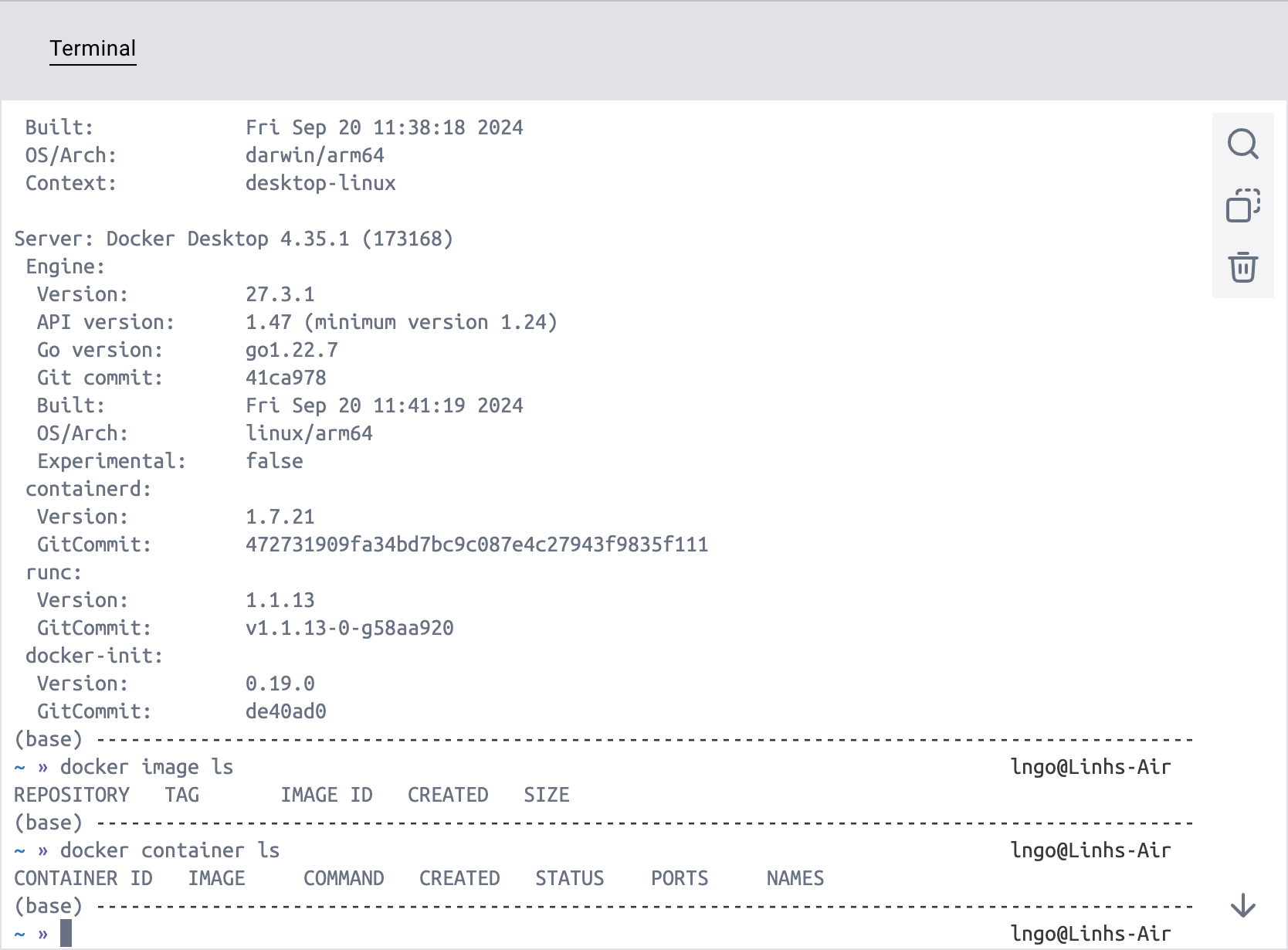

You can check availability of local images and containers.

 docker image ls
docker container ls


If you click on the Images and Container tabs, you can also confirm that there is no existing container or image on your Docker environment.

We want to issue the following to start a service that will echo hello world to the screen.
- This requires a Linux container to run the echo command.

 docker run alpine echo hello, world
docker image ls
docker container ls
docker container ls --all

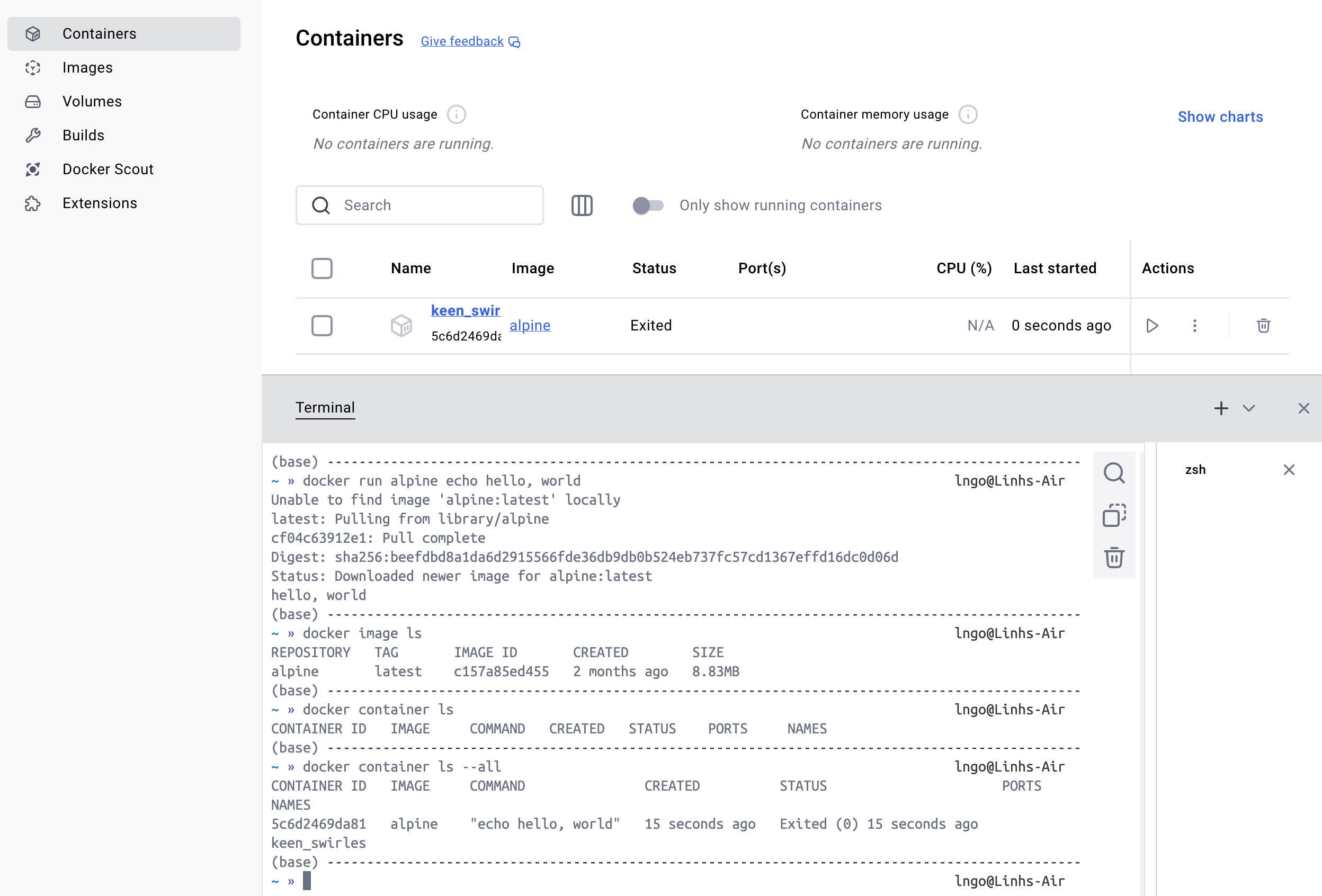

The outcomes of the above commands are shown in the screenshot below
- User want to run a Linux command using an alpine Linux container
- There is no locally available alpine image, therefore Docker goes ahead and download the image.
- Docker uses the image as a blueprint to launch a container, which then executes the echo hello, world command.
- The container is shutdown after the execution.

docker run alpine echo hello world
- docker: invoke the container engine.
- run: subcommand to run a container.
- alpine: name of the image based on which a container will be launched.
- echo hello, world: the command to be executed in the container environment.
docker image ls
- Now an image shows up (it has just been downloaded)
- The Image tab should also show the alpine image
docker container ls
- There is no running container listed. Although, you can see from the GUI that there was a container there.
docker container ls --all
- This command shows all containers, including those that finished running.

Hands-on: Interactive container

We can launch a container and get into the shell of the container.

 docker run -it ubuntu bash


You are now in a new prompt: a shell inside the container
- notice the changes in the prompt comparing to the previous prompt where you type in the docker run … command
- This is important when you are on the terminal to know whether you are inside the container’s environment or the host machine’s environment.
-it: combination of -i and -t.
- -i tells Docker to connect to the container’s stdin for interactive mode
- -t tells Docker that we want a pseudo-terminal
Let’s attempt to run figlet inside the container (# prompt)

 figlet hello


There will be an error: bash: figlet: command not found
The current container does not have the figlet program yet.

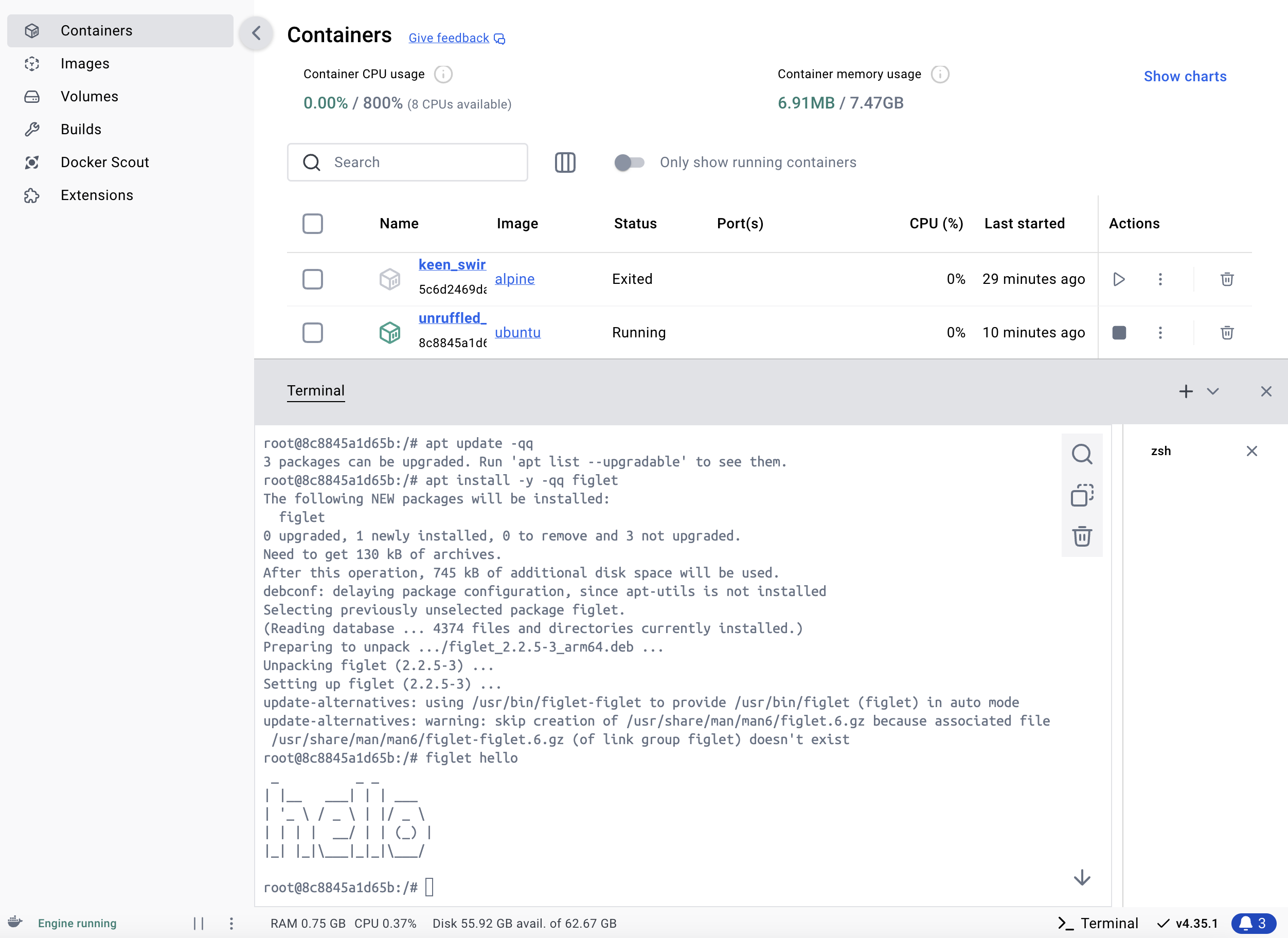

Let’s install figlet inside the container (# prompt)

 apt update -qq
apt install -y -qq figlet
figlet hello


Exercise: exit container

Type exit to shutdown the container and back to your normal terminal.
Repeat the process of launching an interactive container from start and try running figlet again.
Is the figlet program still there?

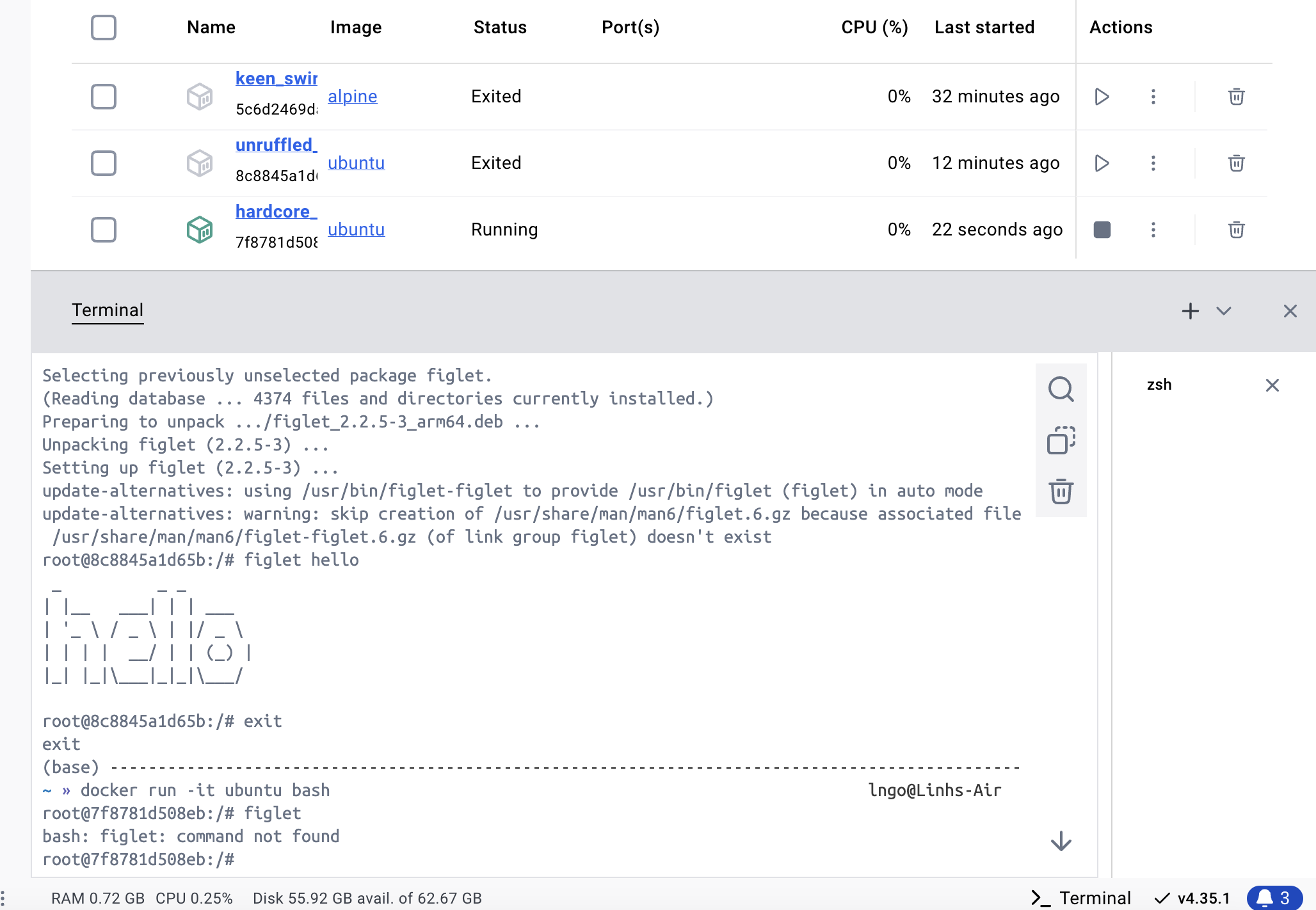

Solution

The figlet program is no longer available again.
Notice the recently shutdown container and the newly created container from the upper half of the GUI.

Hands-on: Background container

You should have already exited out of the container shell and back to the host machine environment.
Run the following command
- Press Ctrl-C to stop after a few time stamps.

 docker run ubuntu /bin/sh -c "while date; do sleep 1; done"


Run the following command

 docker run -d jpetazzo/clock
docker container ls

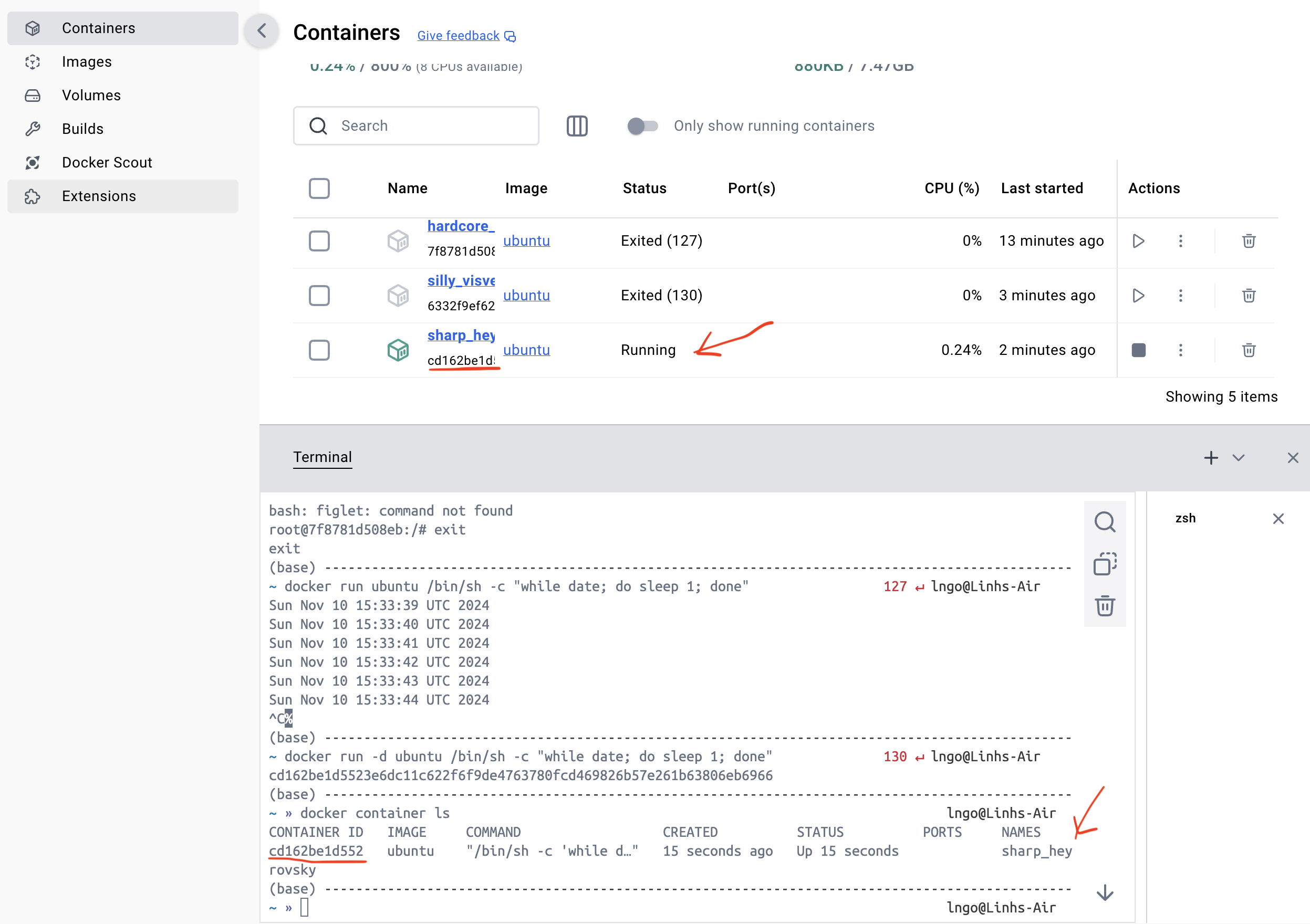

Notice in the screenshot that you are now returned to the host machine’s terminal.
A running container is shown in both the docker container ls command and in the GUI’s container tab.
The hash string, underlined by the red line, is a unique identifier for containers.

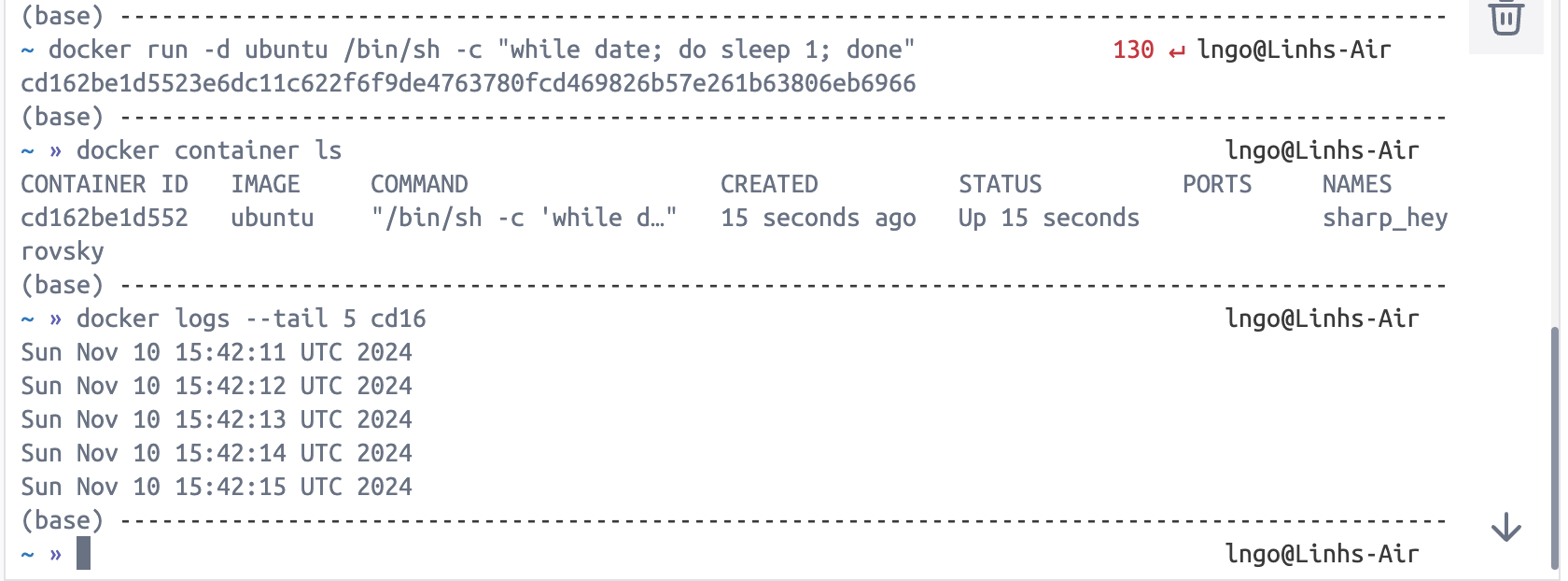

Use the first four characters of your container ID to view the log of the running Docker container
- From the above screenshot, it is cd16
Use --tail N to only look at latest N lines of the log.

 docker logs --tail 5 cd16


To kill a running container, you can use docker kill with the container ID or click on the Stop or Trash Can icons on the container’s line inside the GUI’s Container tab.

Hands-on: Memory limit

How does Docker help restrict resources?

 docker run -it --memory 100M ubuntu bash


--memory: limit size of memory in bytes, megabytes (M), …
Test the limits:

 apt update
apt install -y stress
stress --vm 1 --vm-bytes 99M --vm-keep
stress --vm 1 --vm-bytes 101M --vm-keep


3. Docker Images

Docker images

Image = files + metadata
The files form the root filesystem of the container
The metadata describes things such as:
- The author of the image
- The command to execute in container when starting it
- Environment variables to be set
- …

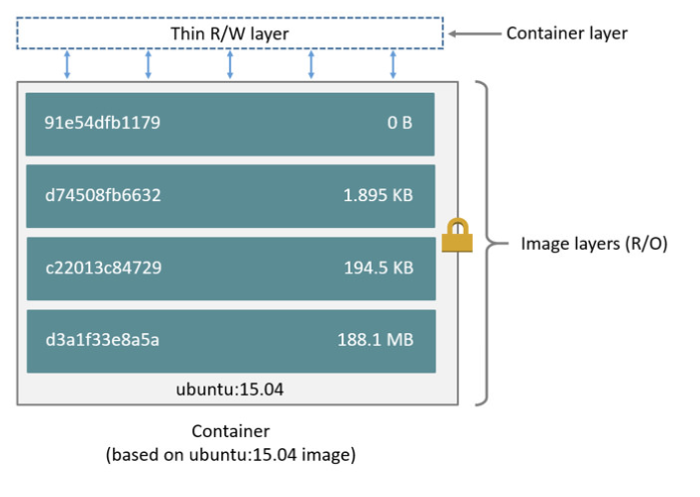

Images are made of layers, conceptually stacked on top of each other.
Each layer can add, change, and remove files and/or metadata.
Images can share layers to optimize disk usage, transfer times, and memory use.

Example of a Java webapp

CentOS base layer
Packages and configuration files added by our local IT
JRE
Tomcat
Our application’s dependencies
Our application code and assets
Our application configuration

The read-write layer

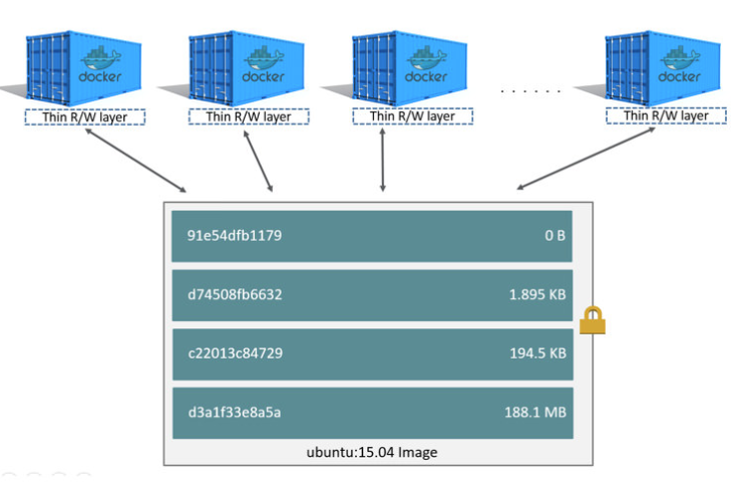

Containers versus images

An image is a read-only filesystem.
A container is an encapsulated set of processes running in a read-write copy of that filesystem.
To optimize container boot time, copy-on-write is used instead of regular copy.
docker run starts a container from a given image.

Object-oriented analogy
- Images are conceptually similar to classes
- Layers are conceptually similar to inheritance
- Containers are conceptually similar to instances

How do we change an image?

It is read-only, we don’t.
We create a new container from the image
We make changes to the container.
When we are satisfied with the changes, we transform them into a new layer.
A new image is created by stacking the new layer on top of the old image.

Image namespaces

Official images (ubuntu, busybox, …)
- Root namespace.
- Small, distro images to be used as bases for the building process.
- Ready-to-use components and services (redis, postgresl …)
User (and organizations) images: <registry_name>/<image_name>:[version]
- linhbngo/csc331:latest
Self-hosted images
- Images hosted by third party registry
- URL/<image_name>

Hands-on: listing local images and searching for new images

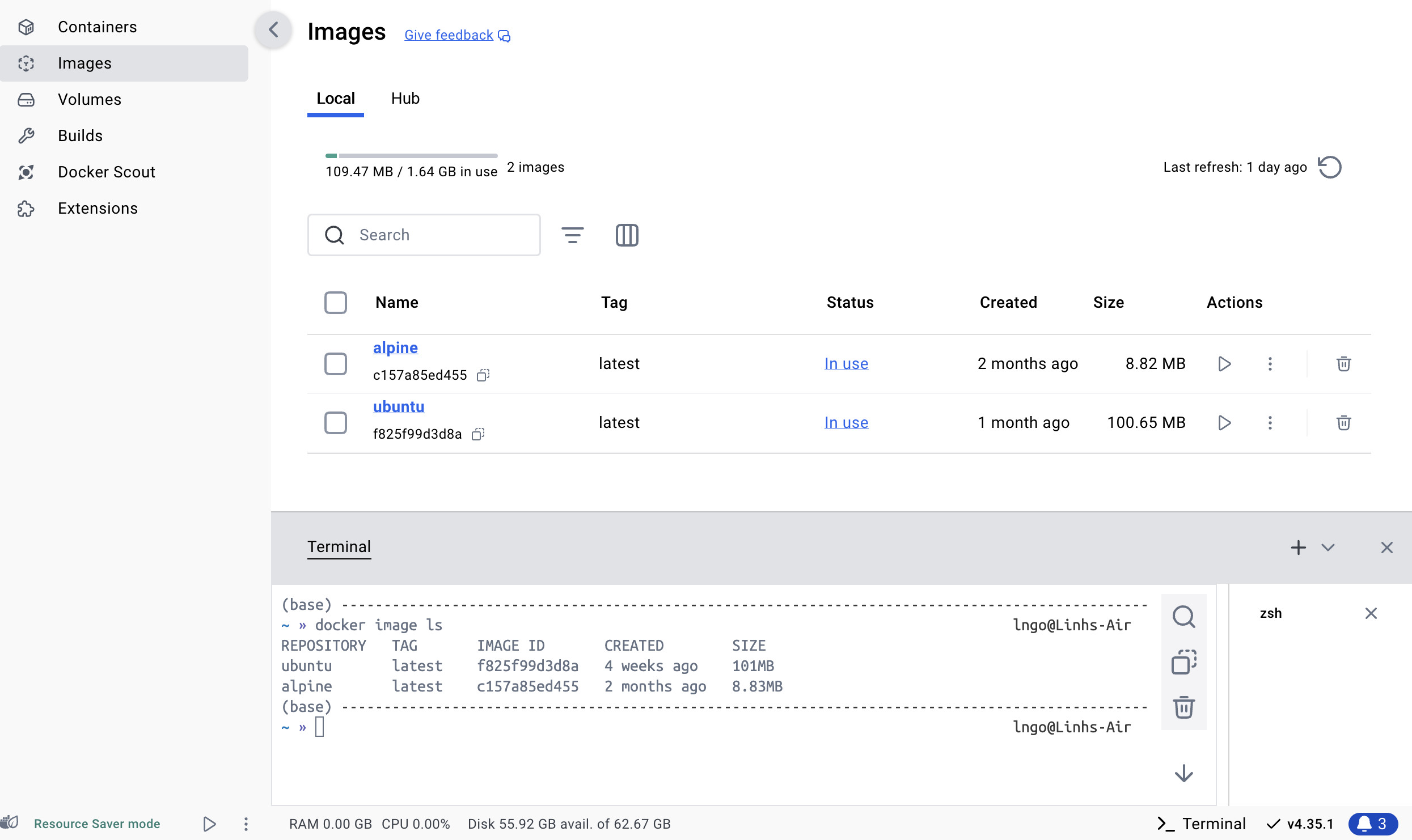

At this point, you should have at least two images downloaded to Docker’s local repository: alpine and ubuntu.

 docker image ls


The command should show two outputs clearly.
You should also see the images listed in the Image tab of Docker Desktop, on the top portion of the GUI.

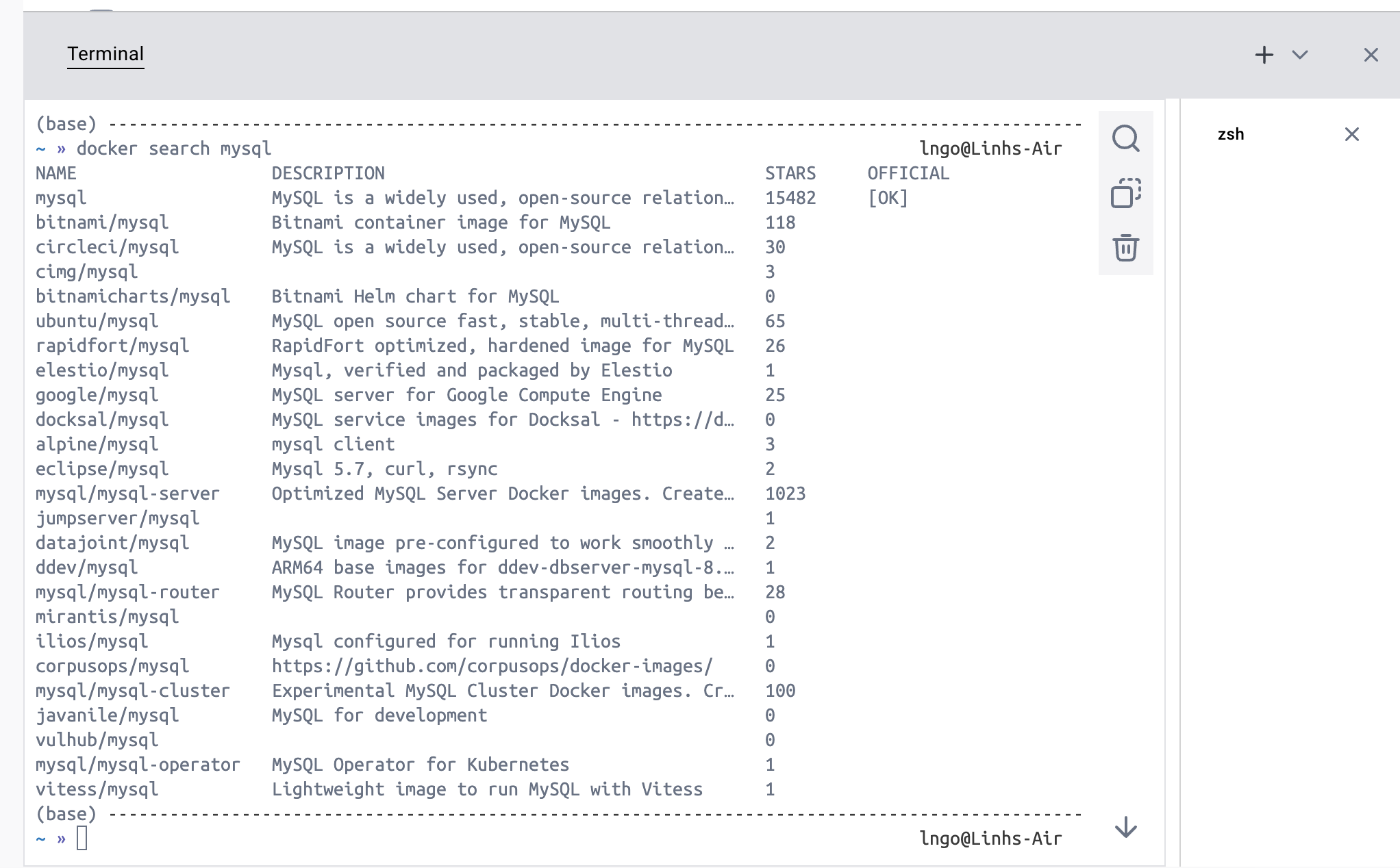

We can search for available images in the public Docker Hub

 docker search mysql


General steps to create an image

Create a container using an appropriate base distro
Inside the container, install and setup the necessary software
Review the changes in the container
Turn the container into a new image
Tag the image

Hands-on: create a container with a base distro

Launch an interactive bash shell on a running container

 clear
docker run -it ubuntu /bin/sh


Install figlet, test, then exit the container
- Remember the hash id of your container

 apt update -qq
apt install -y -qq figlet
figlet hellp
exit


From the screenshot above, next to the top container (the one that just got started and stopped 56 seconds ago), you can see the ID cb2149...
It is possible to check for the differences between this container and the base image with the ID and docker diff

 docker diff cb21


A: A file or directory was added
C: A file or directory was changed
D: A file or directory was deleted

Hands-on: commit changes into a new image

We are still using the container from the previous example.
- From the first screenshot in the previous example, next to the top container (the one that just got started and stopped 56 seconds ago), you can see the ID cb2149...
Run the following commands
- Do not use linhbngo. It is my Docker login. You should use your Docker login.

 docker commit cb21 linhbngo/ubuntu_figlet:1.0
docker image ls


The docker commit ... command created a new image named ubuntu_figlet that is associated with the DockerHub account linhbngo (my DockerHub account). This combination (linhbngo/ubuntu_figlet) is called a repository, and has the tag 1.0.
The docker image ls command shows this image and other images available locally for Docker.

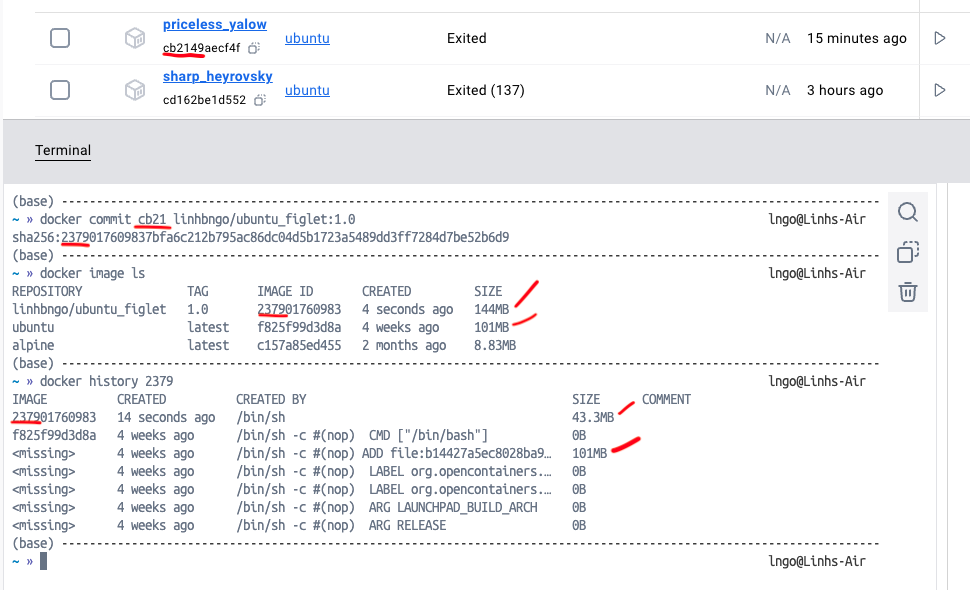

In reviewing the previous screenshot, you can se that a new image has been created with a size of 144MB.
- The original Ubuntu image has a size of 101MB.
We can examine the layers of the newly committed image by running the command docker history ... as shown below.

 docker history 2379


The previous screenshot also shows that the new layer making up the new image has a size of 43.3MB. This, adding to the base ubuntu image, is what giving the new image the size of 144MB (101 + 43.3).
- Docker will not duplicate the base layer, but will reuse this layer storage when additional new images are created from the same base.
You can now push the new image up to Docker Hub:
- If you are not logging into Docker Hub from DockerDesktop, or are running on an external terminal, you will need to run docker login first to sign in to your Docker Hub account.

 docker push linhbngo/ubuntu_figlet:1.0


4. Docker on Linux (in-class activities)

CloudLab Experiment Setup

Instantiate an experiment from your existing CloudLab profile

Docker on Linux

Follow the Install Docker Engine on Ubuntu guide to setup Docker inside your experiment.
Repeat all previous Docker commands/activities for this lecture to practice.
