Introduction

Introduction

This class is based on Stanford’s Mining Massive Datasets course.

Big Data Problems

• Not only the processing power, but the size of the data is also the limiting factor in being able to find a timely solution.
• Input data carry characteristics of Big Data (the Vs)​.
• Input data may or may not be big data​ but computational process produces massive and complex intermediate data that needs to be analyzed during the process.

---

Big Data in Science

• The four pillars of scientific process:
  • Thousands of years ago, science was empirical.
    • describing natural phenomena
  • In the last few hundred years, the theoretical branch is developed.
    • models, generalizations
  • In the last few decades, we have the computational branch
    • simulation of complex phenomena
  • Today, we have added the data-enabled/data-intensive pillar
    • synthesiztion of theory, experiment, and computation with statistics
• Big data analytics in science and engineering for data sets that are:
  • Too big
  • Too complex
  • Too fast (streaming)
  • Too noisy
  • Too heterogeneous

---

Big Data in Industry

• Old statistics
  • In 2008-2009:​
    • Google processed 20PB a day.
    • Facebook had 2.5PB of user data + 15TB/day​.
    • eBay had 6.5PB of user data + 50TB/day​.
  • In 2010-2011:​
    • Facebook had 400M users / 125PB of user data​.
    • eBay had 10PB of user data in 2010, expected to double this number in 2011​
  • In 2012-2013:​
    • Facebook had 900M users​
    • Twitter had 400M Tweets/day
  • We don’t see this kind of statistics collected anymore because it has become the norm.
• Newer (and different) statistics
  • 53% of companies are using big data analytics today
    • Data warehouse optimization, customer/social analysis, predictive maintenance, clickstream analytics, fraud detectiton, and Internet of Things.
    • Spark, MapReduce, and Yarn are among the most popular framework.
  • Medicine, Retail, Construction, Banking, and Transportation are the new industries that are being defined by big data analytic capabilities
  • People don’t explicitly talk about Big Data anymore, it is just there!

---

The Vs of Big Data

• Initially, there were four: Volume, Velocity, Variety, Veracity.
  • Volume: the size of the files used to archive and spread data.
  • Velocity: the speed with which data is generated and processed.
  • Variety: formats and purposes of data, which may include objects as different as samples of animal tissue, free-text observations, humidity measurements, GPS coordinates, and the results of blood tests.
  • Veracity: the extent to which the quality and reliability of big data can be guaranteed. Data with high volume, velocity and variety are at significant risk of containing
    inaccuracies, errors and unaccounted-for bias.
• Other Vs are added over time.
  • Validity: the selection of appropriate data with respect to the intended use. The choice of a specific dataset as evidence base requires adequate and explicit justification, including recourse to relevant background knowledge to ground the identification of what counts as data in that context.
  • Volatility: the extent to which data can be relied upon to remain available, accessible and re-interpretable despite changes in archival technologies. This is significant given the tendency of formats and tools used to generate and analyse data to become obsolete, and the efforts required to update data infrastructures so as to guarantee data access in the long term.
  • Value: the multifaceted forms of significance attributed to big data by different sections of society, which depend as much on the intended use of the data as on historical, social and geographical circumstances.

---

Programming Paradigm for Big Data

• This is challenging on multiple facets
  • Require not only parallel computation but also parallel data processing​.
  • New computational tools and strategies​.
  • New data intensive scalable architectures​.
  • Science is moving increasingly from hypothesis-driven to data-driven discoveries​.
  • Industry is at a stage where big data infrastructures are integrated and big data sets are beginning to be analyzed to produce business insights.

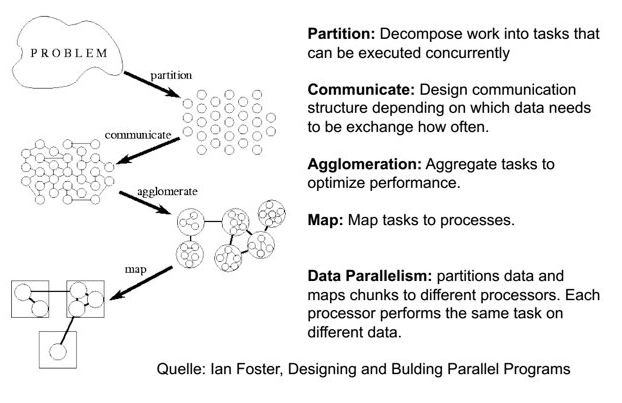

  • Example general paradigm:

  {alt=”Data parallel programming”}

• Example difficulties
  • It is difficult to write parallel programs​
    • Difficult in converting algorithms from serial to parallel​.
    • Difficult in identifying different ways that the program can fail​.
    • No reliable way to detect failure of a process​.
  • It is even more difficult to write parallel programs at large scale​
    • Same set of errors, but scale up with size​.
  • It is even more difficult to debug large scale parallel programs​
    • What if the program doesn’t fail but only produce incorrect results?

---

Data Intensive Approach

• Design principles of data-intensive computing
  • Scale “out”, not “up”​
    • It is easier and cheaper to add nodes to an existing cluster than to build a faster cluster.​
  • Move computation to the data​
    • Reduce data movement.​
  • Sequential processing, avoid random access​
    • Reduce seek movement on disks.​
  • Seamless scalability

---

Data Mining

• To extract the knowledge data needs to be
  • Stored
  • Managed
  • And ANALYZED
  • Data Mining ≈ Big Data ≈ Predictive Analytics ≈ Data Science/Engineering
• Given lots of data, discover patterns and models that are:
  • Valid: hold on new data with some certainty
  • Useful: should be possible to act on the item
  • Unexpected: non-obvious to the system
  • Understandable: humans should be able to interpret the pattern
• Modeling
  • Statistical modeling
  • Machine Learning
• Computational approaches to modeling
  • Summarizing the data (PageRank)
  • Extracting the relevant features of the data (Frequent Itemsets or Similar Items)

---

Meaningfulness of Analytic Answers

• Bonferroni’s principle
  • Meaningless statistical limit can cause analysts can discover patterns that are meaningless
  • Statisticians call it Bonferroni’s principle: Roughly, if you look in more places for interesting patterns than your amount of data will support, you are bound to find crap.

!!!example “Example of Bonferroni’s principle” - We want to find (unrelated) people who at least twice have stayed at the same hotel on the same day - $10^9$ people being tracked - $10^5$ hotels - Each person stays in a hotel 1% of time (p = 0.01) - Hotels hold 100 people - 1,000 days - Suspicious activity: Two random people, on two different days, are both at the same hotel. - If everyone behaves randomly (i.e., no terrorists) will the data mining detect anything suspicious? - Expected number of suspicious pairs of people: - Probability of two people visit a hotel on any given day: $0.01\times0.01=0.0001$ - The probability that each person select a specific hotel: $0.0001/10^5=10^{-9}$ - The probability that both* select the same specific hotel: $10^{-9}\times10^{-9}=10^{-18}$
- Suspicious activity to be monitored: number of pairs of people ($5\times10^17$) multiplied by the number of pairs of days ($5\times10^5$) multiplied by the probability that **both select the same hotel on the same date: 250,000 - Too many to observe …

---

Things Useful to Know

• TF.IDF measure of word importance
  • Measure how concentrated into relatively few documents are the occurrences of a given word.
  • Suppose we have a collection of $N$ documents.
  • $f_{ij}$ to be the frequency (number of occurrences) of term (word) i in document j.
  • The term frequency (TF): $TF_{ij}=\frac{f_{ij}}{max_{k}f_{kj}}$
  • The inverse document frequency (IDF): $IDF_i=log_2(N/n_i)$ with term i appears in $n_i$ of the N documents.
  • The TF.IDF score for term is is $TF_{ij}\times IDF_i$
  • The terms with the highest TF.IDF score are often the terms that best characterize the topic of the document.
• Hash function
  • Given $B$ buckets,
  • A hash function uses a data value to produce a bucket number $b$ that is in the range of 0 to $B-1$
• Indexes
  • Similar to pointer …
  • Given an index value, we can access all data related to that index without scanning through the entire collection.
  • Index can be built from hash table
• Secondary storage and memory hierarchy impact
  • Cache/memory/disk/network
  • Performance differences can be in multiple orders of magnitude
  • Understand data placement on secondary storage is important
