Link Analysis

History

Web page organization in the past

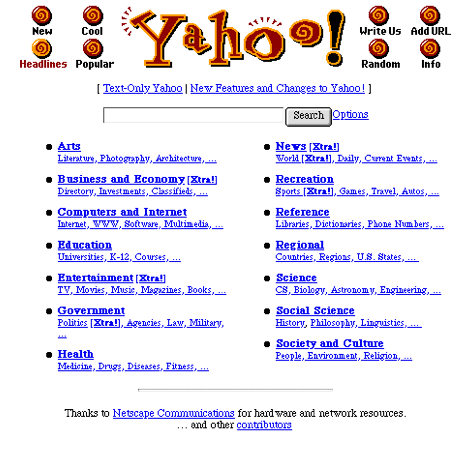

• Web pages were manually curated and organized.
• Does not scale.

• Next, web search engines were developed: information retrieval
• Information retrieval focuses on finding documents from a trusted set.

CHALLENGEfor web search

• Who to trust given the massive variety of information sources?
  • Trustworthy pages may point to each other.
• What is the best answer to a keyword search (given a context)?
  • Pages using the keyword in the same contexts tend to point to each other.
• All pages are not equally important.
  • Web pages/sites on the Internet can be represented as a graph:
• Web pages/sites are nodes on the graph.
• Links from one page to another represents the incoming/outgoing connections between nodes.
• We can compute the importance of nodes in this graph based on the distribution/intensity of these links.

PageRank

Initial formulation

• Link as votes:
  • A page (node) is more important if it has more links.
    • Incoming or outgoing?
• Think of incoming links as votes.
  • Are all incoming links equals?
    • Links from important pages count more.
• Each link’s vote is proportional to the importance of its source page.

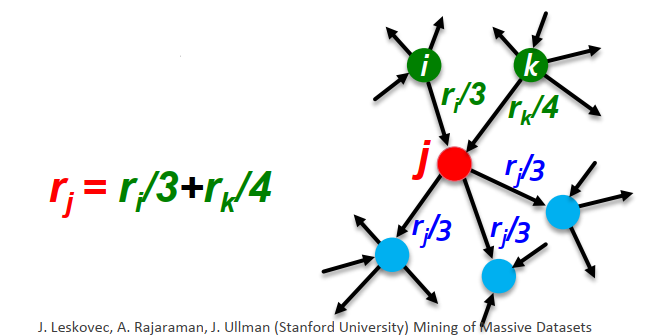

• If page j with importance $r_j$ has n outgoing links, then each outgoing link has $r_j$ votes.
• The importance of page j is the sum of the votes on its incoming links.

\[r_j = \frac{r_i}{3} + \frac{r_k}{4}\]

The flow model

• Summary:
  • A vote from an important page is worth more.
  • A page is important if it is linked to by other important pages.
• Imagine the web in 1839!
  • Three sites: y, m, a
  • y links to a and to itself.
  • a links to y and m.
  • m links to a.

flowchart TD
  Y((y)) -->|y/2| Y((y));
  Y -->|y/2| A((a));
  A -->|a/2| Y;
  A -->|a/2| M((m));
  M -->|m| A;

• $r_{y}$, $r_{a}$, and $r_{m}$ are the rank of nodes $y$, $a$, and $m$ respectively.
  • Node $y$ has two outgoing links, so the weight of each link is going to be $r_{y}/2$.
  • Node $a$ has two outgoing links, so the weight of each link is going to be $r_{a}/2$.
  • Node $m$ has one outgoing link and the weight of this link is $r_{m}$.
• From the above link graph, we can form the following flow equations:
  • Node $y$ receives two incoming links, one from itself and one from node $a$:
    • $r_{y} = r_{y}/2 + r_{a}/2$
  • Node $a$ receives two incoming links, one from node $y$ and one from node $m$:
    • $r_{a} = r_{y}/2 + r_{m}$
  • Node $m$ receives one incoming link from node $a$:
    • $r_{m} = r_{a}/2$

NOTEGeneral equation for rank calculation

• The above example demonstrates the idea of a general equation for calculating rank $r_{j}$ for page j:

\[r_j = \sum\limits_{i\rightarrow j}^{n} \frac{r_i}{d_i}\]

• $d_i$ is the number of out-degree (outgoing links) of node $i$

• From the above link graph, we seem to have three equations and three unknown.
  • In reality, after some algebraic simplication, we actually onle have two equations.
  • Therefore, there is no unique solution at this point.
• We need to impose one additional constraint to force uniqueness:
  • $r_{y} + r_{a} + r_{m} = 1$
• Solving this system of equations using Gaussian elimination, we have:
  • $r_{y} = 2/5$
  • $r_{a} = 2/5$
  • $r_{m} = 1/5$
• Does not scale to Internet-size!

Matrix formulation

• Using the coefficients from the above flow equations, we can set up a stochastic adjacency matrix M
• Matrix M of size N: N is the number of nodes in the graph (think number of web pages on the Internet).
• Let page i has $d_{i}$ outgoing links.
  • If there is an outgoing link from page i to another page j,
    • then $M_{ij} = 1/d_{i}$
    • else $M_{ij} = 0$
  • Stochastic: sum of all values in a column of M is equal to 1.
  • Adjacency: non-zero value indicates the availability of a link.
• Rank vector $r$: Each element in $r$ represents the ranking value of one page.
  • The order of pages in the rank vector should be the same as the order of pages in rows and columns of M.
• Combining the stochastic adjacency matrix M (coefficient matrix) and the rank vector $r$, we can formulate a general equation for calculating rank r_j for page $j$ with regard to all pages:

\[r_j = \sum\limits_{i=0}^{N-1} M_{ij}r_{j}\]

• This equation can be rewritten using the matrix form:

\[r = M \cdot r\]

NOTEVisualization

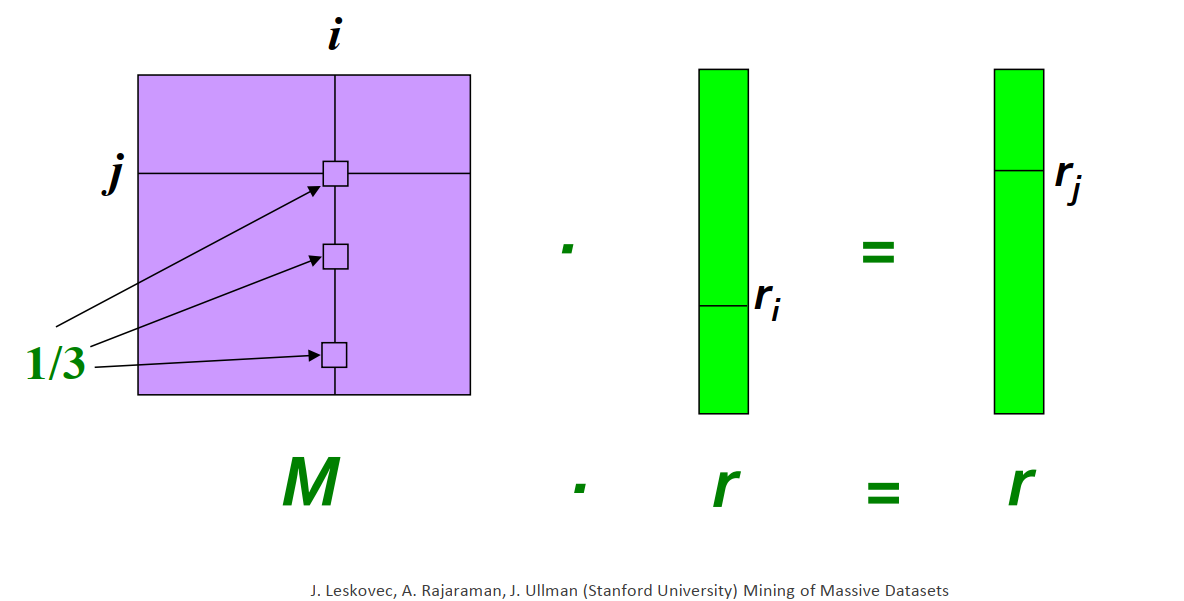

• Suppose page i has importance $r_{i}$ and has outgoing links to three other pages, including page j.

Example of matrix formulation

• Revisiting our flow equations from Section 2.2:

\[\begin{align} \left \{ \begin{aligned} r_{y} &= r_{y}/2 + r_{a}/2\\ r_{a} &= r_{y}/2 + r_{m}\\ r_{m} &= r_{a}/2 \end{aligned} \right. \end{align}\]

• We will rewrite the above equations to highlight all coefficients.

\[\begin{align} \left \{ \begin{aligned} r_{y} &= r_{y}\times 1/2 + r_{a}\times 1/2 + r_{m}\times 0\\ r_{a} &= r_{y}\times 1/2 + r_{a}\times 0 \ \ \ \ + r_{m}\\ r_{m} &= r_{y}\times 0 \ \ \ \ + r_{a}\times 1/2 + r_{m}\times 0 \end{aligned} \right. \end{align}\]

• Stochastic adjacency matrix M:

\[\left[ \begin{array}{ccc} 1/2 & 1/2 & 0 \\ 1/2 & 0 & 1 \\ 0 & 1/2 & 0 \end{array} \right]\]

• Rank vector r:

\[\left[ \begin{array}{c} y \\ a \\ m \end{array} \right]\]

• Dot product of rank vector and coefficient matrix:

\[\left[ \begin{array}{c} y \\ a \\ m \end{array} \right] = \left[ \begin{array}{ccc} 1/2 & 1/2 & 0 \\ 1/2 & 0 & 1 \\ 0 & 1/2 & 0 \end{array} \right] \left[ \begin{array}{c} y \\ a \\ m \end{array} \right]\]

Power iteration

• We want to find the page rank value r
• Power method: an iterative scheme.
  • Support there are N web pages on the Internet.
  • All web pages start out with same importance: 1/N.
  • Rank vector r: $r^{(0)} = [1/N, …,1/N]^{T}$
  • Iterate: $r^{(t+1)} = M\cdot r$
  • Stopping condition: $r^{(t+1)} - r^{(t)} < some\ small\ positive\ error\ threshold\ e$.

Example of power iteration

• Revisiting our flow equations from Section 2.4:

Iteration 0

• Initial rank vector r at iteration 0: $r^{(0)} = [1/3,1/3,1/3]^{T}$

\[\left[ \begin{array}{c} y \\ a \\ m \end{array} \right] = \left[ \begin{array}{c} 1/3 \\ 1/3 \\ 1/3 \end{array} \right]\]

Iteration 1

\[\left[ \begin{array}{c} y \\ a \\ m \end{array} \right] = \left[ \begin{array}{ccc} 1/2 & 1/2 & 0 \\ 1/2 & 0 & 1 \\ 0 & 1/2 & 0 \end{array} \right] \left[ \begin{array}{c} 1/3 \\ 1/3 \\ 1/3 \end{array} \right] = \left[ \begin{array}{c} 1/3 \\ 3/6 \\ 1/6 \end{array} \right]\]

Iteration 2

\[\left[ \begin{array}{c} y \\ a \\ m \end{array} \right] = \left[ \begin{array}{ccc} 1/2 & 1/2 & 0 \\ 1/2 & 0 & 1 \\ 0 & 1/2 & 0 \end{array} \right] \left[ \begin{array}{c} 1/3 \\ 3/6 \\ 1/6 \end{array} \right] = \left[ \begin{array}{c} 5/12 \\ 1/3 \\ 3/12 \end{array} \right]\]

Iteration 3

\[\left[ \begin{array}{c} y \\ a \\ m \end{array} \right] = \left[ \begin{array}{ccc} 1/2 & 1/2 & 0 \\ 1/2 & 0 & 1 \\ 0 & 1/2 & 0 \end{array} \right] \left[ \begin{array}{c} 5/12 \\ 1/3 \\ 3/12 \end{array} \right] = \left[ \begin{array}{c} 9/24 \\ 11/24 \\ 1/6 \end{array} \right]\]

…

Final iteration

\[\left[ \begin{array}{c} y \\ a \\ m \end{array} \right] = \left[ \begin{array}{ccc} 1/2 & 1/2 & 0 \\ 1/2 & 0 & 1 \\ 0 & 1/2 & 0 \end{array} \right] \left[ \begin{array}{c} ... \\ ... \\ ... \end{array} \right] = \left[ \begin{array}{c} 6/15 \\ 6/15 \\ 3/15 \end{array} \right]\]

• The final iteration results is the same as the results from the Gaussian approach in Section 2.2

Google Formulation

Scenarios

• Recalling the equation from section 2.3:

\[r_j = \sum\limits_{i=0}^{N-1} M_{ij}r_{j}\]

• Does the above equation converge?
• Does it converge to what we want?.
• Are the results reasonable?

Does it converge?

• The spider trap problem
• Build the stochastic adjacency matrix for the following graph and calculate the ranking for a and b.

graph LR
  A((a)) --> B((b));
  B -->A;

SOLUTIONSolution

\[\left[ \begin{array}{c} r_a \\ r_b \end{array} \right] = \begin{array}{cccc} 1 & 0 & 1 & 0\\ 0 & 1 & 0 & 1 \end{array}\]

Does it converge to what we want?

• The dead end problem
• Build the stochastic adjacency matrix for the following: graph and calculate the ranking for a and b.

graph LR
  A((a)) --> B((b));

SOLUTIONSolution

\[\left[ \begin{array}{c} r_a \\ r_b \end{array} \right] = \begin{array}{cccc} 1 & 0 & 0 & 0\\ 0 & 1 & 0 & 0 \end{array}\]

Random teleport

• At each time step, the random surfer has two options:
  • A probably of β to follow an out-going link at random.
  • A probably of 1 - β to jump to some random page.
  • The value of β are between 0.8 to 0.9.
• The surfer will teleport out of the spider trap within a few time steps.
• The surfer will definitely teleport out of the dead-end.

flowchart LR
  subgraph ORIGINAL
      direction TB
      Y1((y)) --> Y1((y));
      Y1 --> A1((a));
      A1 --> Y1;
      A1 --> M1((m));
  end
  subgraph RANDOM_TELEPORT
      direction TB
      Y2((y)) --> Y2((y));
      Y2 --> A2((a));
      A2 --> Y2;
      A2 --> M2((m));
      M2 .-> STOP[ ]
  end
  ORIGINAL --> RANDOM_TELEPORT

  style STOP  fill:#FFFFFF00, stroke:#FFFFFF00;

• This will change the coefficient matrix from

\[\left[ \begin{array}{ccc} 1/2 & 1/2 & 0 \\ 1/2 & 0 & 0 \\ 0 & 1/2 & 0 \end{array} \right]\]

to

\[\left[ \begin{array}{ccc} 1/2 & 1/2 & 0 \\ 1/2 & 0 & 1 \\ \textbf{1/3} & \textbf{1/3} & \textbf{1/3} \end{array} \right]\]

• Final equation for PageRank:

\[r = \beta M \cdot r + \left[ \frac{1 - \beta}{N}\right]_{N}\]

where $\left[ \frac{1 - \beta}{N}\right]_{N}$ is a vector with all $N$ entries have the same value $\frac{1-\beta}{N}$.

Hands-on: Page Rank in Spark

This hands-on should be done on a notebook

Small example data

• A small example data file and has the following format
  • Each line represents one link
  • On each line, the source (first) and the destination (second) are separated by a single space.

1
2
3
4
5

y y
y a
a y
a m
m a


• Load and view the data

1
2

graph_data = sc.textFile("small_graph.dat")
graph_data.take(5)


• Create links

1
2
3
4
5
6

links = graph_data.map(lambda line: (line.split(" ")[0], line.split(" ")[1]))
print(links.take(10))
links = links.groupByKey()
print(links.take(10))
links = links.mapValues(list)
print(links.take(10))


• Setup initial weight

1
2
3

N = links.count()
ranks = links.map(lambda line: (line[0], 1/N))
ranks.take(3)


• Calculate the votes

1
2
3
4
5
6
7
8

def calculateVotes(t):
    res = []
    for item in t[1][1]:
        count = len(t[1][1])
        res.append((item, t[1][0] / count))
    return res
    ###############################
calculateVotes(('y', (0.3333333333333333, ['y', 'a'])))


• Vote distribution

1
2

votes = ranks.join(links)
votes.take(10)


1
2

votes = votes.flatMap(calculateVotes)
print(votes.take(10))


• Vote tally

1
2

ranks = votes.reduceByKey(lambda x,y: x + y)
ranks.take(10)


• Iteration in Spark

1
2
3
4
5

%%time
for i in range(10):
    votes = ranks.join(links).flatMap(calculateVotes)
    ranks = votes.reduceByKey(lambda x,y: x + y)
    print(ranks.take(3))


• Iterating with a stopping condition

1
2
3
4
5
6
7
8
9
10

%%time
sum = 1
while sum > 0.01:
    old_ranks = ranks
    votes = ranks.join(links).flatMap(calculateVotes)
    ranks = votes.reduceByKey(lambda x,y: x + y)
    errors = old_ranks.join(ranks).mapValues(lambda v: abs(v[0] - v[1]))
    sum = errors.values().sum()
    print(sum)
    print(ranks.take(3))


TIPPageRank Colab Notebook

The link to the notebook can be found at [PageRank Colab]https://drive.google.com/file/d/15FcDnUk1b7PL1NZkV1r7WySy_MwqRzQP/view?usp=sharing)

Hub and Authority

Intuition

• PageRank only assume one-dimensional notion of importance
• HITS: hyperlink-induced topic search
  • Two flavors of importance:
    • Authorities: provide information about a topic
    • Hubs: show where to find out more information about a topic
• Example: A typical department at a university maintains a Web page listing all the courses offered by the department, with links to a page for each course.
  • If you want to know about a certain course, you need the page for that course (authorities).
  • If you want to find out what courses the department is offering, you need the page with the course list first (hub).

Formalizing Hubbiness and Authority

• For a collection of pages (enumarated)
  • Two vectors: $h$ and $a$
  • The $i^{th}$ component of $h$: the hubbiness of the $i^{th}$ page
  • The $i^{th}$ component of $a$ gives the authority of the same page.
• To compute hubbiness and authority:
  • Add the authority of successors to estimate hubbiness
  • Add hubbiness of predecessors to estimate authority.
• Avoid unlimited growth through scaling:
  • Scale the values of the vectors $h$ and $a$ so that the largest component is 1.
  • Scale the values of the vectors $h$ and $a$ so that the sum of all components is 1.
• Define link matrix of the Web, $L$ and there are n pages on the Web
  • $L$ is an n-by-n matrix
    • $L_{ij} = 1$ if there is a link from page i to page j
    • $L_{ij} = 0$ if not.
  • $L^T$ is the transpose of $L$
    • $L^T_{ij} = 1$ if there is a link from page j to page i
    • $L^T_{ij} = 0$ if not

Example

• Given a 5-node (5 pages) link graph as follows:

flowchart LR
    A((A)) --> B((B))
    A --> C((C))
    A ---> D((D))
    B ---> A
    B ---> D
    C --> E((E))
    D --> B
    D --> C

• The $L$ and $L^T$ matrices are:

\[L = \left[ \begin{array}{c|ccccc} & A & B & C & D & E \\ \hline A & 0 & 1 & 1 & 1 & 0 \\ B & 1 & 0 & 0 & 1 & 0 \\ C & 0 & 0 & 0 & 0 & 1 \\ D & 0 & 1 & 1 & 0 & 0 \\ E & 0 & 0 & 0 & 0 & 0 \end{array} \right] \qquad L^T = \left[ \begin{array}{c|ccccc} & A & B & C & D & E \\ \hline A & 0 & 1 & 0 & 0 & 0 \\ B & 1 & 0 & 0 & 1 & 0 \\ C & 1 & 0 & 0 & 1 & 0 \\ D & 1 & 1 & 0 & 0 & 0 \\ E & 0 & 0 & 1 & 0 & 0 \end{array} \right]\]

• If indices $0,1,2,3,4$ represent pages $A,B,C,D,E$ accordingly:
  • There is a link from B ($i=1$) to D ($j=3$), so $L_{13}=1$
  \[L = \left[ \begin{array}{c|ccccc} & A & B & C & D & E \\ \hline A & 0 & 1 & 1 & 1 & 0 \\ B & 1 & 0 & 0 & \textcolor{red}{\mathbf{1}} & 0 \\ C & 0 & 0 & 0 & 0 & 1 \\ D & 0 & 1 & 1 & 0 & 0 \\ E & 0 & 0 & 0 & 0 & 0 \end{array} \right]\]
  • There is also a link from D ($j=3$) back to B($i=1$), so $L^T_{31}=1$
  \[L^T = \left[ \begin{array}{c|ccccc} & A & B & C & D & E \\ \hline A & 0 & 1 & 0 & 0 & 0 \\ B & 1 & 0 & 0 & 1 & 0 \\ C & 1 & 0 & 0 & 1 & 0 \\ D & 1 & \textcolor{red}{\mathbf{1}} & 0 & 0 & 0 \\ E & 0 & 0 & 1 & 0 & 0 \end{array} \right]\]
  • and so on …

Formal equation

• From Section 5.2, for a collection of pages (enumarated)
  • Two vectors: $h$ and $a$
  • The $i^{th}$ component of $h$: the hubbiness of the $i^{th}$ page
  • The $i^{th}$ component of $a$ gives the authority of the same page.
• The hubbiness of a page is proportional to the sum of the authority of its successor.
  • Explanation: If a hub contains pages of high value (high authority), then the value of that hub (hubbiness) will be high.
  • Given $\lambda$ is an unknown scaling factor:
  \[h=\lambda La\]
• The authority of a page is proportional to the sum of the hubbiness of its predecessor.
  • Explanation: If a page is cited by multiple hubs with high value (high hubbiness), then that page must be of high quality (high authority).
  • Given $\mu$ is an unknown scaling factor:
  \[a=\mu L^{T}h\]
• Putting the two equations together:

\[\begin{align} h=\lambda La \\ a=\mu L^{T}h \end{align}\]

• Ommiting $\lambda$ and $\mu$ and you can see the same self-calculating structure emerges for $h$ and $a$ similar to how the rank vector $r$ was formalized in Page Rank.
• In this case, $h$ and $a$ will alternate their roles, with one being used to calculate the other.

Computation implementation

• Construct $L$
• Generate $L^T$
• Generate $h$ as a vector of all 1’s.
• Compute $a = L^{T}h$ then scale so that the largest component is 1
• Compute $h = La$ then scale so that the largest component is 1
• Repeat the previous two steps until differences of successive values of $h$ and $a$ are small enough.
• We demonstrate this procedure using the example from Section 5.3:

Iteration 0

• Initialize $h$:

\[h= \left[ \begin{array}{c} 1 \\ 1 \\ 1 \\ 1 \\ 1 \end{array} \right]\]

• Compute $a = L^{T}h$

\[a = \left[ \begin{array}{ccccc} 0 & 1 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 \\ 1 & 0 & 0 & 1 & 0 \\ 1 & 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 \end{array} \right] \left[ \begin{array}{c} 1 \\ 1 \\ 1 \\ 1 \\ 1 \end{array} \right] = \left[ \begin{array}{c} 1 \\ 2 \\ 2 \\ 2 \\ 1 \end{array} \right]\]

• Scale so that the largest component of $a$ is 1
  • Since max value in $a$ is 2, we divide all values in $a$ by 2.

\[a= \left[ \begin{array}{c} 1/2 \\ 1 \\ 1 \\ 1 \\ 1/2 \end{array} \right]\]

• Compute $h = La$

\[h = \left[ \begin{array}{ccccc} 0 & 1 & 1 & 1 & 0 \\ 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 1 \\ 0 & 1 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 \end{array} \right] \left[ \begin{array}{c} 1/2 \\ 1 \\ 1 \\ 1 \\ 1/2 \end{array} \right] = \left[ \begin{array}{c} 3 \\ 3/2 \\ 1/2 \\ 2 \\ 0 \end{array} \right]\]

• Scale so that the largest component of $h$ is 1
  • Since max value in $h$ is 3, we divide all values in $h$ by 3.

\[h= \left[ \begin{array}{c} 1 \\ 1/2 \\ 1/6 \\ 2/3 \\ 0 \end{array} \right]\]

Iteration 1

• This is $h$ value from previous iteration:

\[h= \left[ \begin{array}{c} 1 \\ 1/2 \\ 1/6 \\ 2/3 \\ 0 \end{array} \right]\]

• Compute $a = L^{T}h$

\[a = \left[ \begin{array}{ccccc} 0 & 1 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 \\ 1 & 0 & 0 & 1 & 0 \\ 1 & 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 \end{array} \right] \left[ \begin{array}{c} 1 \\ 1/2 \\ 1/6 \\ 2/3 \\ 0 \end{array} \right] = \left[ \begin{array}{c} 1/2 \\ 5/3 \\ 5/3 \\ 3/2 \\ 1/6 \end{array} \right]\]

• Scale so that the largest component of $a$ is 1
  • Since max value in $a$ is $5/3$, we divide all values in $a$ by $5/3$.

\[a= \left[ \begin{array}{c} 3/10 \\ 1 \\ 1 \\ 9/10 \\ 1/10 \end{array} \right]\]

• Compute $h = La$

\[h = \left[ \begin{array}{ccccc} 0 & 1 & 1 & 1 & 0 \\ 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 1 \\ 0 & 1 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 \end{array} \right] \left[ \begin{array}{c} 3/10 \\ 1 \\ 1 \\ 9/10 \\ 1/10 \end{array} \right] = \left[ \begin{array}{c} 29/10 \\ 6/5 \\ 1/10 \\ 2 \\ 0 \end{array} \right]\]

• Scale so that the largest component of $h$ is 1
  • Since max value in $h$ is $29/10$, we divide all values in $h$ by $29/10$.

\[a= \left[ \begin{array}{c} 1 \\ 12/29 \\ 1/29 \\ 20/29 \\ 0 \end{array} \right]\]

• Final values:

\[\begin{align} h = [1,0.3583,0,0.7165,0] \\ a = [0.2087,1,1,0.7913,0] \end{align}\]

Hands-on: HITS

Example data

• Run the following in a cell to generate a data file. This data file represents the graph shown in Section 5.3

1
2
3
4
5
6
7
8
9

%%file small_web.dat
A B
A D
A C
B A
B D
C E
D C
D B


TIPSequential HITS Colab Notebook

The link to the notebook can be found at Sequential HITS Colab

TIPHITS Colab Notebook

The link to the notebook can be found at HITS Colab
