Introduction

Big Data Problems

Big Data in Science

The four pillars of scientific process
  • Thousands of years ago, science was empirical.
    • describing natural phenomena
  • In the last few hundred years, the theoretical branch is developed.
    • models, generalizations
  • In the last few decades, we have the computational branch
    • Simulation of complex phenomena
  • Today, we have added the data-enabled/data-intensive pillar
    • synthesizing of theory, experiment, and computation with statistics
Big data analytics in science and engineering

For datasets that are: - Too big - Too complex - Too fast (streaming) - Too noisy - Too heterogeneous

Big Data in Industry

2010-2020
Post 2020
  • IDC-scale (Internet Data Center) forecasts show annual data created/replicated growing from 72 ZB (2020) to 394 ZB (projected for 2028).
  • Cloud object storage is now “hundreds of exabytes”
    • AWS reported (Pi Day 2024) Amazon S3 stores 350+ trillion objects and exabytes of data, averaging 100+ million requests/second.
    • By re:Invent 2025, AWS stated S3 stores 500+ trillion objects and hundreds of exabytes, and is raising max single-object size from 5 TB to 50 TB.
  • Exabyte-scale is an everyday adjective inside big tech

The Vs of Big Data

Initial Vs
  • Volume: the size of the files used to archive and spread data.
  • Velocity: the speed with which data is generated and processed.
  • Variety: formats and purposes of data, which may include objects as different as samples of animal tissue, free-text observations, humidity measurements, GPS coordinates, and the results of blood tests.
  • Veracity: the extent to which the quality and reliability of big data can be guaranteed. Data with high volume, velocity and variety are at significant risk of containing
    inaccuracies, errors and unaccounted-for bias.
Other Vs
  • Validity: the selection of appropriate data with respect to the intended use. The choice of a specific dataset as evidence base requires adequate and explicit justification, including recourse to relevant background knowledge to ground the identification of what counts as data in that context.
  • Volatility: the extent to which data can be relied upon to remain available, accessible and re-interpretable despite changes in archival technologies. This is significant given the tendency of formats and tools used to generate and analyze data to become obsolete, and the efforts required to update data infrastructures so as to guarantee data access in the long term.
  • Value: the multifaceted forms of significance attributed to big data by different sections of society, which depend as much on the intended use of the data as on historical, social and geographical circumstances.

People don’t really talk about the Vs that much any more, but it helps to characterize the nature of your data.

Programming Paradigm for Big Data

Challenges
  • Require not only parallel computation but also parallel data processing​.
  • New computational tools and strategies​.
  • New data intensive scalable architectures​.
  • Science is moving increasingly from hypothesis-driven to data-driven discoveries​.
  • Industry is at a stage where big data infrastructures are integrated and big data sets are beginning to be analyzed to produce business insights.

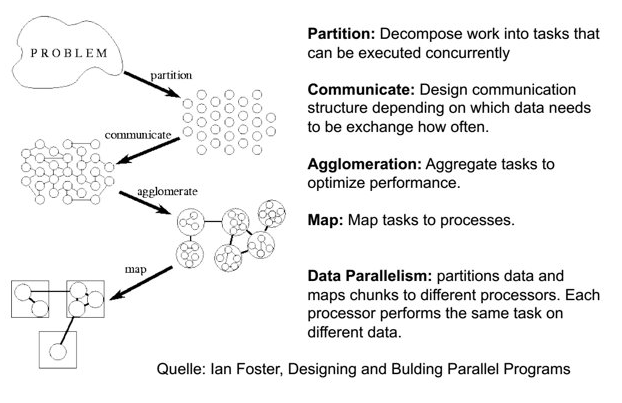

  • Example general paradigm:
data parallel programming
Example of Difficulties
  • It is difficult to write parallel programs​
    • Difficult in converting algorithms from serial to parallel​.
    • Difficult in identifying different ways that the program can fail​.
    • No reliable way to detect failure of a process​.
  • It is even more difficult to write parallel programs at large scale​
    • Same set of errors, but scale up with size​.
  • It is even more difficult to debug large scale parallel programs​
    • What if the program doesn’t fail but only produce incorrect results?
Design Principles of Data-Intensive Computing
  • Scale “out”, not “up”​
    • It is easier and cheaper to add nodes to an existing cluster than to build a faster cluster.​
  • Move computation to the data​
    • Reduce data movement.​
  • Sequential processing, avoid random access​
    • Reduce seek movement on disks.​
  • Seamless scalability

Data Mining

Meaningfulness of Analytic Answers

Example of Bonferroni’s principle
  • We want to find (unrelated) people who at least twice have stayed at the same hotel on the same day
    • $10^9$ people being tracked
    • $10^5$ hotels
    • Each person stays in a hotel 1% of time (p = 0.01)
    • Hotels hold 100 people
    • 1,000 days
    • Suspicious activity: Two random people, on two different days, are both at the same hotel.
    • If everyone behaves randomly (i.e., no terrorists) will the data mining detect anything suspicious?
    • Expected number of suspicious pairs of people:
      • Probability of two people visit a hotel on any given day: $0.01\times0.01=0.0001$
      • The probability that each person select a specific hotel: $0.0001/10^5=10^{-9}$
      • The probability that *both select the same specific hotel: $10^{-9}\times10^{-9}=10^{-18}$
    • Suspicious activity to be monitored: number of pairs of people ($5\times10^17$) multiplied by the number of pairs of days ($5\times10^5$) multiplied by the probability that both select the same hotel on the same date: 250,000
    • Too many to observe …

Things Useful to Know

Hash functions
  • Given $B$ buckets,
  • A hash function uses a data value to produce a bucket number $b$ that is in the range of 0 to $B-1$
Indices
  • Index
    • Similar to pointer …
    • Given an index value, we can access all data related to that index without scanning through the entire collection.
  • Index can be built from hash table
Secondary storage and memory hierarchy impact
  • Cache/memory/disk/network
  • Performance differences can be in multiple orders of magnitude
  • Understand data placement on secondary storage is important

Setup Computing Environment (Google Colab)

We will be using several computing environments for this class, both on your personal computers and remote servers to highlight the versatility and capability of Spark, one of the most popular big data engineering/analytics tools. The steps to set up the first variety of Spark on Google Colab are as follows.

NoteGoogle Colab

Google Colab is an online platform for learning and practicing data science and engineering. You can link Google Colab to your existing Google account.

WarningCoding Cell

Each segment of codes in this lecture is meant to be run on a separate notebook cell. The ordering is important!

Step 1: Prepare Java and Spark


1
2
3
4
5
6


!gdown --fuzzy https://drive.google.com/file/d/1ac5p-GUI35s49CDf2cFCliUqSLep2VPM/view?usp=sharing
!tar xzf OpenJDK11U-jdk_x64_linux_hotspot_11.0.24_8.tar.gz
!rm OpenJDK11U-jdk_x64_linux_hotspot_11.0.24_8.tar.gz
!gdown --fuzzy https://drive.google.com/file/d/1W9-Nb_IP3qiCtHo6BeuluwY3u-Ni2F5C/view?usp=sharing
!tar xzf spark-3.5.6-bin-hadoop3.tgz
!rm spark-3.5.6-bin-hadoop3.tgz
Step 2: Setup Spark library path in Python


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15


import os
import sys
import subprocess

working_dir = subprocess.run(['pwd'], stdout = subprocess.PIPE).stdout.strip().decode("utf-8")
print(working_dir)
os.environ["JAVA_HOME"] = working_dir + "/jdk-11.0.24+8/"
os.environ["SPARK_HOME"] = working_dir + "/spark-3.5.6-bin-hadoop3/"
spark_path = os.environ['SPARK_HOME']
sys.path.append(spark_path + "/bin")
sys.path.append(spark_path + "/python")
sys.path.append(spark_path + "/python/pyspark/")
sys.path.append(spark_path + "/python/lib")
sys.path.append(spark_path + "/python/lib/pyspark.zip")
sys.path.append(spark_path + "/python/lib/py4j-0.10.9.7-src.zip")
Step 3: Deploy Local Spark Cluster and initialize Spark context


1
2
3
4
5
6
7
8
9


import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder \
    .master('local[*]') \
    .appName("WordCount_SparkSession") \
    .getOrCreate()

sc = spark.sparkContext
Step 4: Download the test data


1


!wget http://www.gutenberg.org/files/100/100-0.txt
Step 5: Spark Test


1
2
3
4
5
6
7
8
9
10
11
12


# Input and output paths
input_path = "100-0.txt"
output_path = "output-wordcount-01"

textFile = sc.textFile(input_path)
wordcount = textFile.flatMap(lambda line: line.split(" ")) \
    .map(lambda word: (word, 1)) \
    .reduceByKey(lambda a, b: a + b)
wordcount.saveAsTextFile(output_path)

# Stop the SparkSession
spark.stop()

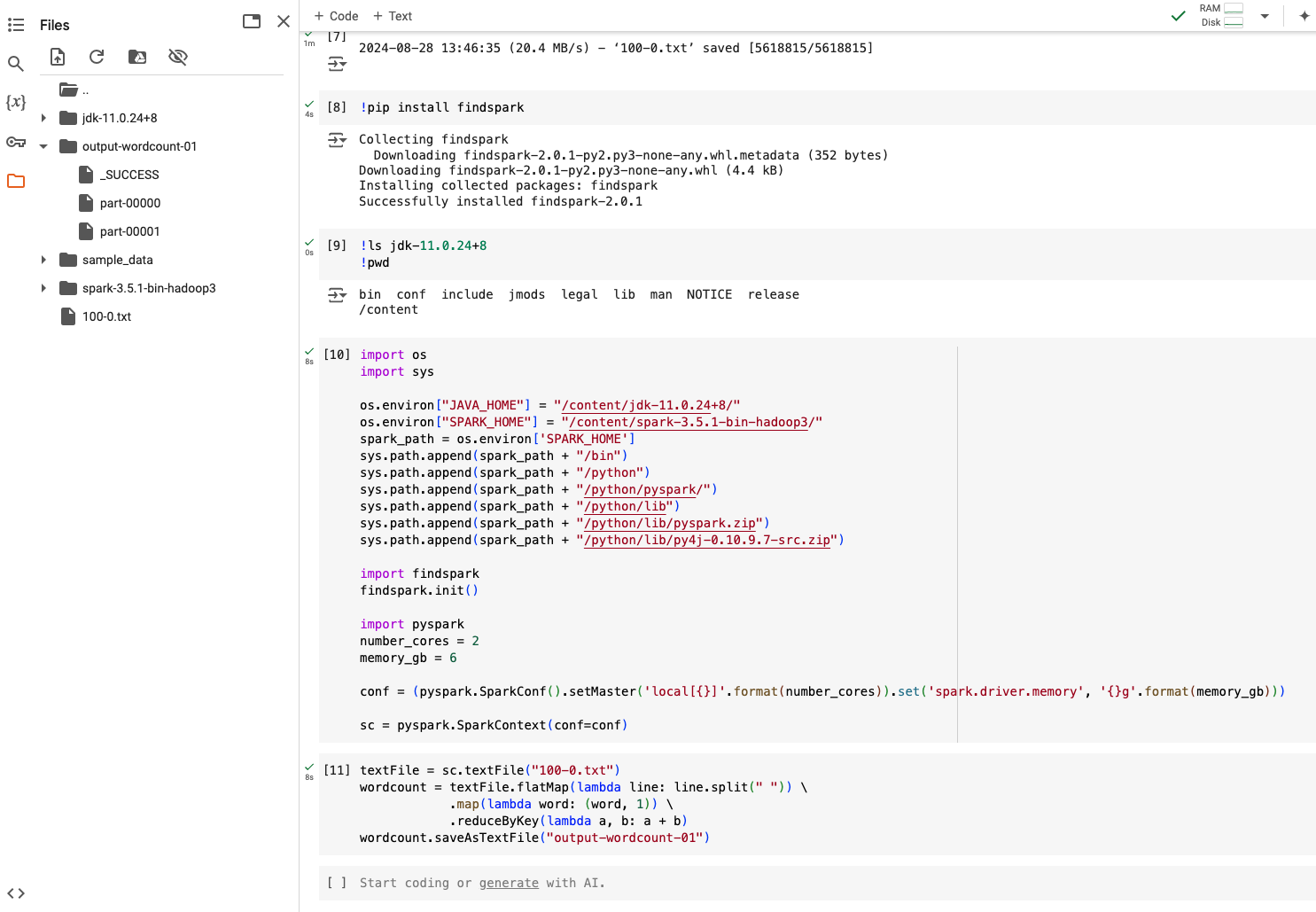

  • Note that /content is the current working directory inside Kaggle VM. If you expand the folder icon on the left side, you will see the content of this directory. You might need to refresh for this to show up. Open output-wordcount-01, you will see the _SUCCESS file.
data parallel programming
  • You should attempt to launch your own Google Colab and carry out the above steps, as it is part of the first assignment as well. However, in the case that you run into an issue, you can look at this notebook.
  • All future assignments/class activities that include Spark will need to use this setup.
