Single Sign On

Core SSO Elements

A centralized directory store that contains user identity and authorization information.
A tool for managing user information in the directory.
A mechanism for authenticating user identities. It could be the LDAP store itself, or a Kerberos ticket-based authentication system.
Centralized-identity-and-authentication-aware versions of the C library routines that look up user attributes. This is often configured through the name service switch file, /etc/nsswitch.conf.

LDAP: Lightweight Directory Access Protocol

Assumptions:
- Data objects are relatively small.
- The database will be widely replicated and cached.
- The information is attribute-based.
- Data are read often but written infrequently.
- Searching is a common operation.
Common usage: A central repository for login names, passwords, and other account attributes.

Structure of LDAP data

Property lists (entries).
Each entry consists of a set of named attributes along with those attributes’ values.
Every attribute can have multiple values.

Example attributes

 dn: uid=ghopper,ou=People,dc=navy,dc=mil
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: posixAccount
objectClass: shadowAccount
uid: ghopper
cn: Grace Hopper
userPassword: {crypt}$1$pZaGA2RL$MPDJoc0afuhHY6k8HQFp0
loginShell: /bin/bash
uidNumber: 1202
gidNumber: 1202
homeDirectory: /home/ghopper


Common attribute names

Attribute	Stand for	What it is
o	Organization	Identifies a site’s top-level entry (not used at sites that model their hierarchy on DNS)
ou	Organizational Unit	A logical subdivision, e.g. “marketing”
cn	Common name	The most natural name to represent the entry
dc	Domain component	Used at sites that model their hierarchy on DNS
objectClass	Object class	Schema to which this entry’s attributes conform

Hands-on: update your webserver profile

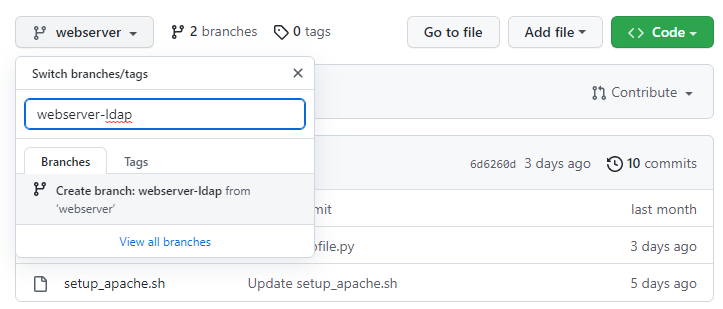

Create a new branch from webserver and call webserver-ldap.

Update profile.py to match the following content

Update and instantiate an experiment from this new branch.

6: Hands-on: update and launch CloudLab

Create a new branch from webserver and call webserver-ldap.

Update profile.py to match the following content

Update and instantiate an experiment from this new branch.

Hands-on: install and configure LDAP

Connect into the ldap node and run the following commands

 clear
sudo apt update
sudo apt install -y slapd ldap-utils


Provide a (simple) password for LDAP server
- Press the Tab key to go to Ok, then press Enter.
- Retype the password, then Tab, Ok, and Enter again.
Setup OpenLDAP server

 sudo dpkg-reconfigure slapd


Refuse to omit OpenLDAP server configuration
- Keep the default No (or make sure that you stay on No), then press Enter.
Enter wcupa.edu as default DNS domain name
- Press the Tab key to go to Ok, then press Enter.
Enter wcupa.edu as the name of the organization to use in the base DN
- Press the Tab key to go to Ok, then press Enter.
Enter the password (previously created) for your LDAP directory
- Press the Tab key to go to Ok, then press Enter.
Enter the password again for your LDAP directory
- Press the Tab key to go to Ok, then press Enter.
Select Yes to remove the database when slapd is purged.
- Press the Tab key to go to Yes, then press Enter.
Select Yes to move old database
- Press the Tab key to go to Yes, then press Enter.
Enable firewall rules

 sudo ufw allow ldap


Create a file named basedn.ldif with the following contents

Run the following command to populate LDAP.
- Enter the password for LDAP previously created, then press Enter.

 ldapadd -x -D cn=admin,dc=wcupa,dc=edu -W -f basedn.ldif
Enter LDAP Password:
adding new entry "ou=People,dc=wcupa,dc=edu"

adding new entry "ou=Groups,dc=wcupa,dc=edu"

adding new entry "cn=CSC,ou=Groups,dc=wcupa,dc=edu"


Run the following command to generate a password hash
- The password is rammy

 slappasswd
New password:
Re-enter new password:
{SSHA}N8Rfc9lvnKb8A3oUOxUOBlDen4v8FYL/


Create a file named users.ldif using the following content
- Replace the hash in userPassword field with the password hash you just created.

Populate LDAP with user info

 ldapadd -x -D cn=admin,dc=wcupa,dc=edu -W -f users.ldif
Enter LDAP Password:
adding new entry "uid=student,ou=People,dc=wcupa,dc=edu"


Test LDAP

 ldapsearch -x -LLL -b dc=wcupa,dc=edu 'uid=student' cn gidNumber
dn: uid=student,ou=People,dc=wcupa,dc=edu
cn: student
gidNumber: 5000


Hands-on: Setup SSO on client

Connect to webserver node and run the following commands

 clear
sudo apt update
sudo apt-get update
sudo apt install -y libnss-ldap libpam-ldap ldap-utils


Configure ldap-auth-config
- Based on the profile.py, ldap will have 192.168.1.3 as a predefined IP address.
- You can test by run cat /etc/hosts on ldap.
- Enter ldap://192.168.1.3 as LDAP server Uniform Resource Identifier.
  - PAY ATTENTION TO ALL CHARACTERS
- Distinguished name of the search base: dc=wcupa,dc=edu
- LDAP version to use: 3
- Make local root Database admin: Yes
- Does the LDAP database require login? No
- LDAP account for root: cn=admin,dc=wcupa,dc=edu
- LDAP root account password: Use the password you created earlier
Enable LDAP profile for NSS
- Run sudo nano /etc/nsswitch.conf
- Change the configurations of passwd and group to: compat systemd ldap
- Save and quit
Enable LDAP profile PAM
- Run sudo nano /etc/pam.d/common-password
  - Find the line with the phrase use_authtok and delete that phrase
Run sudo nano /etc/pam.d/common-session
- Add the following line to the end: session optional pam_mkhomedir.so skel=/etc/skel umask=077
Test that now you can authenticate user student on webserver via LDAP

 getent passwd student
student:x:10000:5000:Golden Ram:/home/student:/bin/dash
lngo@webserver:~$ su student
Password:
$
