Cloud Security

Cloud Native Security

Overview

Followed a layered approach that is based on defense in depth approach.
The 4C layers of Cloud Native Security
- Cloud Datacenter
- Cluster (Kubernetes)
- Container
- Code

Cloud Data Center

Cloud Provider: Their hardware their policy
In-house infrastructures
- Physical security
- Network access
- Database access (etcd for Kubernetes)

Cluster (Kubernetes)

RBAC Authorization
Authentication
Encryption
Network Policies
TLS for Kubernetes Ingress

Container

Vulnerability Scanner/OS Dependencsy Security
Privilege Control/Disabling
Container runtime isolation

Code

Secure communication over TLS
Port range limitation
Security of external library dependency
Static code analysis
Dynamic code security (SQL injection, cross-site scripting, …)

Cluster Security: Kubernetes

Authentication

Users:
- Normal users (managed by host system/remote management like LDAP)
- Service accounts (internal to K8s)
Users can present a valid certificate signed by the cluster’s CA (Certificate Authority) are considered authenticated.

Authentication hands-on

Confirms that Rancher setup is up and ready

 kubectl get nodes


Extract configuration information

 cat ~/.kube/config


Keep a record of the following fields (or do this in separate terminals)
- certificate-authority-data
- server
- client-certificate-data
- client-key-data

Create a new user account

New user account is called student:

 sudo useradd -s /bin/bash -d /home/student -m -G docker student
sudo su - student

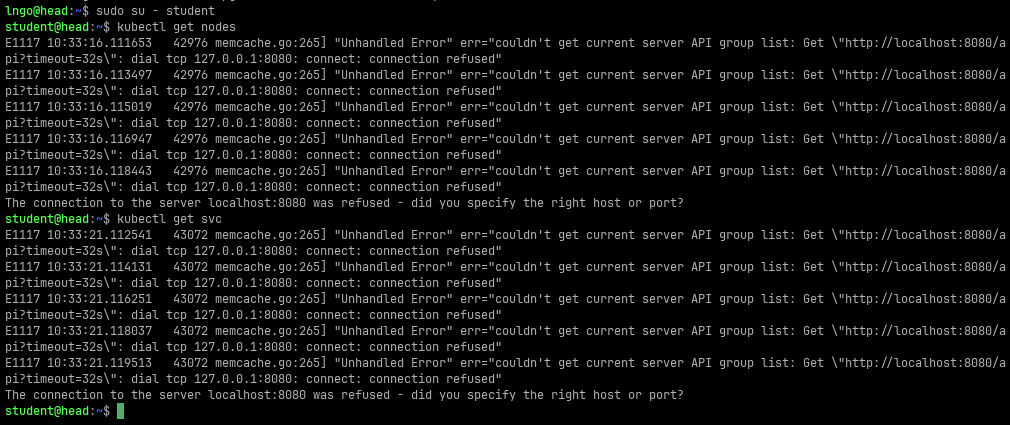

Try running kubectl commands now:

 kubectl get nodes
kubectl get svc


Setup authorization to access K8S

As student, run the following command:

 mkdir .kube


Next, create a file called config inside .kube with the following contents:
- Replace COPY_FROM_ABOVE with the corresponding values of the corresponding fields above.

 apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: COPY_FROM_ABOVE
    server: COPY_FROM_ABOVE
name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: student
  name: student@kubernetes
current-context: student@kubernetes
kind: Config
preferences: {}
users:
- name: student
user:
    client-certificate-data: COPY_FROM_ABOVE
    client-key-data: COPY_FROM_ABOVE

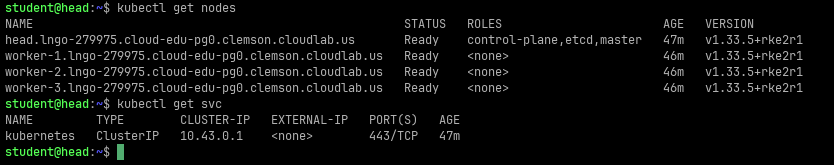

Try running kubectl commands now:

 kubectl get nodes
kubectl get svc


Challenge

Adding at least another Kubernetes cluster from one of your classmates’ experiment to your student account. In other words, one account can have access to multiple K8S cluster.

RBAC Authorization

Kubernetes uses the rbac.authorization.k8s.io API group to drive RBAC-based authorization decisions,
By default, Kubernetes clusters are often launched with RBAC:

 kubectl describe pods kube-apiserver -n kube-system | grep authorization


RBAC API: Role, ClusterRole, RoleBinding, ClusterRoleBinding.
Role: sets permissions within a particular namespace

 kubectl get role --all-namespaces
kubectl describe role system::leader-locking-kube-controller-manager -n kube-system


ClusterRole: set permission for non-namespaced resources

 kubectl get clusterrole --all-namespaces
kubectl describe clusterrole cluster-admin


RoleBinding binding grants the permissions defined in a role to a user or set of users.
ClusterRoleBinding grants that access cluster-wide.

 kubectl get RoleBinding --all-namespaces
kubectl get ClusterRoleBinding


What resources are available and what verbs are applicable?

 kubectl api-resources --sort-by name -o wide


Kubernetes Ingress

Ingress exposes HTTP and HTTPS routes from outside the cluster to services within the cluster.
Traffic routing is controlled by rules defined on the Ingress resource.
Ingress is managed by Ingress Controllers.
There are many diffferent Ingress Controllers

Container Security

Pod Security Standards

Pod security will influence container security.
Three policies:
- Privileged
- Baseline
- Restricted
Cummulative and range from highly permissive to highly restrictive

Privileged

Purposely open, entirely unrestricted
Enable system- and infrastructure-level workloads
- Implied understanding that these workloads are run as privileged/trusted users.
Absence of restrictions and allow-by-default mechanism

Baseline

Streamline adoption for common containerized workloads
Prevent known privilege escalations
Example capabilities (Linux capabilities) enabled in baseline
- AUDIT_WRITE
- CHOWN
- DAC_OVERRIDE
- FOWNER
- FSETID
- KILL
- MKNOD
- NET_BIND_SERVICE
- SETFCAP
- SETGID
- SETPCAP
- SETUID
- SYS_CHROOT
Linux full capability list

Restricted

Enforce Pod hardening best practices at the expense of compatibility
Target security-critical applications and lower-trust users
Example policy:
- Disable privilege escalation
- Containers must run as non-root
- Drop ALL capabilities and only allow NET_BIND_SERVICE.
