Threads programming

• Single computing node, multiple sockets, multiple cores.

  • Dell PowerEdge M600 Blade Server.

1

- Intel Sandy Bridge CPU.


• In summary
  • Node with multiple sockets.
  • Each socker support CPUs with multiple cores.
  • Each core is an independent CPU.
  • Each core has access to all the memory on the node.

• A normal process is a running program with a single point of execution, i.e, a single PC (program counter).
• A multi-threaded program has multiple points of execution, i.e., multiple PCs.
• Each thread is very much like a separate process, except for one difference:
  • All threads of the same process share the same address space and thus can access the same data.

• Standardized C language thread programming API.
• pthreads specifies the interface of using threads, but not how threads are implemented in OS.
• Different implementations include:
  • kernel-level threads,
  • user-level threads, or
  • hybrid
• pthread_create
• pthread_join

• Launch your csc466env environment and go to 127.0.0.1:18088

  • You only need to launch the head node for this topic for thread programming.


  1

    docker compose up -d head

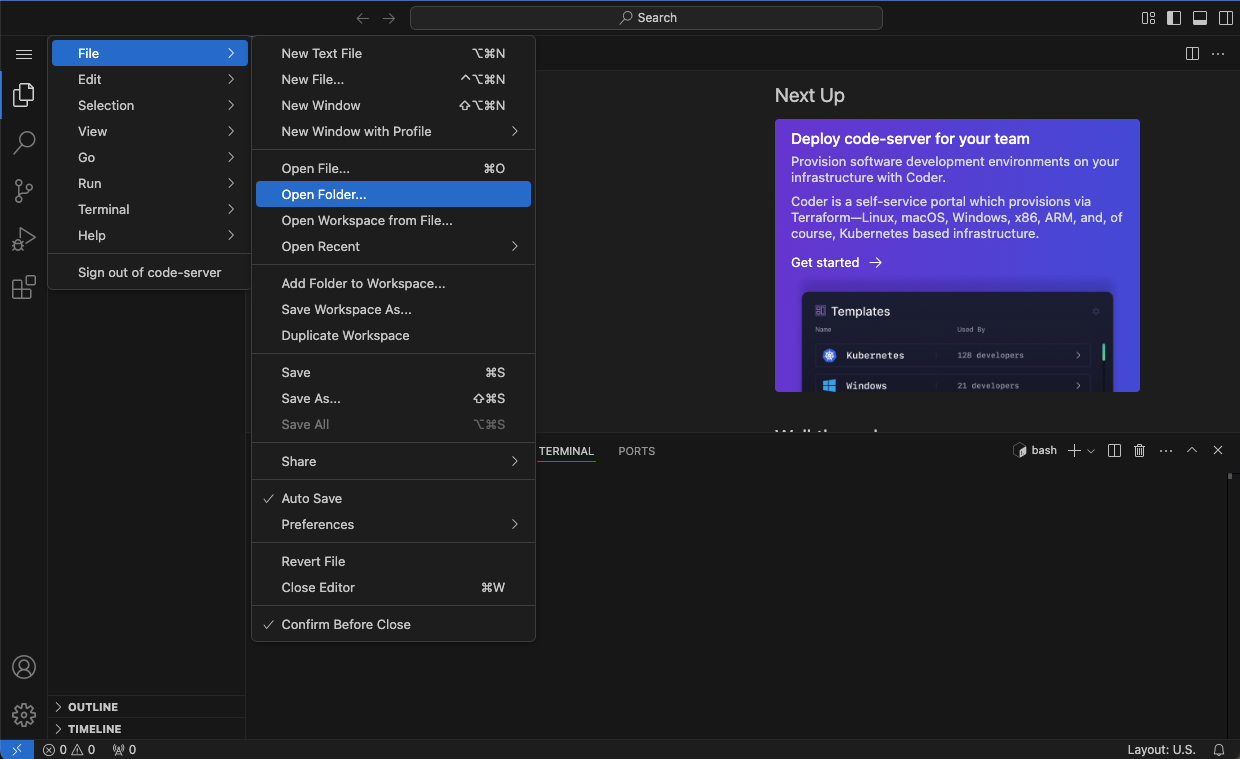

• Click on the top-left three dashes, select File then Open Folder

File/Open Folder

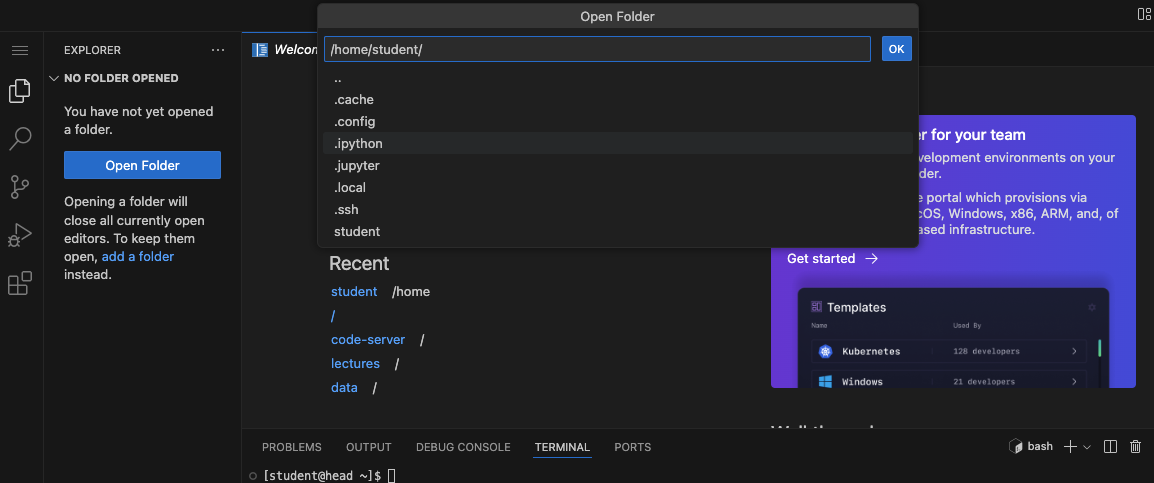

• Make sure that you have /home/student in the box then press OK

/home/student

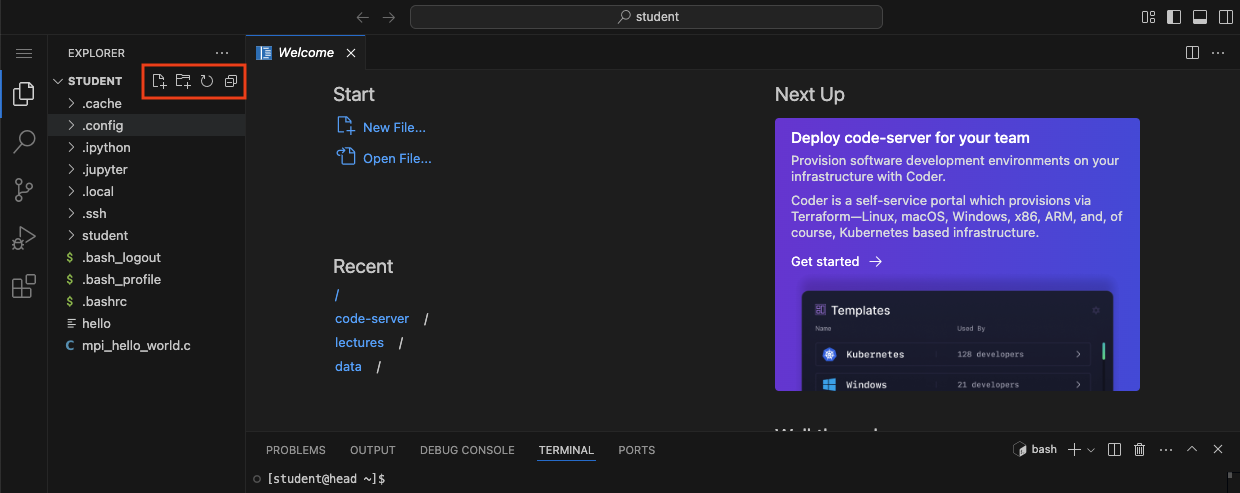

• Use the terminal or the icons (see the red box) to create a new folder and new files (in the future)

Create new folder/file

• Create thread_hello.c with the following contents:

```c linenums=”1” –8<– “docs/csc466/lectures/data/thread/hello_thread.c”

1
2
3
4
5
6
7
8

- Compile and run `thread_hello.c`:

```bash
gcc -o thread_hello thread_hello.c -lpthread
./thread_hello 1
./thread_hello 2
./thread_hello 4


• Create thread_sum.c with the following contents:

```c linenums=”1” –8<– “docs/csc466/lectures/data/thread/thread_sum.c”

1
2
3
4
5
6
7
8

- Compile and run `thread_sum.c`:

```bash
gcc -o thread_sum thread_sum.c -lpthread
./thread_sum 16 4
./thread_sum 256 4
./thread_sum 1000000 4


• Create thread_global_nolock.c with the following contents:

```c linenums=”1” –8<– “docs/csc466/lectures/data/thread/thread_global_nolock.c”

1
2
3
4
5
6
7
8
9
10

- Compile and run `thread_global_nolock.c`:
  - Compare the outcome with `thread_sum`

```bash
gcc -o thread_global_nolock thread_global_nolock.c -lpthread
./thread_global_nolock 16 4
./thread_global_nolock 2000 4
./thread_global_nolock 90000 4
./thread_sum 90000 4


• Two concurrent threads manipulated a shared resource (the sum variable) without any synchronization.
  • Outcome depends on the order in which accesses take place – this is called a race condition.
• We need to ensure that only one thread at a time can manipulate the shared resource so that we can reason about program behavior, in a sane way
  • We need synchronization.

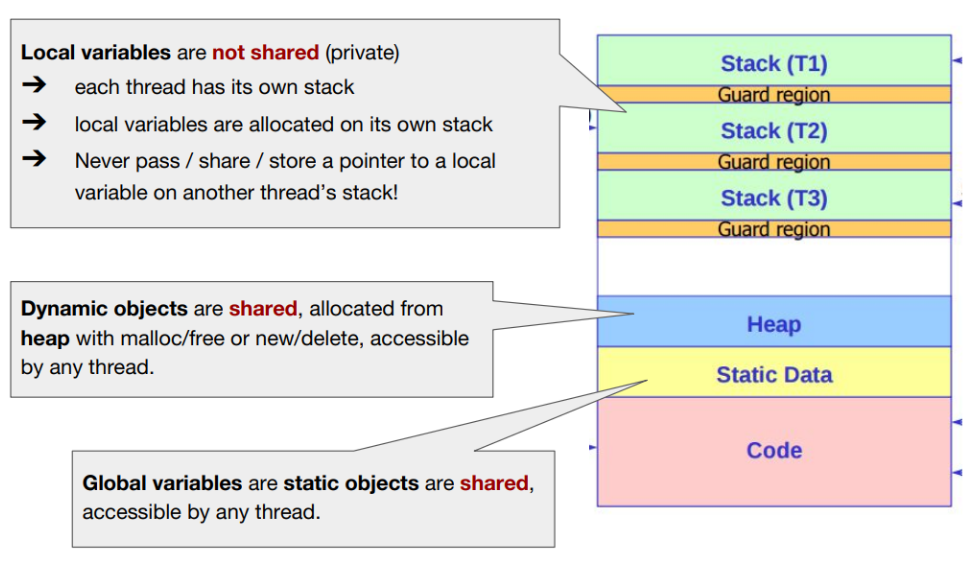

• What is shared/not shared in a multithreaded program?

• A critical section (CS) is a segment of code that accesses a shared resource, usually a variable or data structure.
• A race condition (data race) arises if multiple threads of execution enter the critical section at roughly the same time; both attempt to update the shared data structure, leading to a surprising and undesirable outcome.
• An indeterminate program consists of one or more race conditions. The outcome is thus not deterministic.
• To avoid these problem, threads should use some kind of mutual exclusion primitives. Doing so guarantees that only a single thread ever enters a critical section, thus avoiding races and resulting in deterministic program outputs.

• Mutual Exclusion: if one thread is in the CS, then no other is
• Progress: threads waiting for access to CS are not prevented from entering by threads not in the CS; threads do not wait indefinitely.
• Bounded Waiting (no starvation): all waiting threads are guaranteed to eventually get access to the CS.
• Performance: The overhead of entering and exiting the CS is small compared to the work done within it.

• Atomic instruction: A machine instruction that can be executed in a single clock cycle.
• Programmers annotate source code with locks around a critical section, ensuring that it behaves like a single atomic instruction.
• What is a lock?
  • Is declared as a lock variable.
  • The lock variable holds the state of the lock.
  • The states are either:
    • Available (unlocked or free): No thread holds the lock
    • Acquired (locked or held): Exactly one thread holds the lock and presumably is in a critical section.
  • The lock variable can also hold additional information (often hidden from users):
    • Which thread is holding the lock
    • A queue for ordering lock acquisition …

• A thread calls lock() when it tries to acquire the lock:
  • If no other thread is holding the lock, the thread will acquire the lock and enter the critical section (becomes owner of the lock).
  • If another thread is holding the lock, the call will not return.
• Once the lock owner is finished, it calls unlock() and the lock becomes available.
  • If there is no waiting thread, the lock becomes free.
  • If there are some waiting threads, one of them will acquire the lock and enter the critical section.
• Lock in pthread: https://linux.die.net/man/3/pthread_mutex_lock

• Create thread_global_lock.c with the following contents:

```c linenums=”1” –8<– “docs/csc466/lectures/data/thread/thread_global_lock.c”

1
2
3
4
5
6
7
8
9
10
11
12
13

- Compile and run `thread_global_lock.c`:
  - Compare the outcome with `thread_sum`
  - Compare the runtime with `thread_sum` and `thread_global_nolock` with a lower input value

```bash
gcc -o thread_global_lock thread_global_lock.c -lpthread
./thread_global_lock 90000 4
./thread_global_nolock 90000 4
./thread_sum 90000 4
./thread_global_lock 2000 4
./thread_global_nolock 2000 4
./thread_sum 2000 4
