One-Way Hash Functions

Overview of One-way Hash Functions

Overview

• Essential building block in cryptography
• Need to satisfy some cryptographic properties:
  • One-way
  • Collision resistant
• Usage example:
  • Password authentication
  • Integrity preservation
  • Blockchain
• Possible Attacks:
  • Length extension attack
  • Collision attack

Properties of One-way Hash Function

• Difference from Hash Function
  • Hash function: maps arbitrary size data to data of fixed size
  • Example: f(x) = x mod 1000
• One-way Hash Properties:
  • One-way: hash(m) = h, difficult to find m
  • Collision resistant: Difficult to find m1 and m2 such that hash(m1) = hash(m2)
• Common One-way Hash Functions:
  • MD series
  • SHA series

Common One-way Hash Functions

MD: Message Digest

• Developed by Ron Rivest
• Includes MD2, MD4, MD5,and MD6
• Status of Algorithms:
  • MD2, MD4 - severely broken (obsolete)
  • MD5 - collision resistance property broken, one-way property not broken
  • MD6 - developed in response to proposal by NIST

SHA: Secure Hash Algorithm

• Published by NIST
• Includes SHA-0, SHA-1, SHA-2, and SHA-3
• Status of Algorithms:
  • SHA-0: withdrawn due to flaw
  • SHA-1: Designed by NSA; Collision attack found in 2017
  • SHA-2: Designed by NSA; Includes SHA-256 and SHA-512; Other truncated versions; No significant attack found yet
  • SHA-3: Released in 2015; Has different construction structure (compared to SHA-1 and SHA-2)

How One-Way Hash Algorithm Works

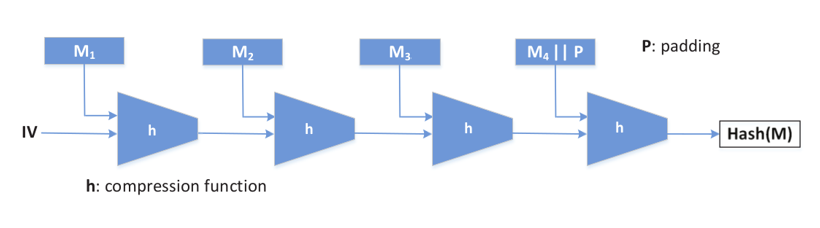

• Construction method called Merkle–Damgard
• Used by algorithms like MD5, SHA-1, and SHA-2
• Block of messages are chain-compresed with an IV to generate a final hashed value

One-Way Hash Commands

• Aavilable via Linux utility programs
• Example: md5sum, sha224sum, sha256sum, sha384sum and sha512sum

1
2
3
4
5
6
7

echo -n "Golden Rams" > file.txt
md5sum file.txt
sha256sum file.txt
openssl dgst -sha256 file.txt
openssl sha256 file.txt
openssl md5 file.txt
openssl dgst -md5 file.txt


Computing One-Way Hash in Programs

• Different languages including C/C++, Python, SQL, PHP provide support
• Language specific:
  • MySQL - SHA2 function
  • Python - Use hashlib package
  • C - Use functions from openssl/sha.h header
• Python example:

1
2
3
4

python3
>>> import hashlib
>>> m = hashlib.sha256()
>>> m.update(b"Golden Rams")


• C example: calculate_sha256.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <openssl/sha.h>

int main(int argc, char* argv) {
  SHA256_CTX ctx;
  u_int8_t results[SHA256_DIGEST_LENGTH];
  int i;
  char *msg_part1 = "Golden ";
  char *msg_part2 = "Rams";

  SHA256_Init(&ctx);
  SHA256_Update(&ctx, msg_part1, strlen(msg_part1));
  SHA256_Update(&ctx, msg_part2, strlen(msg_part2));
  SHA256_Final(results, &ctx);
  printf("%s%s\n", msg_part1, msg_part2);
  for (i = 0; i < SHA256_DIGEST_LENGTH; i++) {
    printf("%02x", results[i]);
  }
  printf("\n");
}


• Confirm that the hash matches

1
2

gcc -o calculate_sha256 calculate_sha256.c -lcrypto
./calculate_sha256


Applications of One-Way Hash Functions

Integrity Verification

• Changing one bit of the original data changes hash value

1
2

echo -n "Golden Rams" | sha256sum
echo -n "G0lden Rams" | sha256sum


• Usage examples:
  • Detect change in system files
  • Detect if file downloaded from website is corrupted

Committing a Secret Without Telling It

• One-way property
  • Disclosing the hash does not disclose the original message
  • Useful to commit secret without disclosing the secret itself
• Usage Example - Stock Market
  • Need to make prediction about the stock market about a certain day
  • Publish the hash of the secret on your website
  • On the particular day, release the secret
• Your audience can verify it against the hash

Password Verification

• To login into account, user needs to tell a secret (password)
• Cannot store the secrets in their plaintext
• Need for:
  • Password storage where nobody can know what the password is
  • If provided with a password, it verified against the stored password
• Solution: one-way hash function
• Example: Linux stores passwords in the /etc/shadow file

1

sudo cat /etc/shadow | grep root


• Case Study: Linux Shadow File
  • Password field has 3 parts, separated by the $ sign:
    • $ALGORITHM_USED$SALT$PASSWORD_HASH
  • Salt and password hash are encoded into printable characters
  • Multiple rounds of hash function (slow down brute-force attack)
• Purpose of Salt
  • Using salt, same input can result in different hashes

  • Password hash = one-way hash rounds (password

    random string)

  • Random string is the salt

1
2
3
4
5
6

useradd -m -s /bin/bash seed
echo "seed:dees" | chpasswd
useradd -m -s /bin/bash seed2
echo "seed2:dees" | chpasswd
cat /etc/shadow | grep seed
cat /etc/shadow | grep seed


• In my case, the outcomes of the final two cat commands are:

1
2

seed:$6$6m4jvilqG3xbXlNa$xHCTxjkWN0Agbo5jBl8xl1EkEN7kyakIHr87Mw2oG1vwV2y2fllXiY5pspZfcu6orQuclyo530S/okBMk2oTy/:19480:0:99999:7:::
seed2:$6$CbEbHBQYnmoyZtw6$EgS8kC6qZXbgJ9tRsucryLKarHRg4NZcXZJ7zAkBoeZ8otrkwx4E3IjjRkrMJmQh9YrP0osbno9RyETkvwDye0:19480:0:99999:7:::


• Both accounts seed and seed2 have the same password, but are salted differently in the hash

1
2
3
4

python3
>>> import crypt
>>> print(crypt.crypt("dees","$6$6m4jvilqG3xbXlNa"))
>>> print(crypt.crypt("dees","$6$CbEbHBQYnmoyZtw6"))


• Attacks Prevented by Salt
  • Dictionary Attack
    • Put candidate words in a dictionary
    • Try each against the targeted password hash to find a match
  • Rainbow Table Attack
    • Precomputed table for reversing cryptographic hash functions
  • Why Salt Prevents them ?
    • If target password is same as precomputed data, the hash will be the same
    • If this property does not hold, all the precomputed data are useless
  • Salt destroys that property

Trusted Timestamping

• Need: How to prove that a document existed prior to certain date ?
• Timestamping Approaches:
  • Approach # 1: Publish one-way hash (instead of document) in a newspaper or a magazine
  • Approach # 2: Time Stamping Authority (TSA) can sign the document hash using private key
  • Approach # 3:
    • Use Blockchain i.e. a growing list of record (blocks)
    • Publish document hash in a block
    • Blockchain depends on one-way hash
