 ## Privileged Program


- A program that is executable by users
  - carries elevated (administrative) power
- Example: `passwd`
  - In Linux, passwords are stored in `/etc/shadow`
  - Users need to be provided indirect access to modify
  their passwords.



- Daemon (background processes) launched by privileged user ID (`root`).
- Utilize `Set-UID` mechanism of Linux to mark a program is privileged.
  - Meaning that the program is owned by root but executable by users.
  - Grant privilege to the task (process), not the user (using effective user ID)





<figure

>
  <picture>
    <!-- Auto scaling with imagemagick -->
    <!--
      See https://www.debugbear.com/blog/responsive-images#w-descriptors-and-the-sizes-attribute and
      https://developer.mozilla.org/en-US/docs/Learn/HTML/Multimedia_and_embedding/Responsive_images for info on defining 'sizes' for responsive images
    -->


        <source
          class="responsive-img-srcset"

            srcset="/assets/img/courses/csc302/os-security/01-480.webp 480w,/assets/img/courses/csc302/os-security/01-800.webp 800w,/assets/img/courses/csc302/os-security/01-1400.webp 1400w,"
            type="image/webp"


            sizes="95vw"

        >


    <img
      src="/assets/img/courses/csc302/os-security/01.png"


        width="50%"


        height="auto"



        alt="Two-tiered access control"



        data-zoomable


        loading="lazy"

      onerror="this.onerror=null; $('.responsive-img-srcset').remove();"
    >
  </picture>


</figure>




~~~bash

id
which id
cp /usr/bin/id ./myid
ls -l ./myid
sudo chown root myid
./myid
sudo chmod 4755 myid
./myid

~~~

- We want to use `cat` to view `/etc/shadow` as a normal user.

~~~bash

cat /etc/shadow

~~~

- Standard execution is not possible. We need more privileges

~~~bash

cp $(which cat) ./mycat
sudo chown root mycat
sudo chmod 4755 mycat
./mycat /etc/shadow

~~~

- `cp $(which cat) ./mycat`: Create a copy of `cat` called `mycat`
- `sudo chown root mycat`: Set the owner of `mycat` to be `root`
- `sudo chmod 4755 mycat`: This is a setuid mechanism - run `mycat` as its owner,
not as the user.

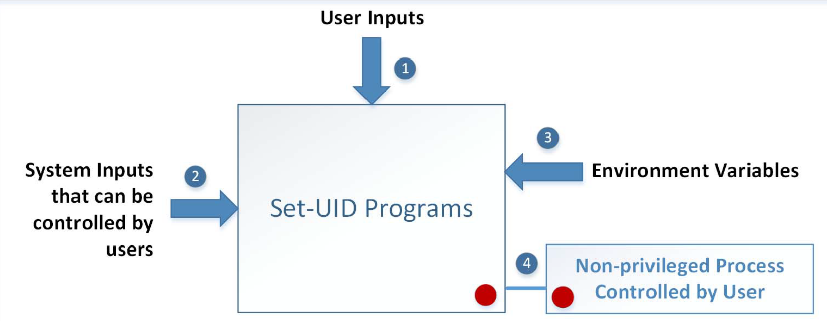

Set UID: what can go wrong?


1
2
3
4
5
 ls -l /etc/zzz
cat /etc/zzz
echo 'insert bad data' >> /etc/zzz


1
2
3
4
5
6
 gcc -w -o cap_leak /local/repository/setup_scripts/software/setuid/cap_leak.c
sudo chown root cap_leak
sudo chmod 4755 cap_leak
ls -l cap_leak


1
2
3
4
5
6
 ./cap_leak
echo 'insert bad data' >&3
exit
cat /etc/zzz


1
2
3
4
5
6
 ls -l /bin/sh
sudo rm /bin/sh
sudo ln -s /bin/zsh /bin/sh
ls -l /bin/sh


1
2
3
4
5
6
 gcc -w -o catall /local/repository/setup_scripts/software/setuid/catall.c
sudo chown root catall
sudo chmod 4755 catall
ls -l catall
